BNXII Series
BNXII Series
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
per
|
Parameter |
Value |
|||
|
Model |
BNXII1.5 |
BNXII1.9 |
BNXII2.5 |
BNXII3.9 |
|
Pixel Pitch |
1.5mm |
1.9mm |
2.5mm |
3.9mm |
|
LED Type |
SMD1212 |
SMD1515 |
SMD1515 |
SMD2121 |
|
Pixel Density (Pixels/m²) |
409600 |
262144 |
160000 |
65536 |
|

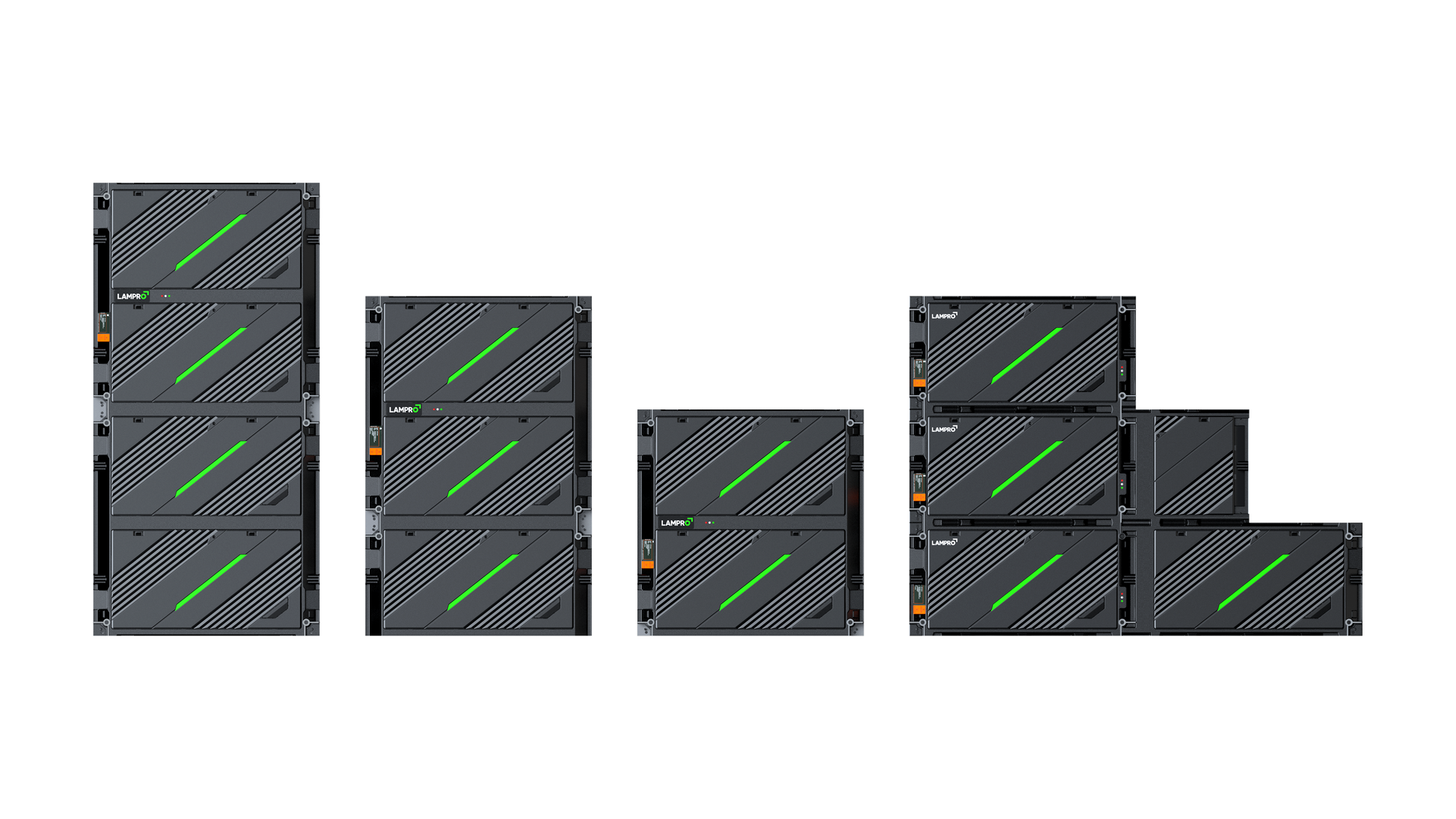

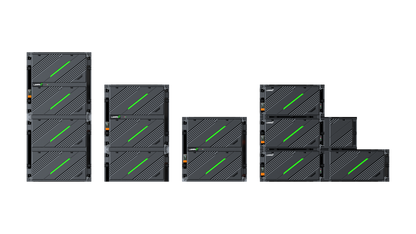

Panel Size (mm) |
500x500/750/1000x40 & 500/750/1000x250x40 |
|||
|
Panel Weight (kg/panel) |
4.9/6.1/9.2 & 2.5/3.6/5.2 |
|||
|
Module Size (mm) |
250x250 |
|||
|
Module Weight (kg/pcs) |
0.41 |
|||
|
Colour Greyscale (Bit) |
≥14 |
|||
|
Refresh Rate (Hz) |
≥3840 |
|||
|
Brightness (nits) |
600 |
800 |
800 |
900 |
|
Contrast Ratio |
5000:1 |
|||
|
Material |
Die-cast Aluminium |
|||
|
AC Input Power Max/Avg (W/m²) |
435/145±10% |
420/140±10% |
||
|
Horizontal / Vertical Viewing Angle (˚) |
155˚/155˚ |
|||
|
Maintenance |
Front & Rear |
|||
|
Installation |
Wall Mounting / Back-strip / Hanging / Ground Stack |
|||
|
Certification |
CE/CB/FCC/ETL/ROHS2.0/PSE/EAC |
|||
Warranty: 3 Years
