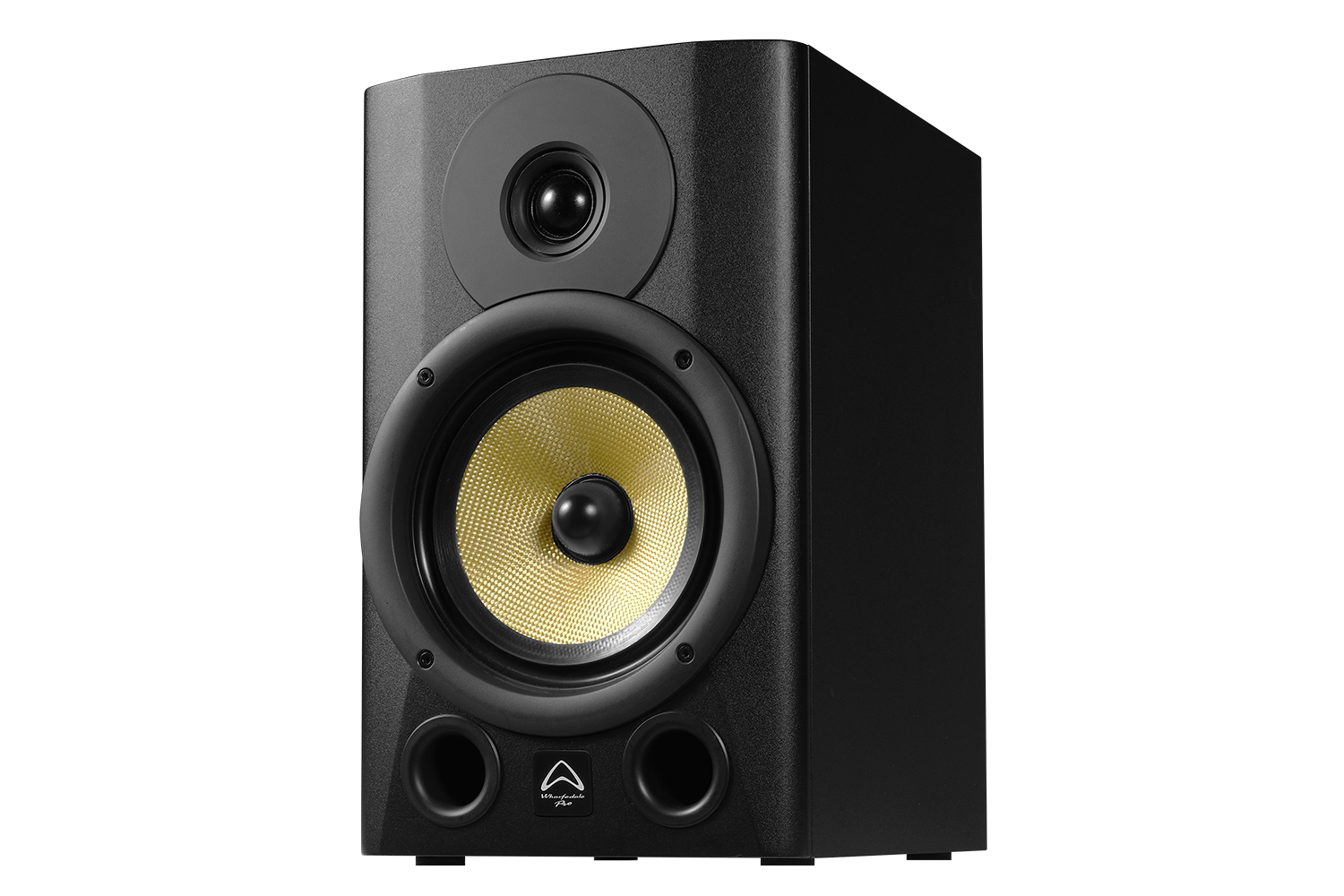

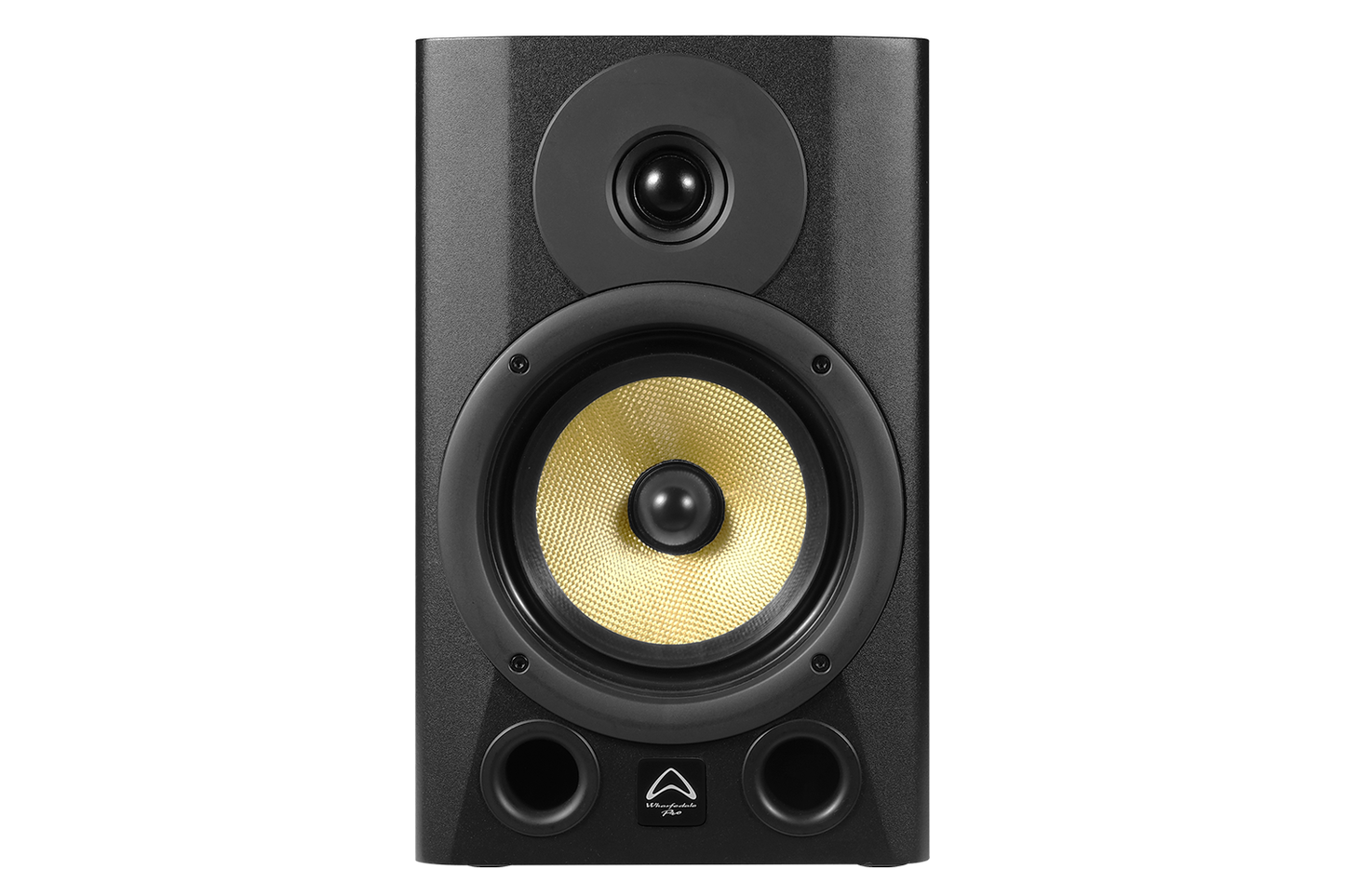

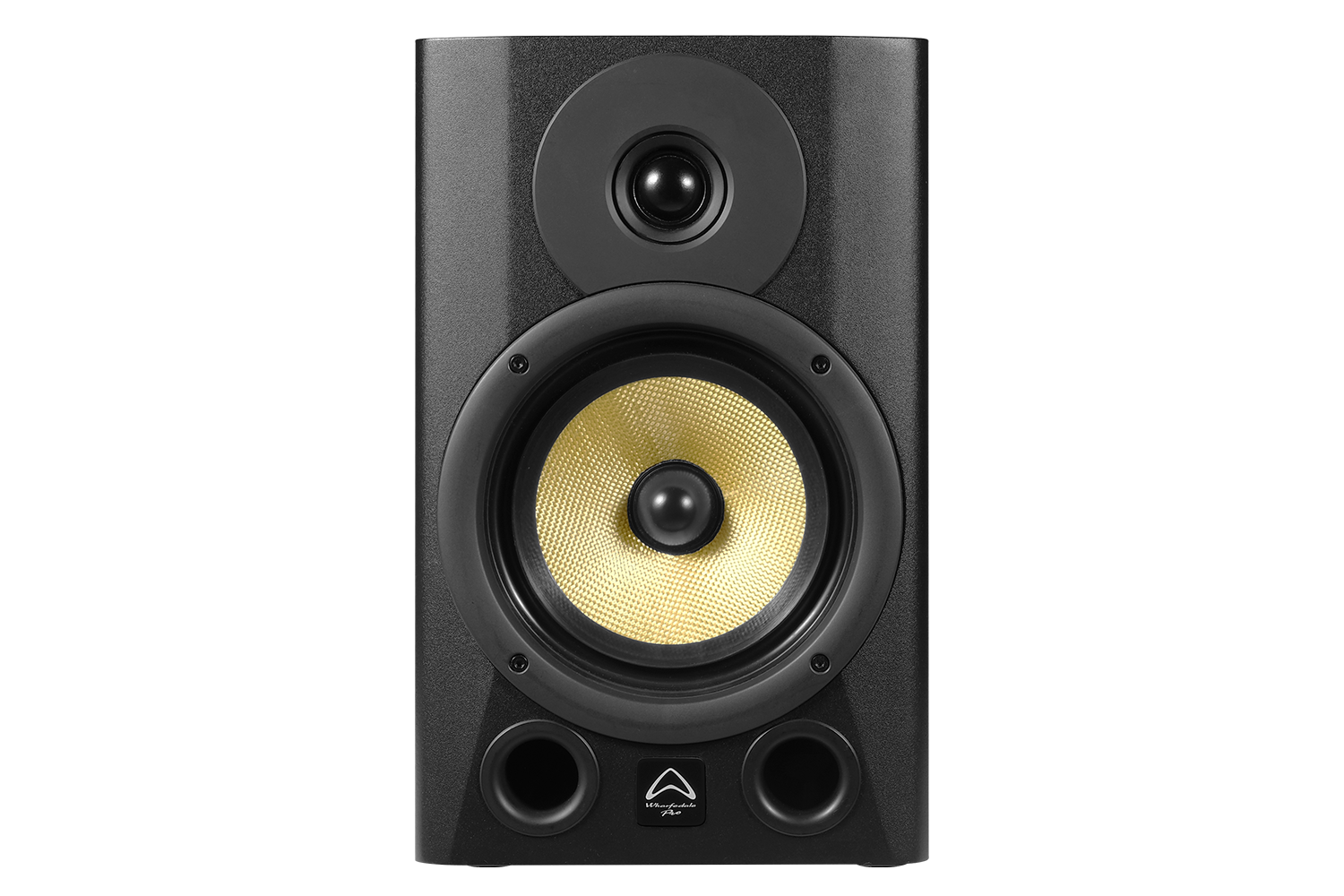

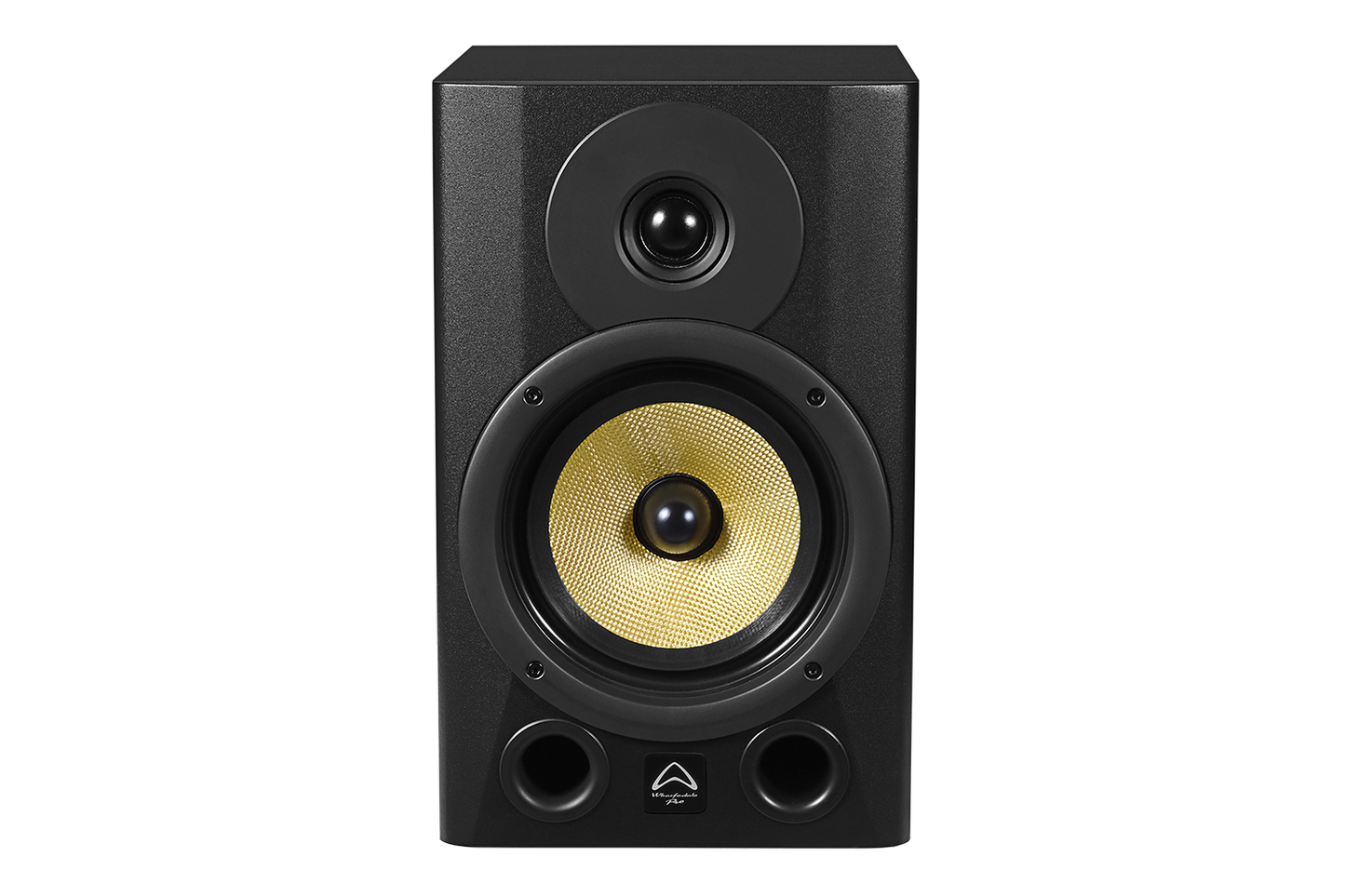

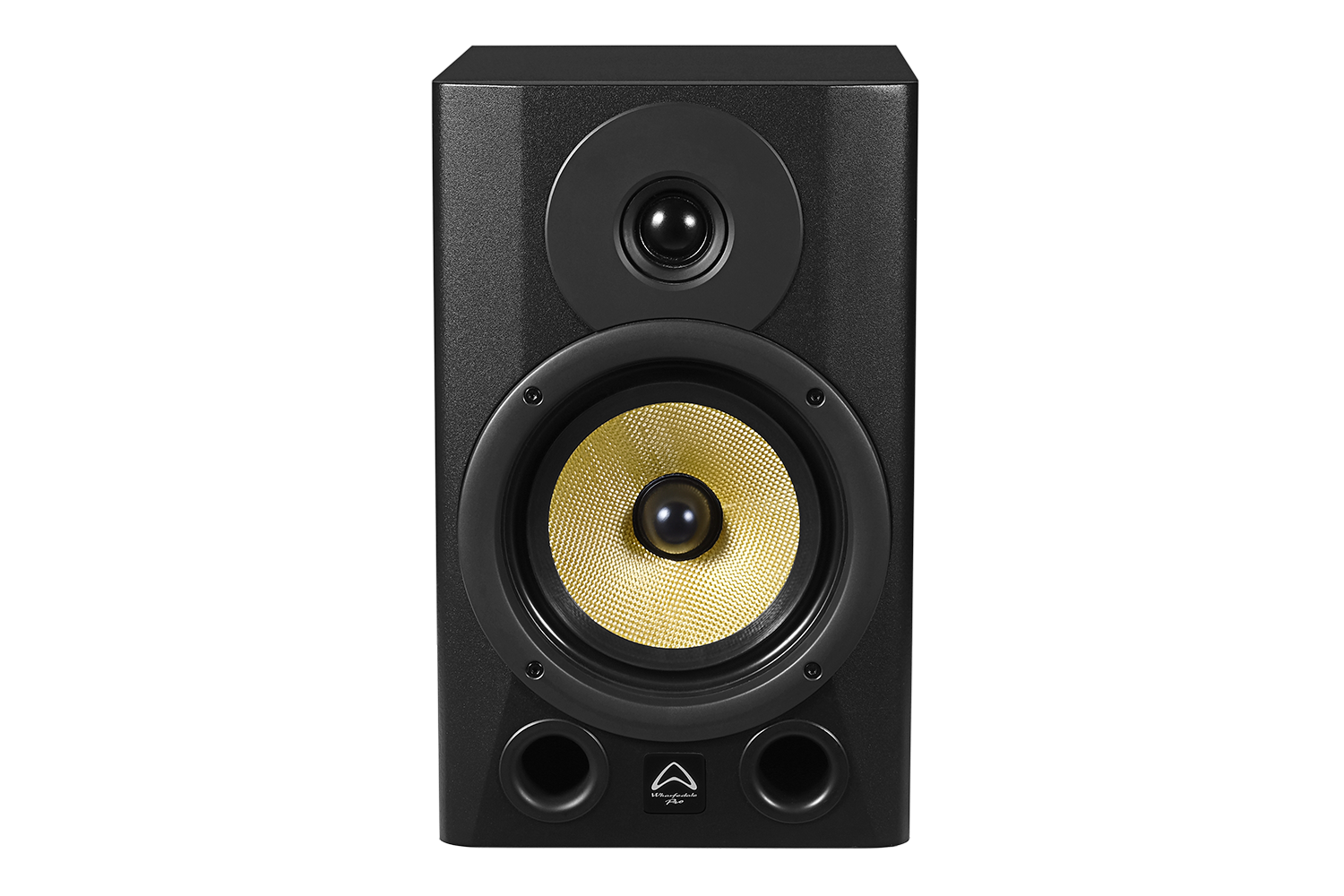

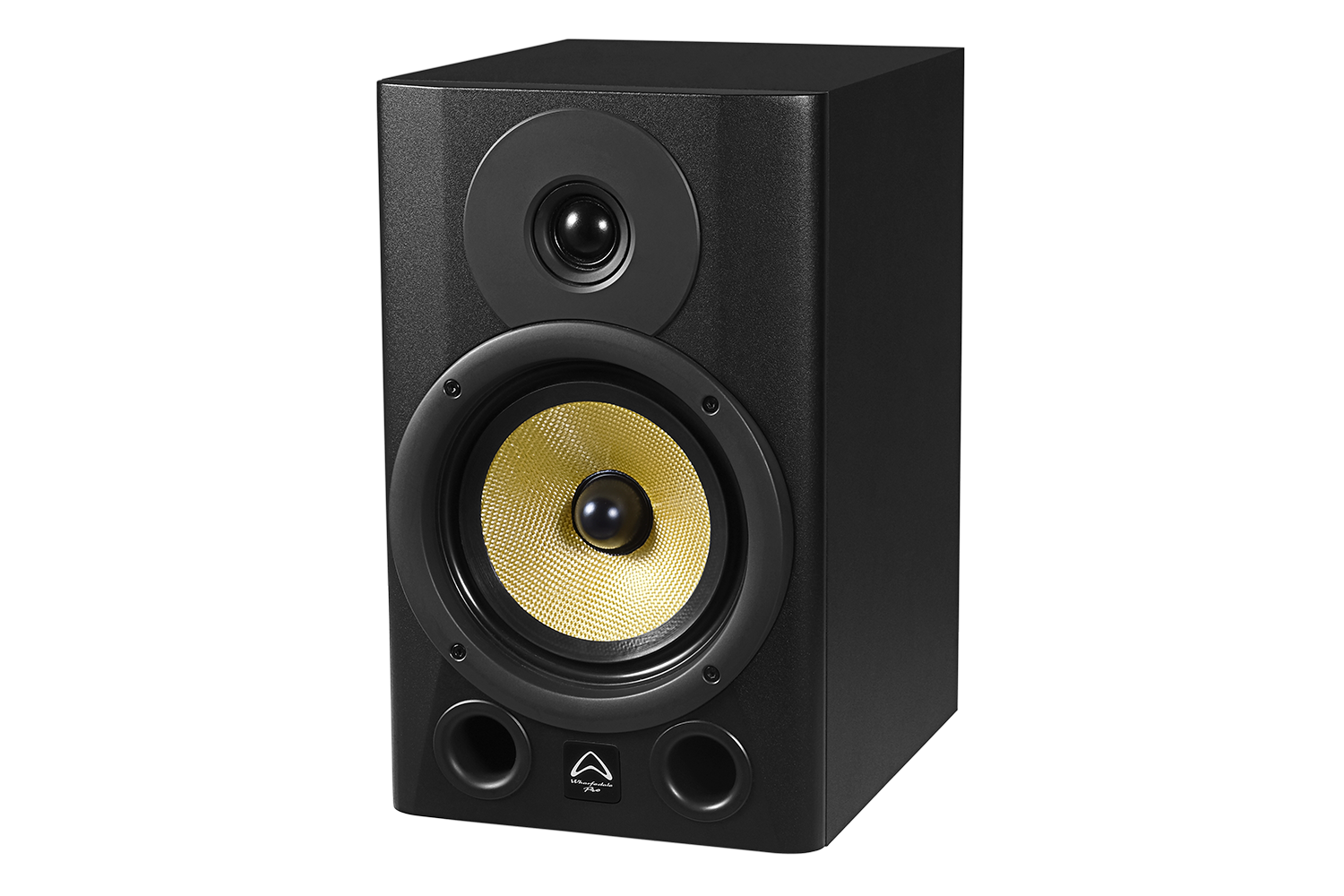

Wharfedale Pro Diamond Studio 7BT - Monitor with Bluetooth

$259.00

Sale Contact for Availability

Honest, uncoloured sound
Bluetooth input with TWS stereo linking
Balanced inputs – XLR, 6.3 mm combi jack
RCA stereo inputs
Class D Bi-amplified.
Woven fibreglass composite LF cones

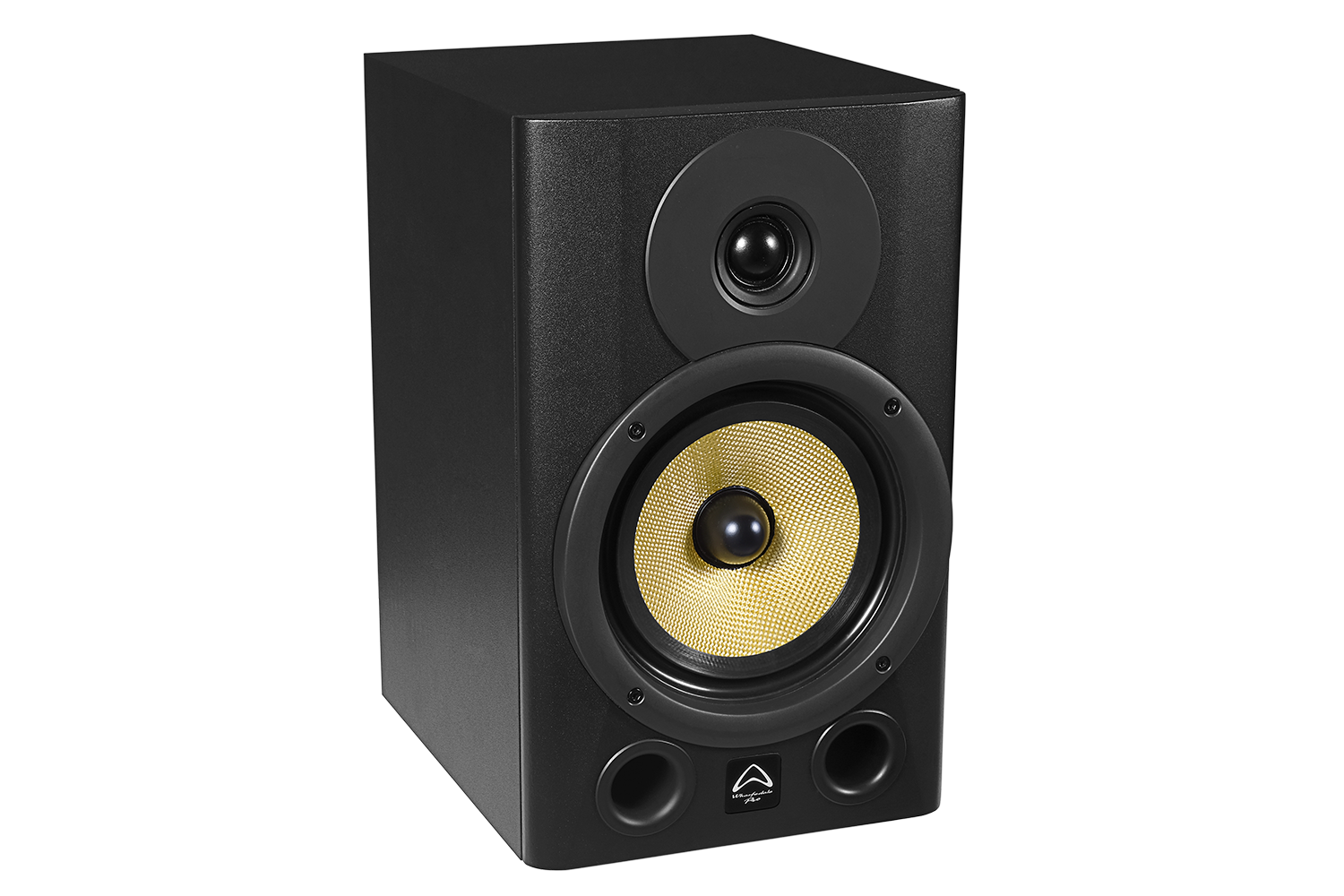

6.5″ Active bi-amplified studio monitor
150 watts continuous
300 watts peak
113 dB Max SPL @ 1 M

TWS BLUETOOTH

Using the BT Stereo link mode, 2 units of Diamond Studio BT create their own Stereo linked pair.

Diamond Studio BT use TWS (True Wireless Stereo) technology to create a controllable linked pair of speakers from a single Bluetooth input.

SUPER ACCURATE

Diamond Studio -BT monitors are designed to be super accurate.

Experience every nuance… or even every problem with your mix. Diamond Studio BT are honest.

A great mix is still a great mix. A bad mix, is still a bad mix.

Either way, Diamond Studio -BT will let you hear the reality.

SPECIFICATIONS

Model Name	Diamond Studio 5-BT	Diamond Studio 7-BT
System Type	Active 5” 2-way Bi-Amplified	Active 6.5” 2-way Bi-Amplified
Freq. Range (-10 dB) Analog Input	45 Hz-25 KHz	38 Hz-25 KHz
Maximum SPL (peak @1 m)	110 dB	113 dB
LF Transducer	5″ Fiberglass composite woofer	6.5″ Fiberglass composite woofer
HF Transducer	Silk Soft dome tweeter	Silk Soft dome tweeter
Coil Size (mm / inches)	25.4 mm / 1”	25.4 mm / 1”
High Frequency Coverage (H x V)	135° x 110°	135° x 110°
Total Power Amplifiers	140 W	150 W
Low-Frequency Power Amplifier (Class D)	80 W Continuous / 160 W Peak	90 W Continuous / 180 W Peak
High- Frequency Power Amplifier (Class D )	60 W Continuous / 120 W Peak	60 W Continuous / 120 W Peak
Electronic Crossover:
Crossover Frequency	2.2 KHz	2.2 KHz
Controls
Equalization (dB)	HF / LF Level Adjust (-2, 0, +1 ,+2)	HF / LF Level Adjust (-2, 0, +1 ,+2)
System Volume	-∞ to +10 dB	-∞ to +10 dB
Amplifier Protection	Yes	Yes
Power On Protection	Power switch on / off mute	Power switch on / off mute
Thermal Protection	Amplifier shutdown, auto reset	Amplifier shutdown, auto reset
Driver, DC and Short Protection	Yes	Yes
Limiter Indicator	Red LED	Red LED
Power Indicator	Green LED/white LED (LOGO)	Green LED/white LED (LOGO)

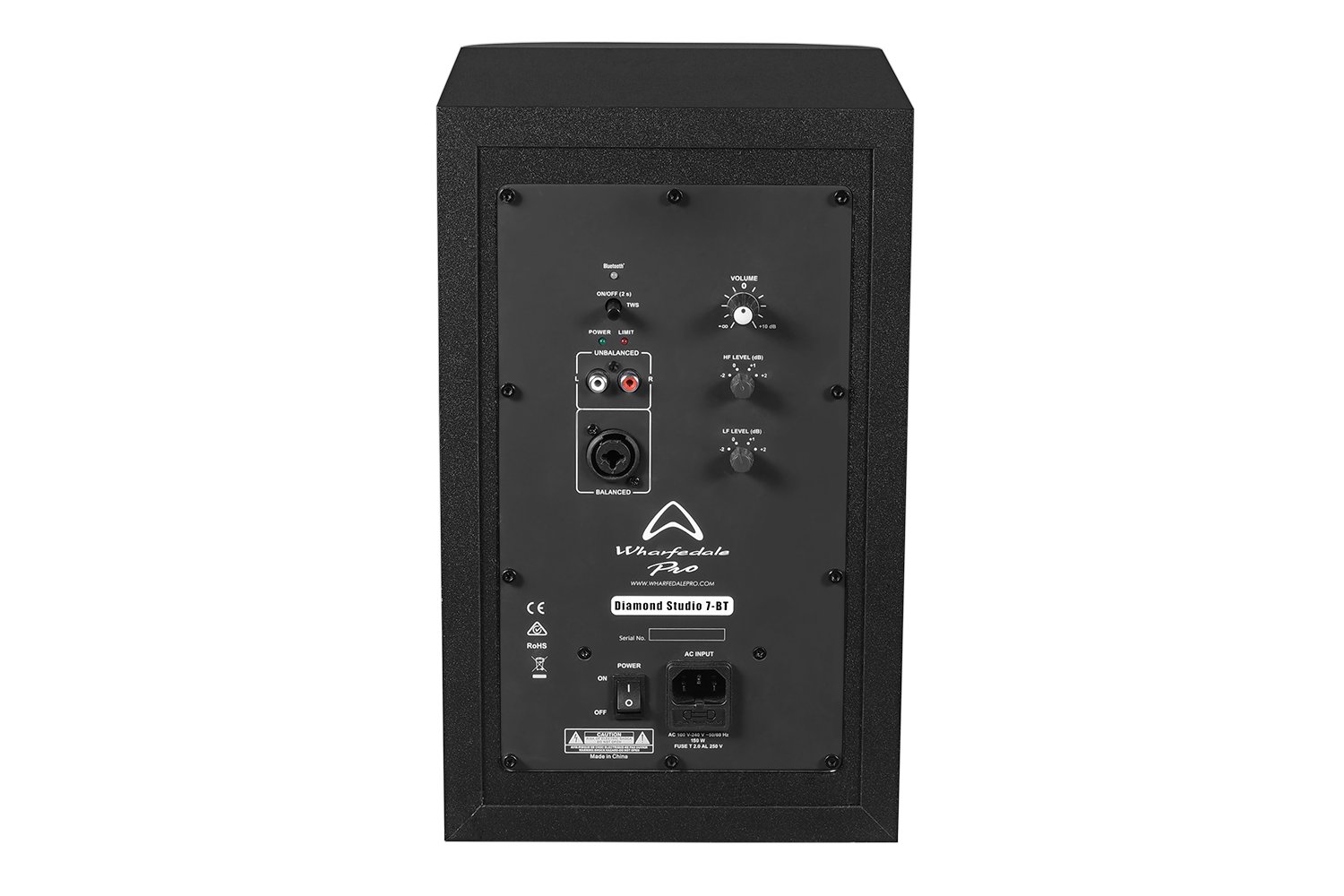

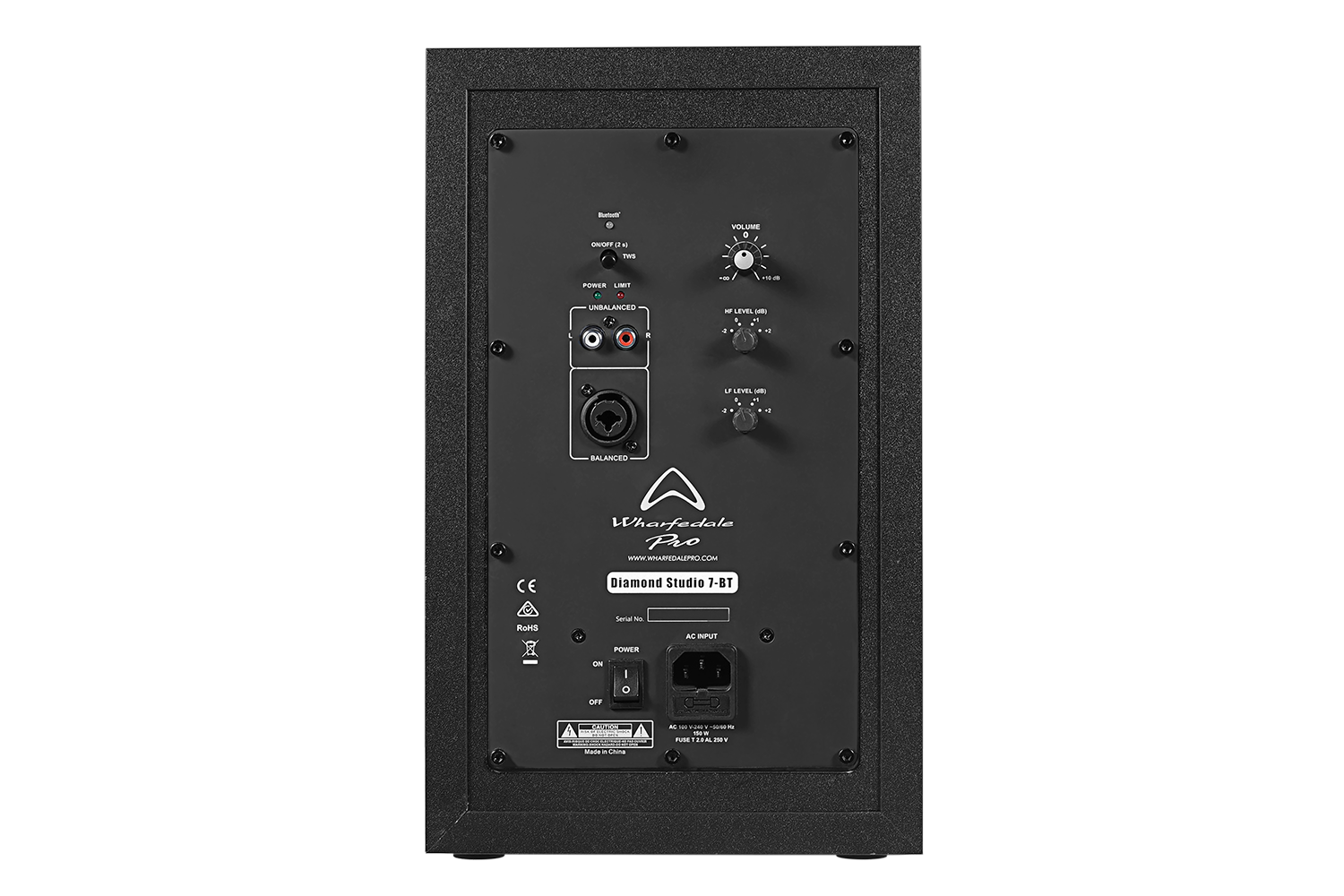

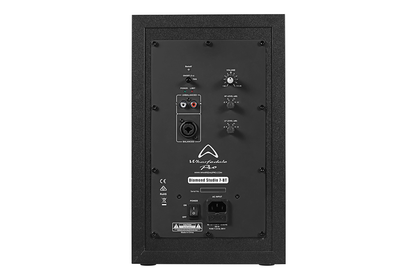

Input type	Balanced / Unbalanced / Bluetooth	Balanced / Unbalanced / Bluetooth
Input Connectors	TRS JACK / FEMALE XLR/RCA	TRS JACK / FEMALE XLR/RCA
AC Power Options	100 V-240 V	100 V-240 V
Power On Indicator	LED	LED
Cabinet Material	MDF	MDF
Cabinet Colour	black	black
Dimensions (Unpacked):
Height	290 mm /11.42 in	340 mm /13.39 in
Width	180 mm /7.1 in	210 mm /8.27″
Depth	240 mm /9.45 in	260 mm /10.24″
Dimensions (packed):
Height	350 mm / 13.78 in	400 mm/15.75 in
Width	242.5 mm / 9.55 in	272 mm/ 10.71 in
Depth	303 mm / 11.93 in	325 mm / 12.80 in
Weight
Net Weight	5.62 kg /12.4 lbs	6.84 kg / 15.1 lbs
Gross Weight	6.47 kg / 14.2 lbs	7.82 kg / 17.20 lbs
