Wharfedale Pro

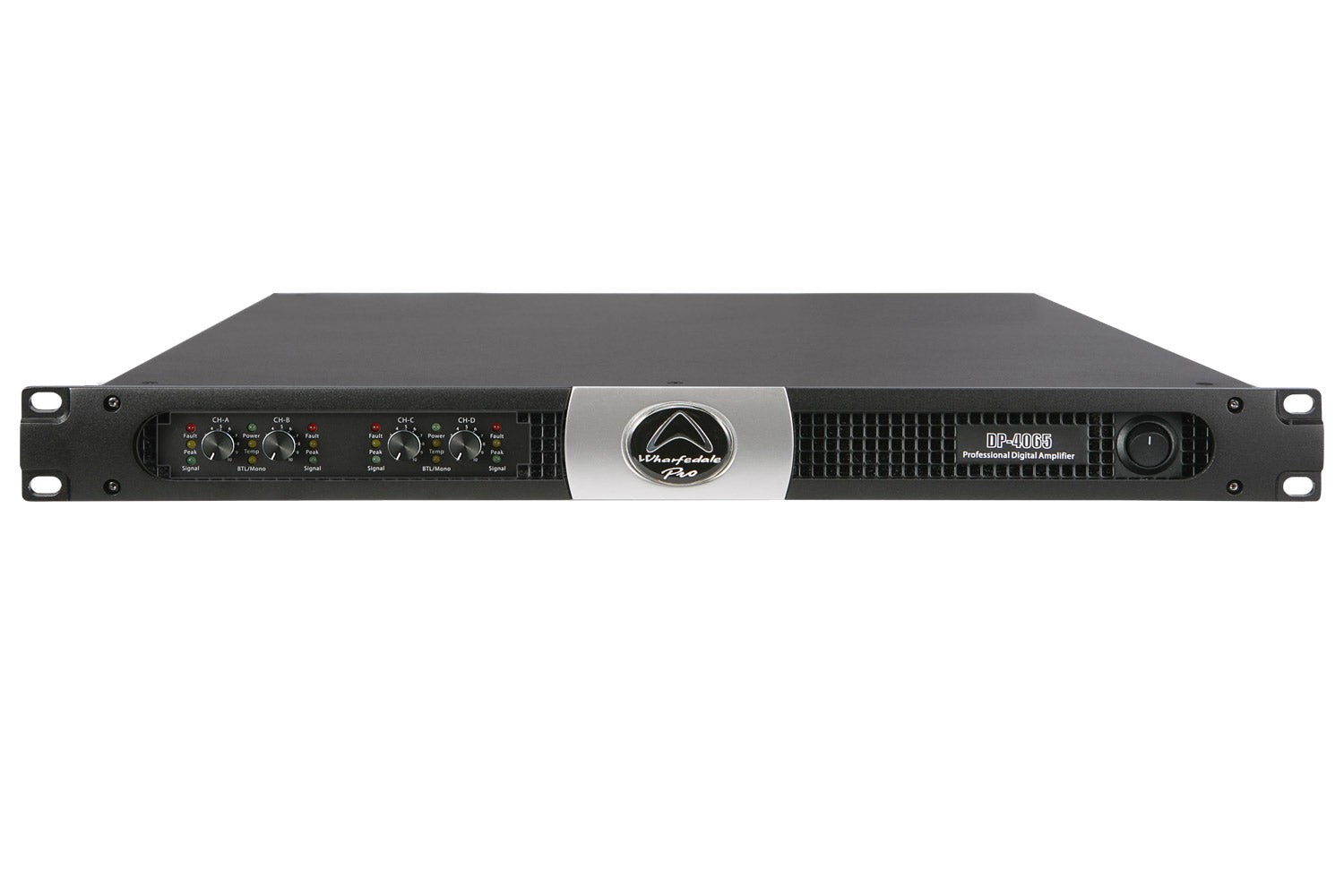

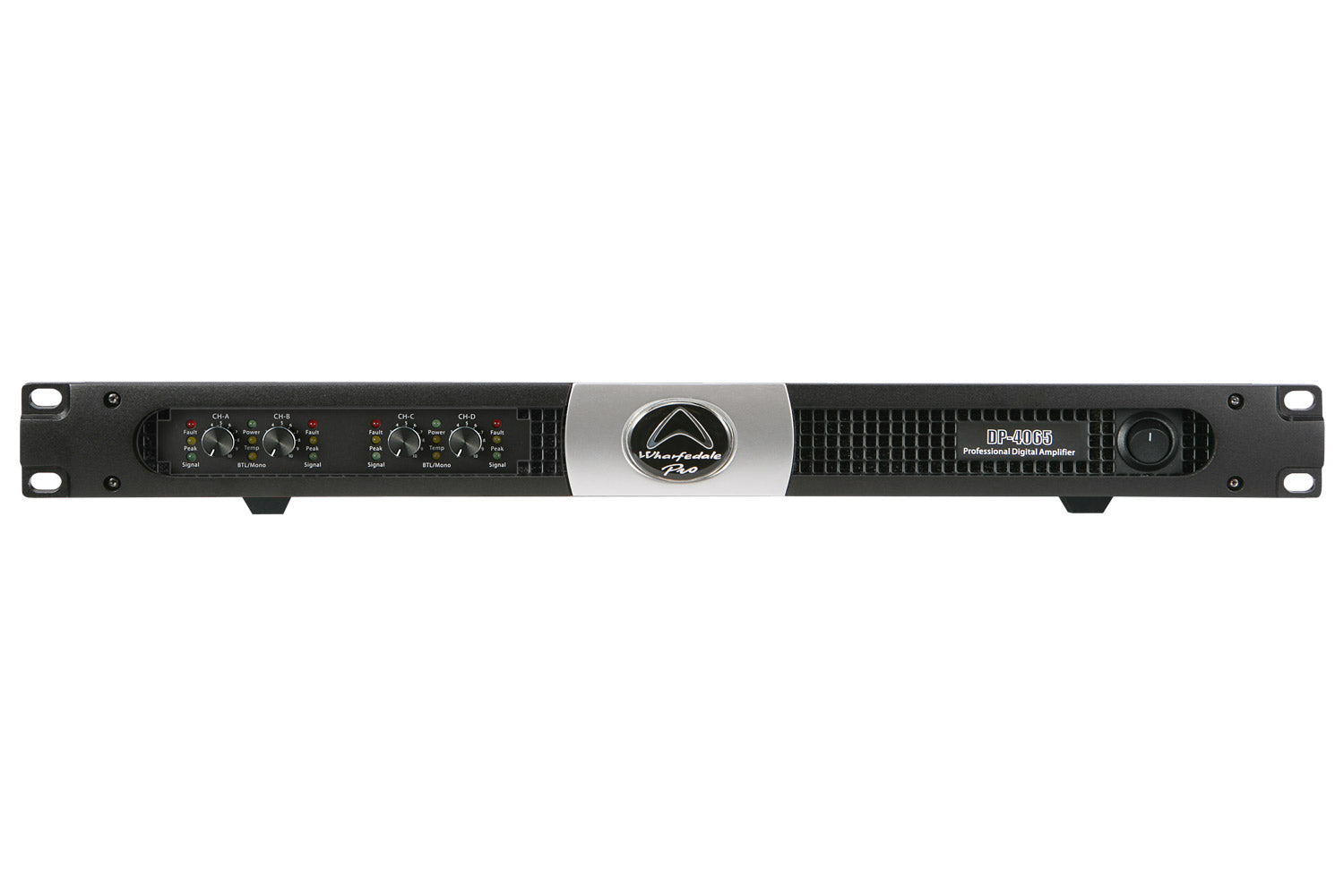

Wharfedale Pro DP-4065 Amplifier
Wharfedale Pro DP-4065 Amplifier
Regular price
$1,769.00
Regular price
Sale price
$1,769.00
Unit price
per
DP SERIES
LIGHT ON WEIGHT. HEAVY ON POWER.
- Super light weight
- 4 channel models
- Stable down to 2Ω
- Drive multiple 8Ω and 16Ω loudspeakers
- 1 * Stereo model generating 6800 watts @ 8 Ω BTL.
- Ultra-quiet variable speed fans and advanced protection circuitry
- 70 V / 100 V compatible models
DP-4065
- 4 channels
- 8 Ohm 4 x 650 Watts
- 4 Ohm 4 x 1100 Watts
- 2 Ohm 4 x 1870 Watts
- 16 Ohm Bridged 2 x 1300 Watts
- 8 Ohm Bridged 2 x 2200 Watts
- 4 Ohm Bridged 2 x 3740 Watts
- 100 V Hi-Z : No
- 70 V Hi-Z : 4 x 1100 Watts
STABLE DOWN TO 2 OHMS
The power output figures of DP series are staggering. The rated power outputs are measured at THD = 1%, continuous sinusoidal 1 KHz with each channel working simultaneously.
DP amps are also stable down to 2 Ohms. This allows for multiple 8 Ω or 16 Ω speakers to be driven with extreme power.
SPECIFICATIONS
| Model | DP-4065 | ||||||
|---|---|---|---|---|---|---|---|
| Rated Power | 8 Ω / Stereo | 4 x 650 W | |||||
| (THD=1%, | 4 Ω / Stereo | 4 x 1100 W | |||||
| Each chan works simultaneously with continuous sinusoidal 1 KHz) |
2 Ω / Stereo | 4 x 1870 W | |||||
| 16 Ω / Bridge | 2 x 1300 W | ||||||
| 8 Ω / Bridge | 2 x 2200 W | ||||||
| 4 Ω / Bridge | 2 x 3740 W | ||||||
| 100 V Hi-Z | – | ||||||
| 70 V Hi-Z | 4 x 1100 W | ||||||
| Output RMS voltage | 72.1 V | ||||||
| Max Input Level | 8.7 Vrms (+21 dBu)(Default Gain) | ||||||
| Default Gain (Rated Power,1 KHz) |
19 dB | ||||||
| Gain (Rated Power,1 KHz) |
19 dB~37 dB | ||||||
| THD+N | Typical value:0.05% (10% Rated Power,8 Ω) | ||||||
| Cross-Talk | ≥90 dB (20 Hz-1 KHz, below Rated Power,8 Ω) | ||||||
| Frequency Response | Typical value:+0,-0.5 dB (10% Rated Power,20 Hz-20 KHz,8 Ω) | ||||||
| Input Impedance | 20 kΩ (Balanced), 10 kΩ (Unbalanced) | ||||||
| Damping Factor | ≥1000 (20 Hz-200 Hz,8 Ω) | ||||||
| SNR | ≥105 dB (Default Gain, A weighted,20 Hz-20 KHz,8 Ω) | ||||||
| Main Power | 90~260 VAC,50/60 Hz | ||||||
| Protection | Power under-voltage, Amplifier output DC, Thermal, Temp Power Control, Overload Power Control | ||||||
| Size(W×H×D) mm | 483 x 45 x 376 | ||||||
| Net Weight | 9.1 kg | ||||||
