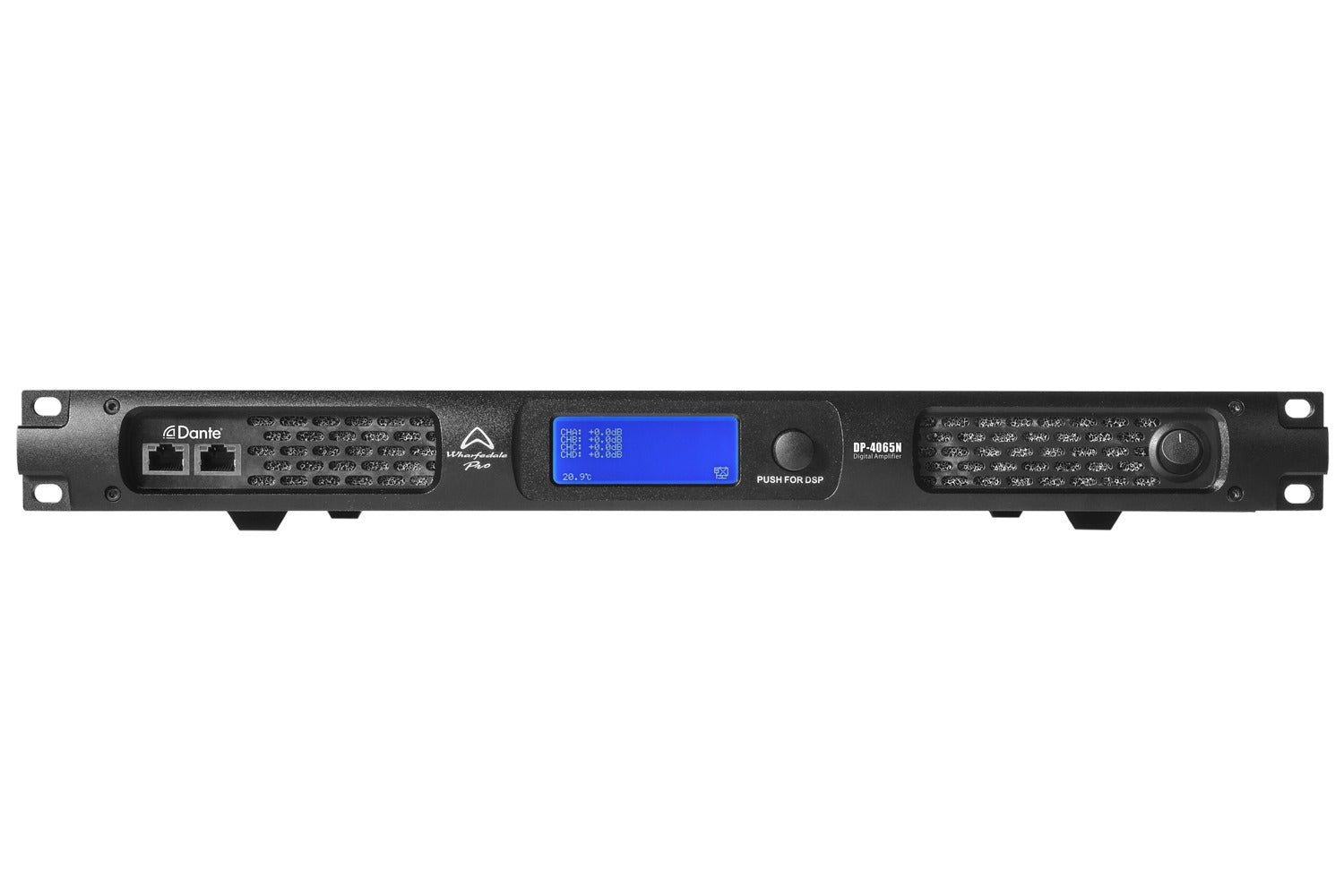

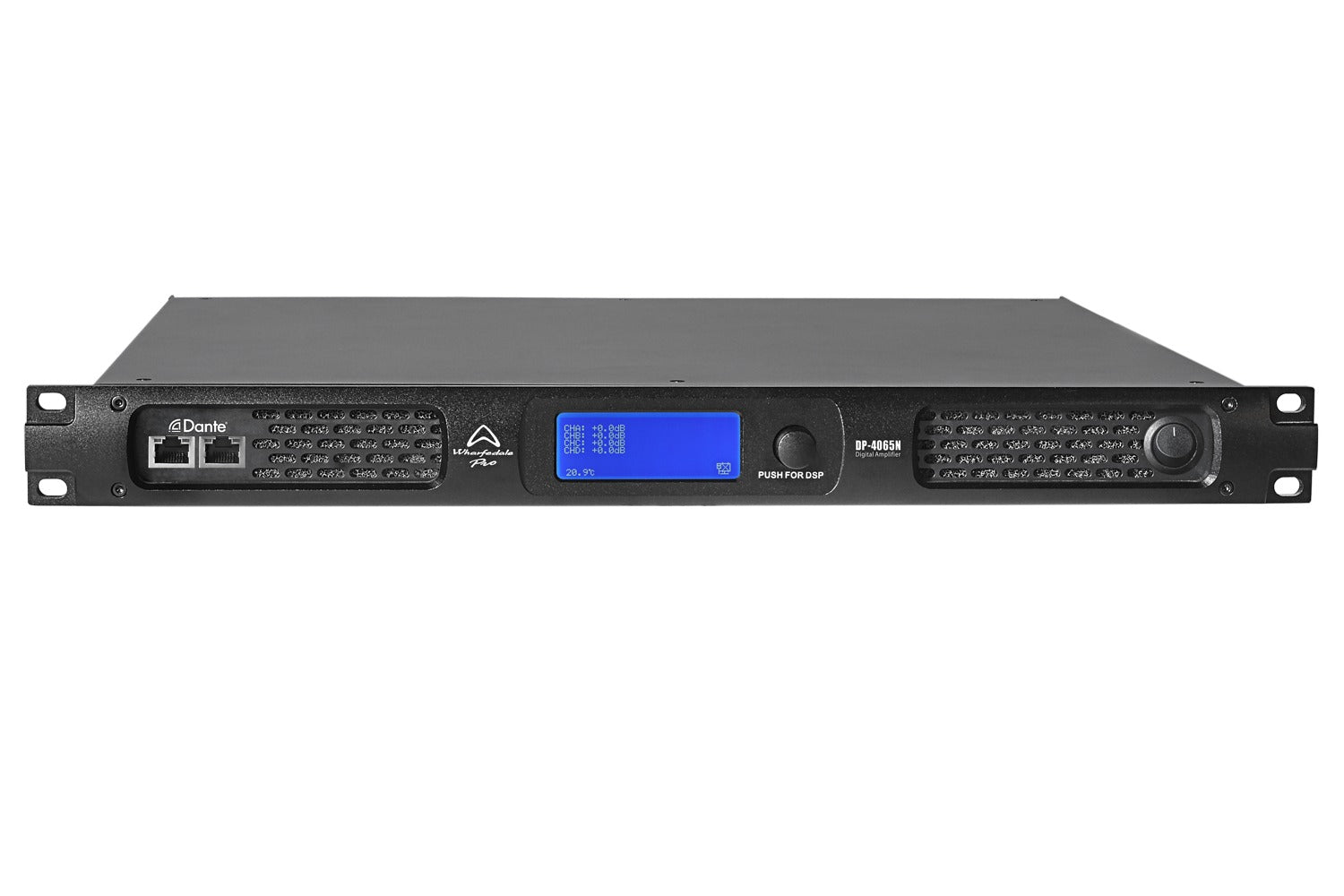

Wharfedale Pro DP-4065N Amplifier
Wharfedale Pro DP-4065N Amplifier
DP-N SERIES
Powerful Class D amplifiers with internal DSP, FIR Filters, Dante ™ connectivity and…. stability down to 2 ohms…..
- Huge Class D power in a 1U rack
- 4 discrete amplification channels
- Internal DSP and computer control
- Stable down to 2 Ω. Drive multiple speakers or line array elements
- FIR filtering with 512 taps
- 90 V to 260 V AC working voltage
- Dante ™ connectivity
- 70 V / 100V compatible models
DP-4065N
- 4 channels
- 8 Ohm 4 x 650 W
- 4 Ohm 4 x 1100 W
- 2 Ohm 4 x 1870 W
- 16 Ohm Bridged 2 x 1300 W
- 8 Ohm Bridged 2 x 2200 W
- 4 Ohm Bridged 2 x 3740 W
- 100 V Hi-Z : No
- 70 V Hi-Z 4 x 1100 W
TAKE CONTROL
Harnessing the power of the internal DSP
The supplied editing software gives a practical overview of all system parameters and DSP features within the DP-N amplifier.
It is simple to monitor and edit the DP-N remotely.
REDUNDANCY
DP series amps get used in ‘mission critical’ environments. Therefore the ‘auto’ mode has been built in to deliver redundancy capability.
Set the input to ‘Auto’ and the input will change, should a problem happen with external connections.
(Use of an internal delay is advised to compensate for any switch timing and latency issues)
FIR FILTERS
FIR Filtering gives
- Independent control of magnitude and phase.
- More detailed equalisation.
- Optimization of frequency and power response.
STABLE DOWN TO 2 OHMS Huge output power and stable down to 2 Ohms
The power output figures of DP-N series are staggering.The rated power outputs are measured at THD = 1%, continuous sinusoidal 1 KHz with each channel working simultaneously.
DP-N amps are also stable down to 2 Ohms. This allows for multiple 8 Ω or 16 Ω speakers to be driven with extreme power.
DANTE ™
Using the Ultimo 4×4 chipset, DP-N amps easily join any Dante ™ ecosystem.
- Digital audio connectivity of up to 96 KHz
- Remote, network control.
BUILD YOUR SYSTEM
DP-N amps are made for your big line array!
With just 3 pcs of DP-4100N……massive systems can be created.
70 V / 100 V READY
In this high impedance system example, the DP-2200N can drive up to 100 pcs of i8T loudspeakers.This configuration can also drive LESS than 100 pcs of i8T. Any number between 2 or 100 !
When switched to 100 V mode, DP-N (F) models have Peak Limiter and RMS Limiters set automatically. Only the HPF needs setting in the EQ section.
Important : Before connecting the load to the amplifier, first measure the line impedance with an impedance bridge (a simple low-cost unit is adequate). If the load impedance is too low, the power amplifier will be loaded down and may overheat or distort. It’s a myth that you can connect an unlimited number of speakers to a 100 V or 70 V line. If the load impedance measures it’s lower than the amplifier minimum operative impedance, re-tap all the speakers at the next-lower power tap. This raises the load impedance. Measure again.
SPECIFICATIONS
| Model | DP-4065N | |
|---|---|---|
| Rated Power (THD=1%,Each channel works simultaneously with continuous sinusoidal 1 KHz) | 8 Ω / Stereo | 4 x 650 W |
| 4 Ω / Stereo | 4 x 1100 W | |
| 2 Ω / Stereo | 4 x 1870 W | |
| 16 Ω / Bridge | 2 x 1300 W | |
| 8 Ω / Bridge | 2 x 2200 W | |
| 4 Ω / Bridge | 2 x 3740 W | |
| 100 V Hi-Z | – | |
| 70 V Hi-Z | 4 x 1100 W | |
| Output RMS voltage | 72.1 V | |
| Maximum Input Level | 8.7 Vrms(+21 dBu)(Default Gain) | |
| Default Gain (Rated Power,1 KHz) | 19 dB | |
| Gain(Rated Power,1 KHz) | 19 dB~37 dB | |
| THD+N | Typical value:0.05%(10% Rated Power,8 Ω) | |
| Cross-Talk | ≥90 dB(20 Hz-1 KHz,Below Rated Power,8 Ω) | |
| Frequency Response | Typical value:+0,-0.5 dB(10% Rated Power,20 Hz-20 KHz,8 Ω) | |
| Input Impedance | 20 kΩ(Balanced),10 kΩ(Unbalanced) | |
| Damping Factor | ≥1000(20 Hz-200 Hz,8 Ω) | |
| SNR | ≥105 dB (Default Gain, A weighted,20 Hz-20 KHz,8 Ω) | |
| Main Power | 90~260 VAC,50/60 Hz | |
| Protection | Power under-voltage protection、Amplifier output DC protection、Thermal Protection、 Temperature Power Control、Overload Power Control | |
| Size(W×H×D) | 483 x 45 x 376 mm | |
| Net Weight | 9.1 kg | |
