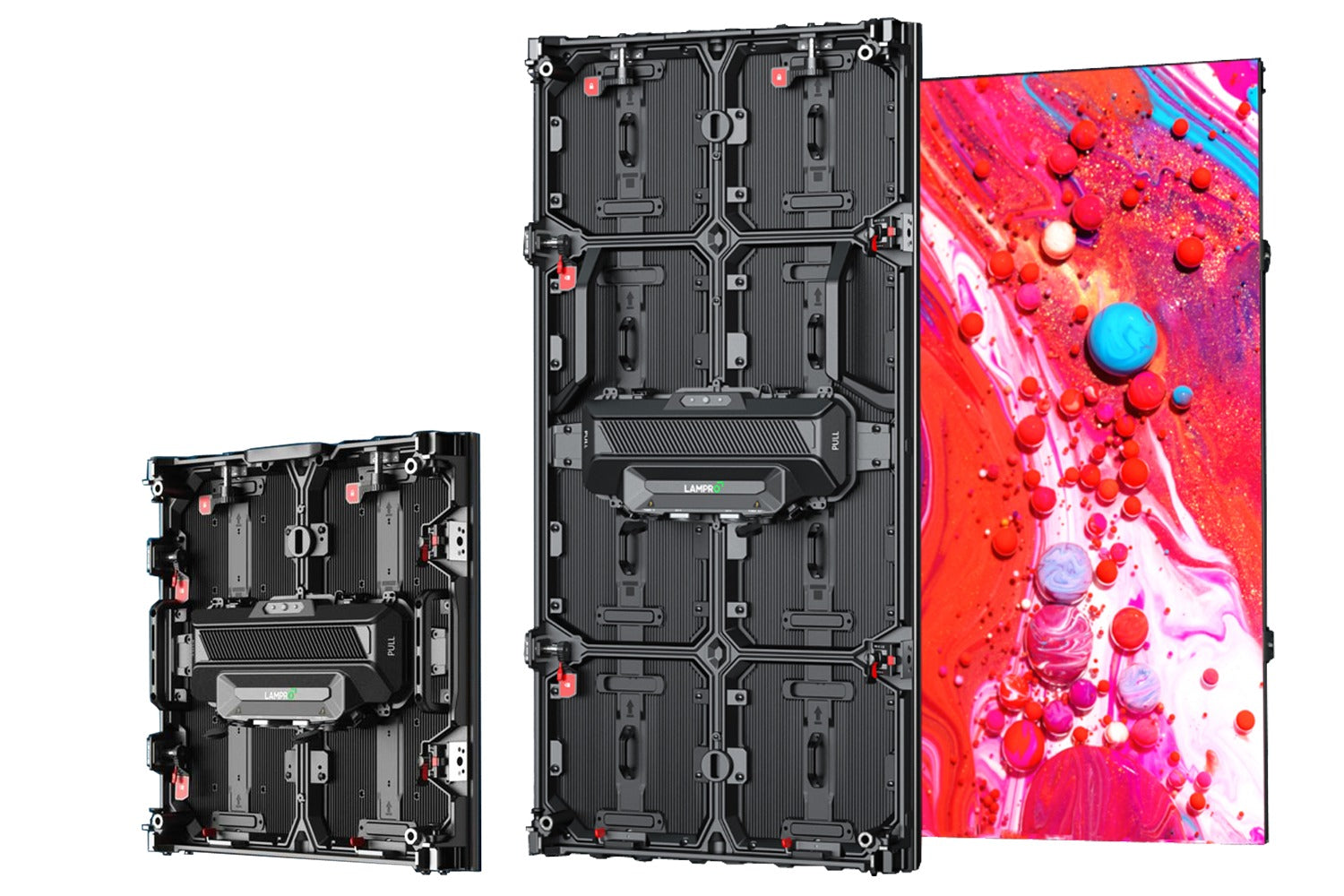

LAMPRO
LRS Series
LRS Series
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
/
per
Carefree Rental Indoor Application
Features
-
Ingress Protection (Front/Rear)
- IP40/IP20
-
Amazing visual performance
- HD display, up to 800nits brightness (After calibration), 3840Hz refresh rate and 14bits grayscale;
-

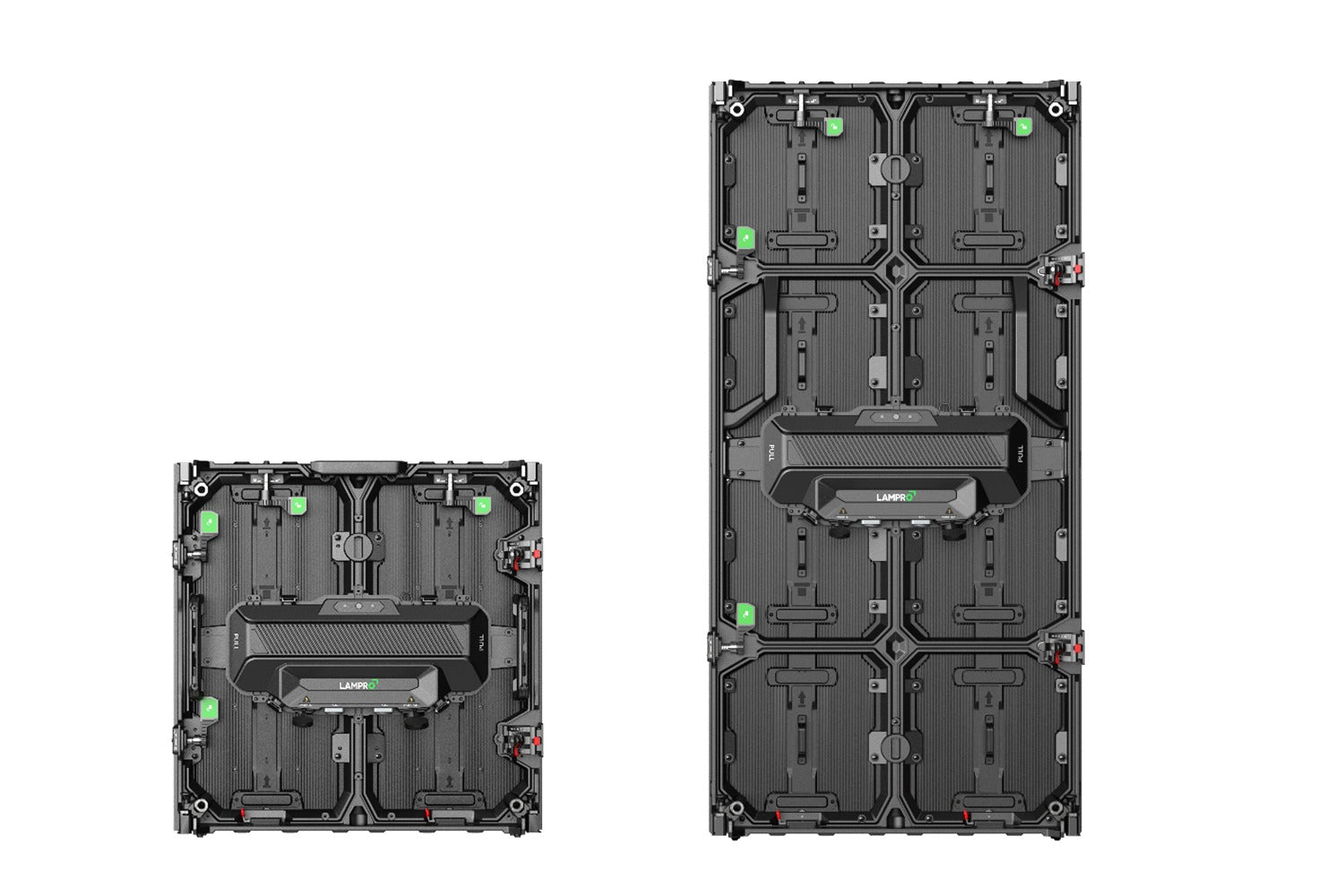

Modular design
- Fully modular design: modules+frame+control box(3 in 1);
- Independent control box, makes quicker replacement.
-
Quick installation by one man
- Magnetic-assisted design, more accurate and quicker for man to align to columns;
- 7.5kg or 11.5kg per cabinet, easy to carry around.
-
Universal design
- Indoor Cabinets share modules and control box.
-
Creative splicing, infinite possibilities
- 90° round corner;
- Max ±10° Concave and convex screens;
- Compatible with XS series, greater arc.
Specifications:
| Parameter |
Value
|
|||
|---|---|---|---|---|
| Pixel Pitch(mm) |
1.95
|
2.6
|
2.9
|
3.9
|
| LED Type |
3-in-1 SMD
|
3-in-1 SMD
|
3-in-1 SMD
|
3-in-1 SMD
|
| Brightness(Cd/㎡) |
800-1000
|
|||
| Pixel Density(Pixels/㎡) |
262,144
|
147,456
|
112,896
|
65,536
|
| Module Size(W*H mm) |
250x250
|
250 × 500
|
||

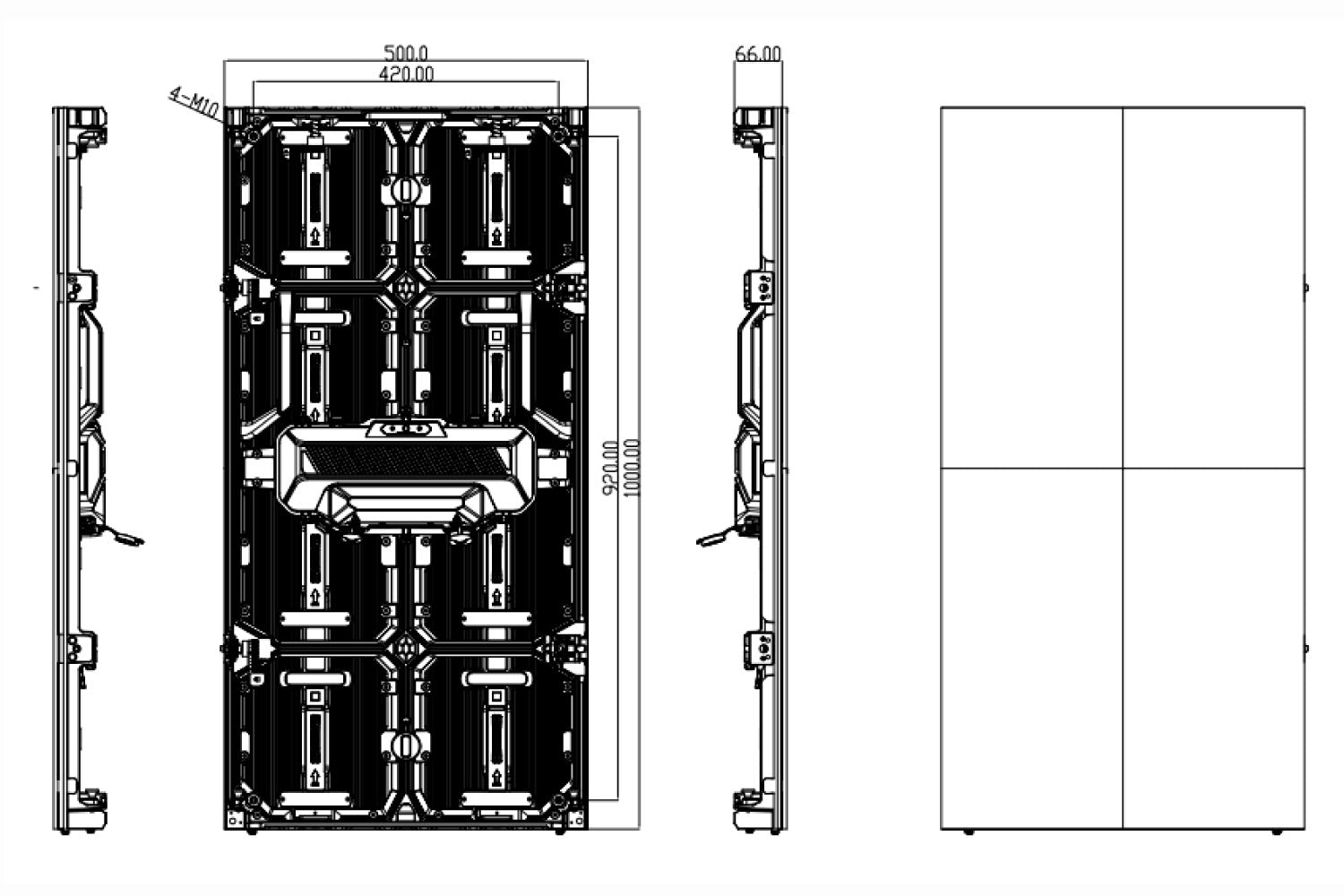

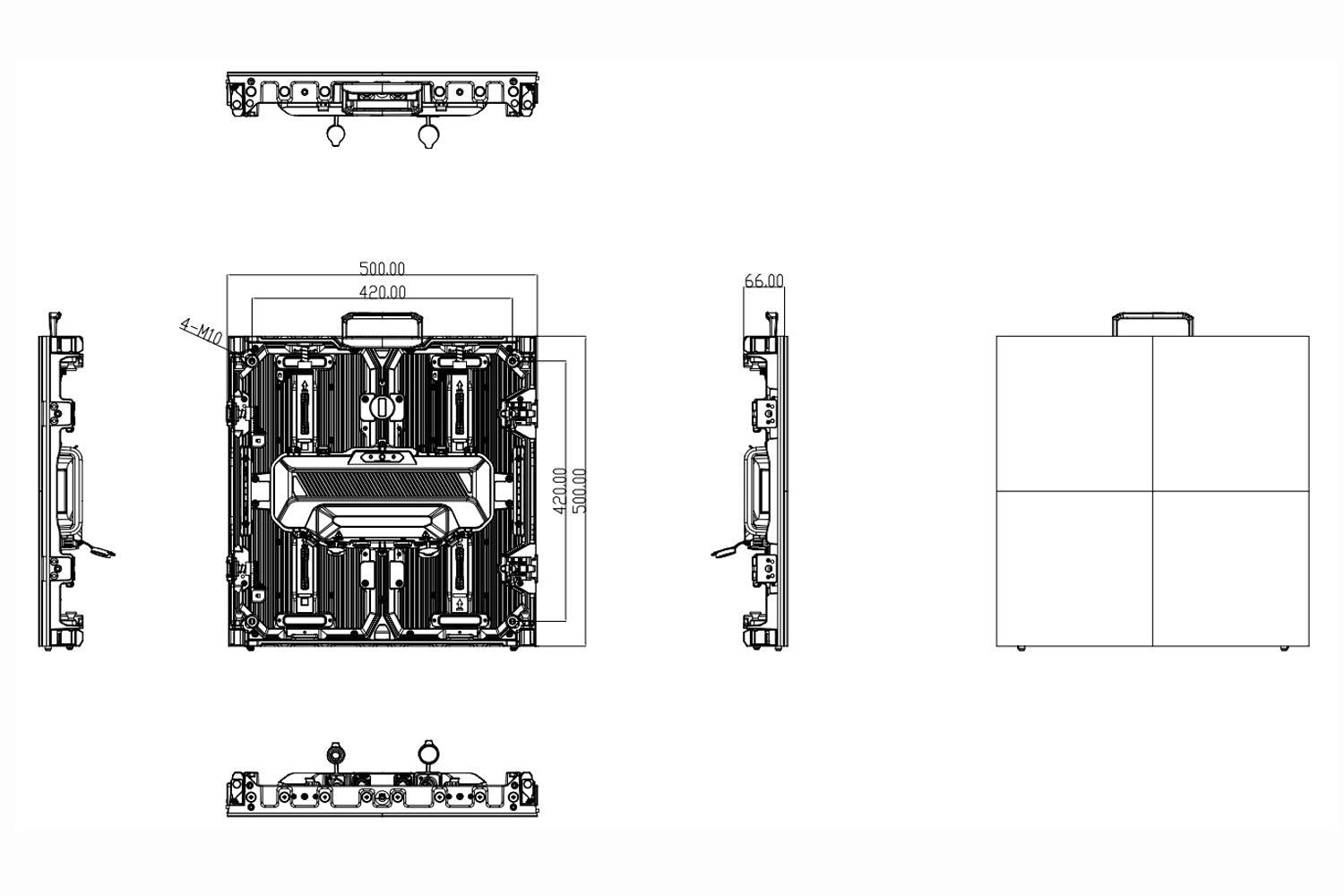

| Panel Size(WHD mm) |
500 x 500 x 74.2
|
500 ×500/ 1000 × 74.2
|
||
| Weight(Kg) |
7.5 kg
|
7.5/11.5 kg
|
||
| Maintenance |
Front / Rear
|
|||
| Curve |
Convex 10° -Concave 10°
|
|||
| Material |
Die-cast Aluminum
|
|||
| Viewing Angle(H/V °) |
160°/160°
|
170°/170°
|
160°/155°
|
|
| Contrast Ratio |
5000:1
|
7000:1
|
6300:1
|
5000:1
|
| Input Power <Max>/<Typical>（W/m²) |
480/160
|
465/155
|
460/153
|
450/150
|
| Processing Depth(Bit) |
14
|
|||
| Refresh Rate(Hz) |
3840Hz
|
|||
| Standard Mounting Configuration |
Hanging, Stacking
|
|||
| Max hanging(Panels) |
20
|
20/10
|
||
| Max stacking(Panels) |
12
|
12/6
|
||
| Certification |
CE/CB/ETL/FCC/RoHS
|
|||
Warranty: 2 Years
