LAMPRO

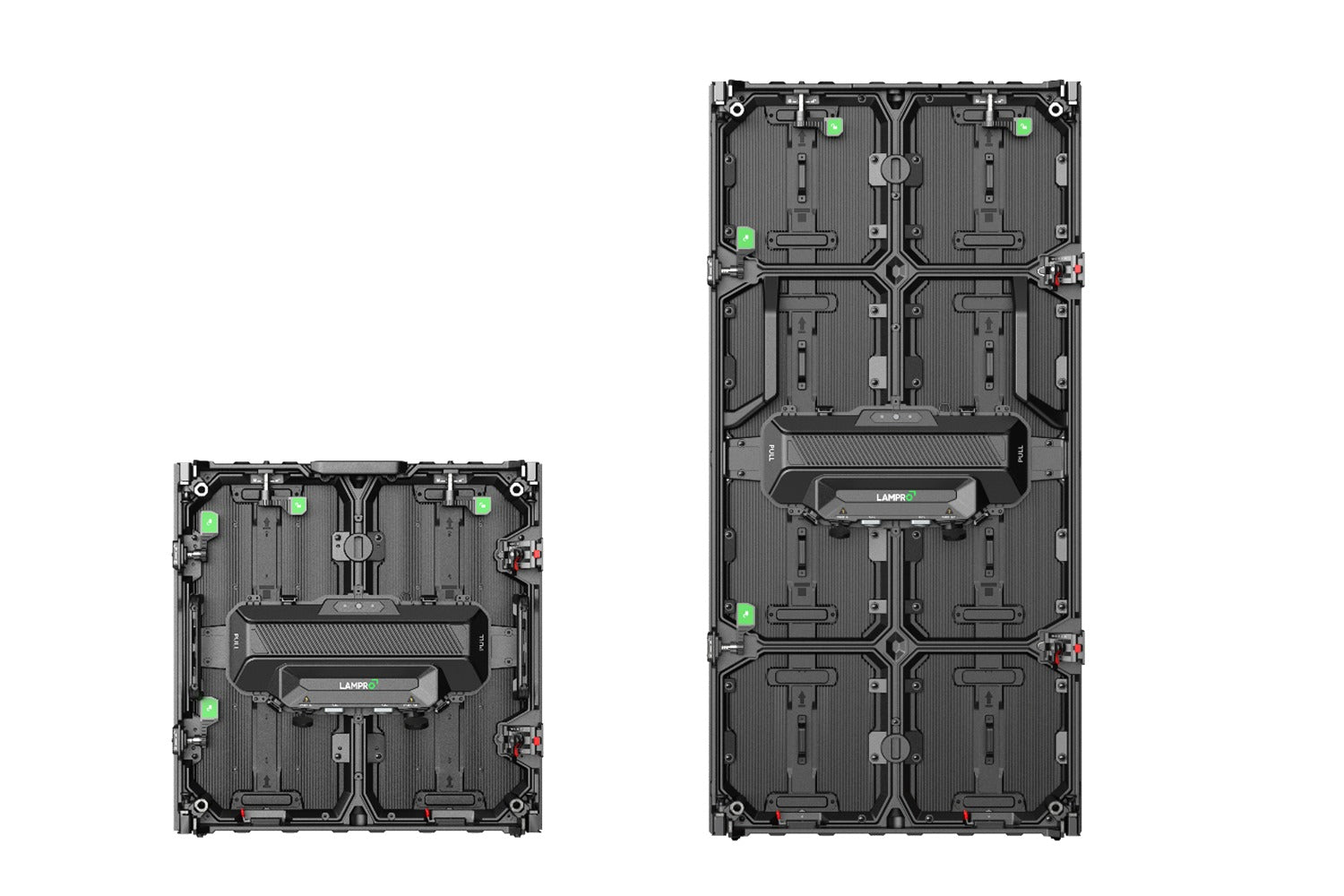

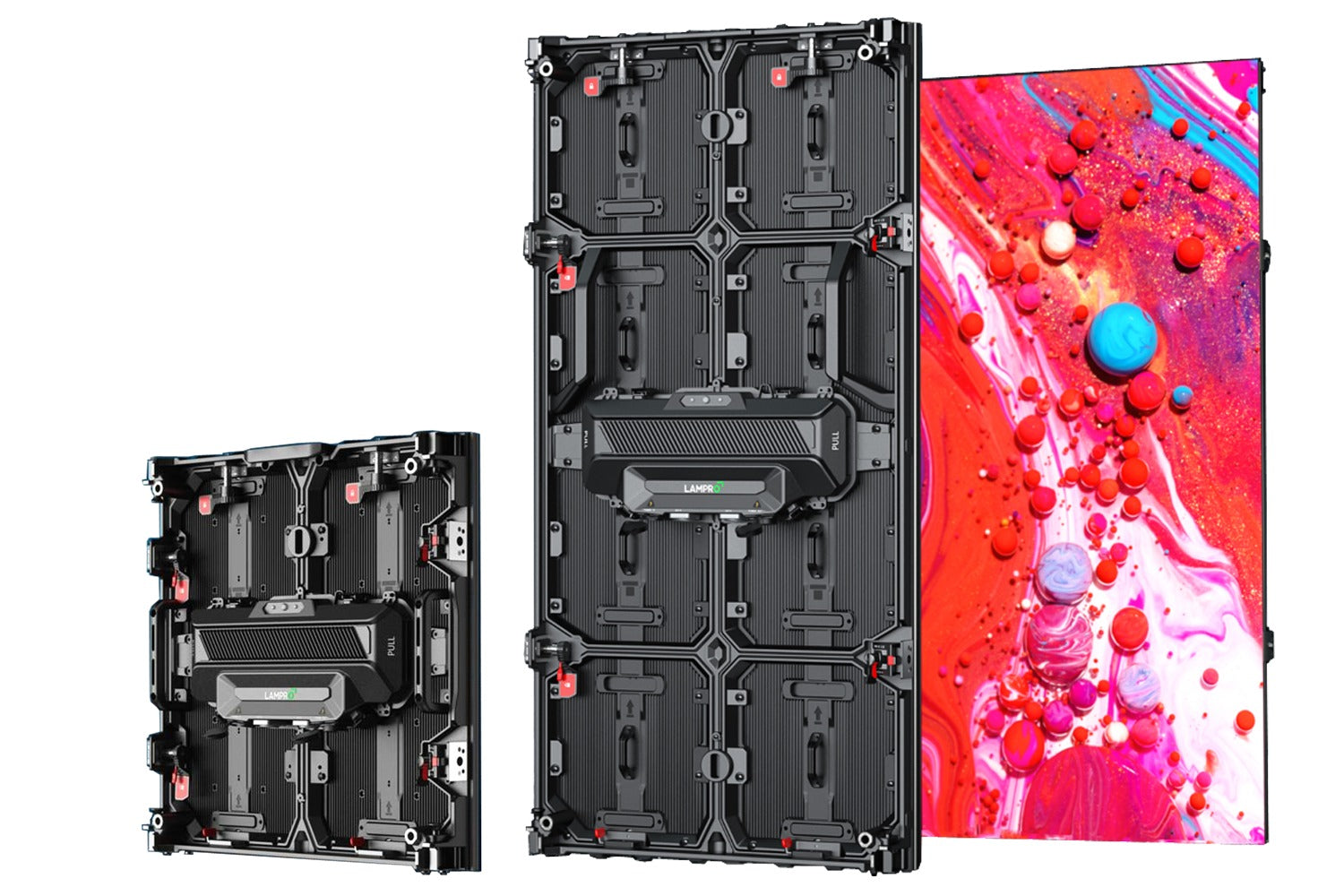

LRSO Series
LRSO Series
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
/
per
Carefree Rental Outdoor Application
Features
-
Ingress Protection (Front/Rear)
- IP65/IP54
-
Amazing visual performance
- HD display, up to 800nits brightness (After calibration), 3840Hz refresh rate and 14bits grayscale;
-
Modular design
- Fully modular design: modules+frame+control box(3 in 1);
- Independent control box, makes quicker replacement.
-
Quick installation by one man
- Magnetic-assisted design, more accurate and quicker for man to align to columns;
- 7.5kg or 11.5kg per cabinet, easy to carry around.
-
Universal design
- Indoor Cabinets share modules and control box.
-
Creative splicing, infinite possibilities
- 90° round corner;
- Max ±10° Concave and convex screens;
- Compatible with XS series, greater arc.
Specifications:
| Parameter |
Value
|
|
|---|---|---|
| Pixel Pitch(mm) |
O3.9 (O = Outdoor)
|
O4.8 (O = Outdoor)
|
| LED Type |
3-in-1 SMD
|
3-in-1 SMD
|
| Brightness(Cd/㎡) |
4500 - 5000
|
|
| Pixel Density(Pixels/㎡) |
65,536
|
43,264
|

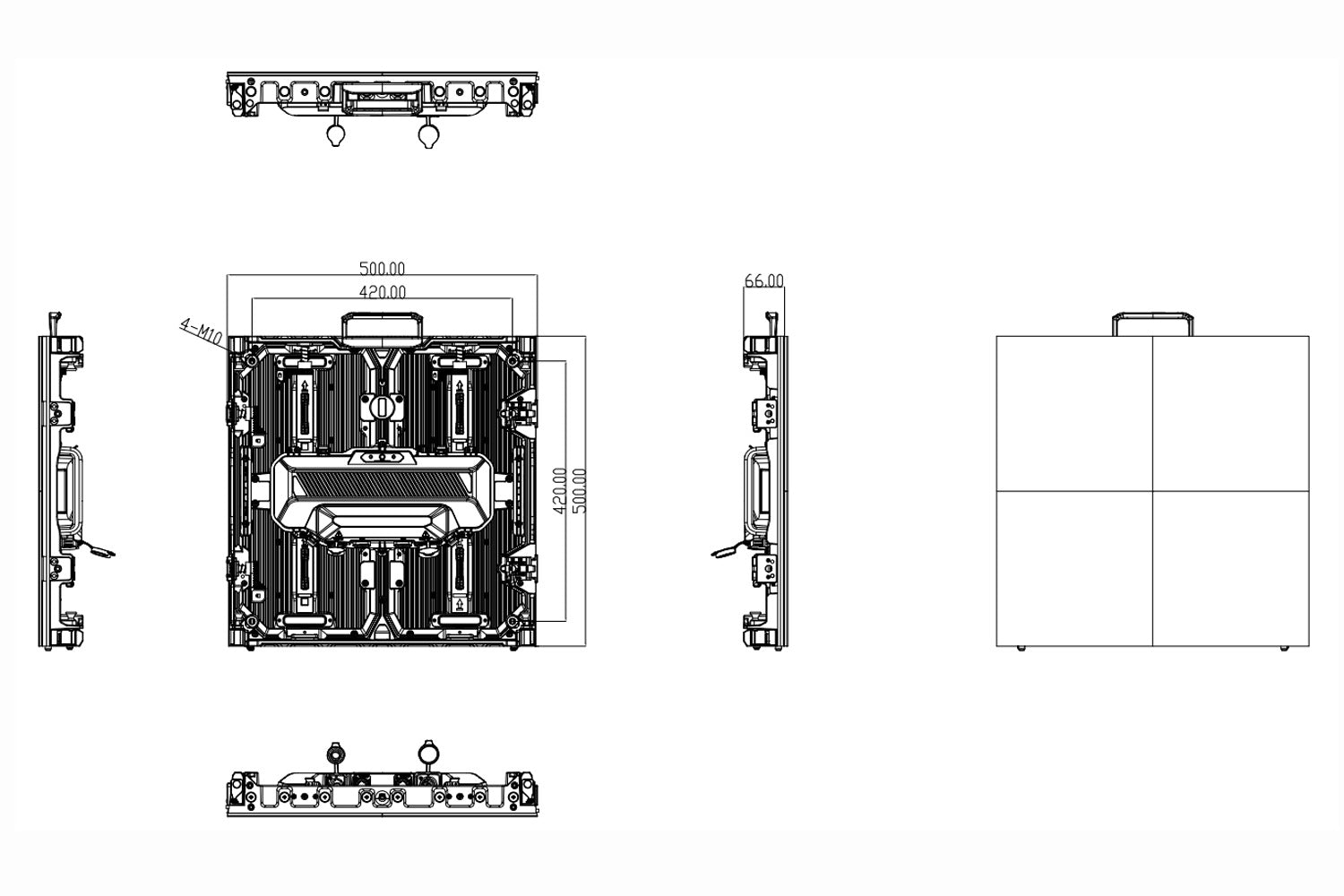

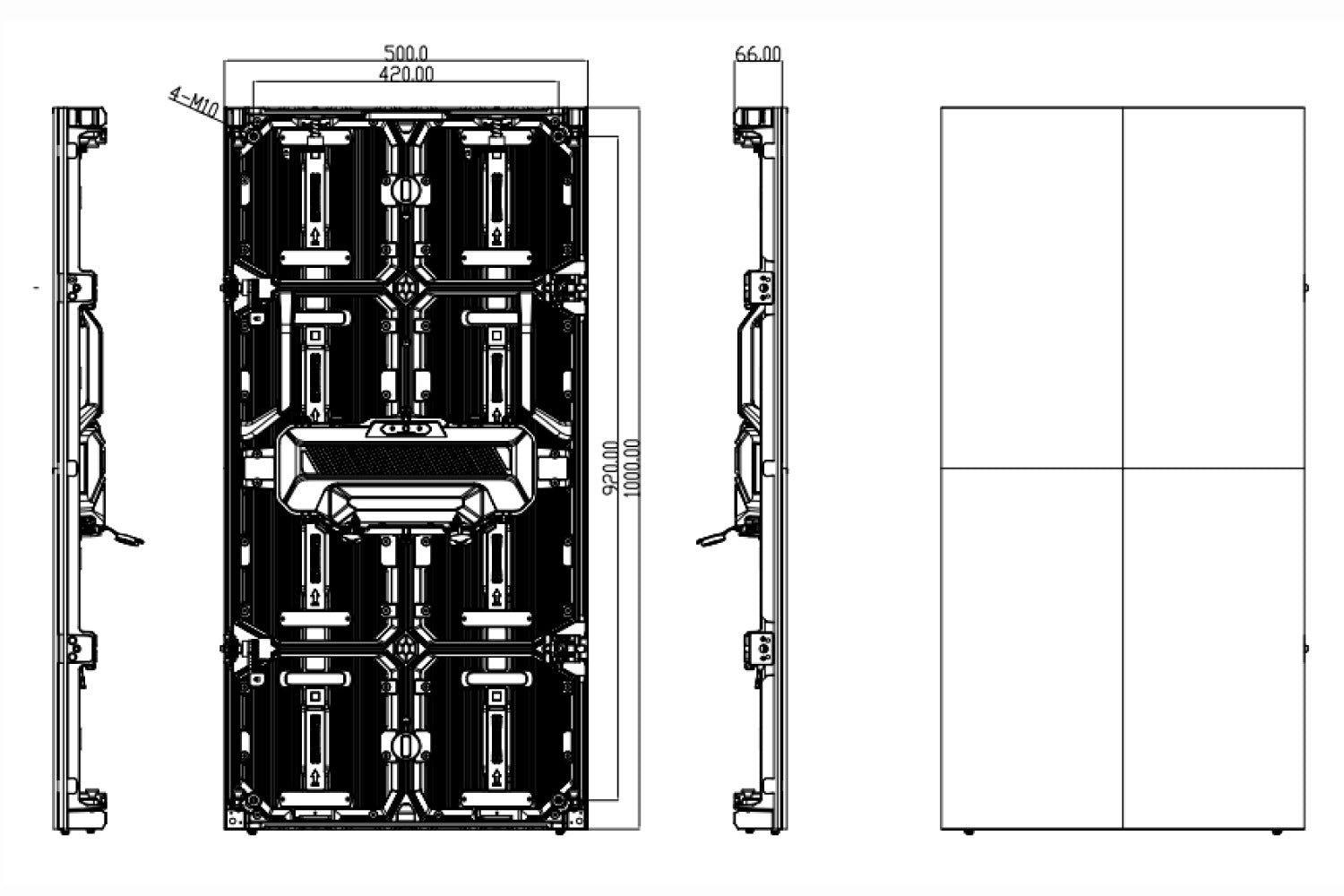

| Module Size(W*H mm) |
250 × 500
|
|
| Panel Size(WHD mm) |
500 ×500/ 1000 × 74.2
|
|
| Weight(Kg) |
7.5/11.5 kg
|
|
| Maintenance |
Rear
|
|
| Curve |
Convex 10° -Concave 10°
|
|
| Material |
Die-cast Aluminum
|
|
| Viewing Angle(H/V °) |
160°/160°
|
|
| Contrast Ratio |
5000:1
|
|
| Input Power <Max>/<Typical>（W/m²) |
600/260
|
590/197
|
| Processing Depth(Bit) |
14
|
|
| Refresh Rate(Hz) |
7680Hz
|
|
| Standard Mounting Configuration |
Hanging, Stacking
|
|
| Max hanging(Panels) |
20/10
|
|
| Max stacking(Panels) |
12/6
|
|
| Certification |
CE/CB/ETL/FCC/RoHS
|
|
Warranty: 2 Years
