PIXBAR40FXT - Pixel Bar with 40 x 1.5W RGB LEDs
PIXBAR40FXT - Pixel Bar with 40 x 1.5W RGB LEDs

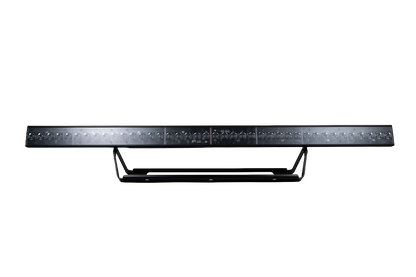

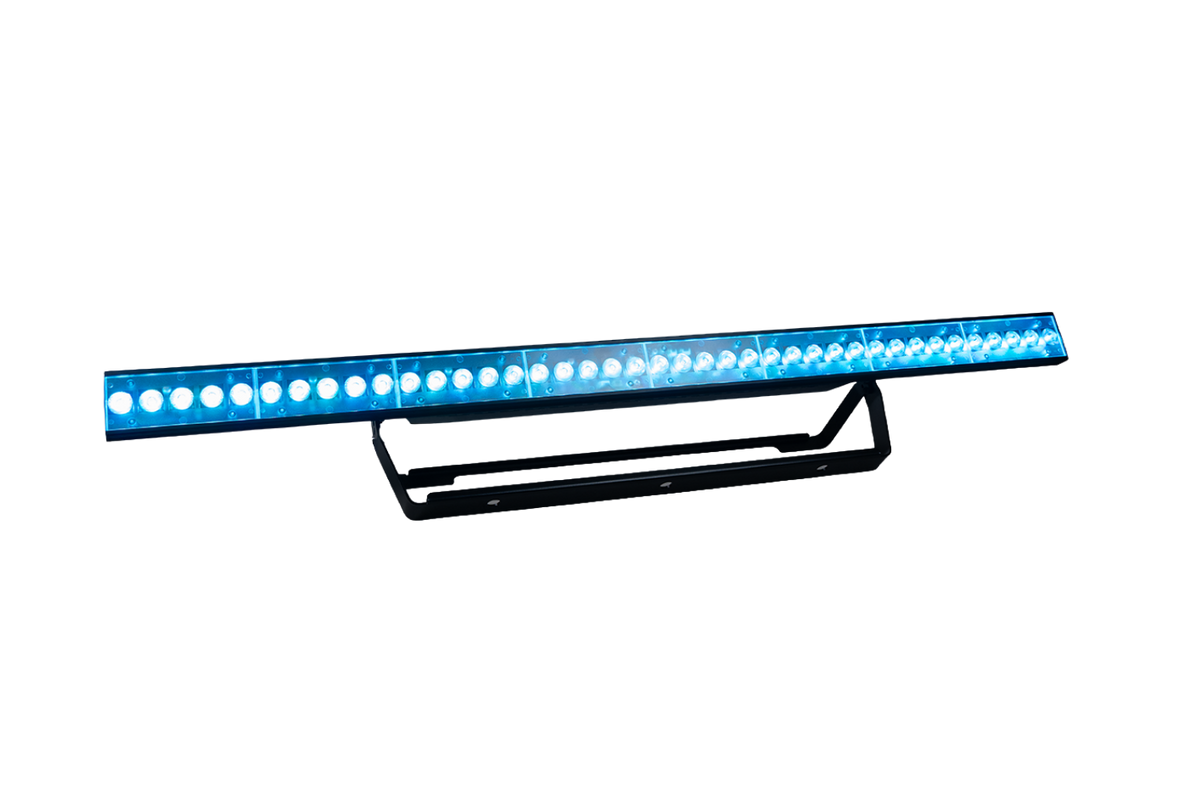

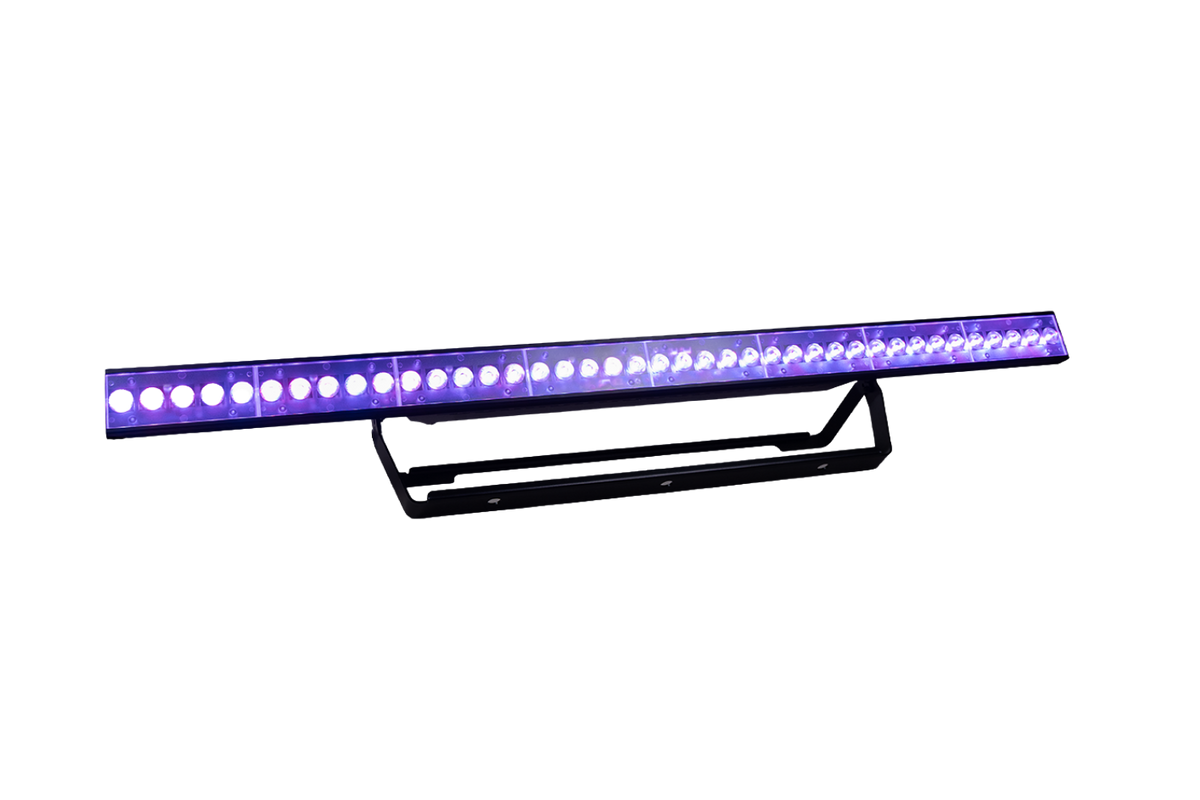

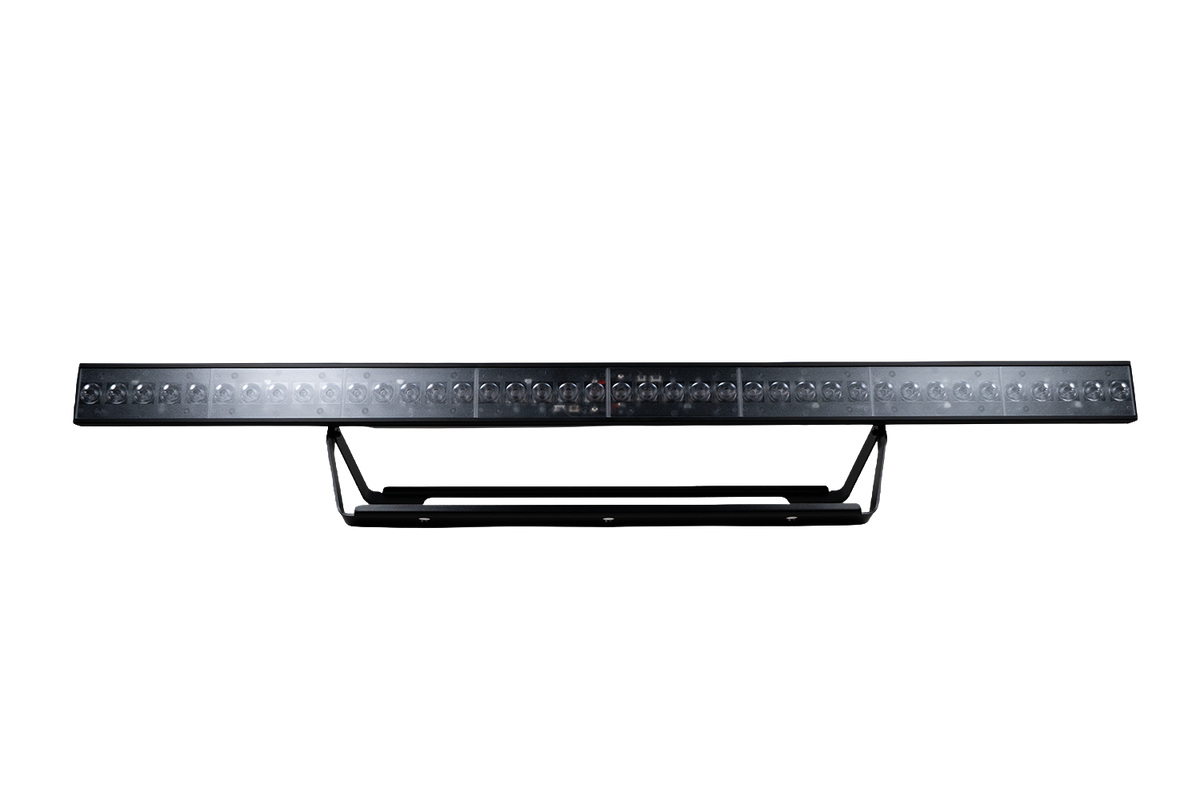

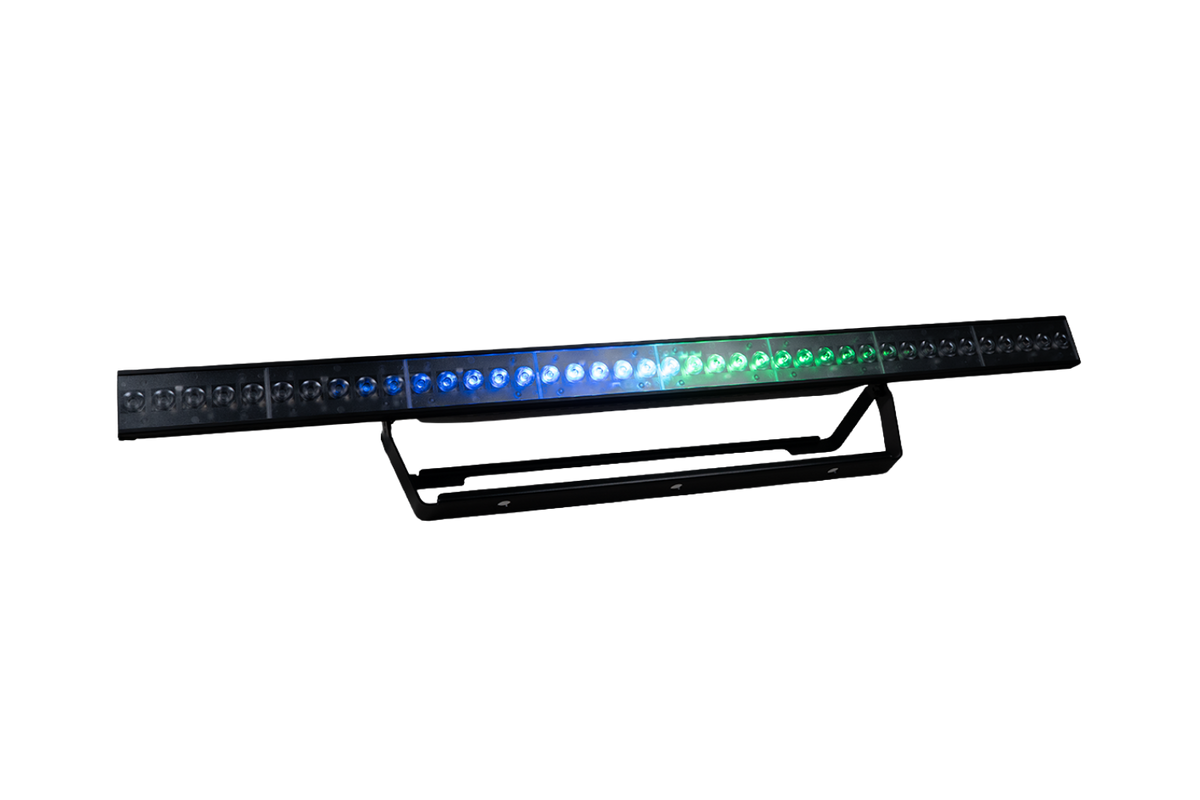

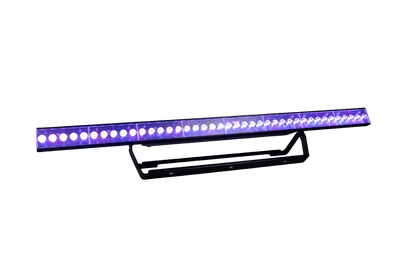

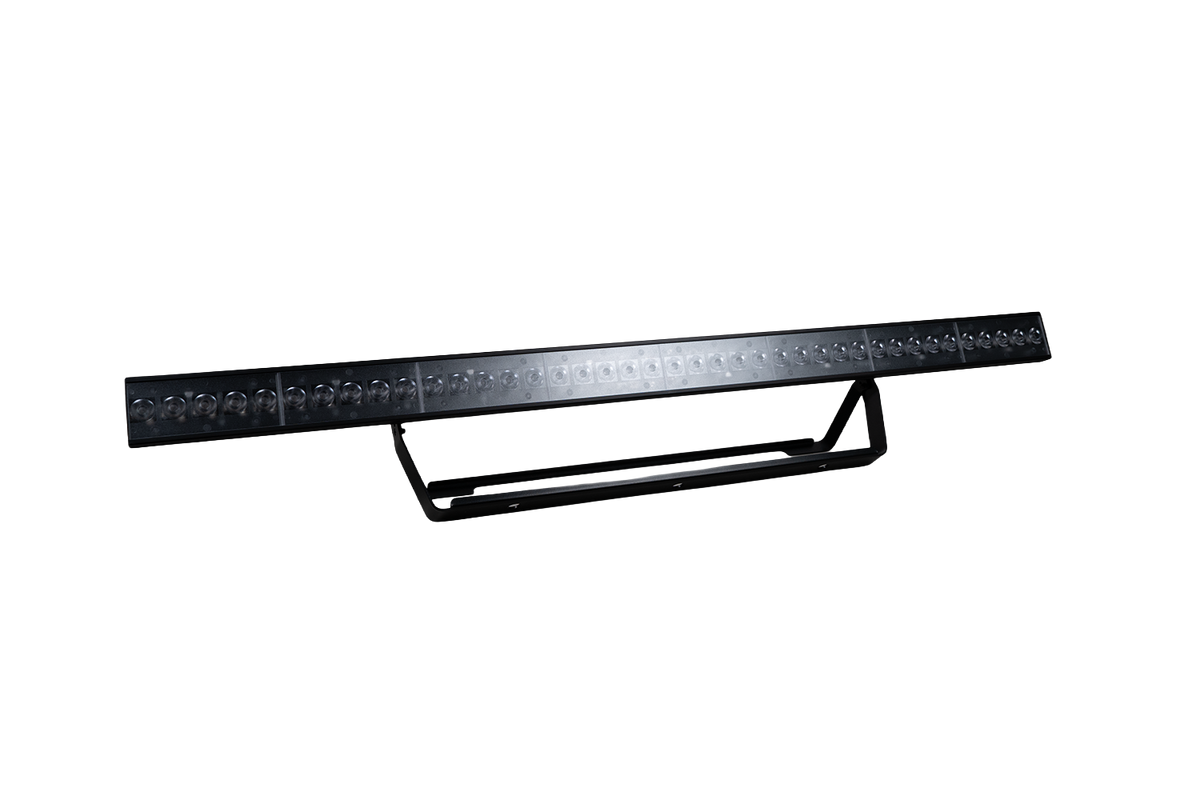

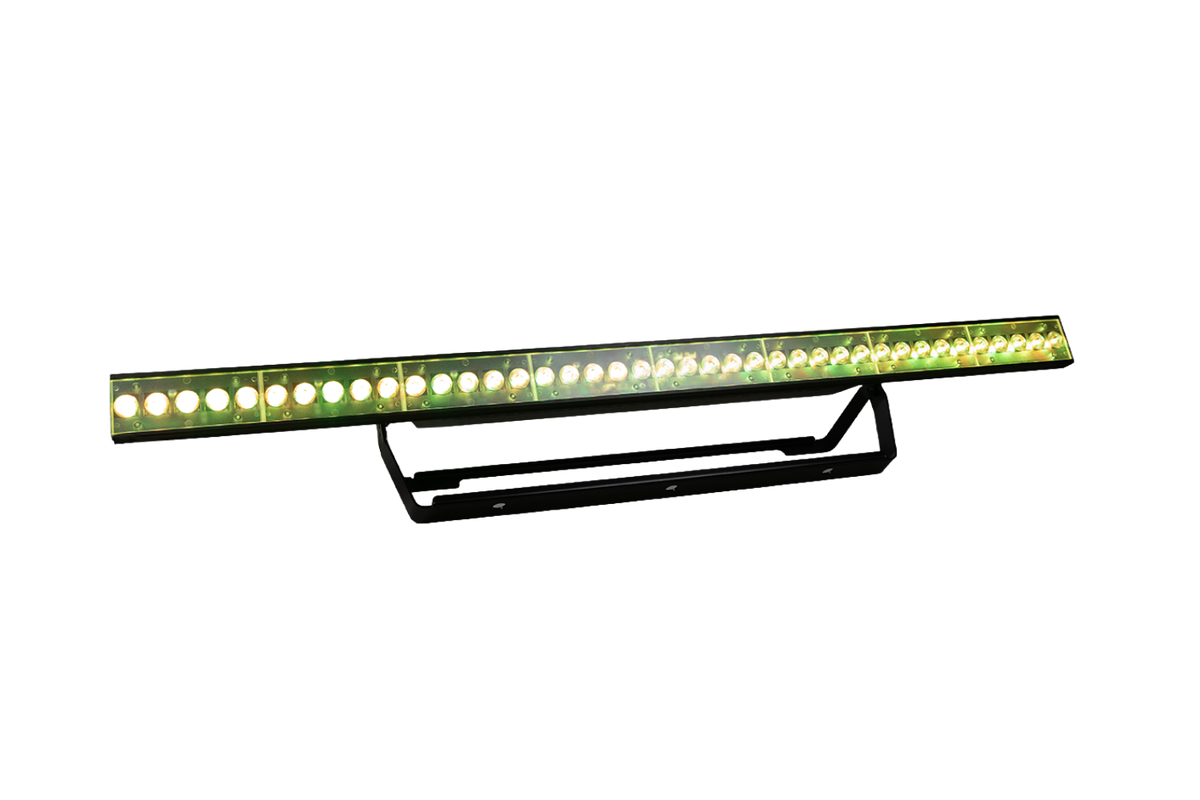

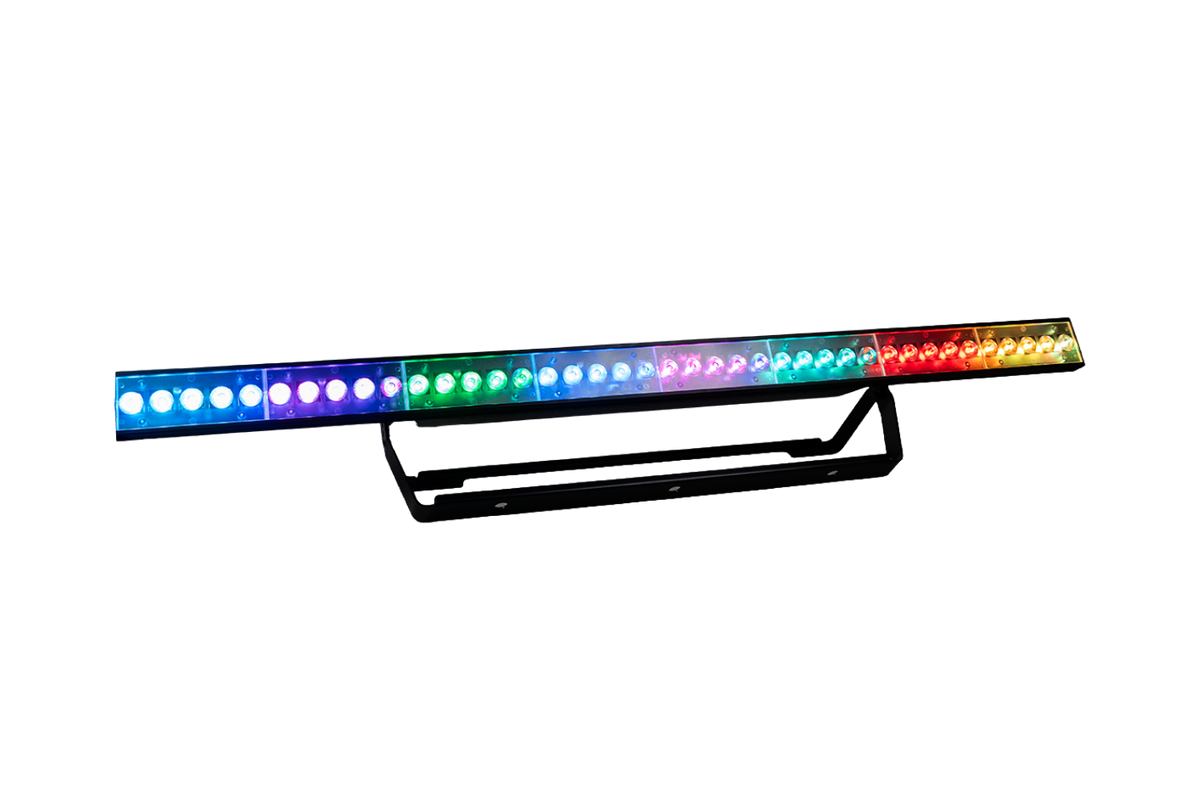

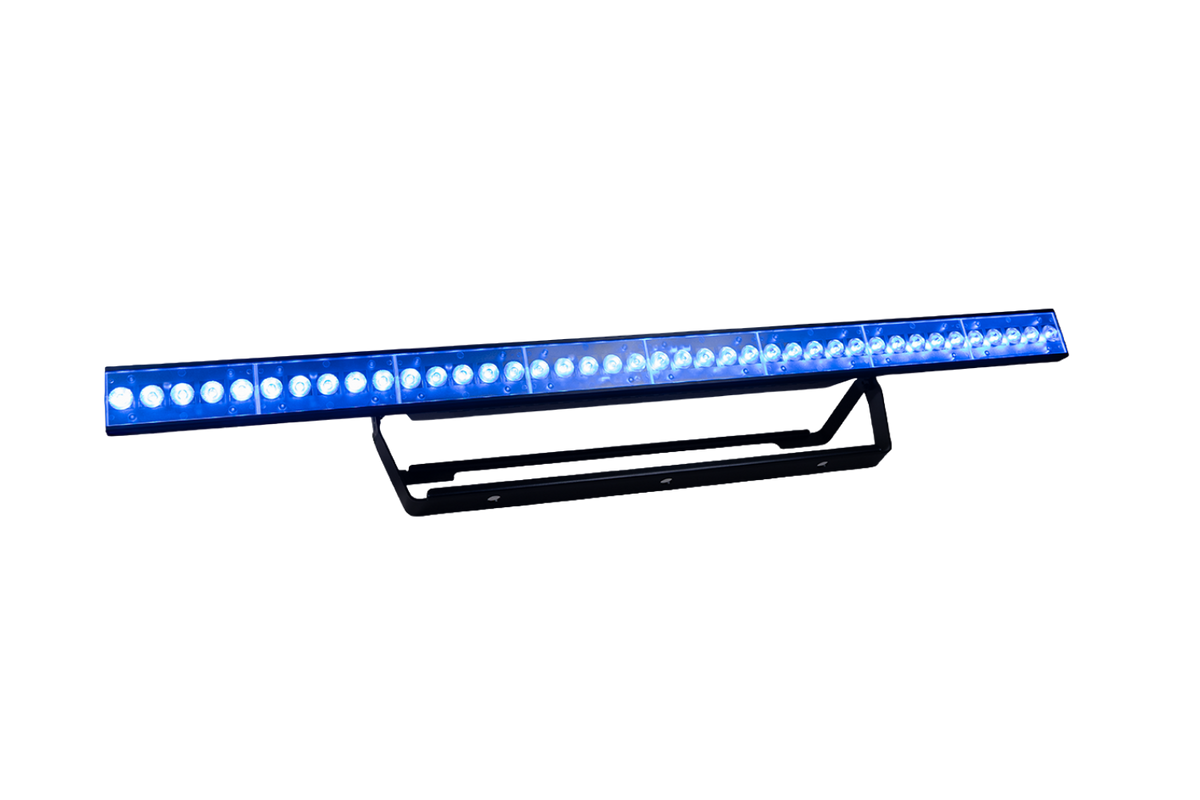

The Event Lighting PIXBAR40FXT is a 1-metre RGB LED pixel bar with 40 individually controllable pixels, a tight 14° beam and built-in wireless DMX. Run it as one solid colour wash, or map every pixel for chases, sweeps and video-style effects across a stage, DJ booth or venue wall. The aluminium housing has no fans, so it runs silently in theatres, churches and corporate rooms where noise matters.
Why crews choose the PIXBAR40FXT
- True pixel control: 40 RGB pixels, each with its own red, green and blue channel in 120/122-channel mode, ready for pixel mapping in your console or media server.
- Punchy, tight beam: 14° optics put 2,450 lux on target at 2 m, so the bar reads clearly from the back of the room and cuts through haze.
- Wireless DMX built in: an on-board WDMX receiver/transmitter and antenna let you skip the DMX cable runs. Pair it with a WDMXTRXII transceiver at the desk.
- Silent, fanless cooling: no fan noise and less dust drawn into the fixture.
- Flicker-free on camera: 24,000 Hz PWM keeps it clean for live streams and video.
- Smooth dimming: five 16-bit dimming curves, plus 11 colour temperature presets.
- Works without a desk: 38 built-in auto programs, sound-active mode, master/slave and a multi-fixture chase (runway) mode for up to 20 groups.

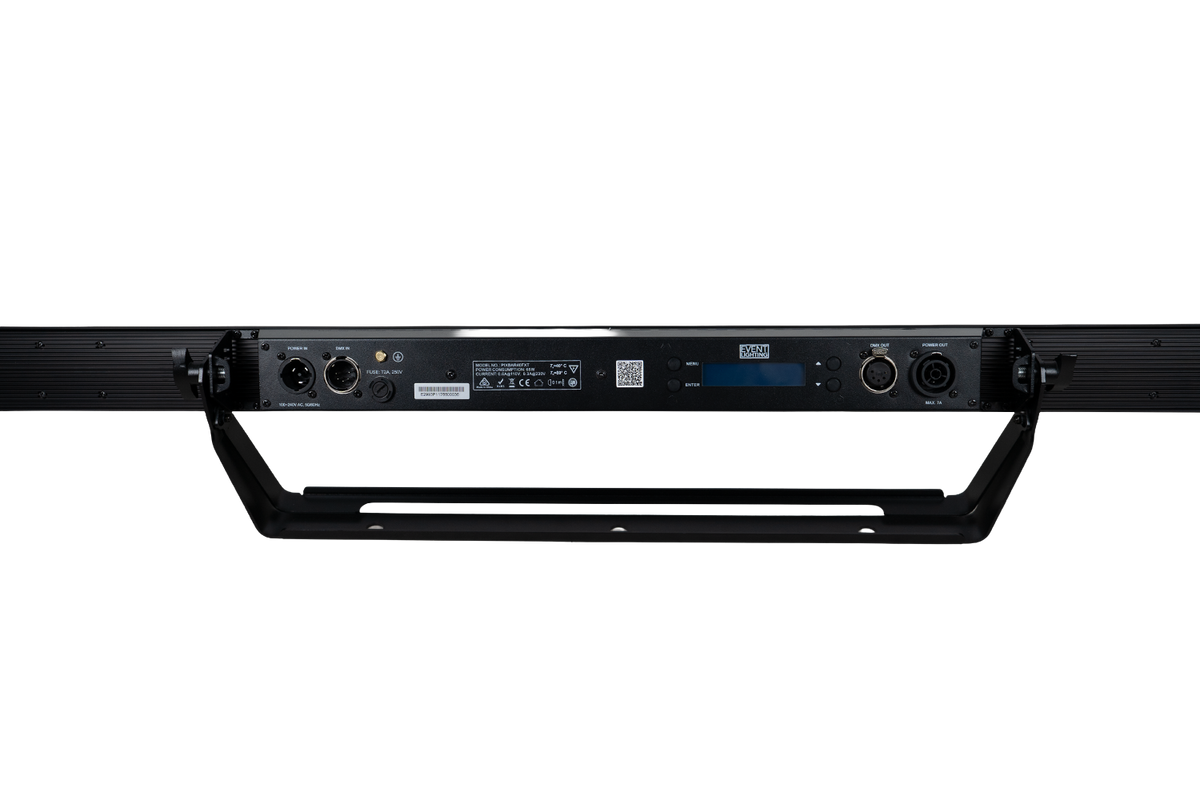

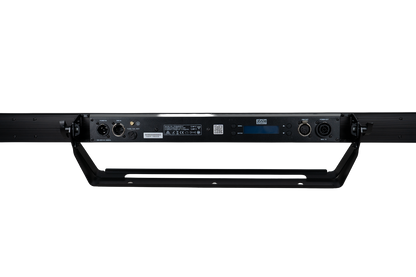

- Quick to rig: TRUE1 power and 5-pin DMX in and out for daisy-chaining, plus an adjustable bracket for floor or truss mounting.
Where it works best
- Stage backdrops and band risers
- DJ booths, nightclubs and bars
- Pixel-mapped walls and video-style chase effects
- Wedding, corporate and conference staging
- Churches, theatres and TV studios
- Venue uplighting and architectural accents (indoor)
Specifications
Photometrics
- Light source: 40 x 1.5W RGB LEDs (40 pixels / 120 dots individually controlled)
- Beam angle: 14°
- Output (full on): 5,318 lux @ 1 m, 2,450 lux @ 2 m, 980 lux @ 4 m
- PWM refresh rate: 24,000 Hz
- LED life: 50,000 hours
Effects
- Dimming: 5 x 16-bit dimming curves
- Strobe: 1–25 Hz, random strobe and sound-triggered strobe
- Colour temperature presets: 11
- Built-in programs: 38
Control
- Operation modes: DMX, static colour, manual colour mix, auto, sound active, master/slave, multi-fixture chase, RDM
- DMX channel modes: 1 / 3 / 7 / 9 / 120 / 122, plus a user-defined mode
- Control protocol: DMX512
- Wireless DMX: built-in (receive and transmit), compatible with WDMXTRXII
- DMX connections: 5-pin XLR in/out
- Display: LCD with 4-button menu
- DMX signal loss: hold, blackout, manual or auto (selectable)
- Firmware update: via DMX, fixture to fixture
Power
- Input voltage: 100–240V AC, 50/60 Hz (auto-switching)
- Power consumption: 65W
- Power connection: TRUE1 in/out
Housing
- Housing: aluminium, matte black
- Cooling: fanless, with temperature protection
- Rating: indoor use
- Dimensions: 992 x 152 x 78 mm (L x H x D)
- Net weight: 2.8 kg
PIXBAR40FXT FAQs
Can I pixel map the PIXBAR40FXT?
Yes. In 120-channel mode each of the 40 pixels has its own red, green and blue channel. The 122-channel mode adds master dimmer and strobe on top.
Do I need a separate wireless DMX receiver?
No. Wireless DMX is built into the fixture. You only need a transceiver such as the WDMXTRXII at your lighting desk, or one PIXBAR set to transmit to the others.
Can I use it without a lighting controller?
Yes. Pick a static colour or one of the 38 auto programs on the LCD menu, use sound-active mode, or link several bars in master/slave so they run together.
Is it waterproof or rated for outdoor use?
No, the PIXBAR40FXT is for indoor use only. For outdoor events, ask our team about outdoor-rated options.
Is it noisy?
No. The fixture is fanless, so it makes no fan noise at all.
Warranty: 3 years
Want a quote or a demo? Email sales@eventec.com.au or call (02) 9897 3077.
