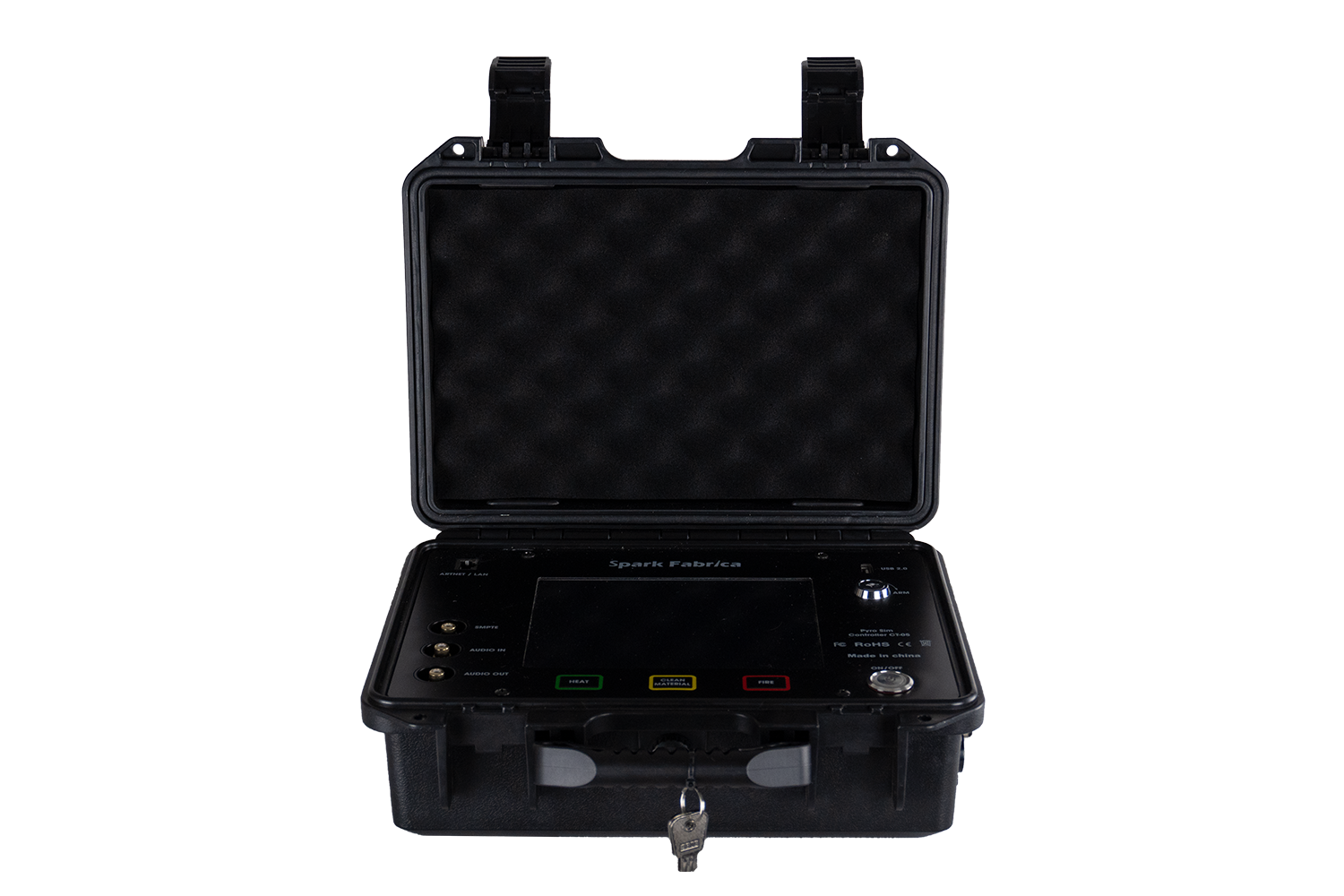

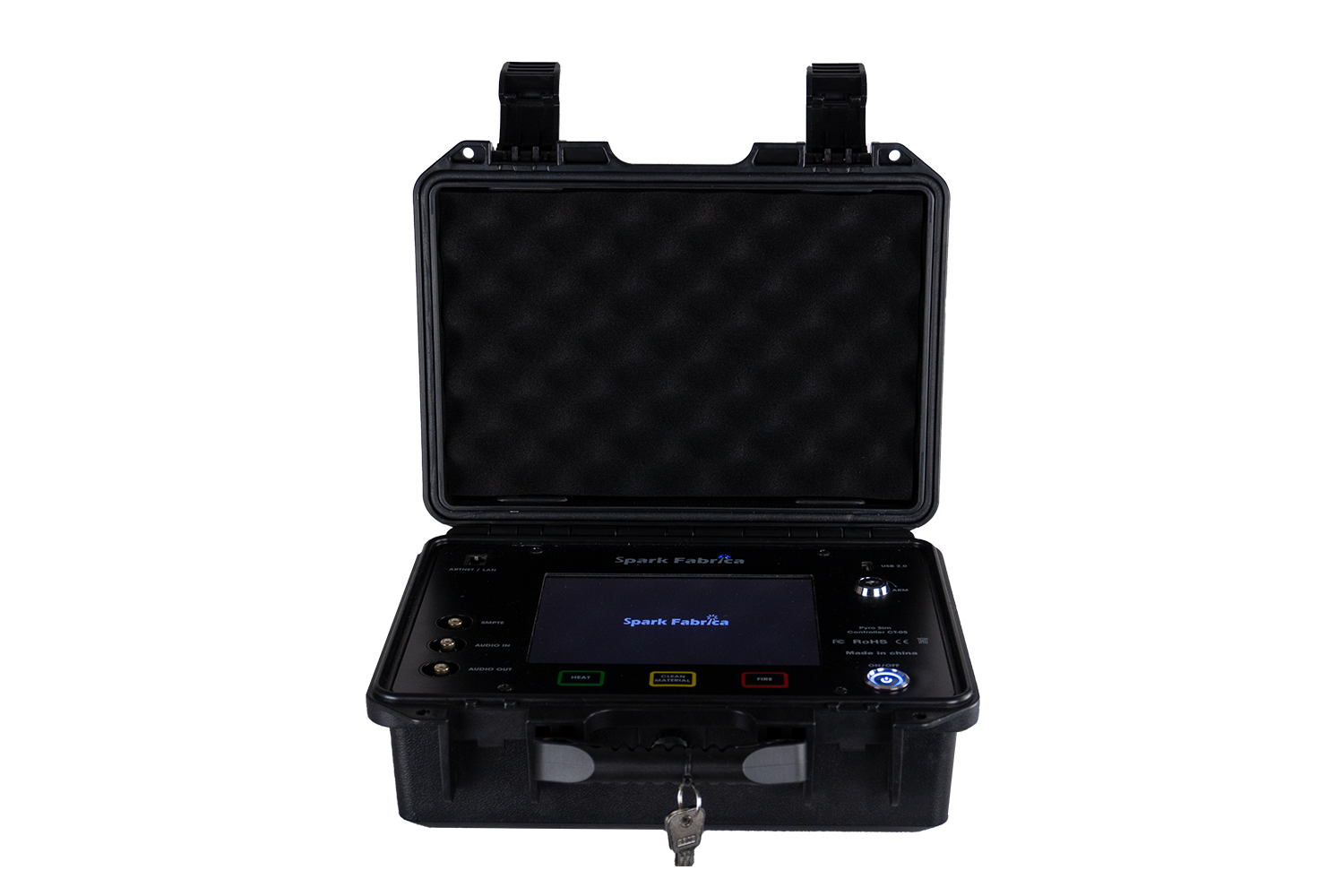

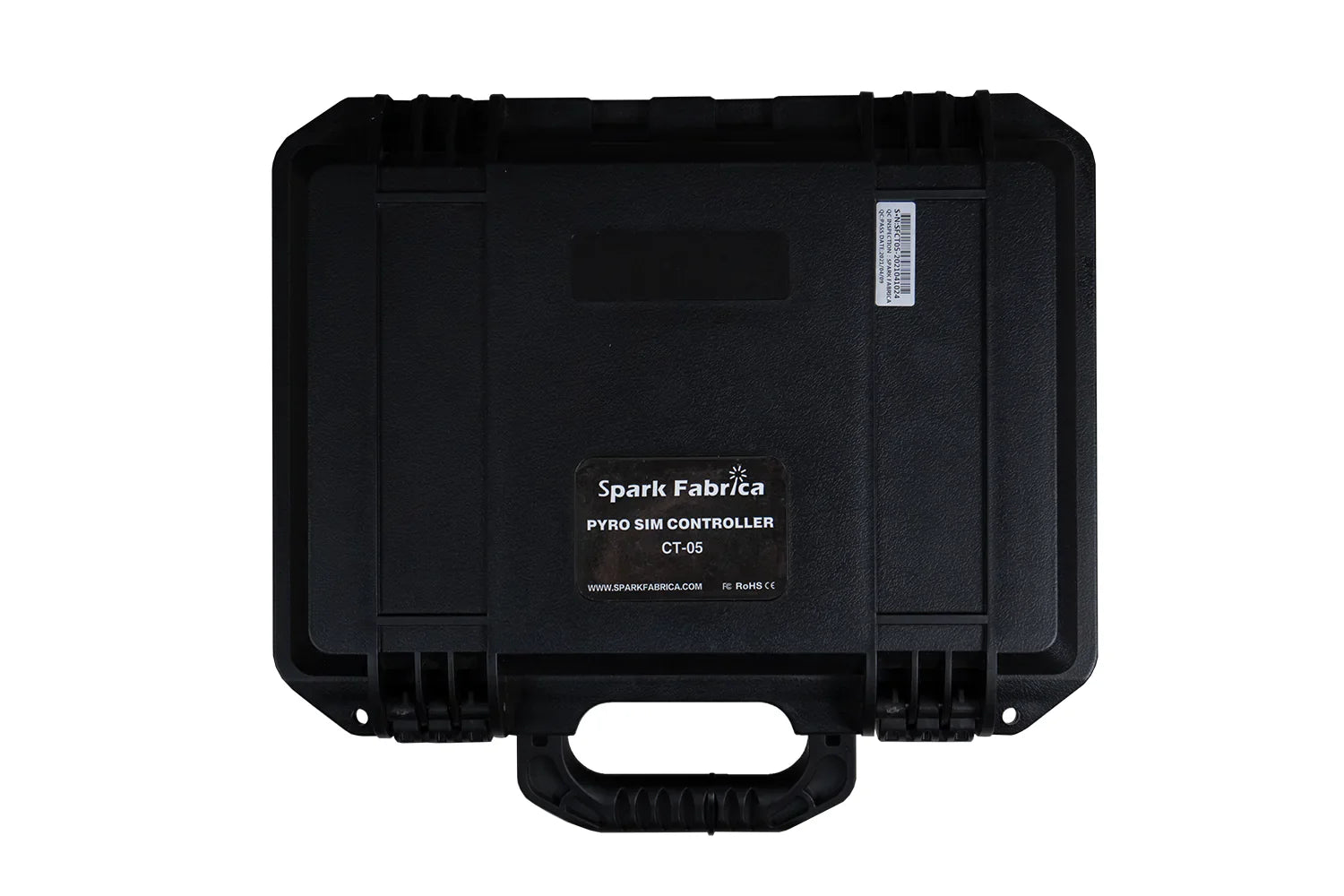

PYROSIMCON CT-05 Controller for Spark Fabrica Effects

Specification

• Digital console which can work with special effects, audio and video

• Multiple networking protocols to control spark machines remotely

AC Power

• Input Voltage & Rate: 12.6 DC
• Power Consumption: 5W
• Power Input Connector: 12.6V 3A Charger

• Power Output Connector (Daisy Chained): Controllable Heating

Accessory

• Power Cord: Charger
• MIDI Cable: 3M
• Audio Cable: 3M

Certification

• CE
• ROHS

Weight

• Net Weight: 3.1Kg
• Gross Weight: 3.3Kg

Dimensions

• Machine Dimension: 300 x 200 x 120 mm
• Packing Dimension: 335 x 260 x 130 mm

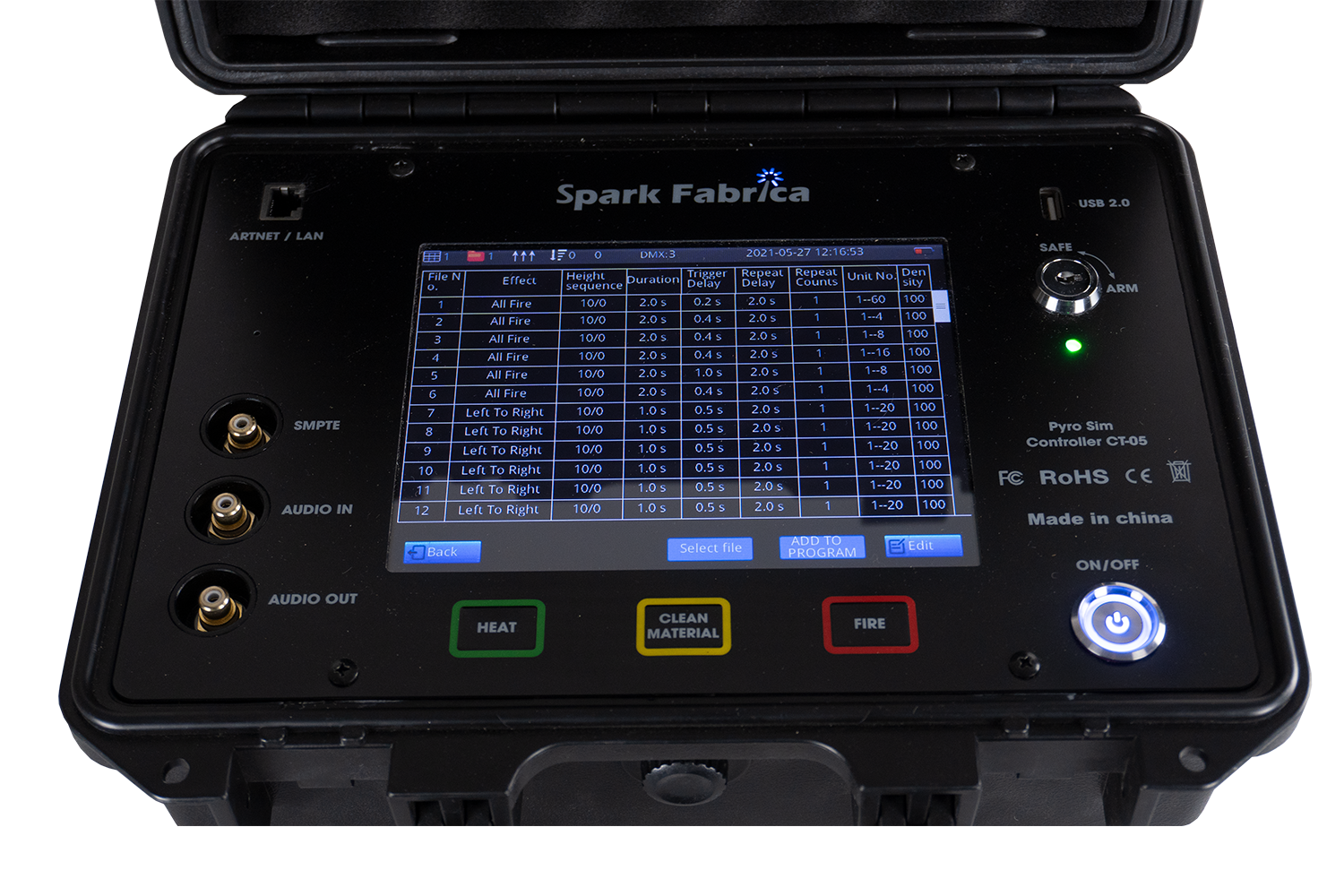

Special Effect

• Special Effects 1: From Left to Right

• Special Effects 2: From Right to Left
• Special Effects 3: From Center to Side
• Special Effects 4: From Side to Center
• Special Effects 5: Volley Firing

Control

• AUDIO

• RDM
• CAN
• SMPTE

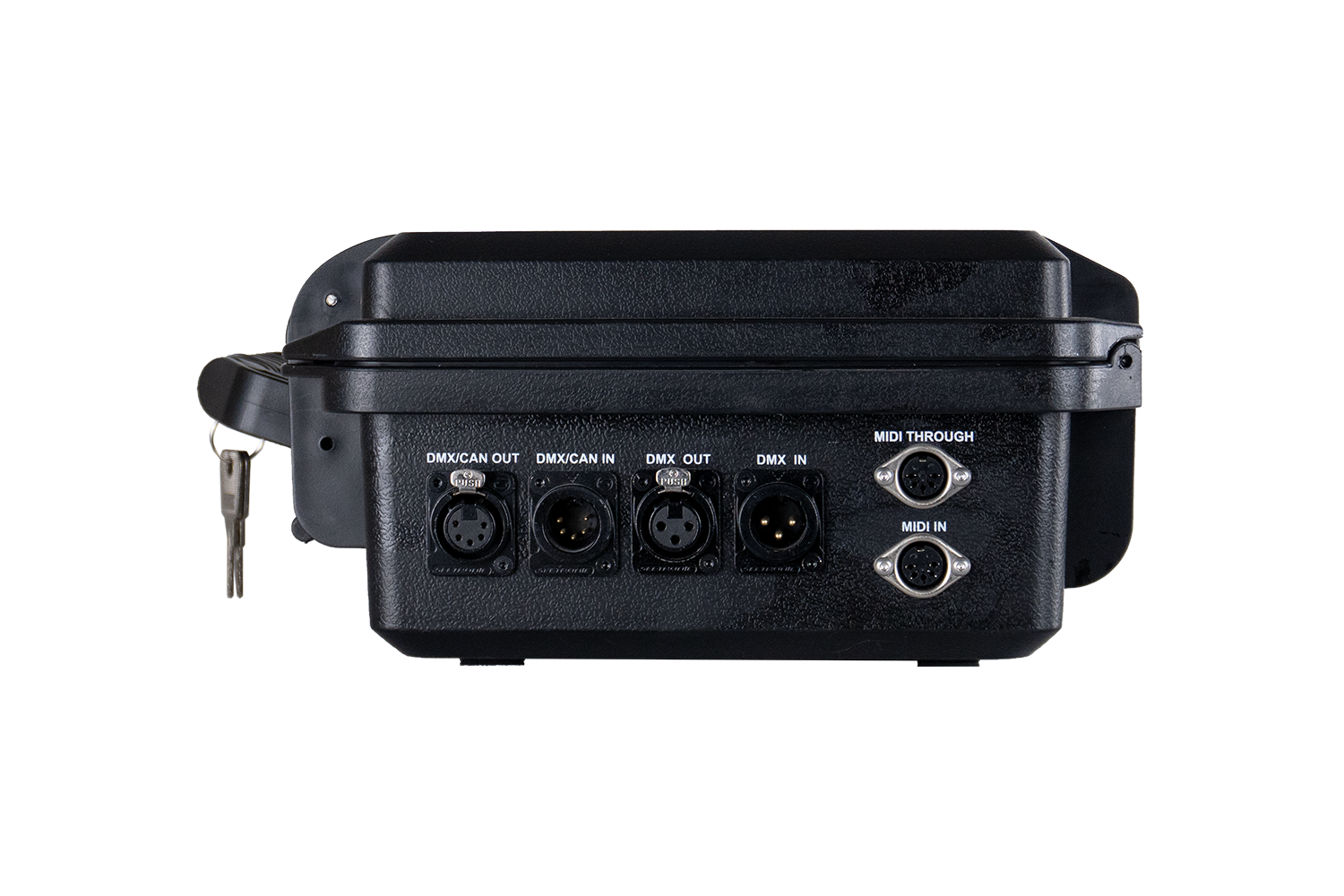

• DMX In/Out: 3 pins and 5 pins XLR

Technical Parameters

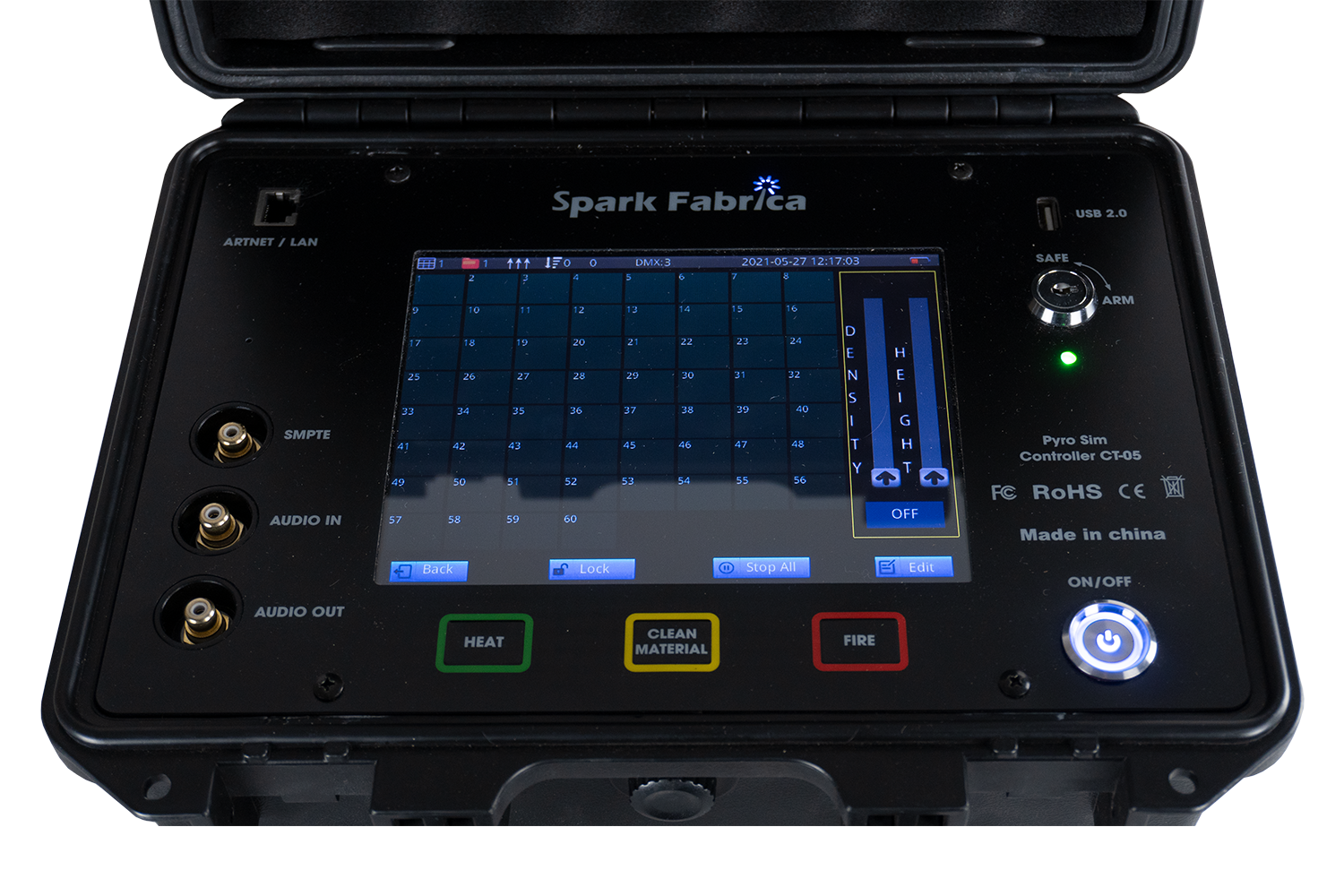

• Height: Setting Height Level 1 - 10
• Continuous-Time 0.5--30s
• Sparking Delay 0.5--30s
• Repeat Times 1 -99
• Controllable Quantity: 1-60 units


Manual

• User Manual for Pyro Sim Controller CT-05

For more information, please visit the manufacturer's website.

Warranty: 1 Year
