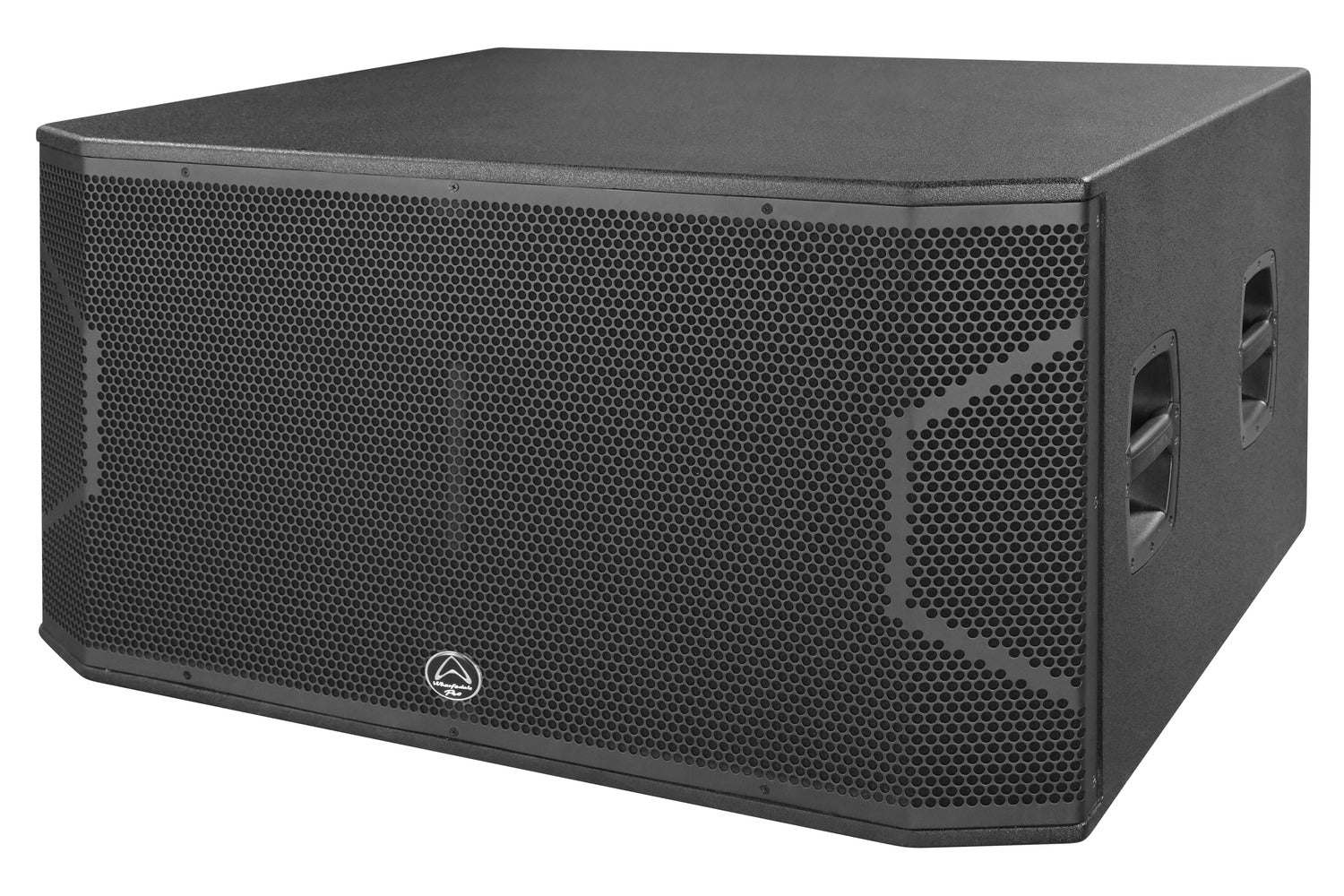

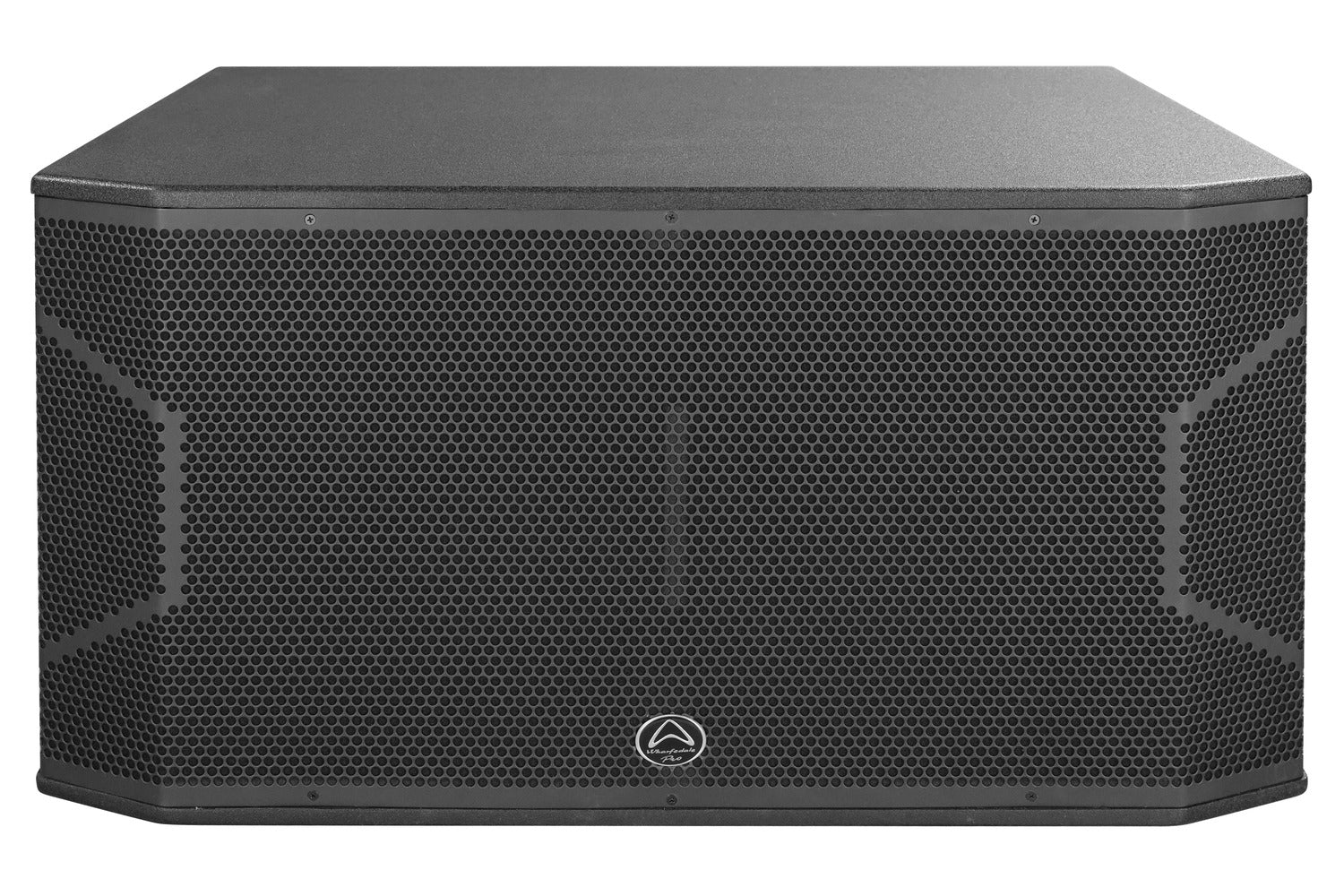

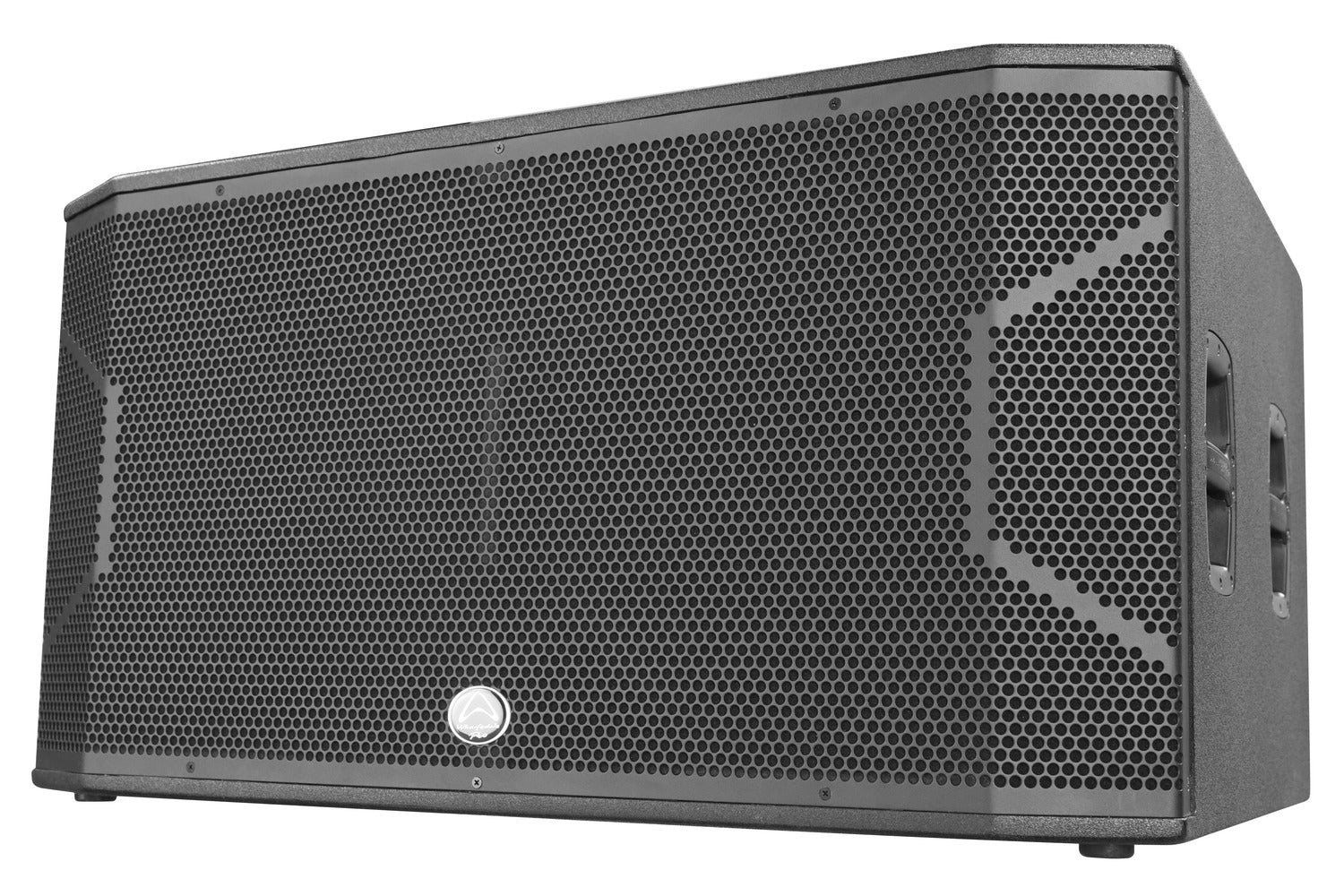

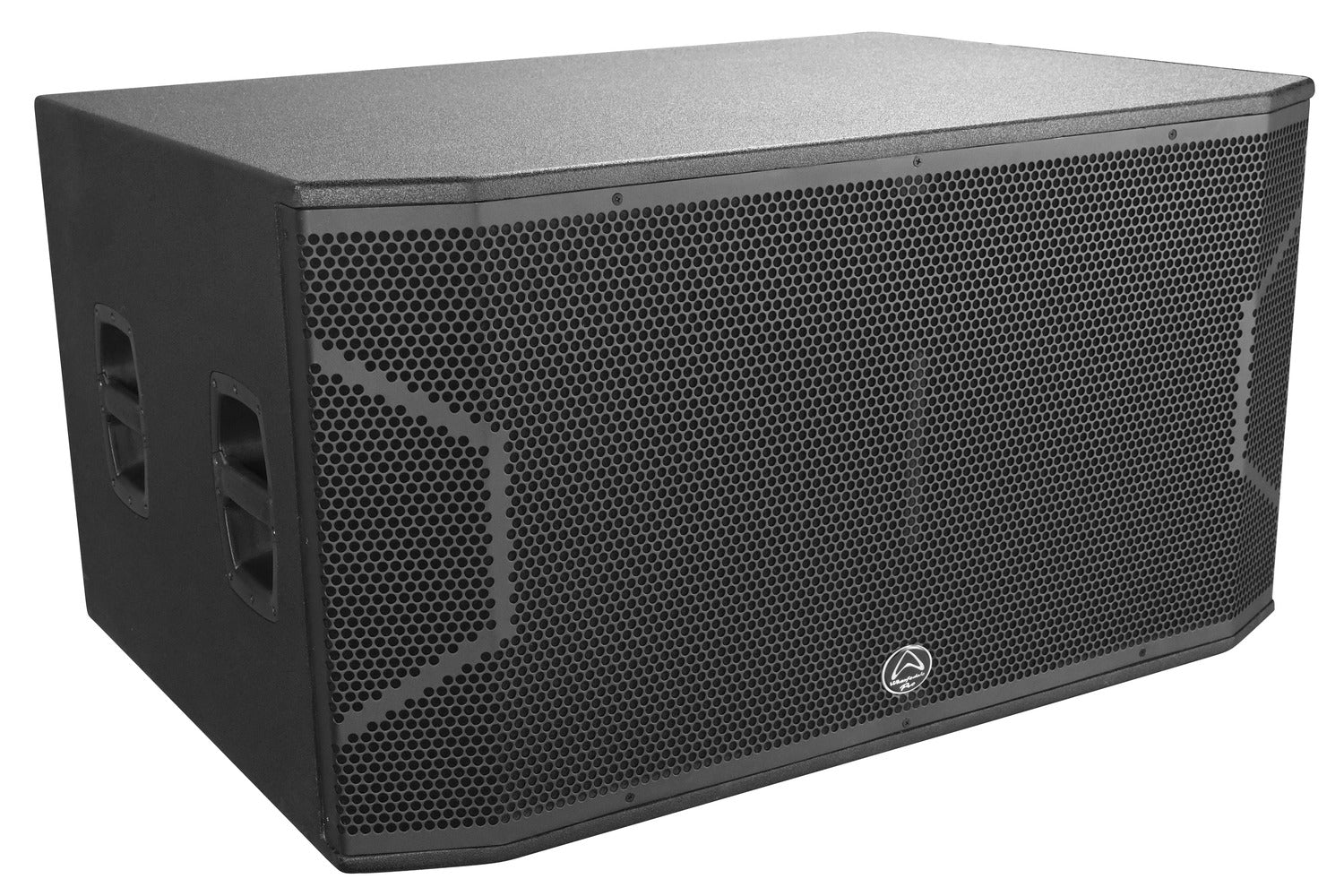

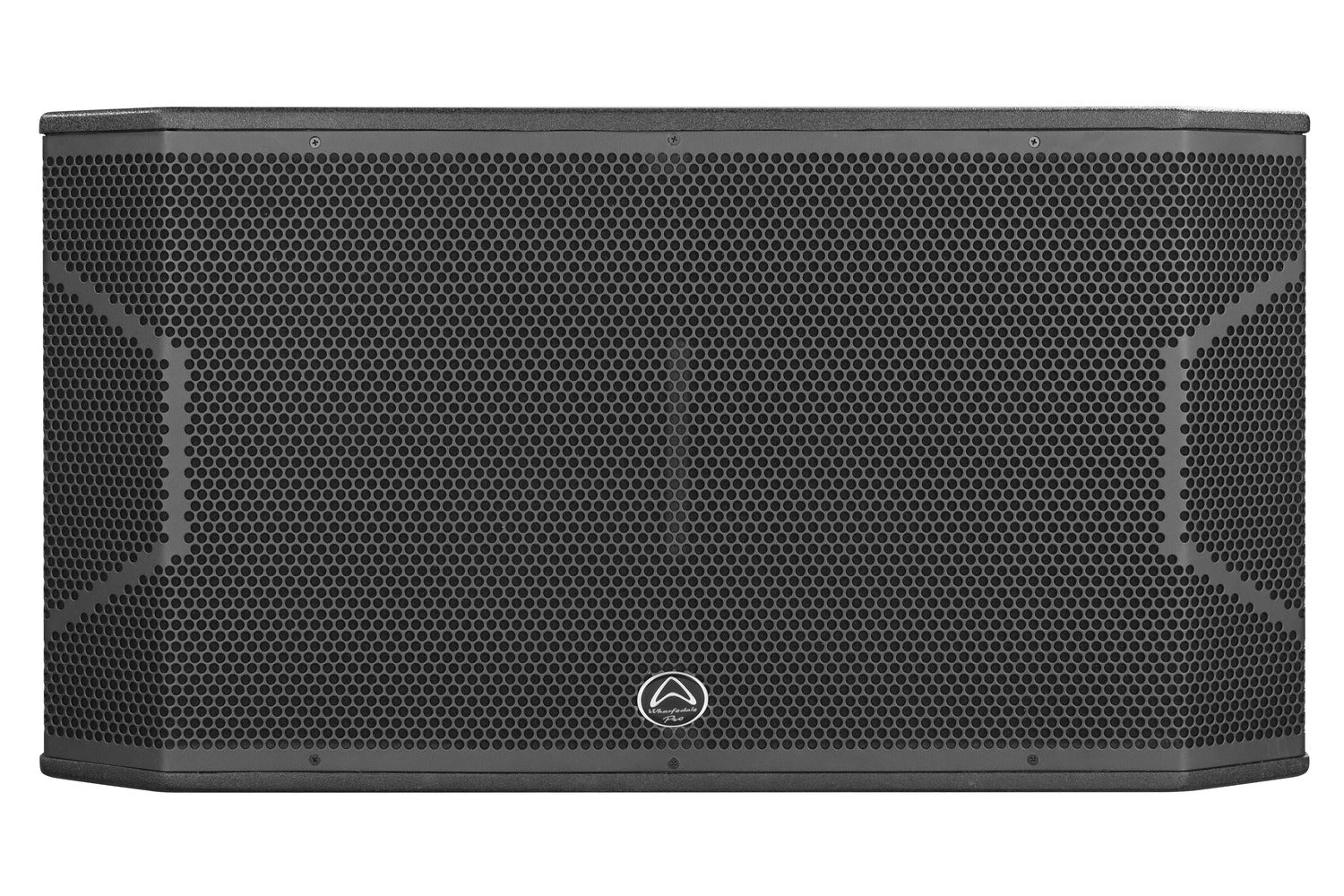

Wharfedale Pro Reason-X218B Passive Subwoofer
Wharfedale Pro Reason-X218B Passive Subwoofer
REASON-X
REASONS TO BE CHEERFUL...1, 2, 3....
3-way passive PA with huge 18″ subwoofers
- 12” and 15” full range 3-way models
- All new Z38 PE HF Compression drivers
- 8.0” mid range
- 3.0” LF coils with φ190mm ferrite magnets
- 2 models of 18” Sub-sub-woofers
- NOMEX subwoofer spiders
- Premium baltic birch construction
- Dust proof foam behind front grilles
Reason-X218B
- Dual 18″ passive subwoofer
- All new LF drivers
- 4.0″ voice coils
- Aluminium basket design
- 4 side handles
- Max SPL @ 1 meter 148 dB
- 2000 w AES (RMS)
- 4000 w Program
- 8000 w Peak
NEW SUBWOOFER DRIVER
The driver inside the Reason-X subwoofer has some very special features.
∮102.6 diameter voice coil.
(Thats OVER 4.0″ but we say 4.0″ because of number rounding)
Double-layer spider bonding.
Updated mute glue is used. This bonding can eliminate brittle cracking and reduces harmonic distortion.
112 g Membrane.
The Reason-X subwoofer driver has a heavier membrane which can withstand more power without breaking.
31 mm voice coil cavity.
A larger internal cavity for the coil windings allows Reason-X to have lower response by 5 Hz.
6.2 ohm impedance.
The impedance peak is higher in the Reason-X driver at 35 Hz. This results in superior low end strength.
Z38
The full range models (X12 and X15) feature an all-new Polyethylene flat diaphragm neodymium HF. This highly engineered Z38 HF compression driver brings extreme HF clarity.
Enormous cooling fins disperse the heat generated and the unique 1.5 inch ring-shaped polyethylene flat diaphragm delivers a precious feeling of space and air to high frequencies.
Advanced HF compression driver technology which deliveries breathtaking results.
ROTATABLE WAVEGUIDE
A handy feature is the rotatable waveguide which allows Reason-X full range models to be used in the vertical or horizontal plane.
100° x 70°
OR
70° x 100° – the Horizontal and Vertical dispersion can easily be changed.
3-WAY DESIGN
With dedicated drivers for each of the main bandwidths, 3-way systems bring enhanced frequency definition to the listening experience.
Each driver focused solely on its optimum frequency range.
A big picture!
Enjoy the 3-way space and definition !
Specifications
| Model Name | Reason-X218B |
|---|---|
| System Type | Passive |
| Configuration | Dual Subwoofer |
| Frequency Response (+/-3 dB) | 30-1 KHz |
| Frequency Range (-10 dB) | 25-800 HZ |
| Sensitivity 2.83 V / 1 Meter | 109 dB |
| Calculated Maximum SPL @1 Meter | 148 dB |
| System Rated Impedance | 4 Ω |
| Low Frequency Transducer | |
| Size | 470 mm / 18” |
| Voice Coil Size | 102 mm / 4” |
| LF Magnet Material | ferrite |
| LF Frame Material | Aluminium |
| Rated Impedance | 2 x 8 Ω |
| LF Power re:AES2-2012 | 2 x 1000 W |
| System AES (RMS) Power (W) | 2000 W |
| System Programme Power (W) | 4000 W |
| System Peak Power (W) | 8000 W |
| Crossover Frequency | |

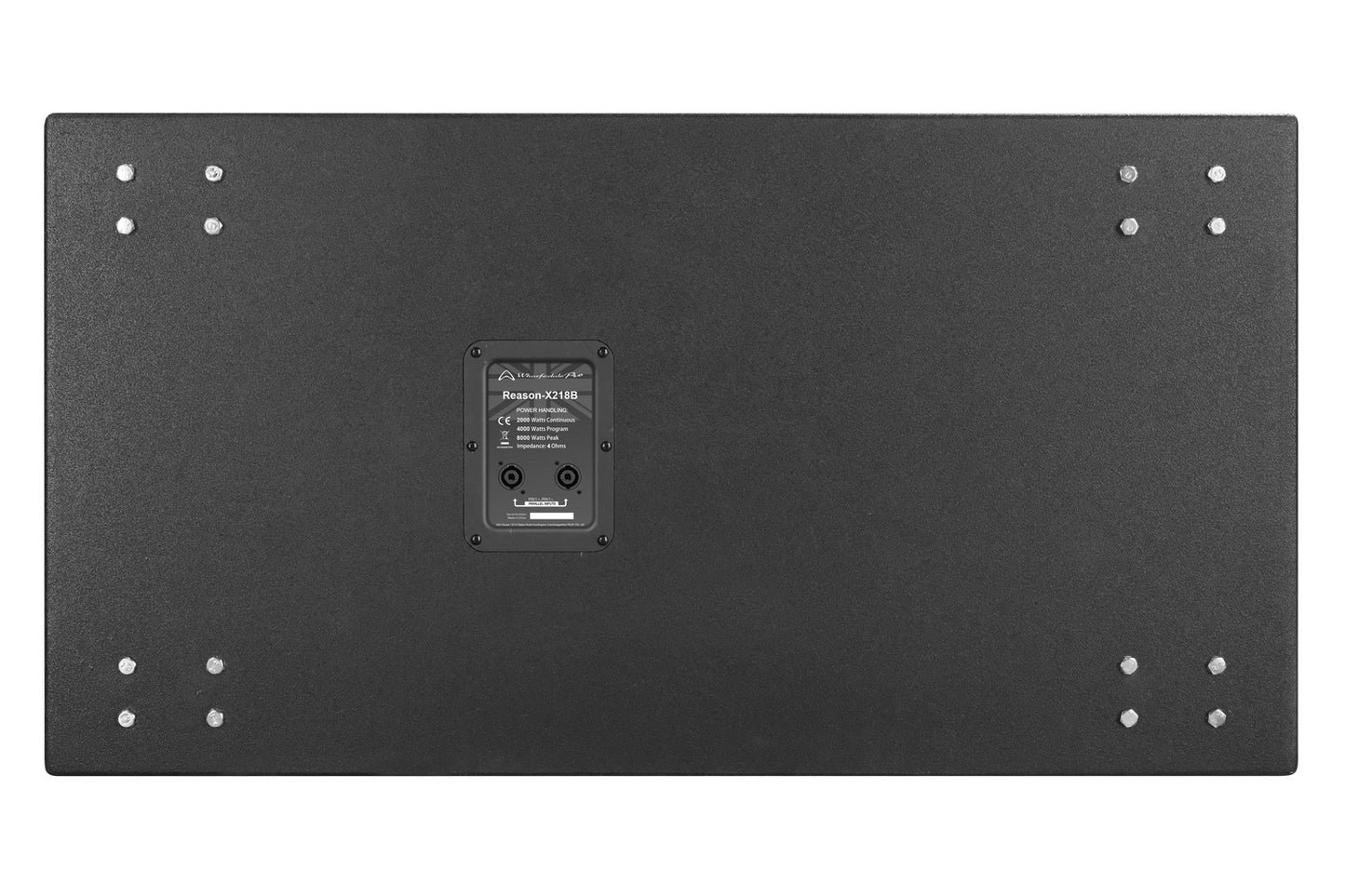

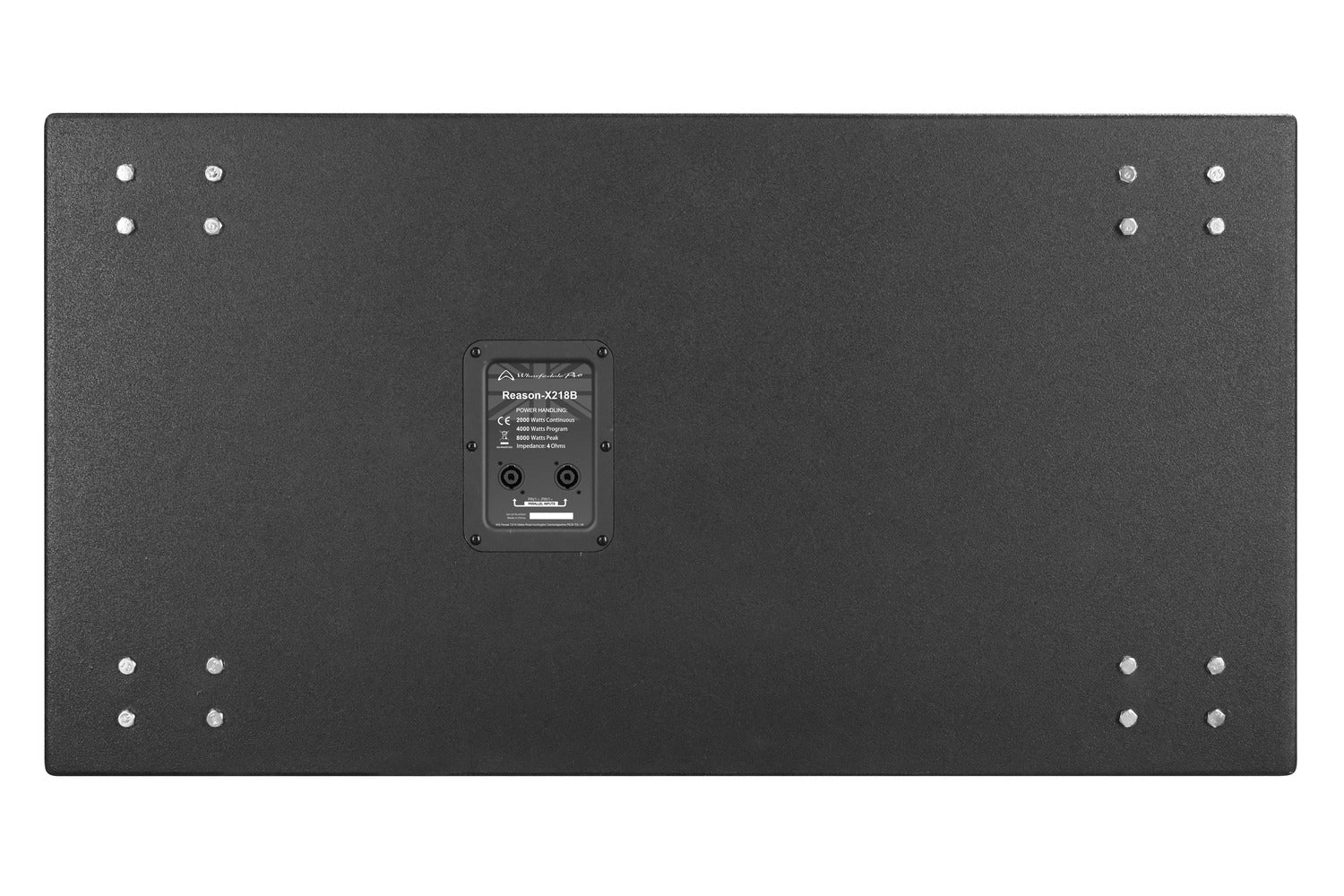

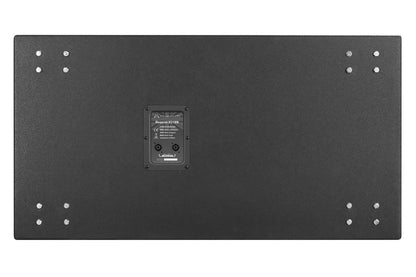

| Input Connector | 2 x speakON compatible |
| Rigging | No |
| Handles | 4 on Sides |
| Enclosure | |
| Cabinet Type | square |
| Enclosure Material and finish | 18 mm plywood |
| Colour Options | Black paint |
| Grille Material & Finish | Steel |
| Dimensions – Unpacked (mm / inches): | |
| Height | 560 mm / 22.0” |
| Width Front | 1065 mm / 41.9” |
| Width Rear | 1065 mm / 41.9” |
| Depth | 756 mm / 29.8” |
| Dimensions – Packed (mm / inches): | |
| Height | 668 mm / 26.3” |
| Width Front | 1138 mm / 44.8” |
| Width Rear | 1138 mm / 44.8” |
| Depth | 829 mm / 32.6” |
| Weight | |
| Net Weight | 73.8 kg / 162.4 lbs |
| Gross Weight | 87.7 kg / 192.9 lbs |
