Wharfedale Pro
Wharfedale Pro SIGMA-XV5TW Installation Column Array - White
Wharfedale Pro SIGMA-XV5TW Installation Column Array - White
Regular price
$509.00
Regular price
Sale price
$509.00
Unit price
/
per
COLUMN ARRAYS SIGMA-XV series
- Re-evaluated performance
- Updated column models with HF drivers
- Column models with mini EVO-Fold waveguides
- 70 V / 100 V Hi-Z Column models
- EASE gll files available for download
- Supported with system diagrams
- Supported with downloadable FIR presets
- Easy fixings and brackets

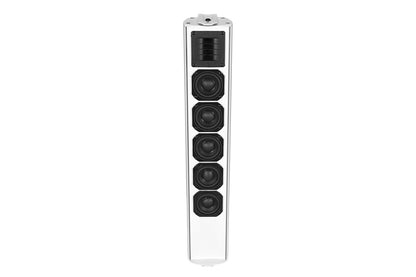

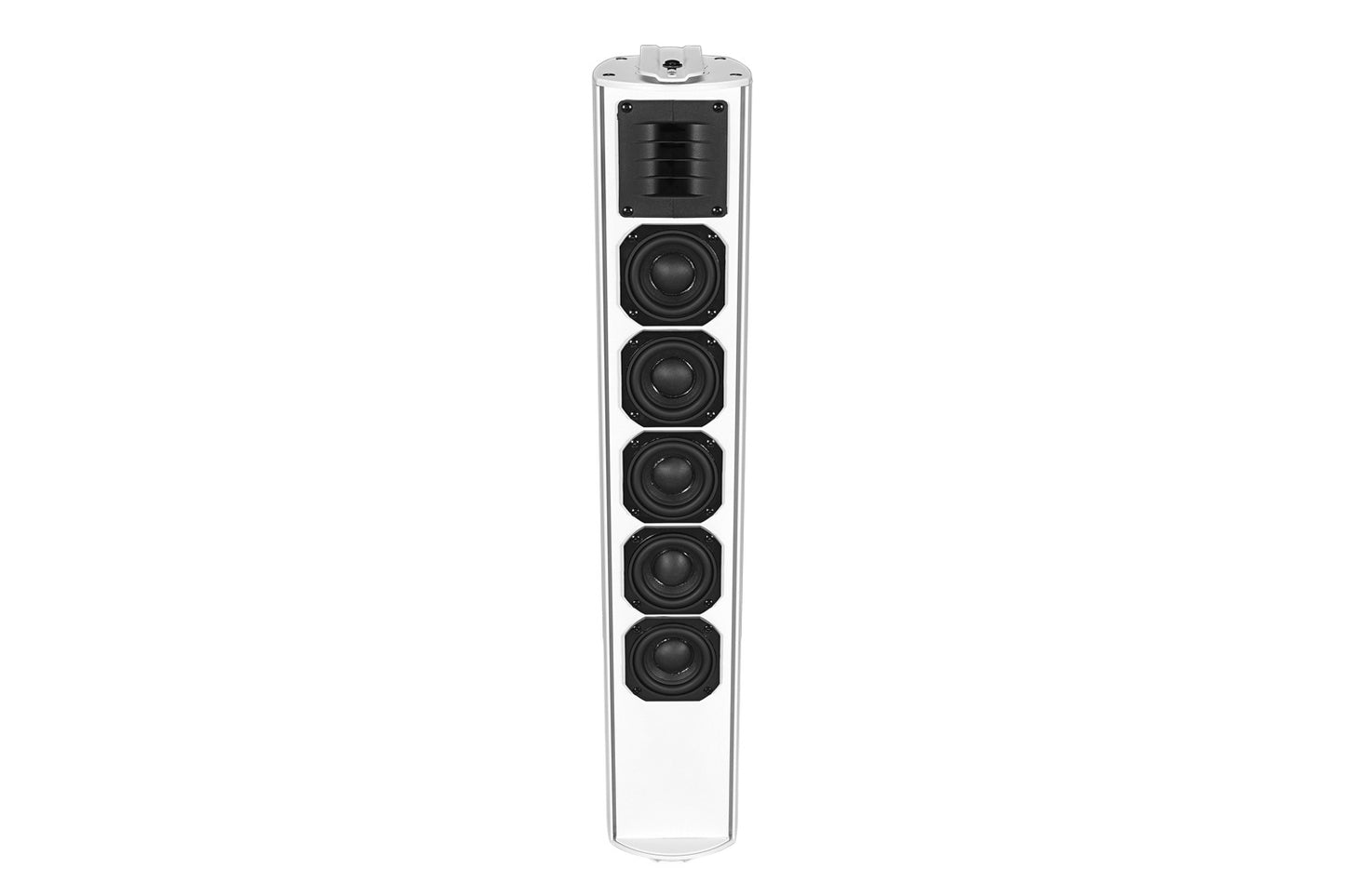

SIGMA-XV5T

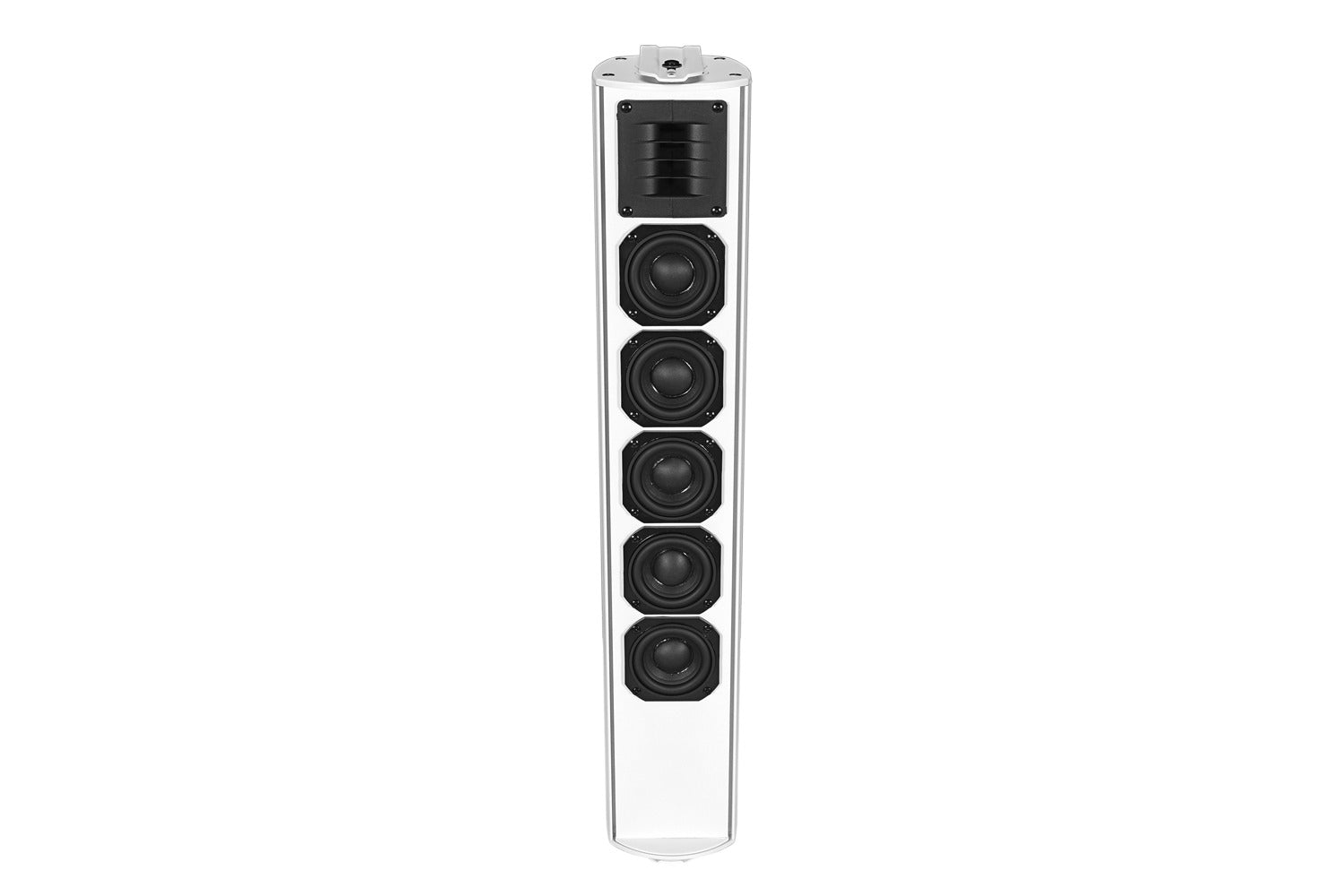

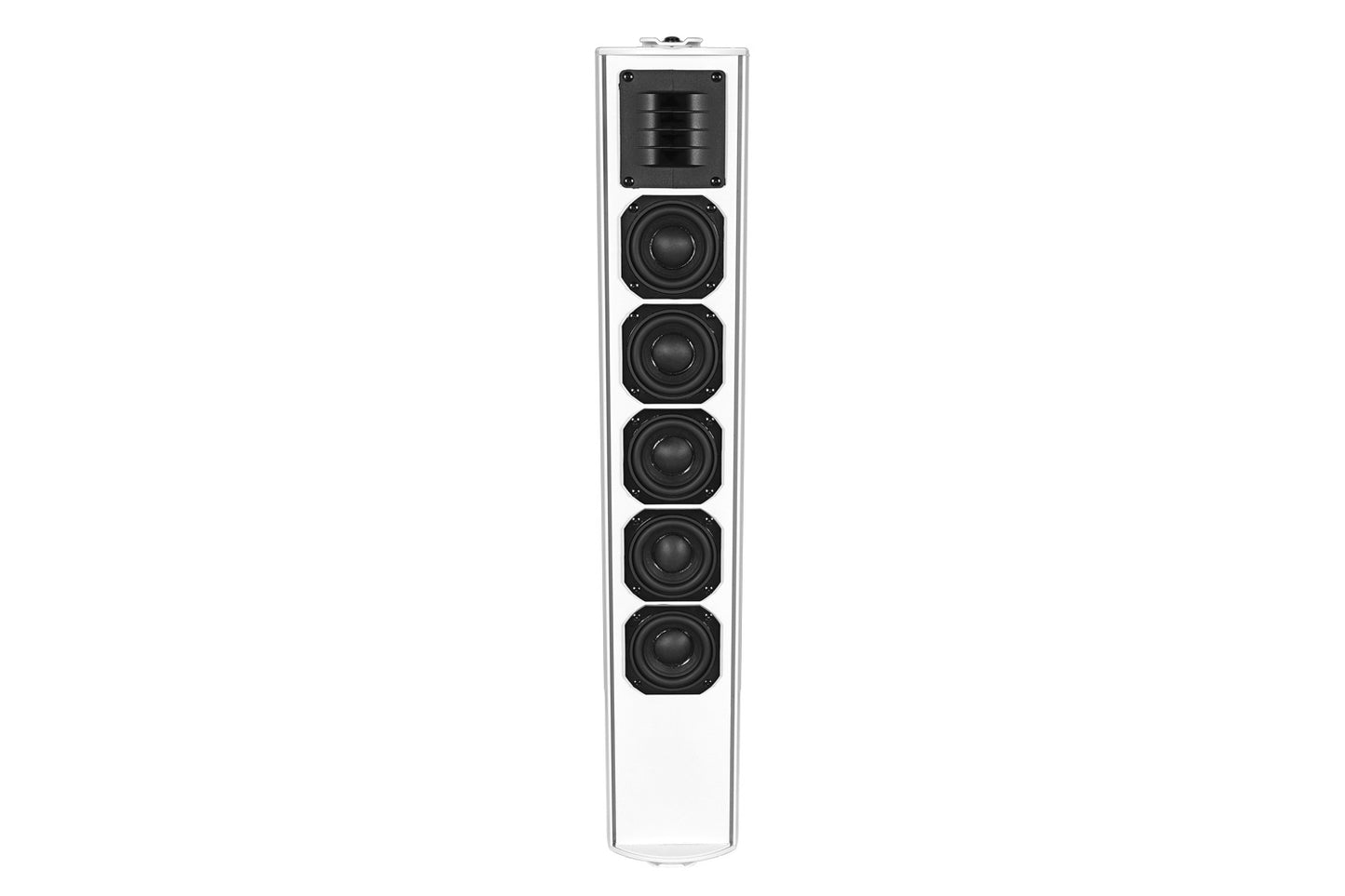

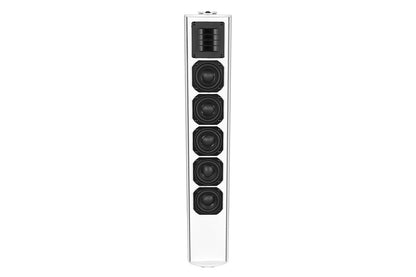

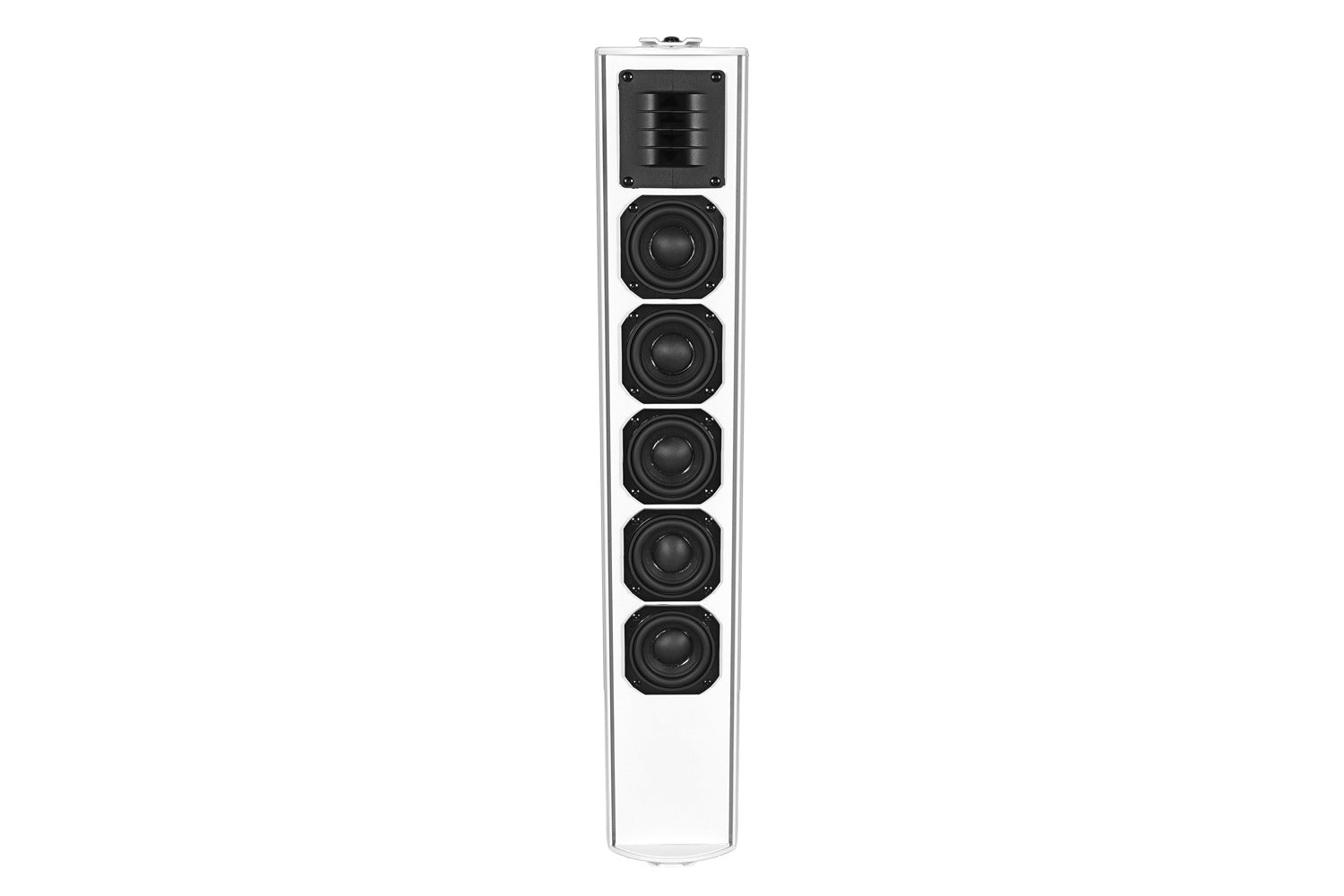

- 5 x 3″ full range drivers
- 1 x HF compression driver
- 180 W AES (Continuous)
- 360 W Programme
- 720 W Peak
- 123 dB Max SPL @ 1 m
- 70 V / 100 V Hi-Z model
COLUMNS WITH MINI EVO-FOLD
SIGMA-XV models feature the highly refined mini EVO-Fold waveguide along with HF compression drivers. For the SIGMA-XV5 there is one, while the SIGMA-XV9 features two compression drivers, each with a mini EVO-Fold waveguide.
This mini EVO-Fold design provides consistent dispersion coverage on both the horizontal and vertical planes with the sound radiating from one, singular and coherent, source.
EASY INSTALL
Installations can be complicated enough, so we have made SIGMA-X series as easy as possible.

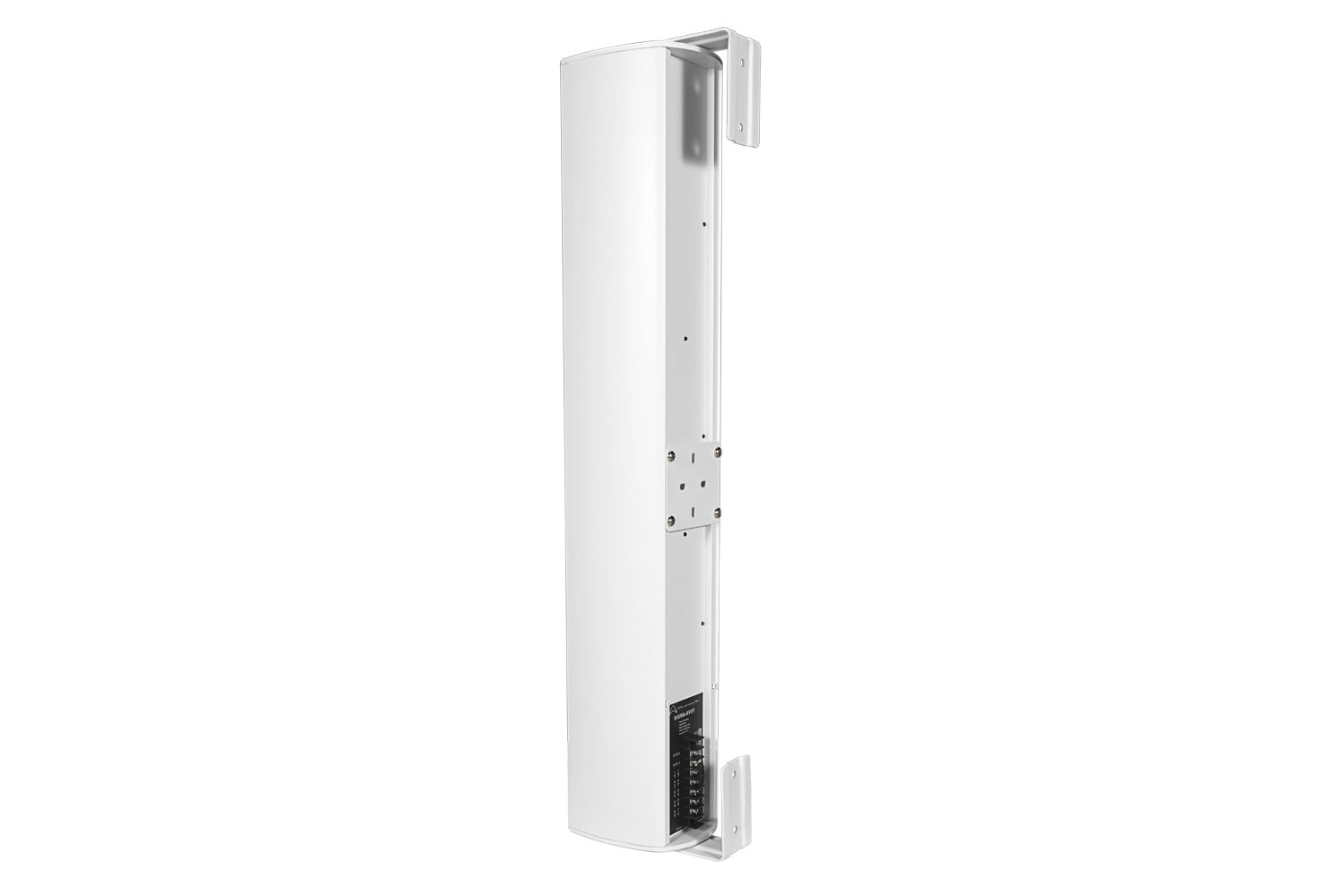

For the SIGMA-XV Column array, either use the included U bracket, or for even more adjustment, use the optional WPB-SV which gives up to 15° tilt and 180° of rotation.
![](https://www.wharfedalepro.com/wp-content/uploads/2022/04/Angles-768x293.png)
SPECIFICATIONS
Model Name | SIGMA-XV5T |
---|---|
System Type | Passive |
Configuration | Two-Way |
Frequency Response (+/-3 dB) | 160 Hz – 18 KHz |
Frequency Range (-10 dB) | 150 Hz – 20 KHz |
Sensitivity 2.83 V / 1 m | 95 dB |
Calculated Maximum SPL @1 m | 123 dB |
System Rated Impedance | 8 Ω |
Low Frequency Transducer | |
Size (mm / inches) | 5 x 75 mm / 3″ |
Voice Coil Size (mm / inches) | 33 mm / 1.3″ |
Rated Impedance | 4 Ω |
LF Power re:AES2-2012 | 40 W |
High Frequency Transducer | |
HF Driver Type | 1 x 1″ High Frequency driver |
Coil Size (mm / inches) | 25.4 mm / 1″ |
Exit Size (mm / inches) | 25.4 mm / 1″ |
Diaphragm Material | PEI |
Rated Impedance | n/a |
HF Power re:AES2-2012 | n/a |
Waveguide Type | Mini EVO-Fold |
Nominal Coverage (H x V) | 120˚ x 30˚ |
LF Driver | 5 x 3″ |
HF Driver | 1 x 1″ PEI EVO-Fold Driver |
Power | |
System Continuous Power | 180 W |
System Programme Power | 360 W |
System Peak Power | 720 W |

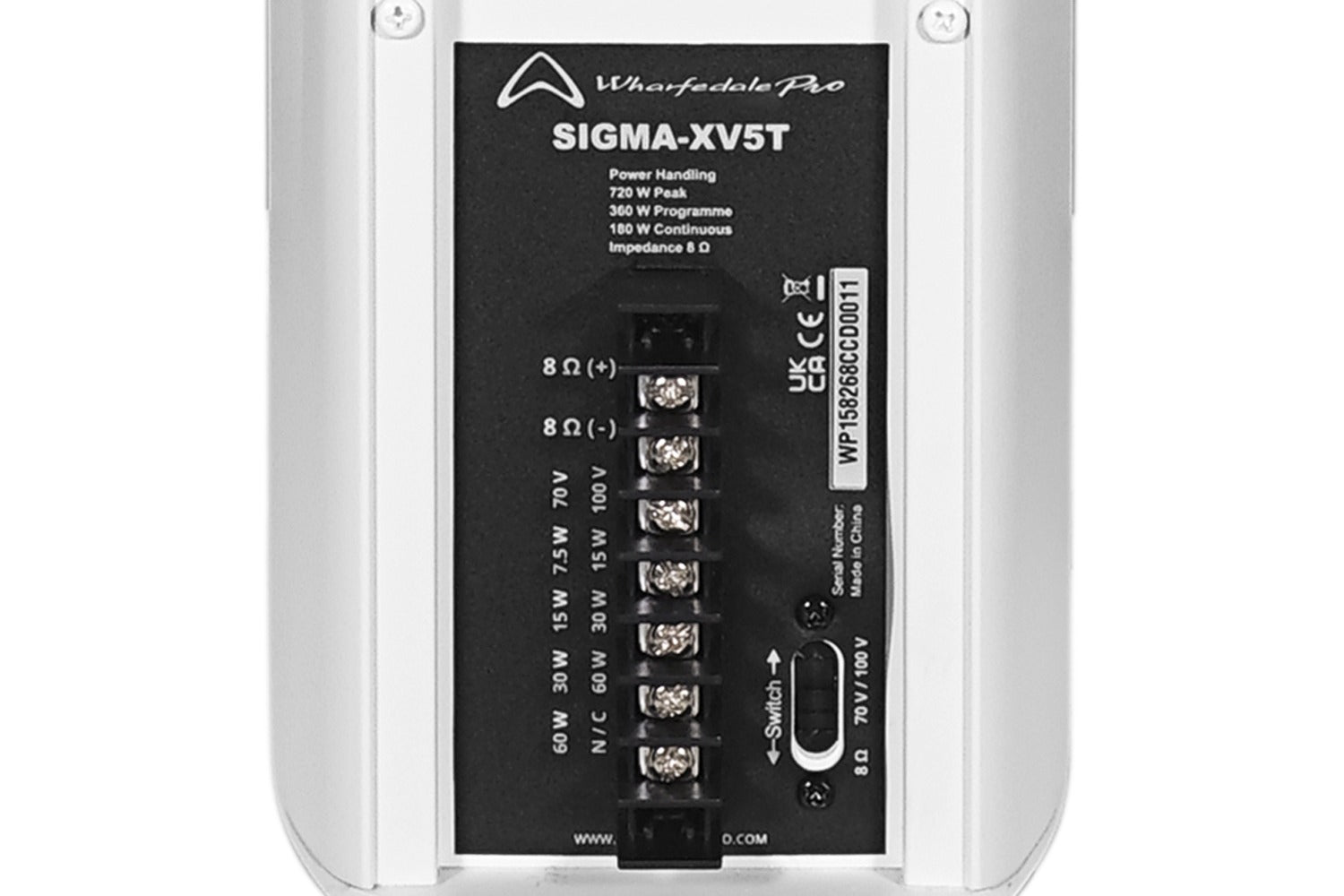

Transformer (T) | 100 V / 70 V |
Transformer Taps (70 V) | 7.5,15,30,60 W |
Transformer Taps (100 V) | 15,30,60 W |
Crossover frequency | 2.5 KHz |
Recommended HPF = BW 18 dB/oct. |
160 Hz |

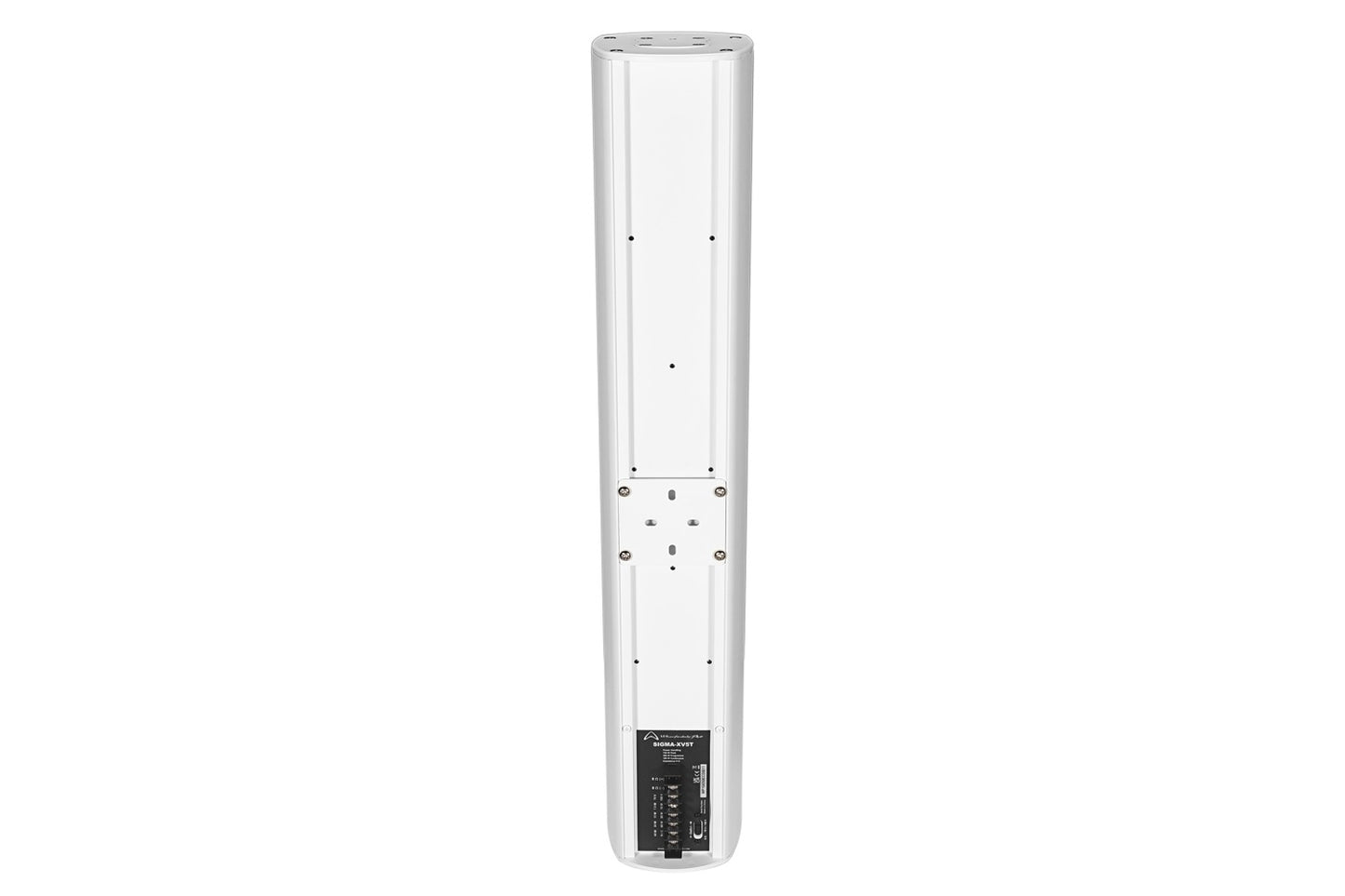

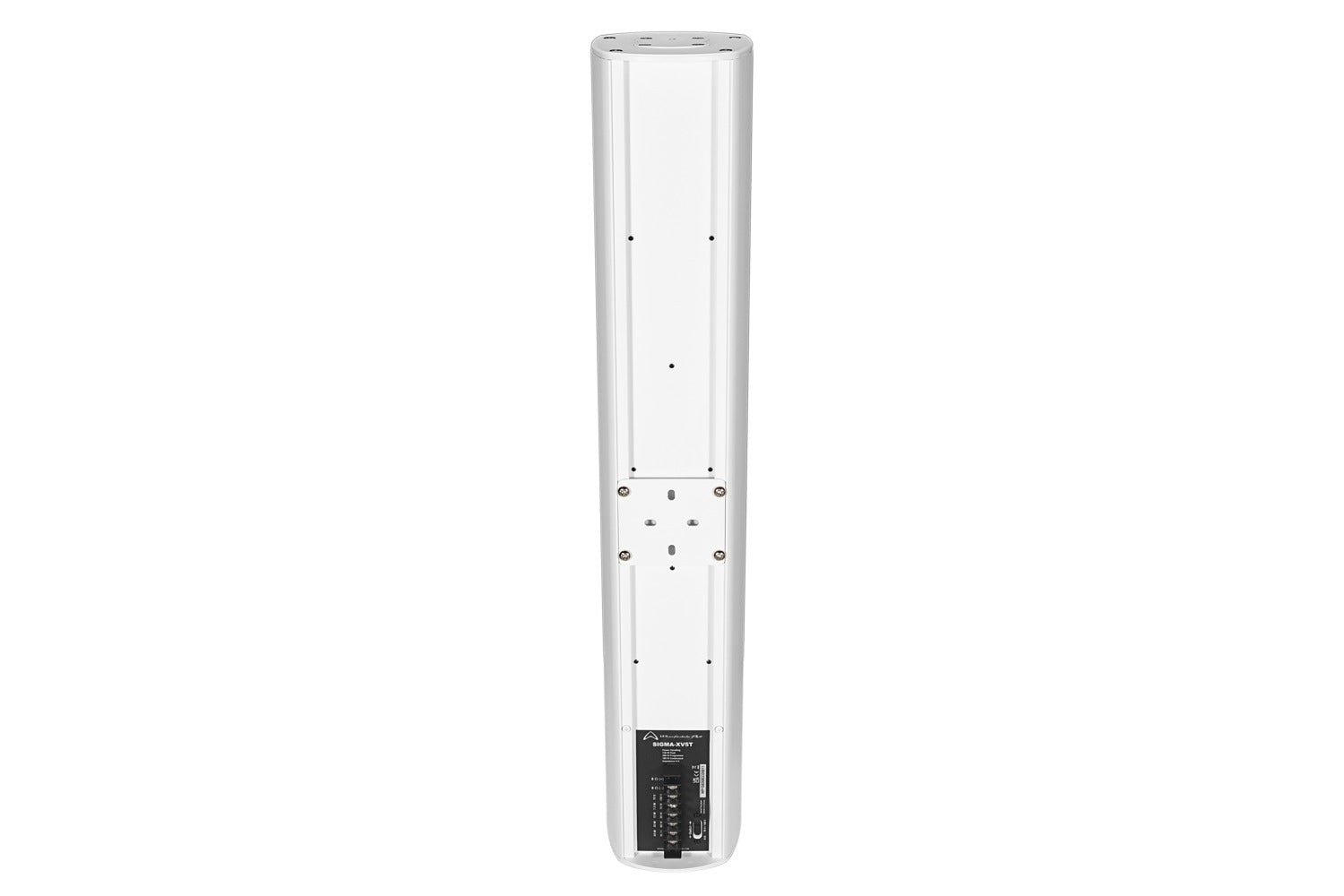

Input Connector | Barrier Strip |
Hardware | U Bracket included |
Enclosure | |
Enclosure Material | Aluminum |
Finish | Black Paint / White Paint |
Grille Material & Finish | 1.2 mm steel, painted |
Dimensions – Unpacked | |
Height | 720 mm / 28.3″ |
Width Front | 126 mm / 4.96″ |
Width Rear | 92 mm / 3.62″ |
Depth | 145 mm / 5.71″ |
Dimensions – Packed | |
Height | 865 mm / 30.1″ |
Width Front | 210 mm / 8.27″ |
Width Rear | 210 mm / 8.27″ |
Depth | 210 mm / 8.27″ |
Weight | |
Net Weight | 8.4 kg / 18.4 lbs |
Gross Weight | 9.2 kg / 20.24 lbs |
Optional Wall-mount bracket | WPB-SV |
