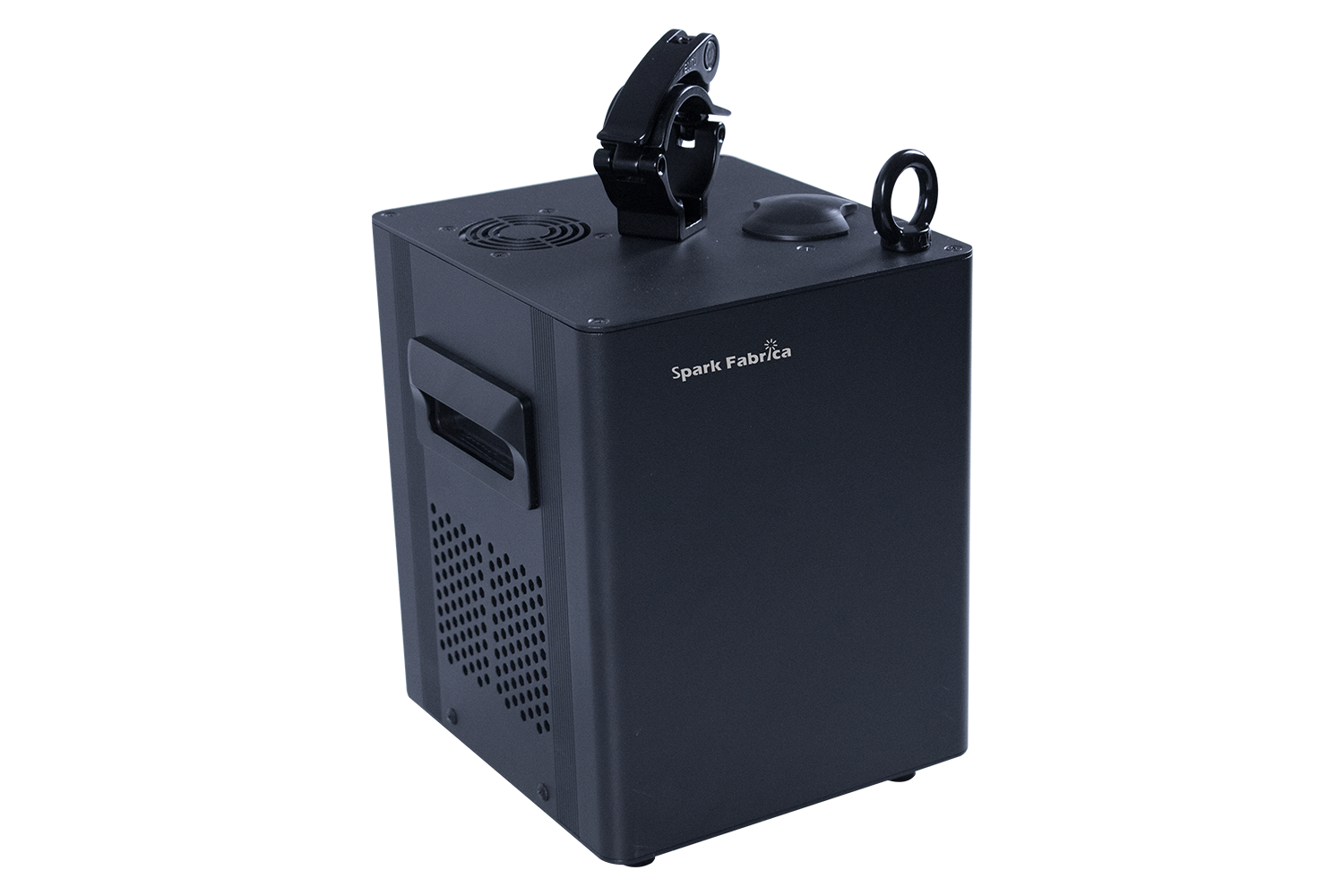

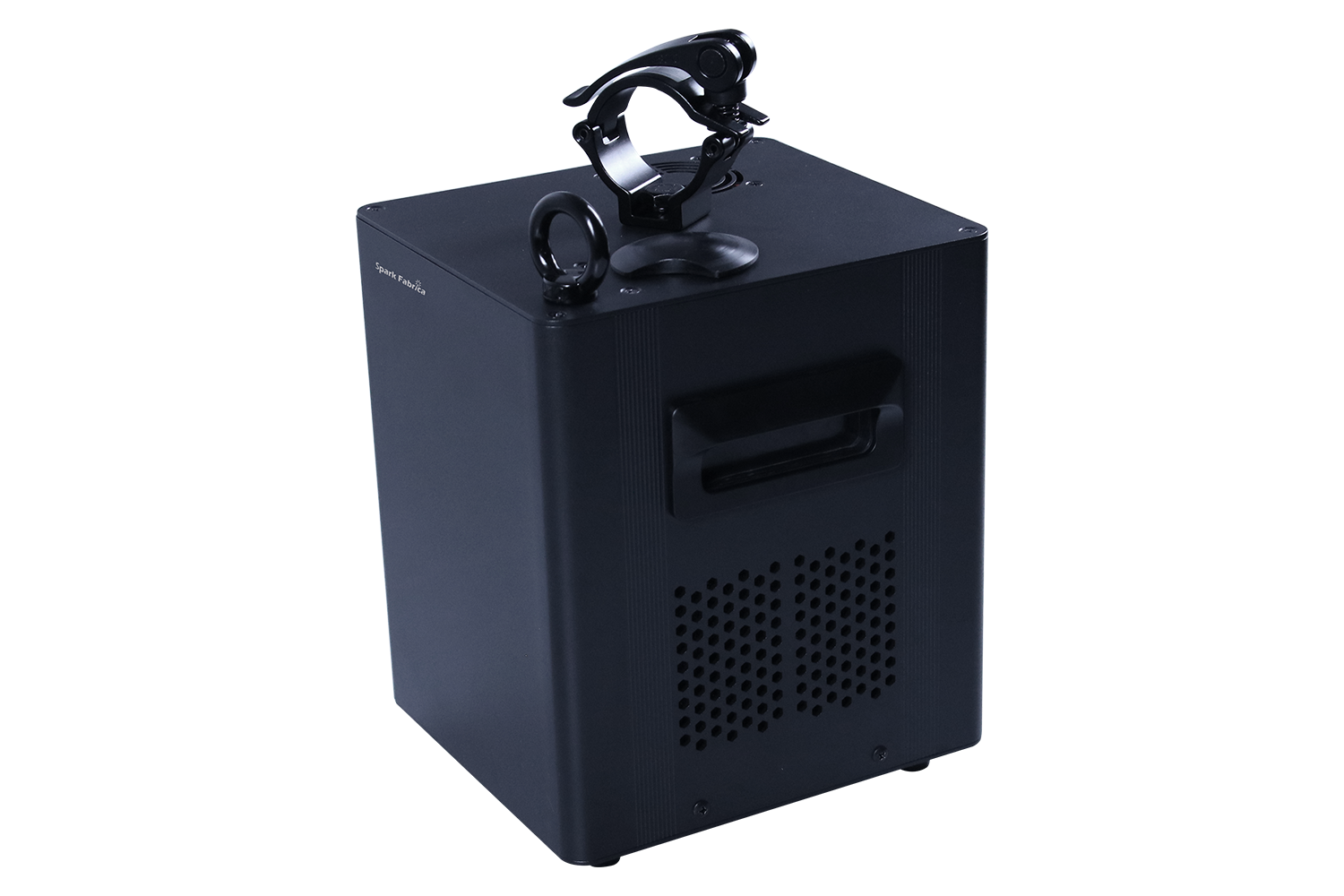

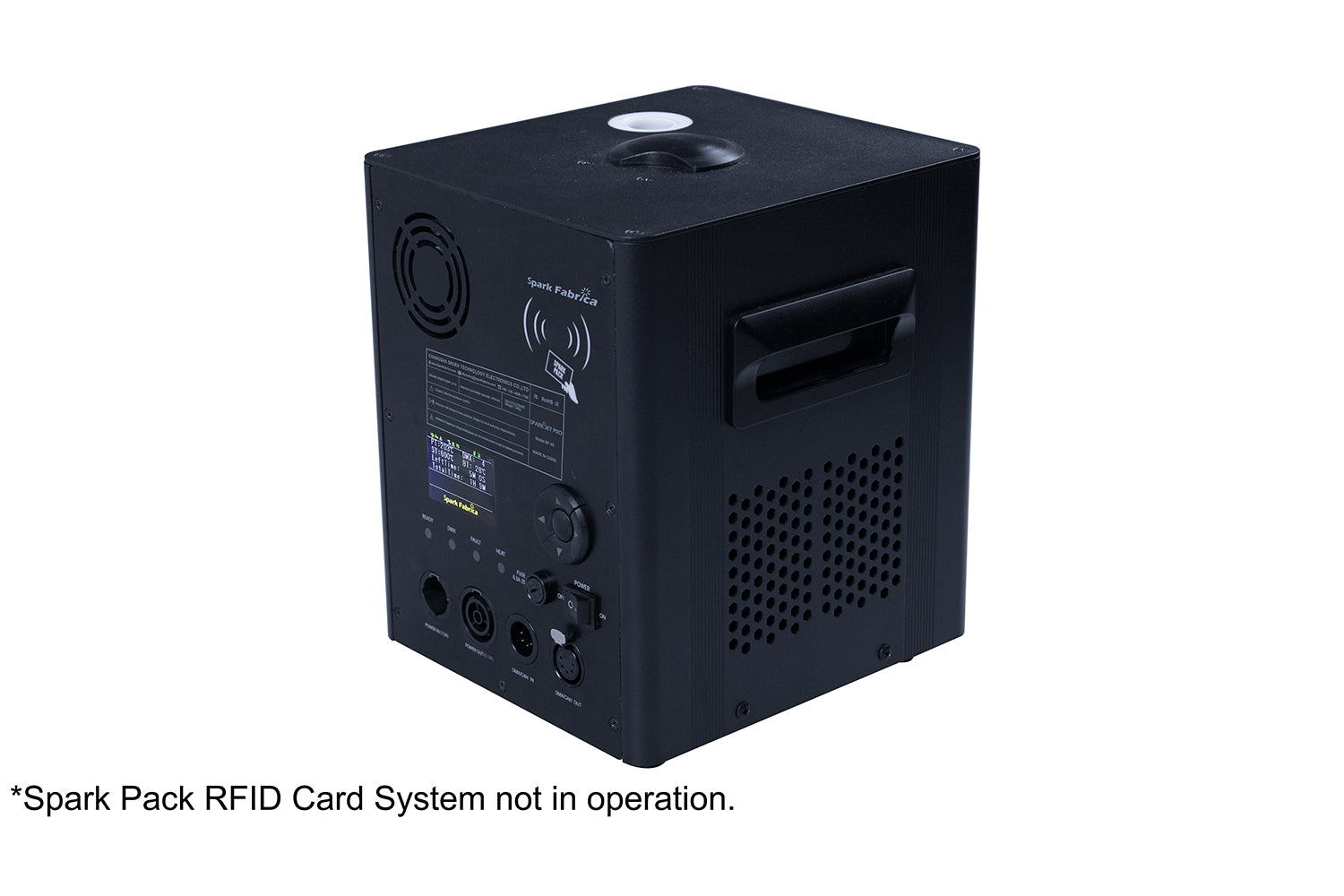

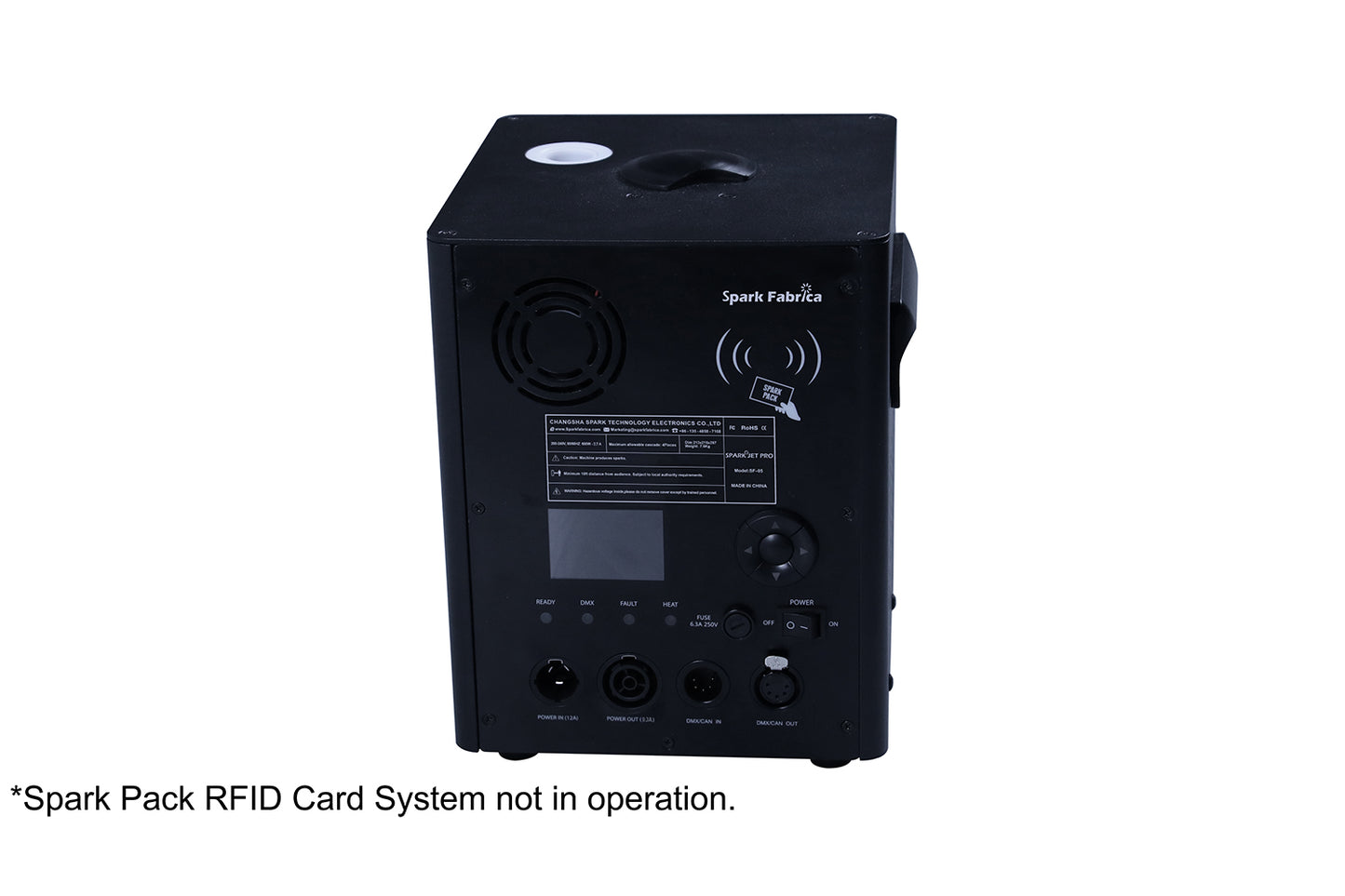

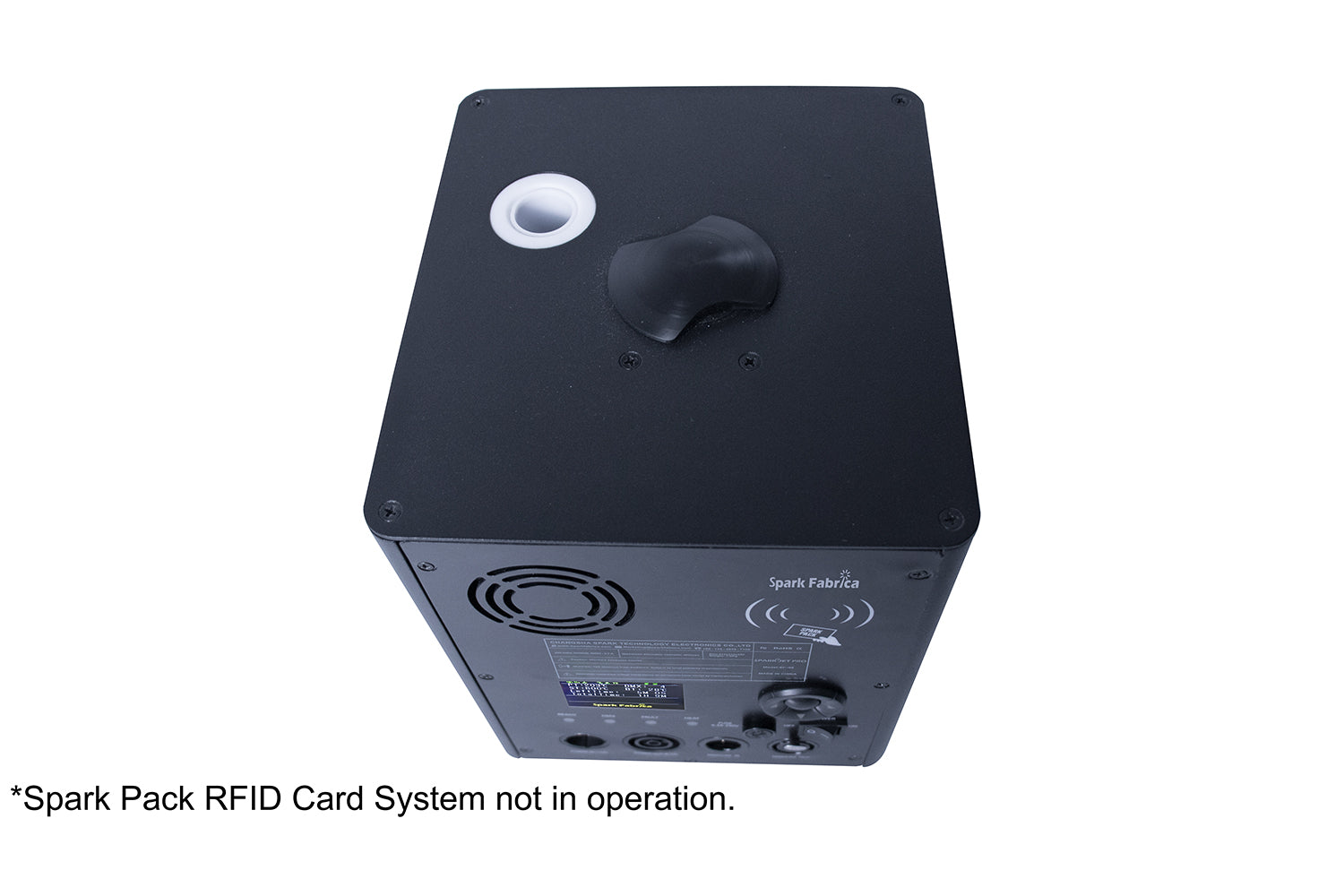

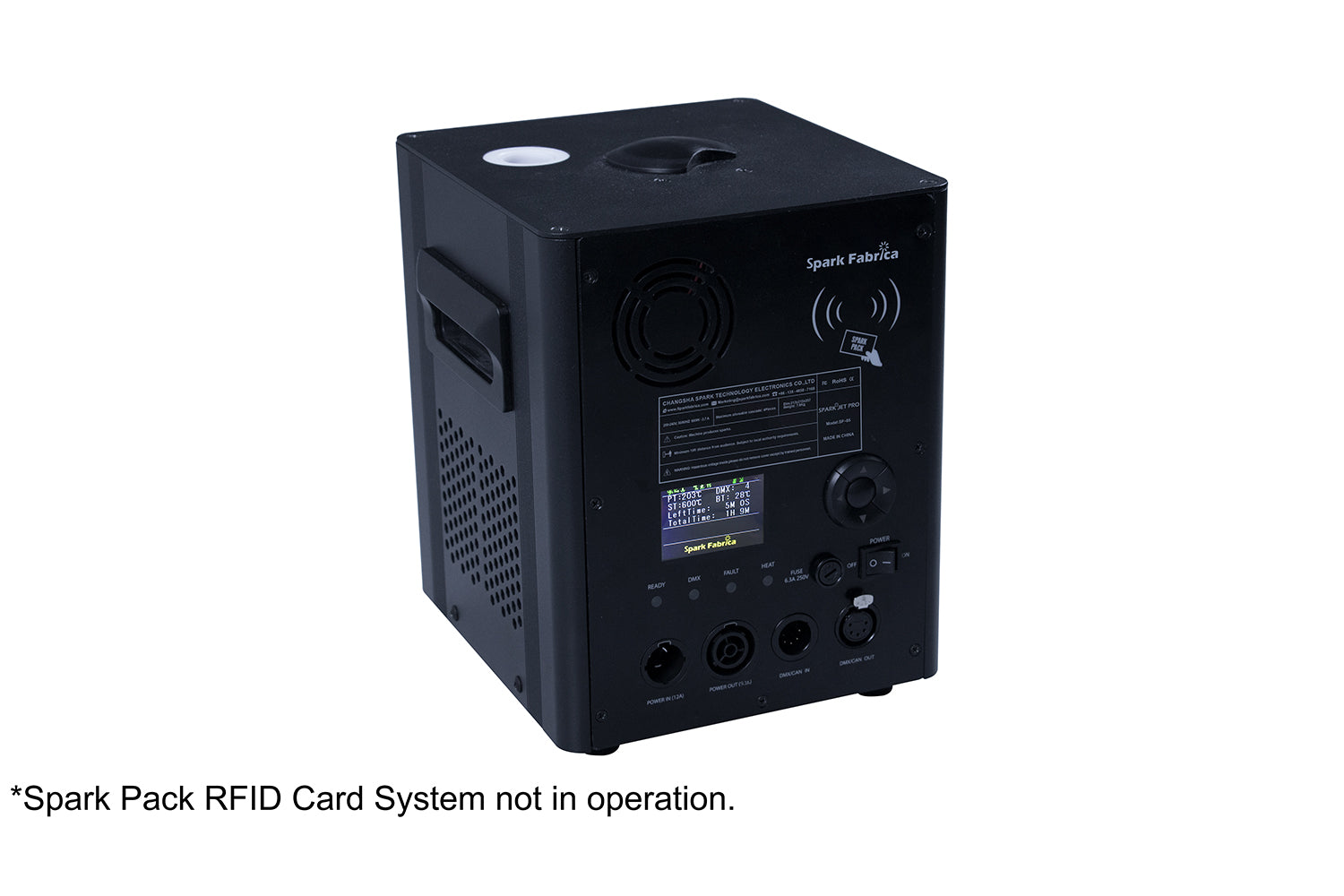

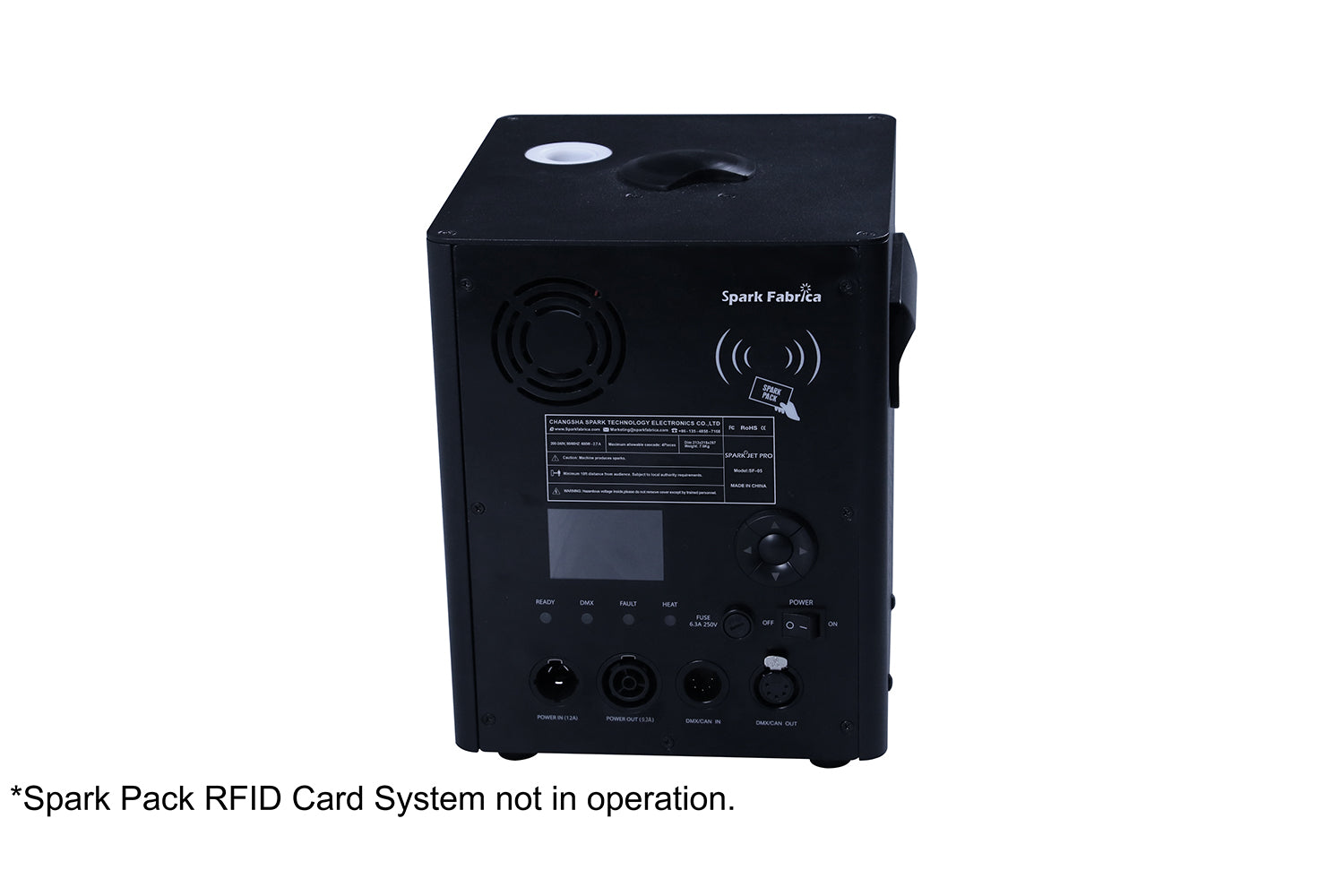

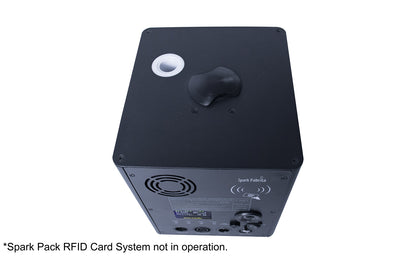

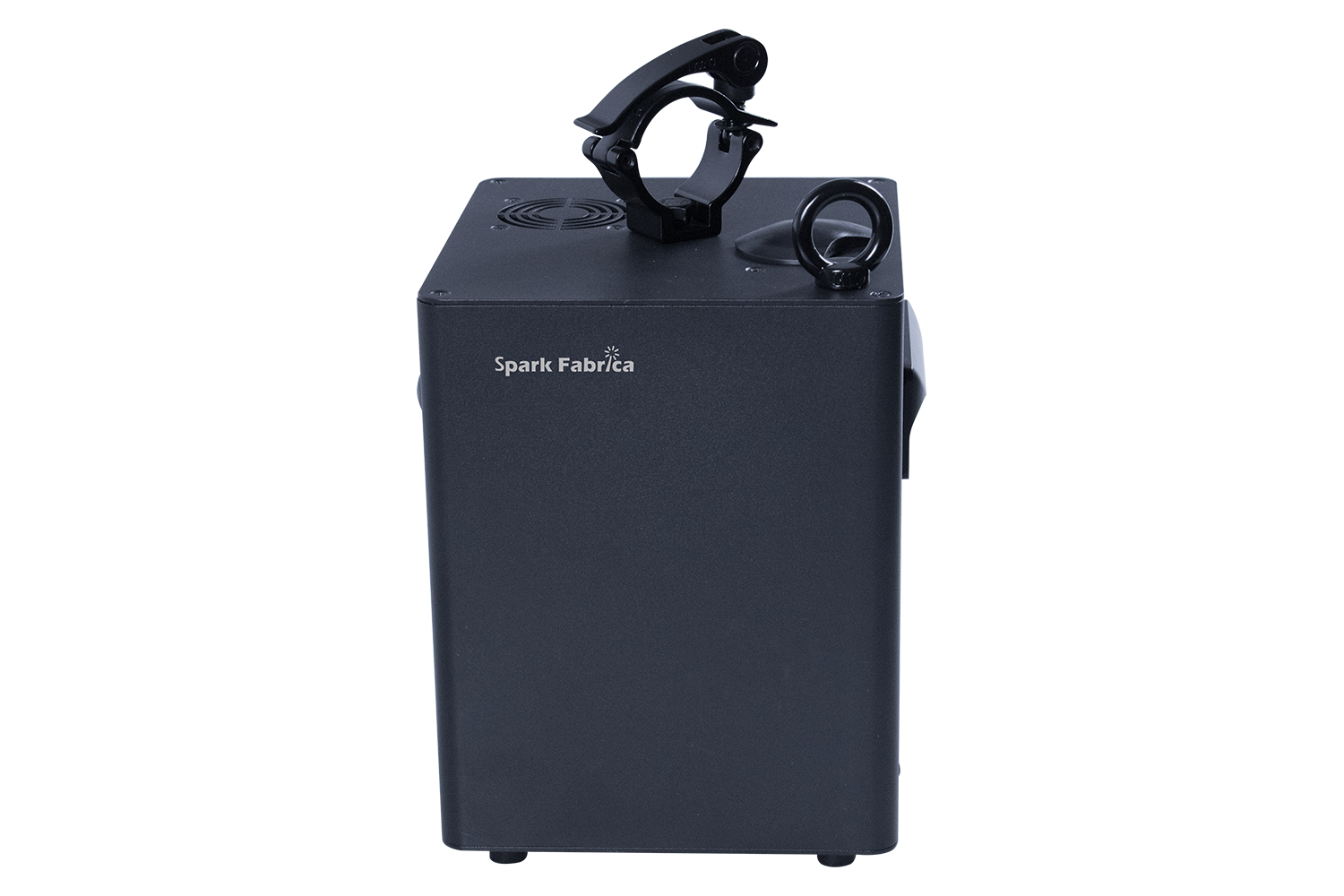

SPARKRAINPRO SF-01 Spark Machine Downward Flow

Specification

• Cold Spark Technology
• 3 Controllable variables: Height, Density and Duration

AC Power

• Input Voltage & Frequency: 240V 50HZ
• Power Consumption: 600W
• Power Input Connector: SEETRONIC

• Power Output Connector: SEETRONIC
• DMX Signal Interface: 5 PIN

Heating

• Heat Up Time < 5 Minutes

Hopper

• Powder tank Capacity: 150g

Technical Parameters

• Linear Adjustable Density: 30 - 100%
• Adjustable height: 3 - 8m
• Height Level: 1-10 Level
• Powder Consumption (100% Output) 20 - 25g per minute
• Maximum Single Continuous Duration: 30 seconds

Control

• Control Protocol: DMX-512
• RDM
• CAN
• SMPTE: Touch Screen Console Support

Accessory

• Power Plug: SEETRONIC (1.6 Metres)
• Remote Controller: (Optional)
• DMX Cable: 3 Metres
• Power Cable: 3 Metres
• Safety Ring
• Safety Rope

Certification

• CE
• ROHS

Weight

• Net Weight: 8 Kg
• Gross Weight: 10 Kg

Dimensions

• Machine Dimension: 215 x 213 x 257 mm
• Packing Dimension: 270 x 250 x 330 mm

Granule

• Spark Fabrica Granule: 200 Grams or 50 Grams
• For more information please see the Granules Safety Data Sheet.

Manual

• SF-01 Spark Rain Pro User Manual

Roadcase: Optional

• SPARKRAINCASE - Case for Spark Rain Pro. Holds 4 units.

For more information on the machine, please visit the manufacturer's website.

Warranty: 1 Year

This product contains consumables, these products are covered by DOA warranty.
