Wharfedale Pro TOURUS+A15 Active Speaker

Wharfedale Pro TOURUS+A15 Active Speaker

$769.00
$769.00
Sale Contact for Availability

TOURUS+ ACTIVE SERIES

Features

  • Dual 35 mm pole sockets
  • 5 x M8 rigging points
  • Optional U brackets and soft covers
  • Bluetooth connectivity
  • TWS functionality
  • Mic / Line inputs for both channels
  • Balanced Link outputs
  • 4 presets with FIR filters



TOURUS+A15

Key Features

  • 15″ Active loudspeaker
  • Max SPL @ 1 M : 130 dB
  • 3″ LF Voice coil
  • 500 W Continuous
  • 1000 W Peak


Let's look inside

All Tourus+ models are equipped with dual 35 mm pole sockets.   0° and 3°

This is really useful for targeting your audio…..at your audience.


Versatile

The polypropylene cabinet of all TOURUS+ models has been designed with a 45° monitor angle.

TOURUS+ easily works not only as a front of house loudspeaker but as a floor monitor too!



Cover IT up

With soft internal padding these optional ‘soft cover’ accessories are ideal for simple transportation or as a dust cover when the TOURUS+ is not being used.

The TOURUS+ carry handles are easily accessible even when it is inside its TOURUS+ Soft cover.



Control

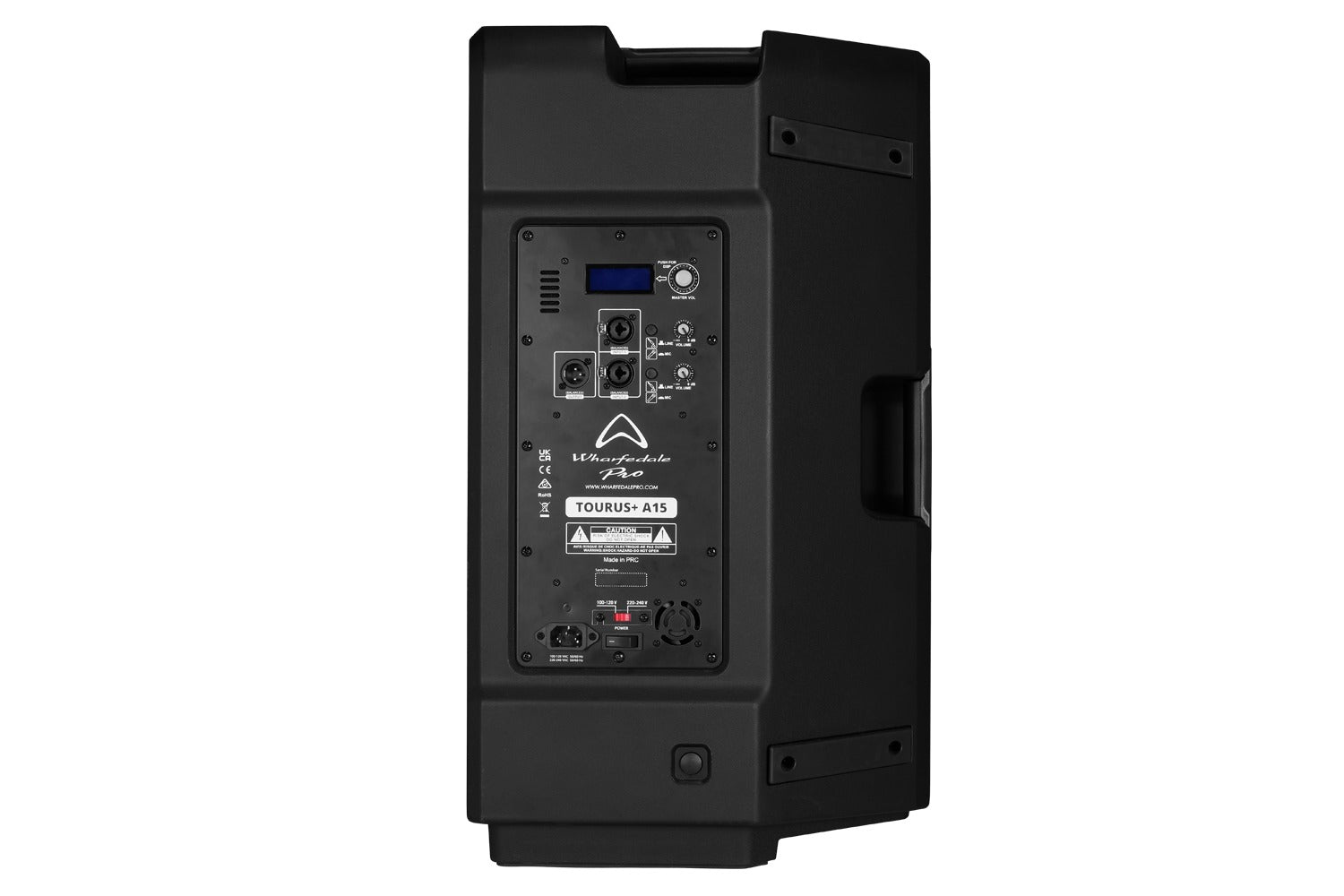

Around the back is the main screen and control.  All the options are accessible to tweak the TOURUS+A to sound great in your environment.




Specifications

Model Name TOURUS+ A15
System Type 15″ Active
Configuration two-way bi-amped
Frequency Response (+/-3 dB) 50 Hz – 20 KHz
Frequency Range (- 10 dB) 42 Hz – 20 KHz
Calculated Maximum SPL @1 m 130 dB
Low Frequency Transducer
Size 15″
Voice Coil Size (inches) 3″
High Frequency Transducer
HF Driver Type Compression Driver
Voice Coil Size (mm / inches) 1.73″
Exit Size (mm / inches) 1.37″
Diaphragm Material Titanium
Waveguide Type Constant Directivity
Nominal Coverage (H x V) 90° x 60°
Special Features Bluetooth, Display, FIR, editable 3 band EQ
Preset NORMAL, LIVE, DJ, SPEECH
Location mode Stand or Monitor
Driver brand Wharfedale Pro
Amplifier Design Class D
Power Rating: 1000 W Peak (900 W LF + 100 W HF),
500 W Continuous (450 W LF + 50 W HF)
Thermal Protection Amplifier Shut Down. Auto Reset
Low Line Voltage Shut Down 60% Nominal Line Voltage
Driver Protection Independent LF/ HF RMS and Peak Limiters
DC and Short Protection Yes
Clip Limiter Yes
Limiter Indicator Red LED
Signal Indicator Green LED
Power/Active Indicator White LED
Find Function Indicator Blue LED
Input Sensitivity +4 dBu
Maximum Input Level +18 dBu
Input Impedance Balanced:10 KΩ
AC Power details – Power Supply 220~240 V AC / 100~120 V AC 50/60 Hz
Input Balanced socket XLR
Link Balanced pin XLR
AC Power AC Input: VDE
Rigging & Hardware: 5 x M8
Optional Accessories WPB-T+15
Heavy-duty soft cover
Handle 1 on top, 1 on side
Pole Mount Dual Angle (0°/-3°) 35 mm
Cabinet Type Trapezoid
Enclosure Material and finish Polypropylene
Colour Options Black paint
Grille Material & Finish Powder coated steel
Monitor Angle 45°
Dimensions – Unpacked (mm / inches):
Height 695.7 mm
Width Front 417.0 mm
Width Rear 222.6 mm
Depth 368.5 mm
Dimensions – Packed (mm / inches):
Height 777.0 mm
Width Front 503.0 mm
Width Rear
Depth 441.0 mm
Weight
Net Weight 19.1 Kg
Gross Weight 23.14 Kg
