Wharfedale Pro

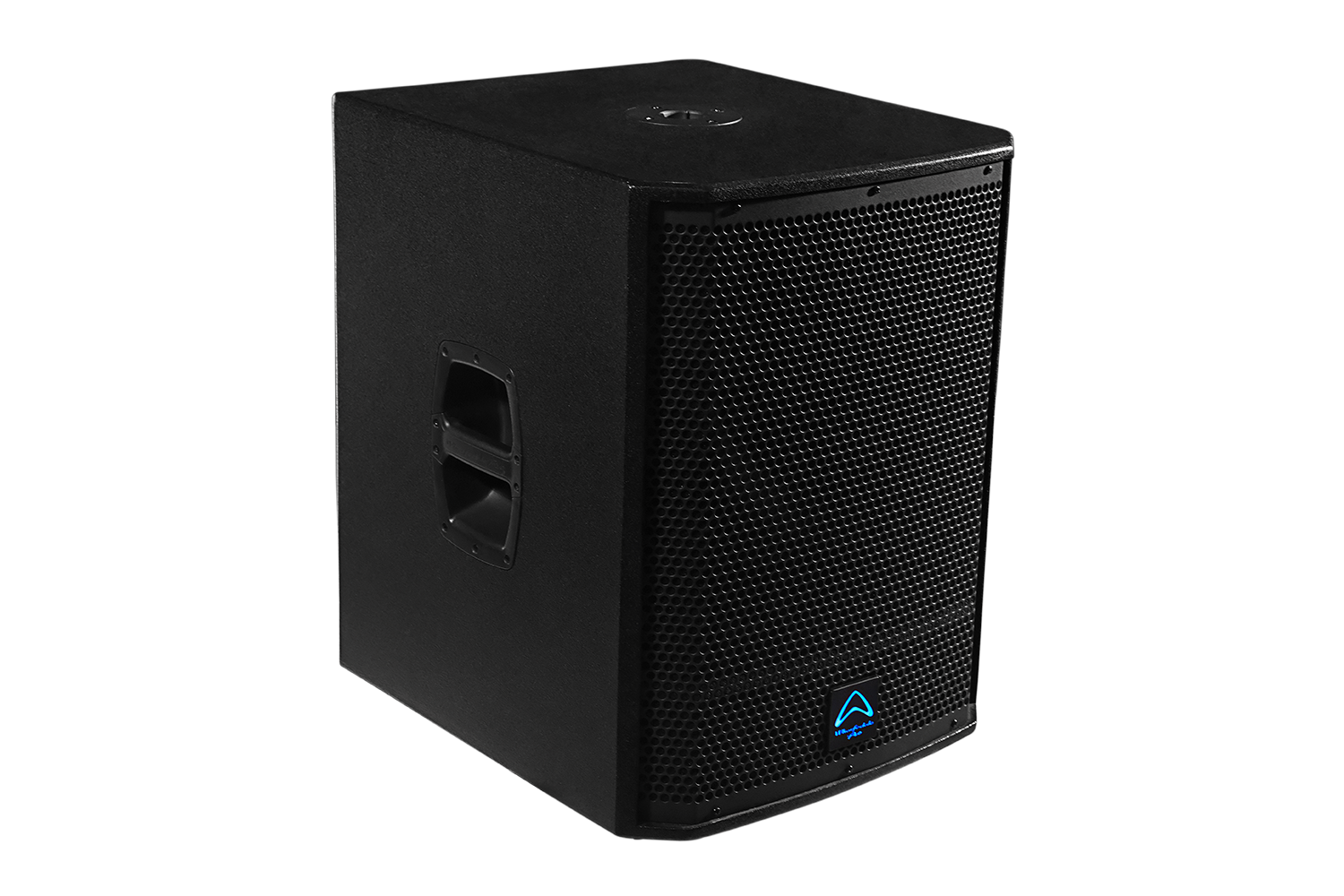

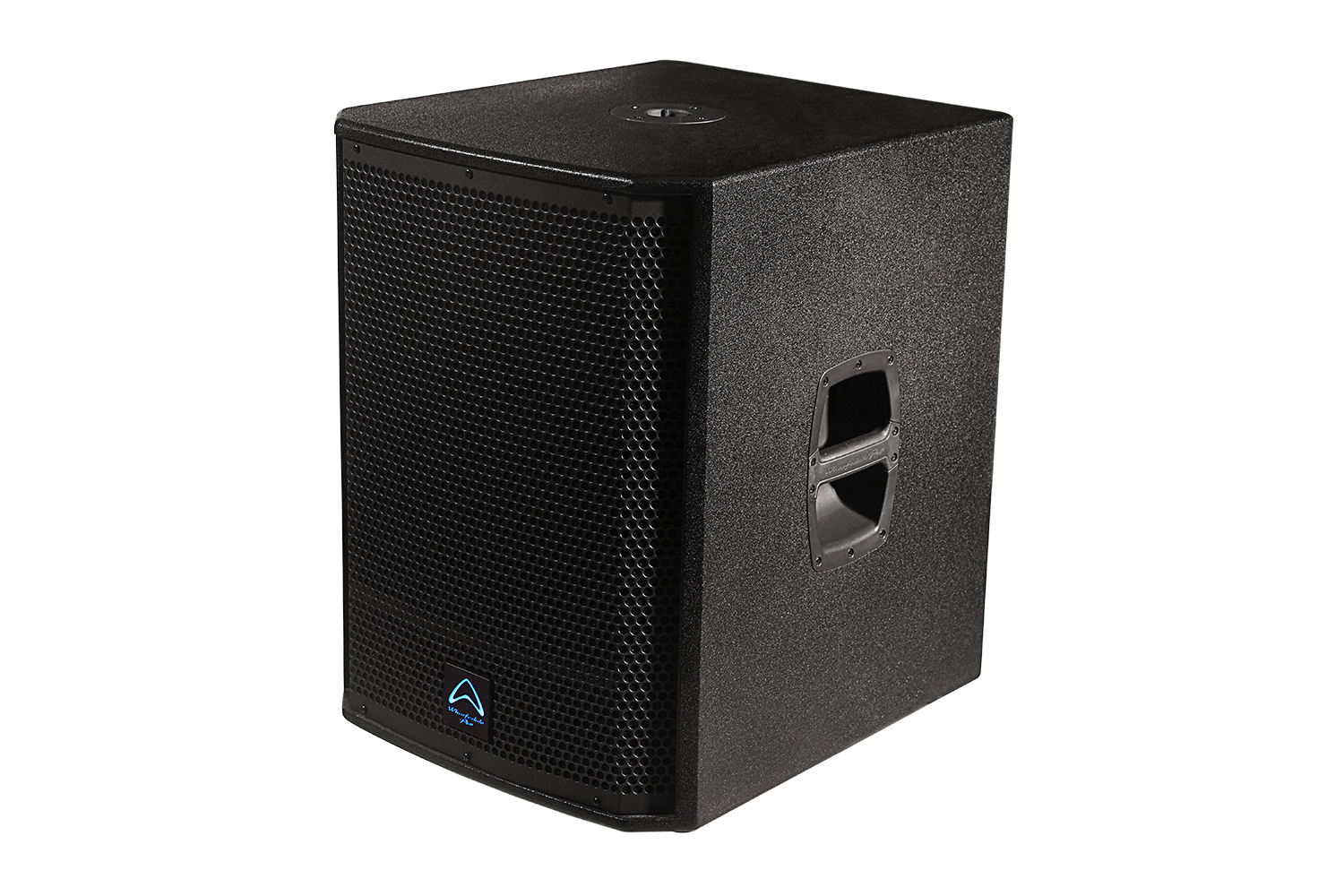

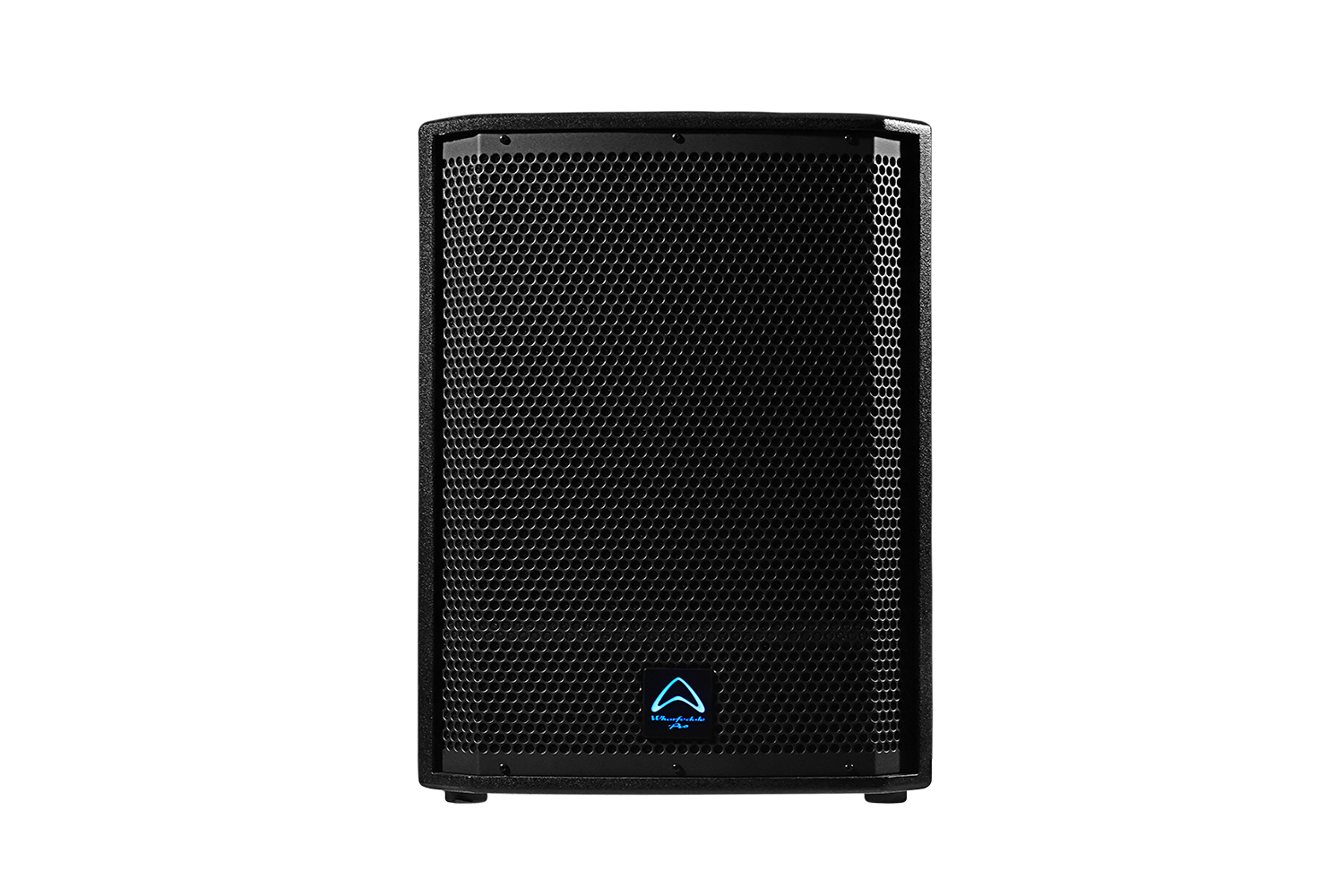

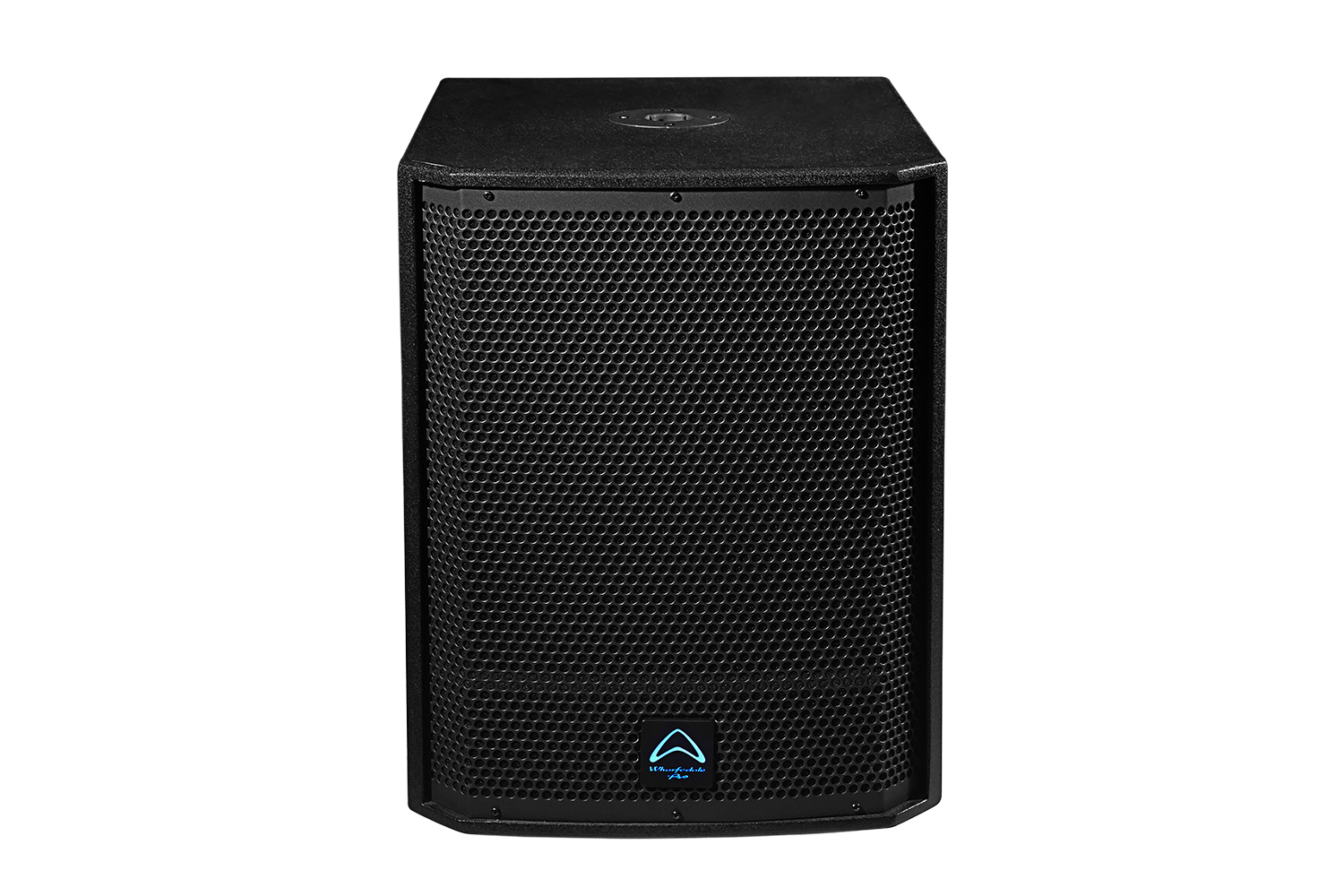

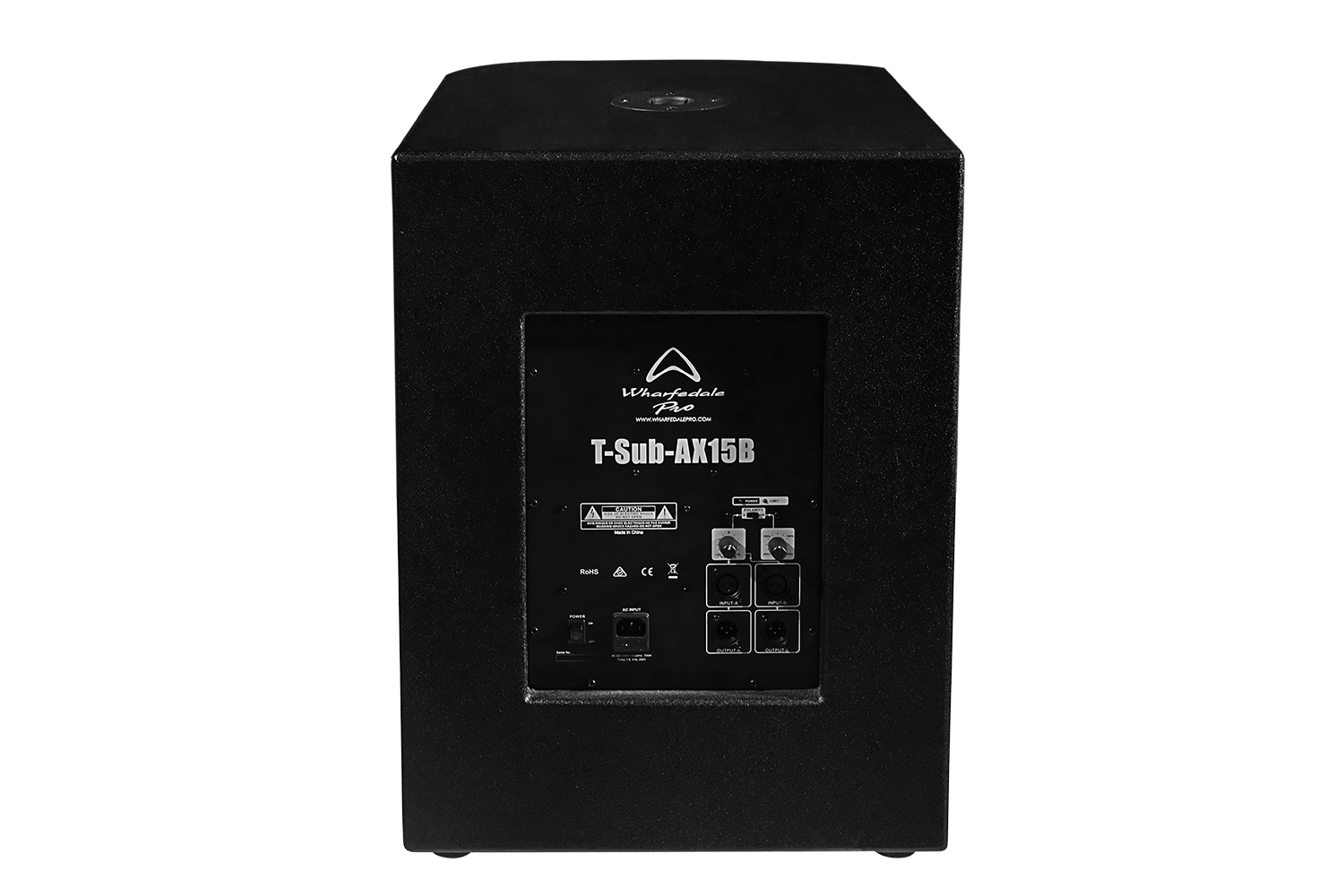

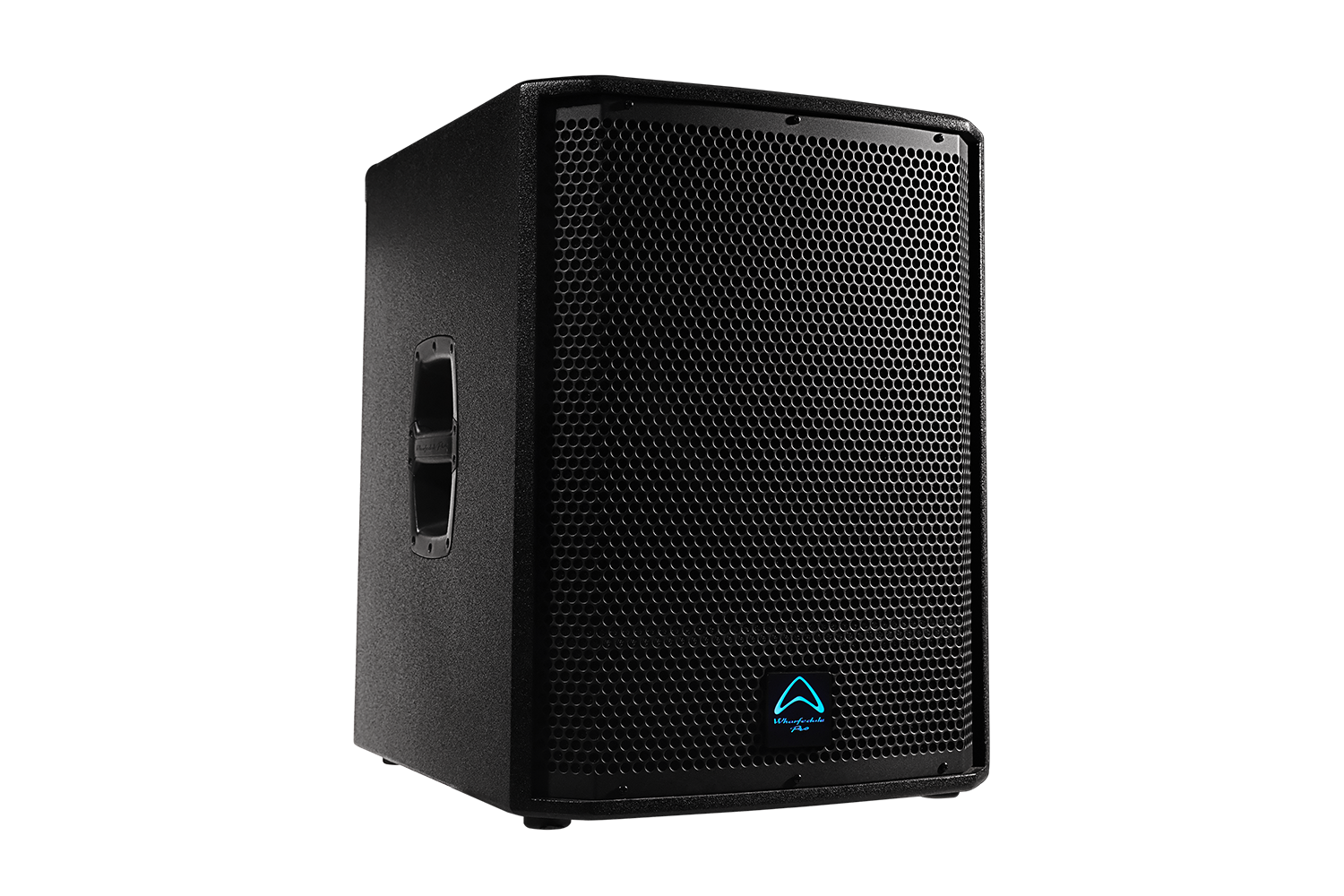

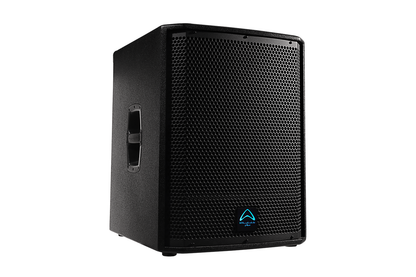

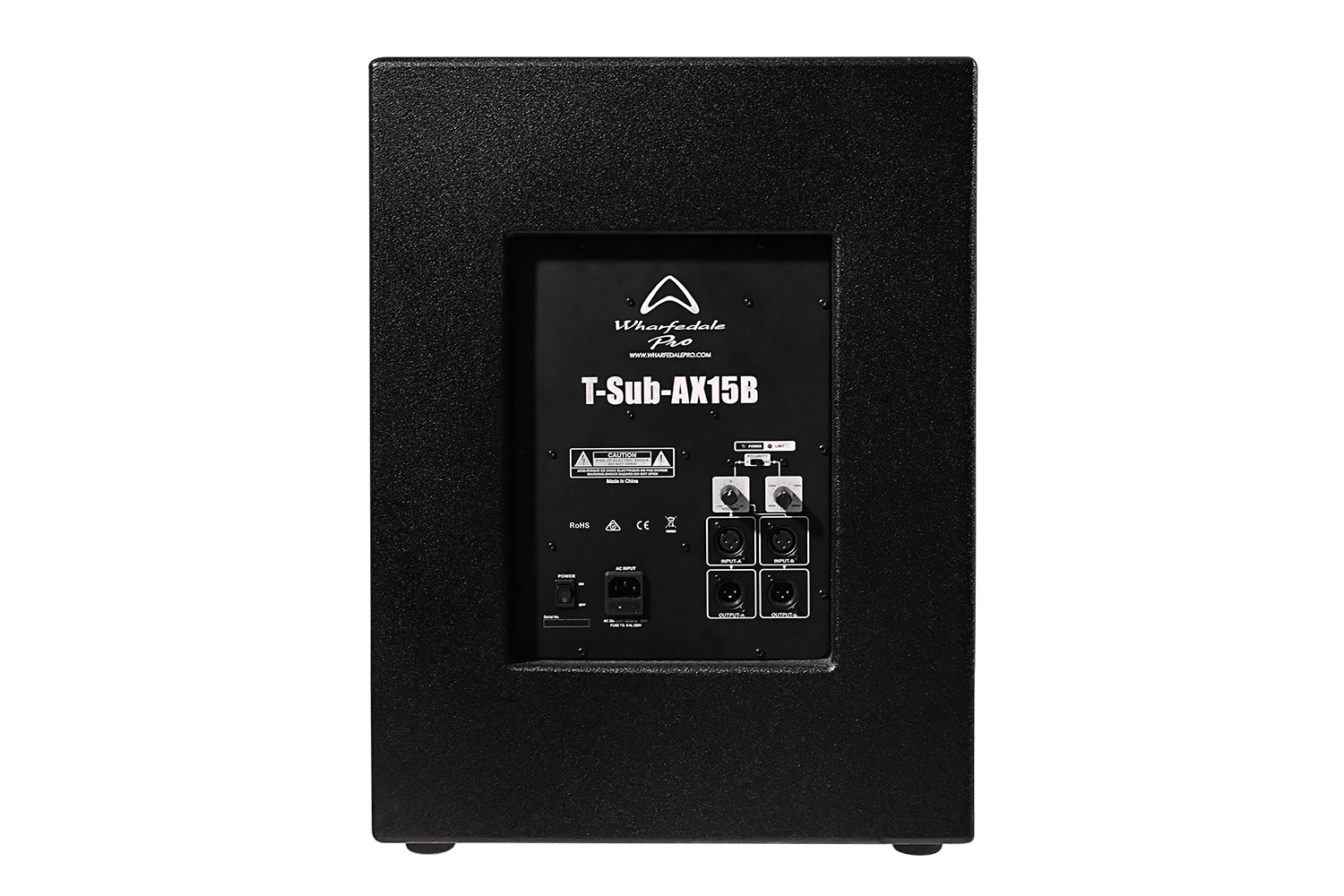

Wharfedale Pro TSUBAX15B Active Subwoofer
Wharfedale Pro TSUBAX15B Active Subwoofer
T-SUB-AX15B
EVERYONE LOVES BASS !!
- 700 Watts Continuous
- 1400 Watts Peak
- 129 dB Max SPL @ 1 meter
- Birch plywood construction
- Illuminated LED front logo badge
- Convection cooled Class D amplifier
- Adjustable low pass filter
- 3.0″ voice coil
- Quad layer driver design
- 35 mm pole socket & durable handles
EVERYONE LOVES BASS !
That is exactly why we have created the T-Sub-AX15B – our 700 W Continuous, 1400 W Peak 15” active subwoofer.
The internal Class D amplifier delivers huge output power into the custom quad-layer 15” Wharfedale Pro LF driver to produce extreme subs and low end pressure into any system. Built for big bass, the plywood constructed cabinet is rock solid and is protected in durable Rhino Rock paint.
You’ll not only ‘feel’ the T-Sub-AX15B, but you will also see it! A new illuminated WP logo badge subtly glows and adds to the overall on-stage “power” of the new T-Sub.
T-Sub-AX15B is the perfect companion for a Typhon or a Titan active loudspeaker. It also has 75% more power than the current Titan Sub-A15 MKII.
Hold on to your socks! T-Sub-AX15B is going to blow them off!
PERFECT PAIRING
T-Sub-AX15B has been designed to be the perfect partner for Wharfedale Pro plastic active loudspeakers.
Used with a Tourus, a Titan or our flagship Typhon models, T-Sub-AX15B completes the system – bringing new levels of bass to the setup.
+75% MORE POWER
Here at Wharfedale Pro, we are passionate about our products!
But there comes a time when we have to admit defeat!
Our original Titan Sub A15 MKII cannot stand up to T-Sub-AX15B !!!
T-Sub-AX15B is +75% more powerful than our classic Titan Sub A15 MKII.
PROTECT THE BASS
A protective optional soft cover for T-Sub-AX15B Active Subwoofers.
With easy access to both carry handles and a soft protective padding, the T-Sub-15 soft covers are simple to put on and simple to remove – making setup and breakdown easy.
SPECIFICATIONS
| Model Name | T-Sub-AX15B |
|---|---|
| System Type | Active 15″ Subwoofer |
| Frequency Response (+/-3 dB) | 45 Hz-200 Hz |
| Sensitivity @ 1W / 1 m) | 97 dB |
| Maximum SPL (peak @ 1 m) | 129 dB |
| Low Frequency Transducer | |
| Size (mm / inches) | 404 mm / 15” |
| Coil Size (mm / inches) | Quad layer 3.0″ |
| Impedance | 4Ω |
| Amplifier | |
| Low-Frequency Power Amplifier (Class D) | 700 w Continuous / 1400 w Peak |
| Crossover Frequency | LPF 80-200 Hz (adjustable) |
| Controls | |
| Amplifier Protection | Yes |
| Power On Protection | Power switch on / off mute |
| Thermal Protection | Amplifier shutdown, auto reset |
| Driver Protection | Yes |
| DC Protection | Yes |
| Short Protection | Yes |
| Limiter Indicator | Red LED |
| Input type | Balanced |
| Input Connector | Female XLR |
| Input Impedance | 47 KΩ Balanced |
| Maximum Input Level | 5V |
| Input Sensitivity | -10 dB |
| Line Output Connector | Male XLR |
| Phase Switch Selection | 0° / 180° |
| AC Power details | |
| Power Supply | SMPS |
| AC Power Options | 100V-120V and 200V-240V |
| Power Indicator | Green(back) / Blue logo(front) |
| Enclosure | |
| Enclosure Material | 15 mm Plywood |
| Colour | Black |
| Grille | 1.5 mm steel |
| Pole Mount (Top) | 35 mm |
| Dimensions (Unpacked): | |
| Height | 591 mm / 23.27″ |
| Width | 454 mm / 17.9″ |
| Depth | 523.9 mm / 20.63″ |
| Dimensions (packed): | |
| Height | 689 mm / 27.1″ |
| Width | 544 mm / 21.4″ |
| Depth | 610 mm / 24.0″ |
| Weight | |
| Net Weight (kg / lbs) | 25.7 kg / 56.5lbs |
| Gross Weight (kg / lbs) | 29.5 kg / 64.9lbs |
