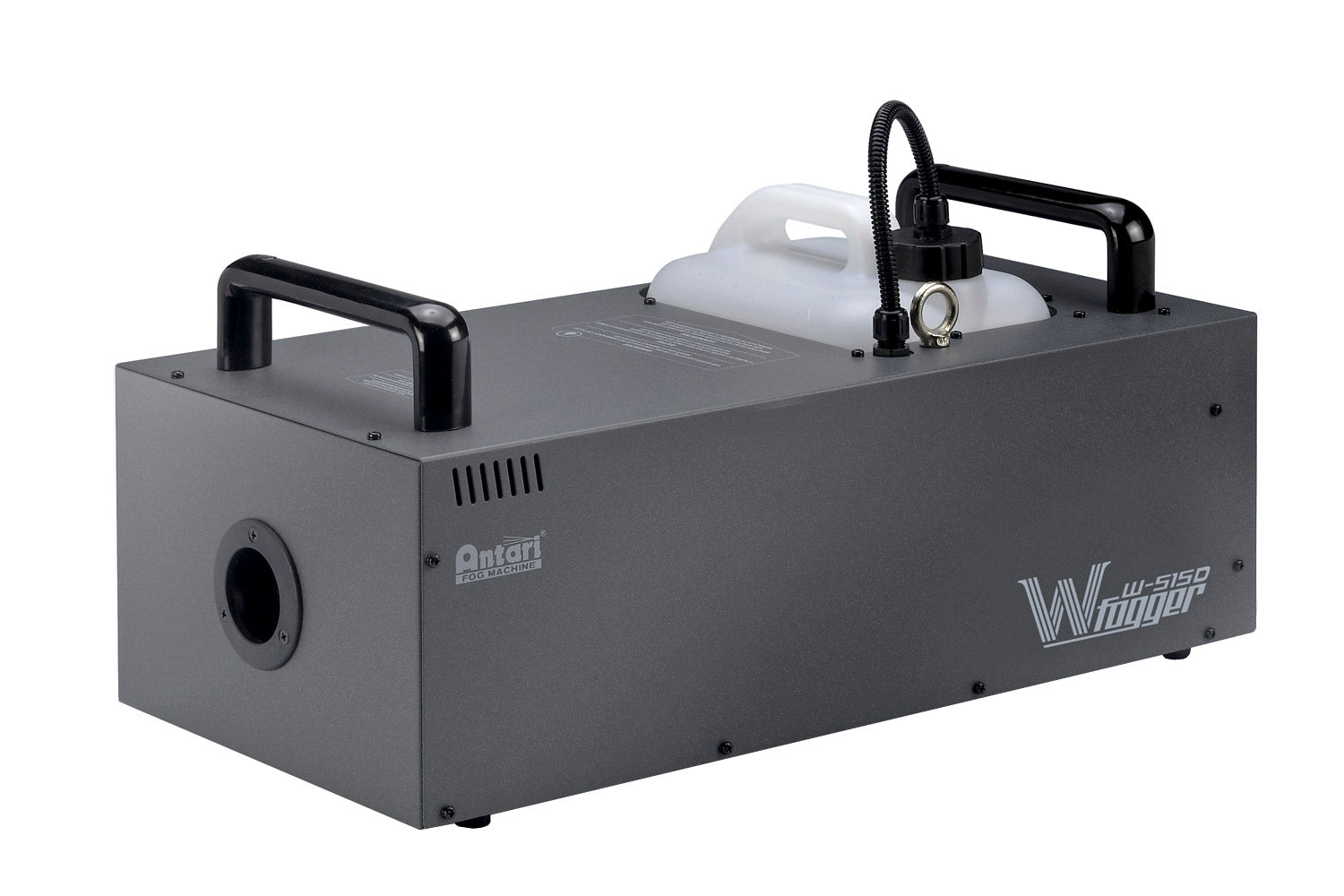

W515D - 1450W Fog Machine with wireless remote control

The cutting-edge wireless control system gives the Antari W series a simple settings and operation interface. Additionally, the state-of-the-art heater design improves the W Series fog machines' quality and energy efficiency. In conclusion, the Antari W Series makes it easy for users to create a professional scene.

Features

Intelligent Wireless Control System. Each machine comes with a set of wireless receiver and transmitter as standard controller. The working distance of wireless control is 50 meters in open area.

Opto-electronic Fluid Sensor. When the fluid recipient runs dry, the fluid sensor stops pumping automatically to protect pump from burning.

New, More Efficient Heat Exchanger Design which allows the Antari W series to generate fog with smaller particles, thereby reducing its fog fluid consumption. When compared to equivalent power consumption heat exchangers, the same quantity of fog fluid in W series can produce up to 20% more fog.

New Advanced PCB (Printed Circuit Board) Design. The new system can control temperature precisely and rule out the influence from outside environments as much as possible to make W series fog machines be able to work stably between -20 and +60 degrees Celsius.

Specification

• Voltage : AC 240V, 50Hz
• Rated Power : 1450W
• First Heat-up Time : 10 minutes (approx.)
• Fluid Consumption Rate : 100mL / min
• Tank Capacity : 6 litres
• Liquid Used : Antari FLR / FLG Liquid
• Operating Time: 60 min at max output
• Ambient Temp. Range: 0°C - 40°C
• Output: 566 m³ /min
• Control: DMX512, Timer, Manual, Wireless, Wireless DMX
• DMX Channels: 1 channel
• Connection: Neutrix Powercon (Power)
• Optional Accessories: XLR 3-pin and 5-pin (DMX), FX-5 Flightcase, W-515-HB Hanging Bracket
• Weight : 14.5 Kg
• Dimensions (mm) : L 561 W 278 H 265



Optional Accessories:

• Antari Cleaning solution C300



Download the User Manual

For more information, please visit the manufacturer's website

Spare Parts

Warranty: 1 year
