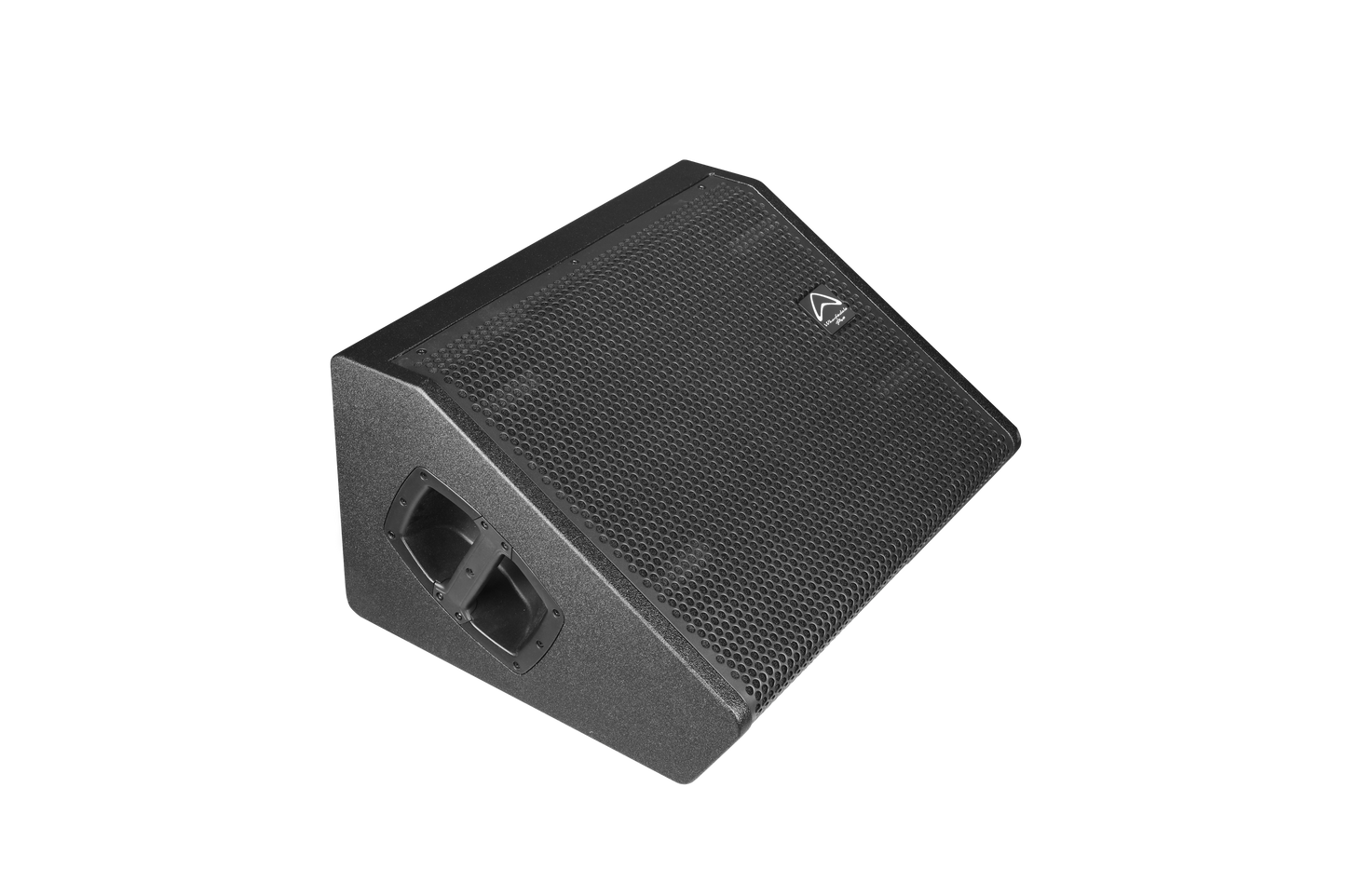

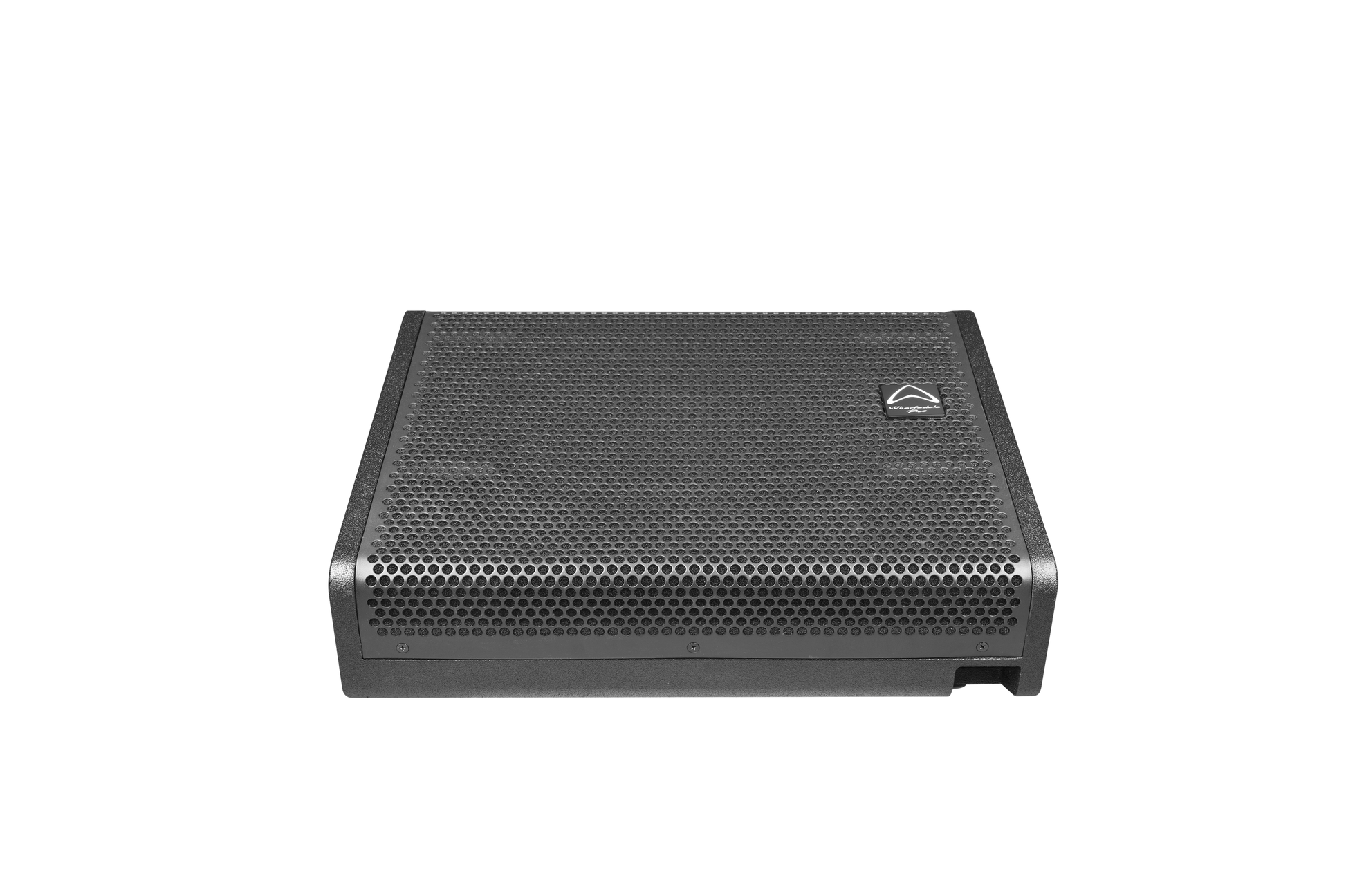

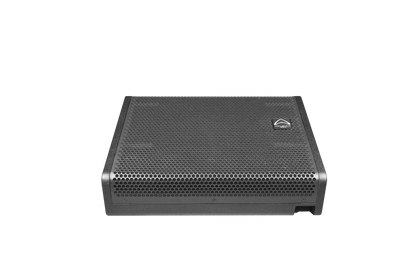

Wharfedale Pro WDG-15 - Passive Wedge Monitor
Wharfedale Pro WDG-15 - Passive Wedge Monitor
WDG Series
Coaxial WeDGe monitors, not only for the stage
WDG series has been engineered to re-define the traditional floor monitor. Available in active or passive and with 12” and 15” models, WDG has some handy tricks up its trouser leg......

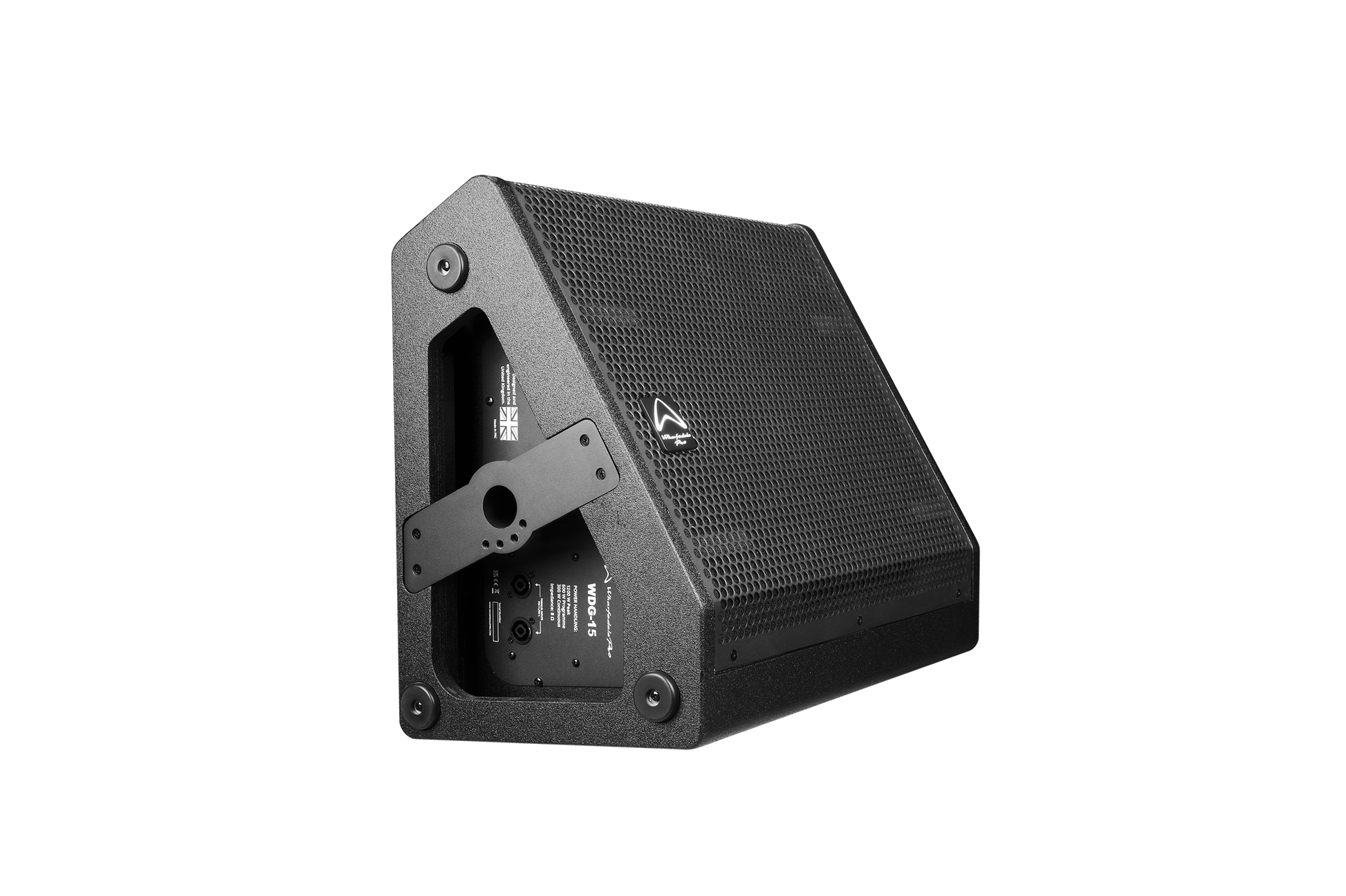

WDG-12, WDG-15 and active variants WDG-A12, WDG-A15, feature Wharfedale Pro coaxial drivers and a spherical waveguide delivering 70° nominal coverage. All models are versatile due to thoughtful cabinet design. WDG monitors can be deployed as 25° degrees for far field or 60° near field applications. There is also a 35 mm pole socket and WDG can even be deployed on the optional WPB-7 or U- brackets.
Active models feature 8 x DSP presets for easy hands on control, but can also be managed using RS485 protocol with the Wharfedale Pro PRO=LINK software. This allows for detailed remote preset editing and system management. There is also a practical HF Output EQ knob for any real-time tweaks needed on-stage.
Stage, pole, near or far or even on a wall. WDG delivers all the advantages of coaxial in a versatile manner.
FEATURES
- Versatile floor monitors....with more • Coaxial design
- Deploy as 25° or 60°
- Spherical waveguides
- Optional WPB-W12/ 15 U-Brackets and WPB-7 for easy wall mounting
- Active models with 8 x presets inc FIR plus PRO=LINK software control
- Durable Tough-Tone paint finish. Put your boot on it!!
VERSATILE DESIGN

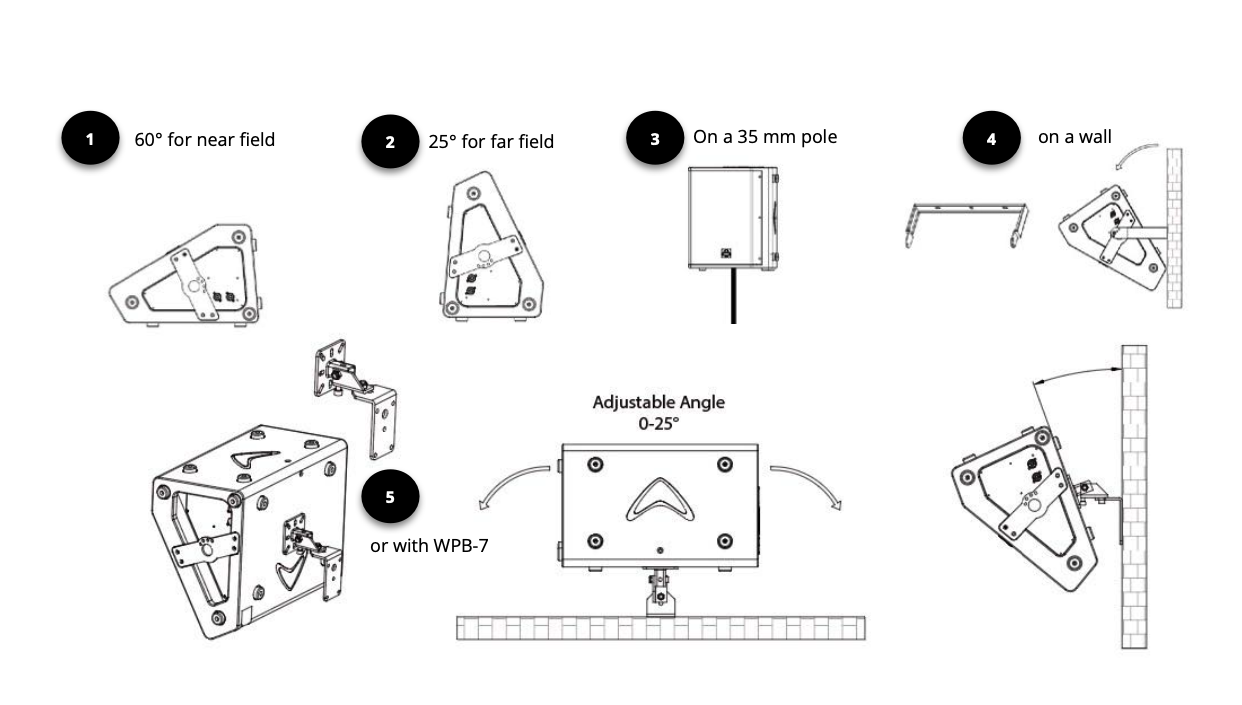

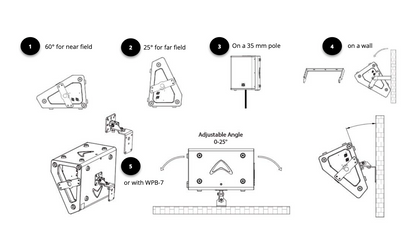

MAKING IT EASIER WITH PICTURES

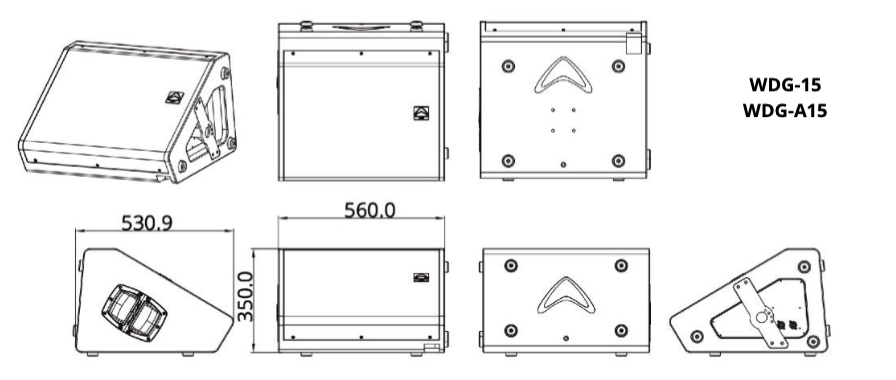

PRODUCT DIMENSIONS
SPECIFICATIONS
Model Name |
WDG-15 |
|
System Type |
15” Coaxial Passive |
|
Configuration |
Two-way |
|
Frequency Response (+/-3 dB) |
48 Hz – 20 kHz |
|
Frequency Range (-10 dB) |
35 Hz – 25 kHz |
|
Sensitivity (2.83 v / 1 m) |
99 dB |
|
Calculated Maximum SPL @1 m |
129 dB |
|
System Peak SPL |
135 dB* |
|
System Rated Impedance |
8 Ω |
|
* level at 1m using pink noise with crest factor 4, with dedicated preset |
|
Drivers |
|
|
LF Size |
381mm / 15” |
|
LF Voice Coil Size |
76.2mm / 3” |
|
LF Frame Material |
Aluminium |
|
HF Driver Type |
Compression Driver |
|
HF Voice Coil Size |
50.8mm / 2” |
|
HF Exit Size |
25.4mm / 1” |
|
Diaphragm Material |
Titanium |
|
Waveguide Type |
Spherical |
|
Nominal Coverage (H x V) |
70° |
|
Driver Brand |
Wharfedale Pro |
Power |
|
|
System Continuous Power |
300 W |
|
System Programme Power |
600 W |
|
System Peak Power |
1200 W |
|
Crossover frequency |
2 kHz |
|
Recommended HPF = BW 18dB/oct. |
30 Hz |
Construction |
|
|
Input Connector |
2 x speakON in/out |
|
Rigging & Hardware |
35mm Pole Mount 4 x M8 Threaded points for WPB-7 or PowerdriverTM Series 100 products Heavy Duty transport soft Cover |
|
Vertical Splay Angle Range |
N/A |
|
Handles |
1 on top |
|
Enclosure |
Polygonal shape |
|
Enclosure Material |
15 mm Plywood |
|
Finish |
Tough-Tone Finish |
|
Colour |
Black (white available on request - Pricing and availability subject to change) |
|
Grille Material & Finish |
Powder coated steel |
|
Monitor Angle (degrees) |
60° - 25° |
Dimensions – (Unpacked) |
|
|
Height |
350mm / 13.8” |
|
Width |
560 mm / 22.05” |
|
Depth |
530.8 mm / 20.9” |
Dimensions – (Packed) |
|
|
Height |
655 mm / 25.8” |
|
Width |
625 mm / 24.6” |
|
Depth |
435 mm / 17.1” |
Weight |
|
|
Net Weight (kg / lbs) |
24.3 kg / 53.5 lbs |
|
Gross Weight (kg / lbs) |
27.8 kg / 61.2 lbs |
