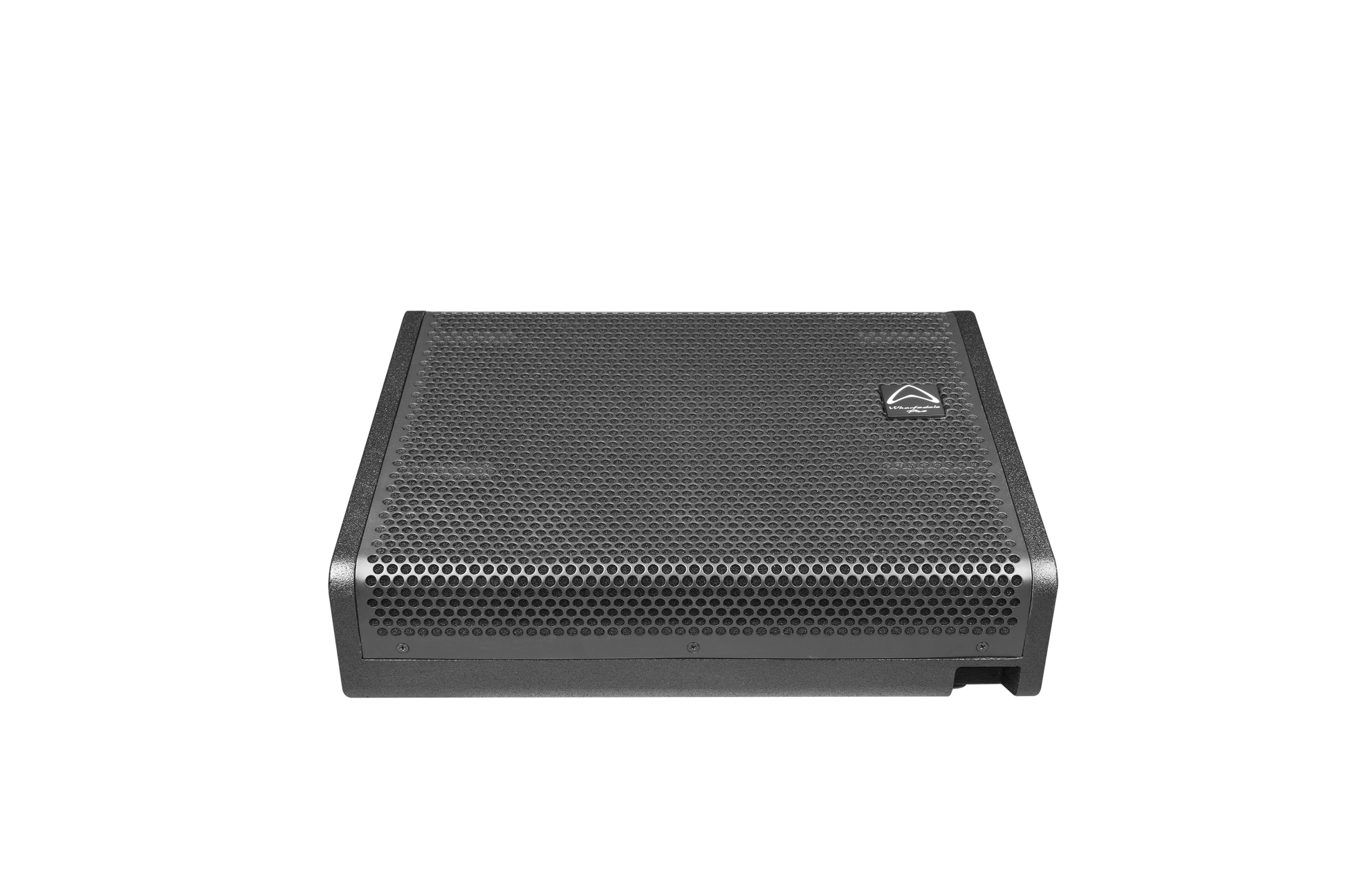

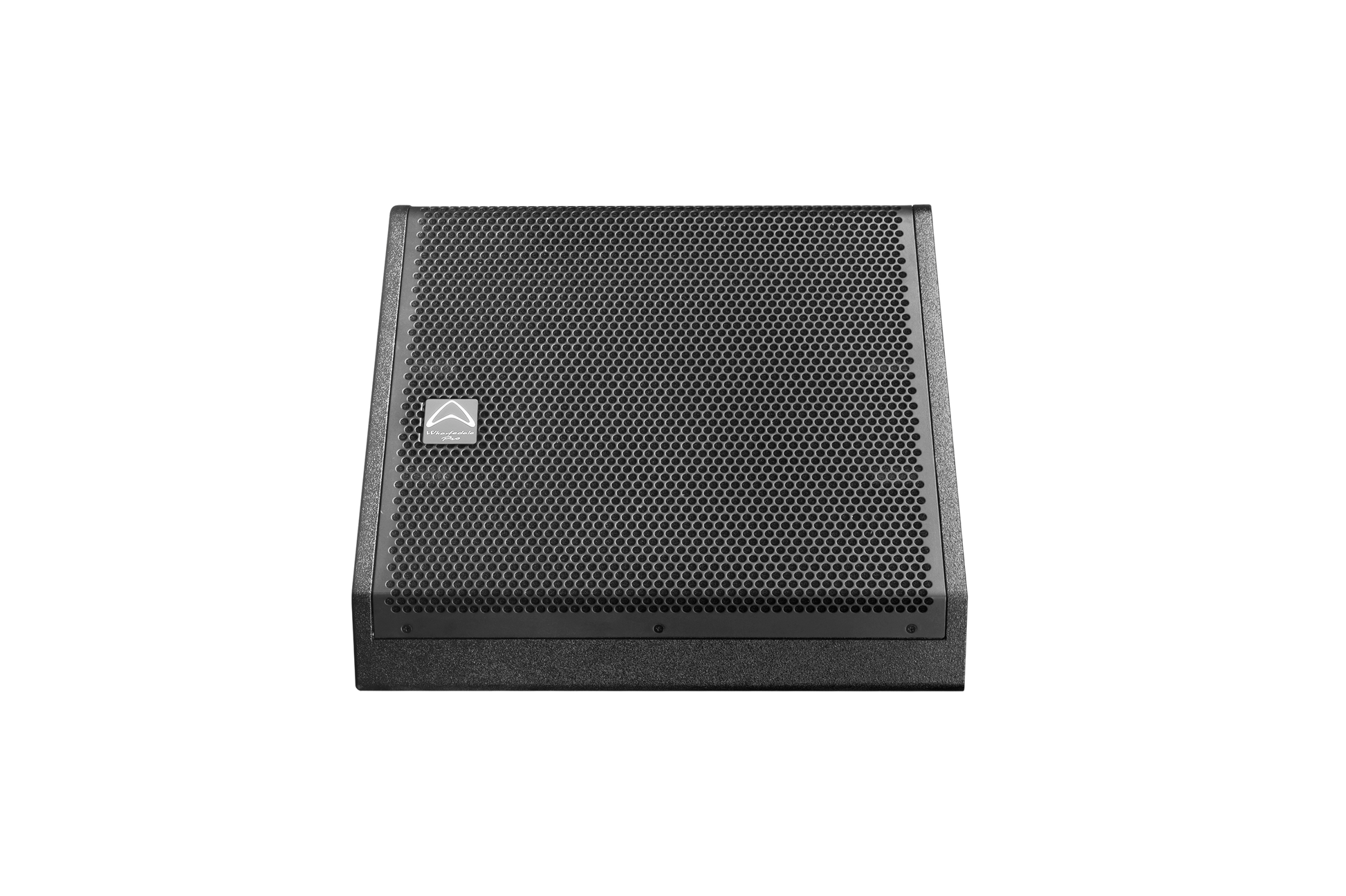

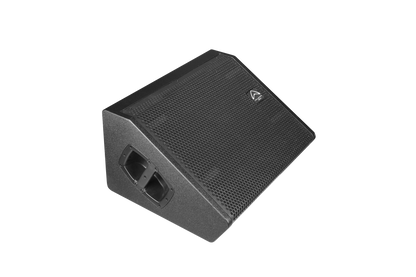

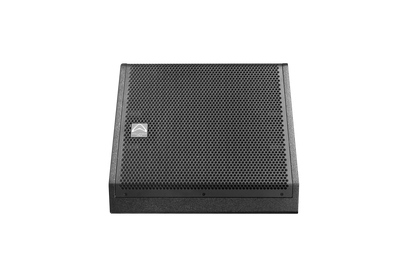

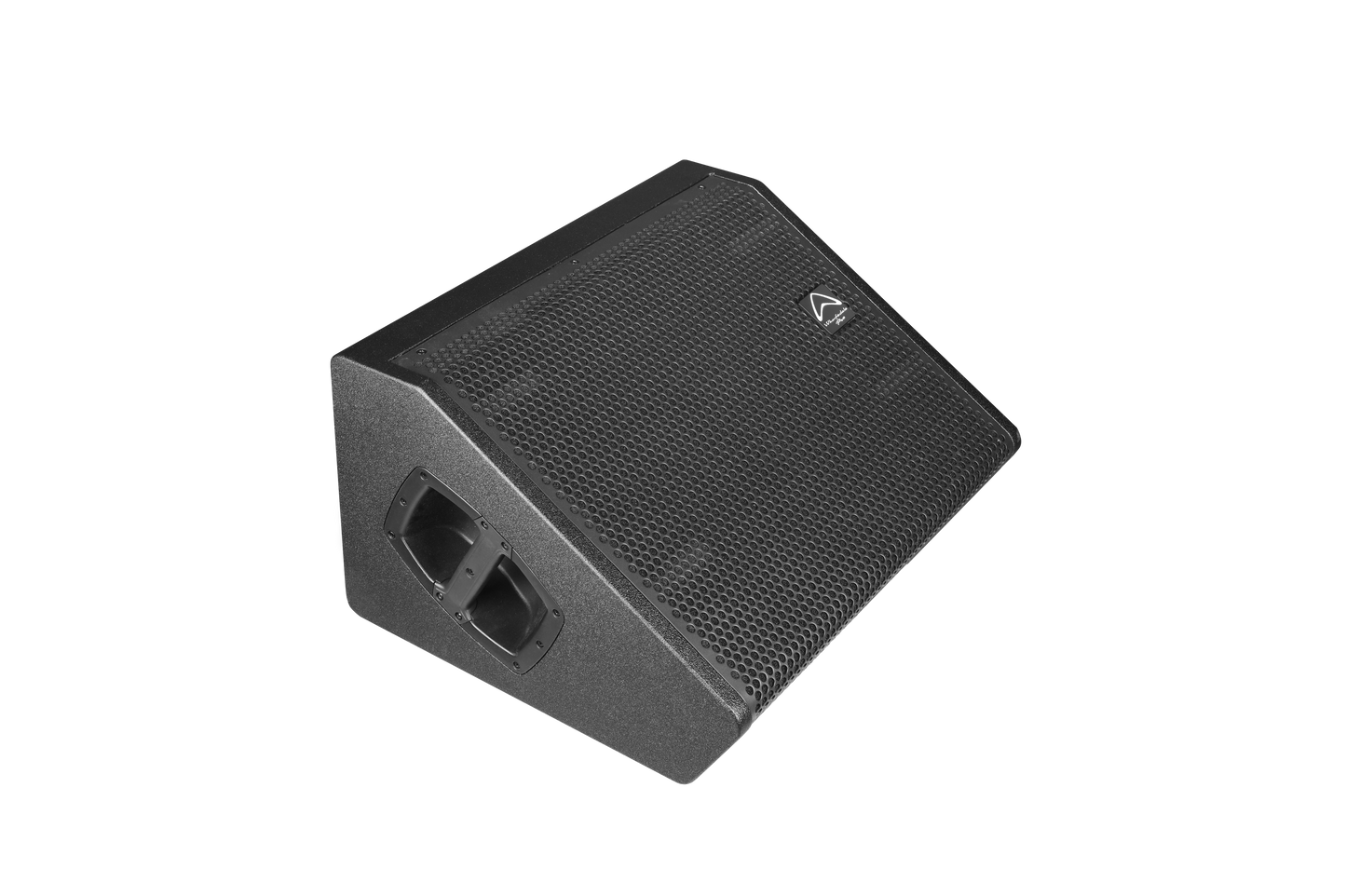

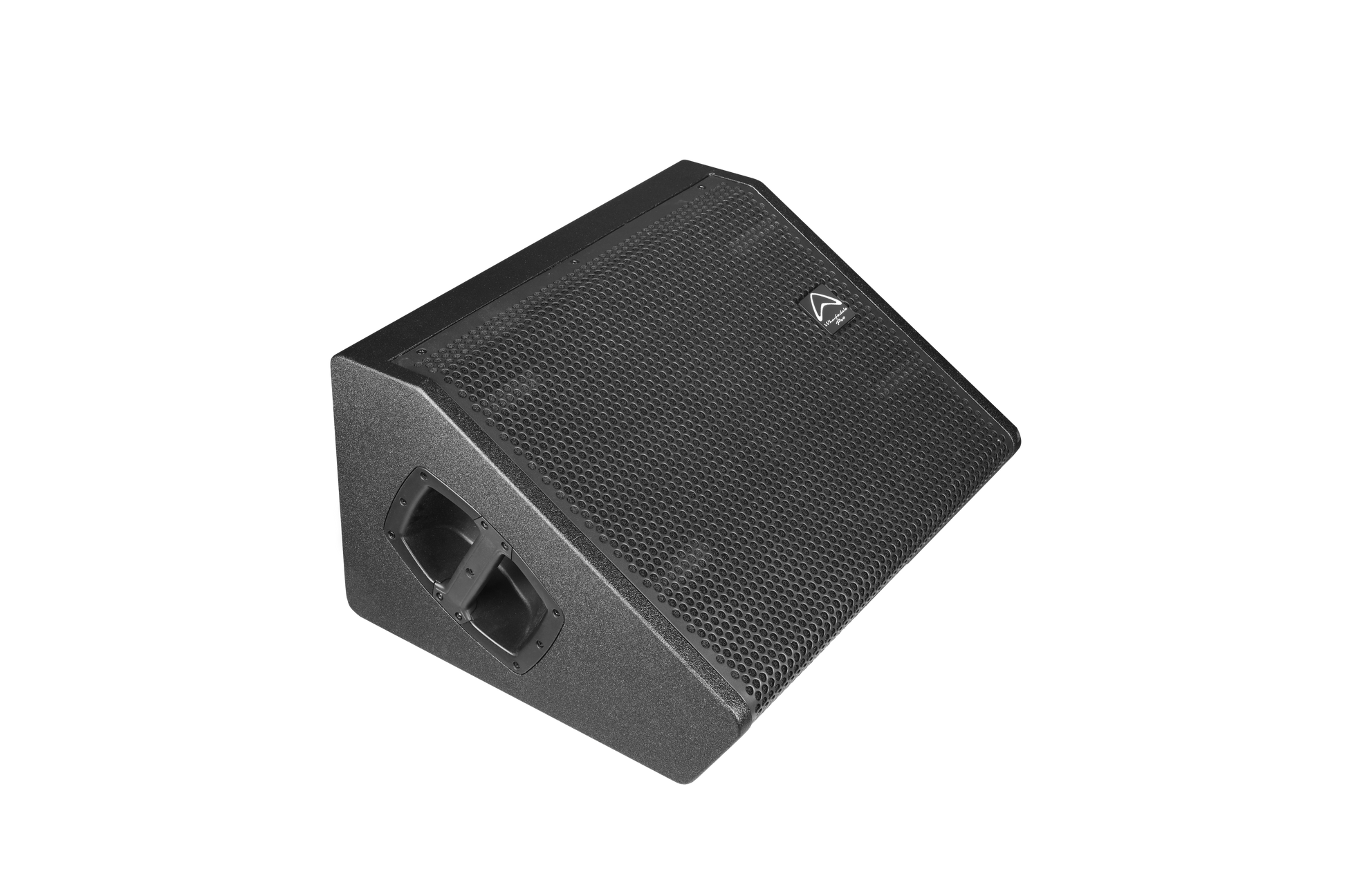

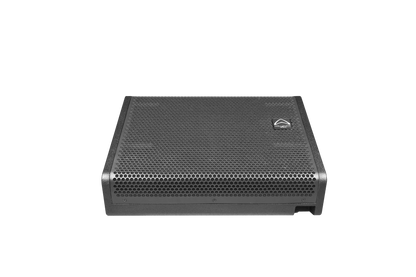

Wharfedale Pro WDG-A12 - Active Wedge Monitor

Name: Wharfedale Pro WDG-A12 - Active Wedge Monitor
Brand: Eventec
SKU: EP10943
Price: 1079.0 AUD
Availability: OutOfStock

$1,079.00

Sale Contact for Availability

WDG Series

Coaxial WeDGe monitors, not only for the stage

WDG series has been engineered to re-define the traditional floor monitor. Available in active or passive and with 12” and 15” models, WDG has some handy tricks up its trouser leg......

WDG-12, WDG-15 and active variants WDG-A12, WDG-A15, feature Wharfedale Pro coaxial drivers and a spherical waveguide delivering 70° nominal coverage. All models are versatile due to thoughtful cabinet design. WDG monitors can be deployed as 25° degrees for far field or 60° near field applications. There is also a 35 mm pole socket and WDG can even be deployed on the optional WPB-7 or U- brackets.

Active models feature 8 x DSP presets for easy hands on control, but can also be managed using RS485 protocol with the Wharfedale Pro PRO=LINK software. This allows for detailed remote preset editing and system management. There is also a practical HF Output EQ knob for any real-time tweaks needed on-stage.

Stage, pole, near or far or even on a wall. WDG delivers all the advantages of coaxial in a versatile manner.

FEATURES

Versatile floor monitors....with more • Coaxial design
Deploy as 25° or 60°
Spherical waveguides
Optional WPB-W12/ 15 U-Brackets and WPB-7 for easy wall mounting
Active models with 8 x presets inc FIR plus PRO=LINK software control
Durable Tough-Tone paint finish. Put your boot on it!!

VERSATILE DESIGN

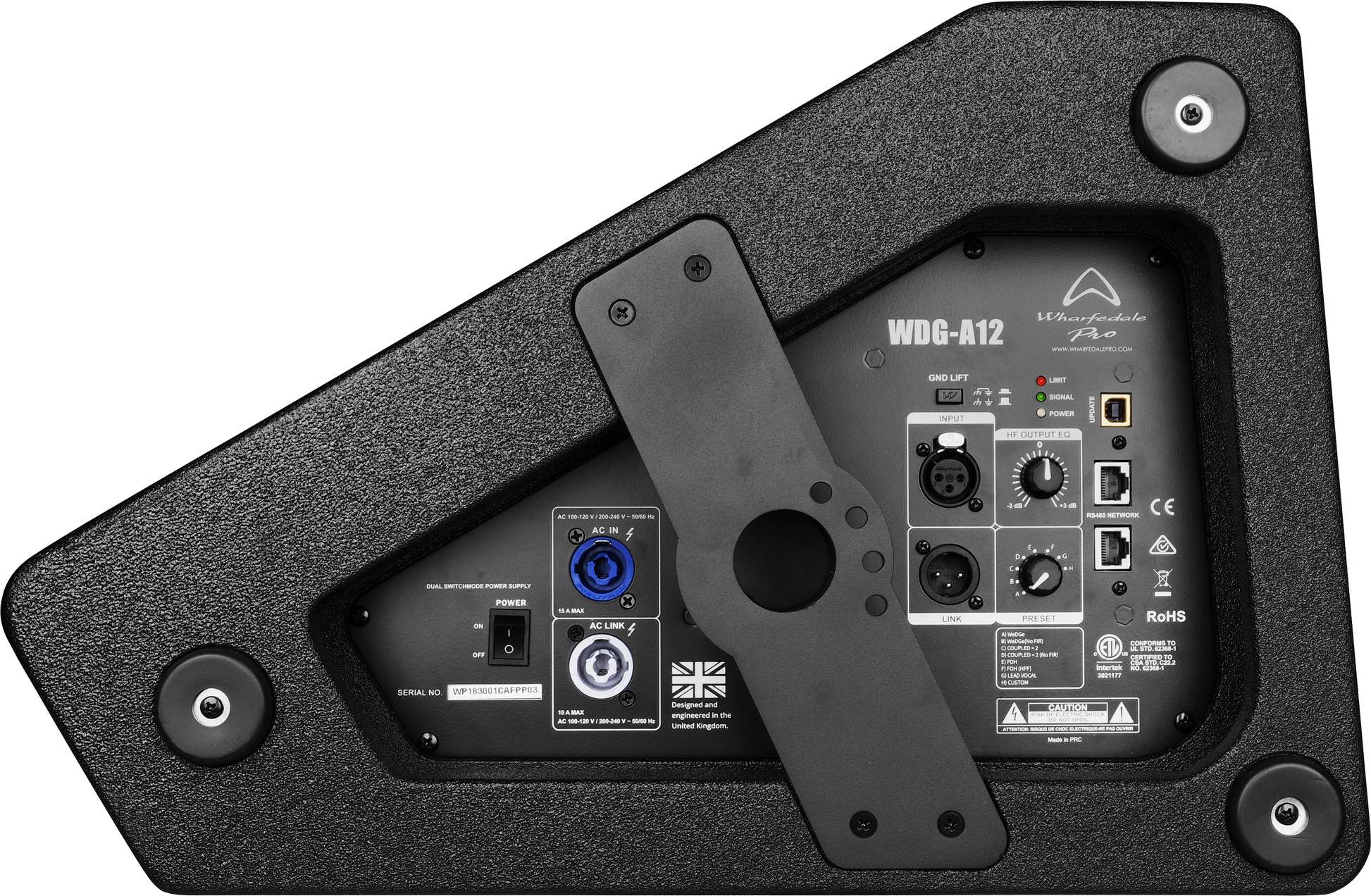

ACTIVE CONTROL

Active models (WDG-A12 and WDG-A15) include 8 presets with or without FIR, for critical low-latency applications, but the system is also fully controllable using the RS485 protocol through our Wharfedale Pro PRO=LINK control software.

Active models also feature Ground Lift and a handy HF Output EQ allowing for real-time tweaks.

MAKING IT EASIER WITH PICTURES

PRODUCT DIMENSIONS

SPECIFICATIONS

Model Name	WDG-A12
System Type	12” Coaxial Active
Configuration	Two-way
Frequency Response (+/-3 dB)	58 Hz – 20 kHz
Frequency Range (-10 dB)	40 Hz – 25 kHz
Sensitivity (2.83 v / 1 m)	98 dB
Calculated Maximum SPL @1 m	127 dB
System Peak SPL	133 dB*
* level at 1m using pink noise with crest factor 4, with dedicated preset
Drivers
LF Size	304.8mm / 12”
LF Voice Coil Size	63.5mm / 2.5”
LF Frame Material	Aluminium
HF Driver Type	Compression Driver
HF Voice Coil Size	50.8mm / 2”
HF Exit Size	25.4mm / 1”
Waveguide Type	Spherical
Nominal Coverage (H x V)	70°
Driver Brand	Wharfedale Pro
Amplifiers
Amplifier Design	Class D
Power Rating	800W Peak (700W LF + 100 W HF) 400W Continuous (350 W LF + 50 W HF)
Thermal Protection	Amplifier Shut Down. Auto Reset
Low Line Voltage Shut Down	60% Nominal Line Voltage
Driver Protection	Independent LF/HF RMX and Peak Limiters
DC and Short Protection	Yes
Clip Limiter	Yes
Limiter Indicator	Red LED
Signal Indicator	Green LED
Power/Active Indicator	White LED
Find Function Indicator	Blue LED
Input Sensitivity	+4 dBu
Maximum Input Level	+18 dBu
Input Impedance	Balanced: 10 KΩ
AC Power details - Power Supply	AC 100-120V~ and 220-240 V~, 50/60 Hz Automatic
Input	Balanced socket XLR
AC Power	PowerCon In/Out
Construction
Rigging & Hardware	35mm Pole Mount 4 x M8 Threaded points for WPB-7 or PowerdriverTM Series 100 products
Optional Accessories	Heavy Duty transport soft Cover WDG-W12 Horizontal Flying Yoke
Vertical Splay Angle Range	N/A
Handles	1 on top
Enclosure	Trapezoid
Enclosure Material	15 mm Plywood
Finish	Tough-Tone Finish
Colour	Black (white available on request - Pricing and availability subject to change)
Grille Material & Finish	Powder coated steel
Monitor Angle (degrees)	60° - 25°
Dimensions – (Unpacked)
Height	310mm / 12.2”
Width	540 mm / 21.3”
Depth	471.7 mm / 18.6”
Dimensions – (Packed)
Height	635 mm / 24.9”
Width	560 mm / 22.1”
Depth	398 mm / 15.7”
Weight
Net Weight (kg / lbs)	20.16 kg / 44 lbs
Gross Weight (kg / lbs)	23.16 kg / 50.6 lbs
