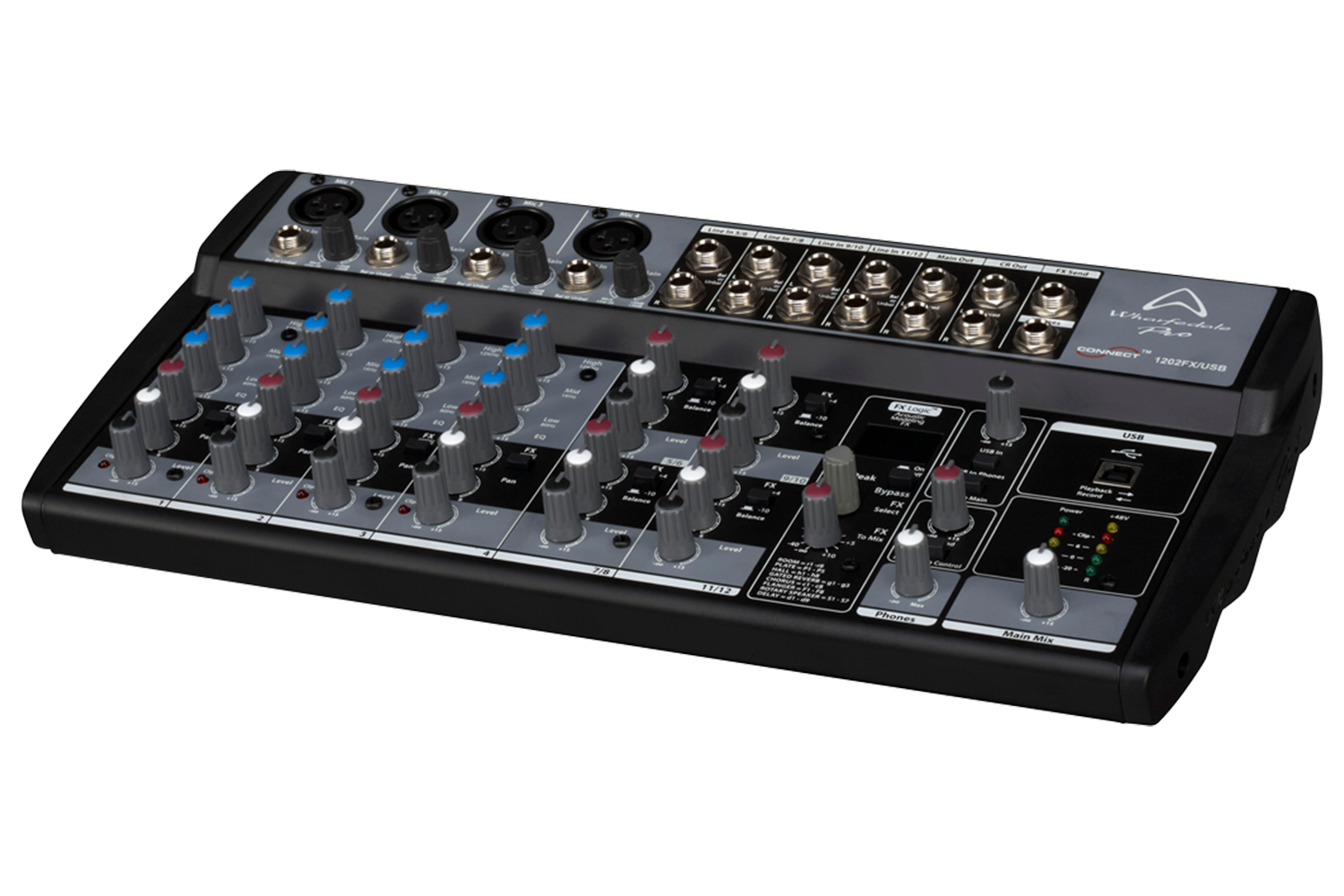

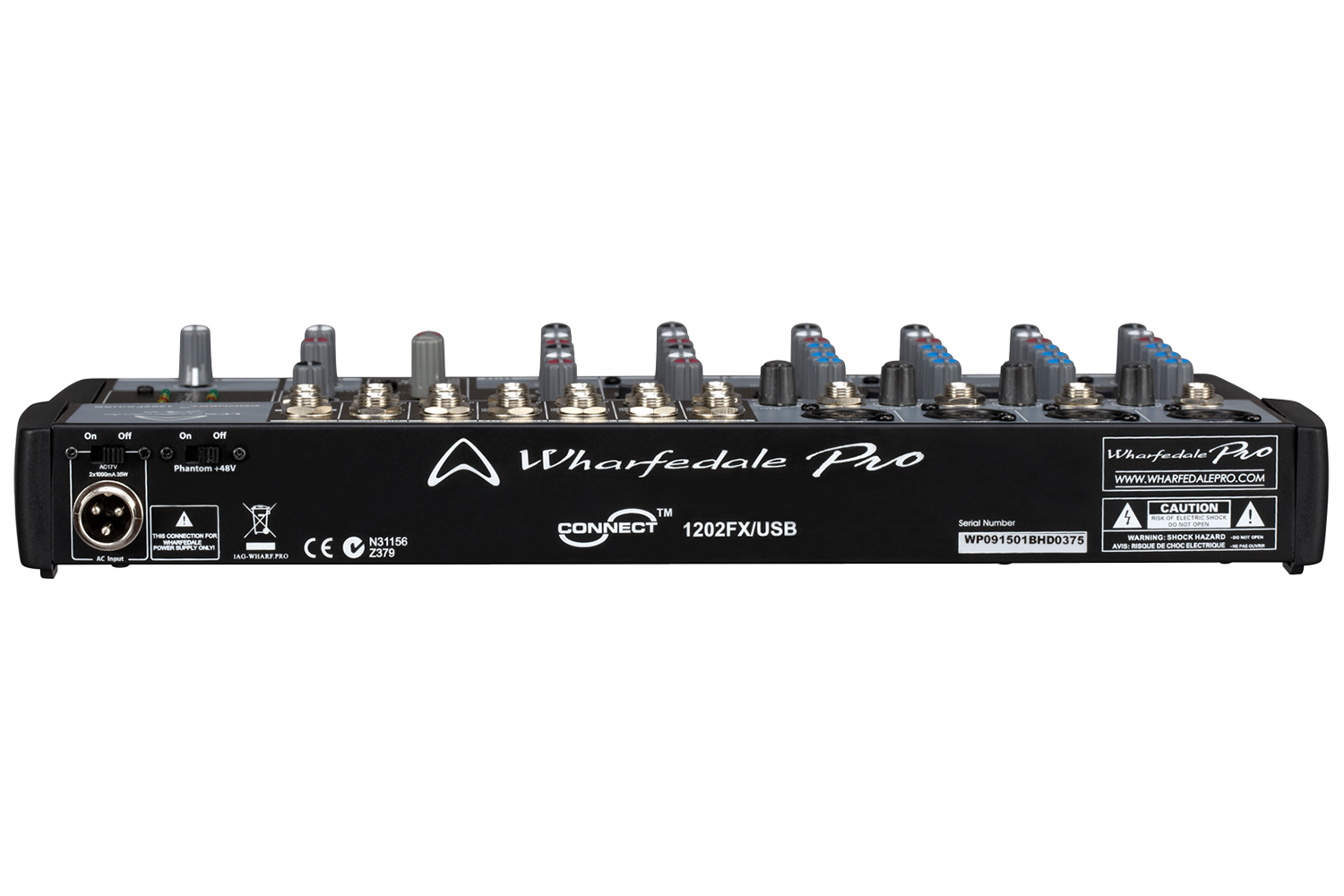

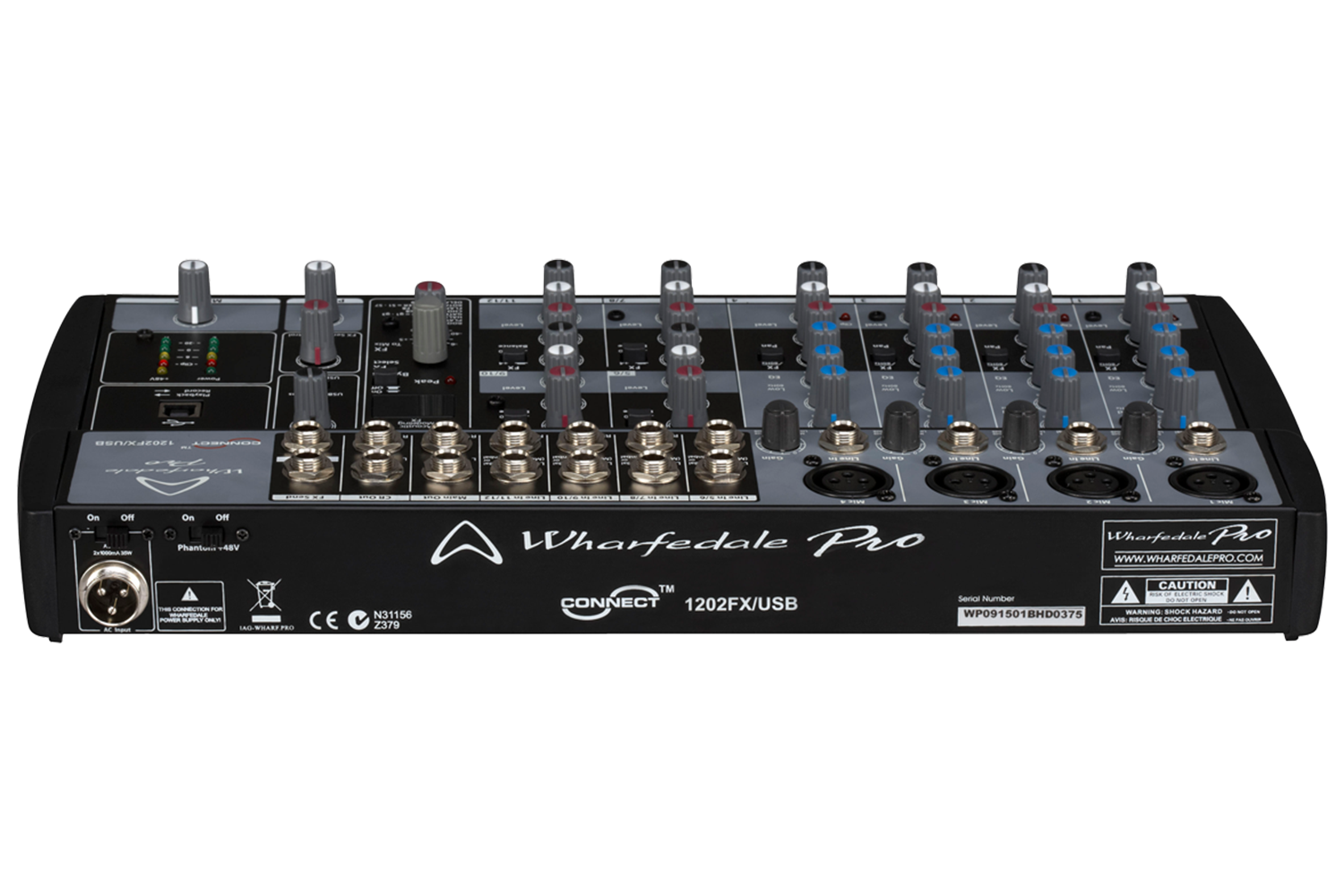

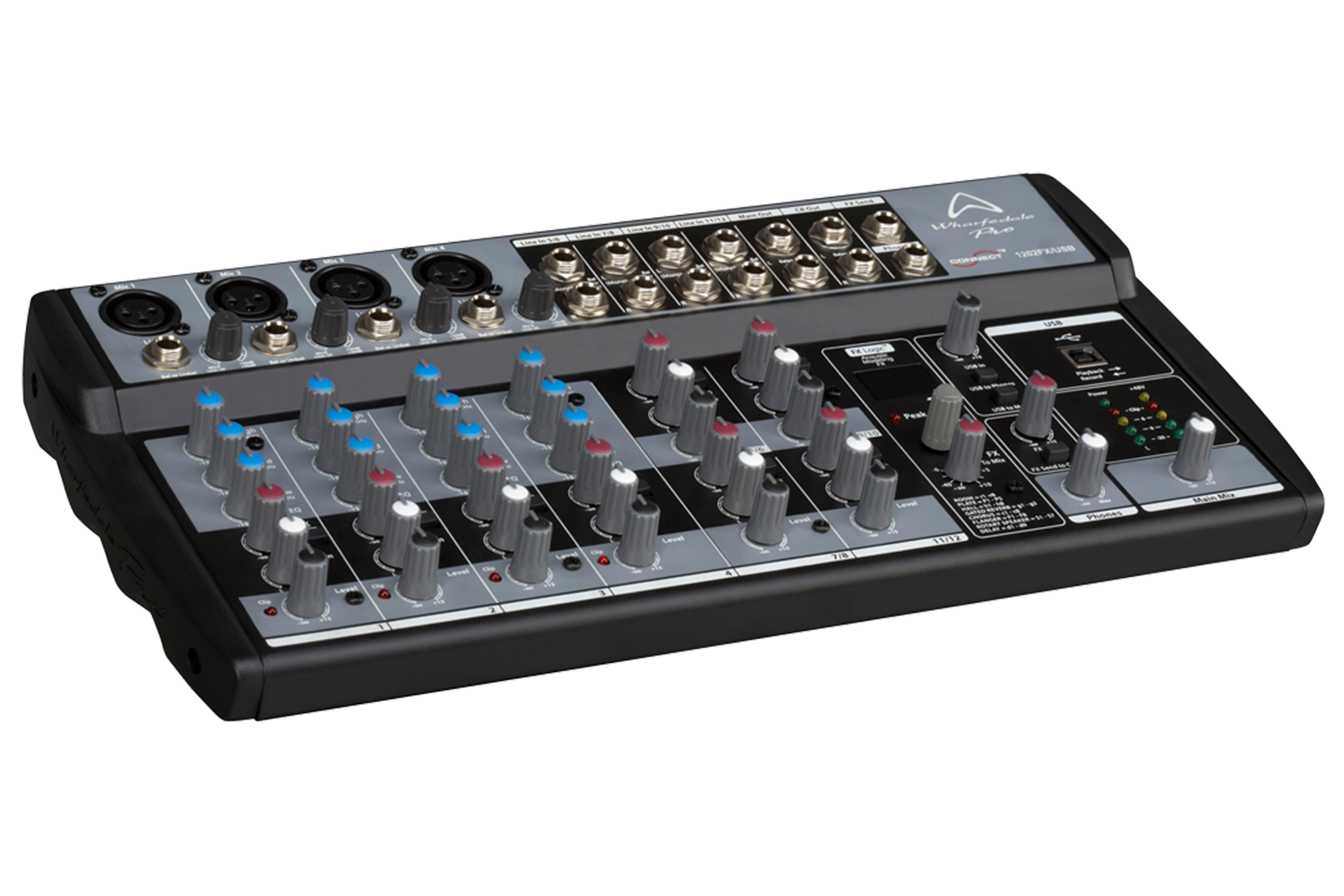

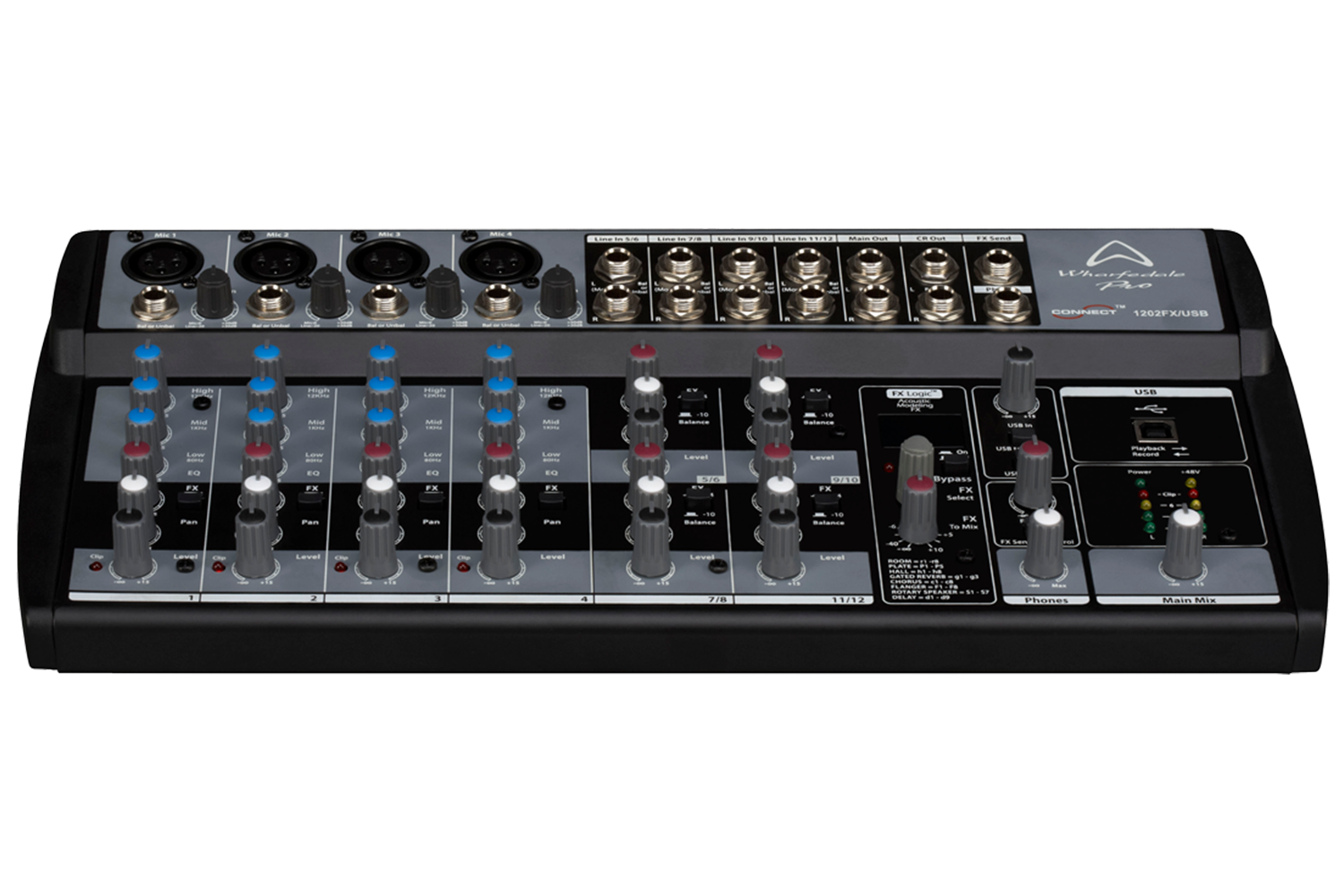

Wharfedale Pro CONNECT 1202FX USB Mixer

$199.00

Sale Contact for Availability

Combination of mono XLR/Jack channels and 2 x 6.3mm jack channels
Studio grade phantom power XLR
16 bit / 48 KHz built in USB audio interface
Playback and record via USB audio interface
Headphone output
Control room output (1002FX/USB and 1202FX/USB only)
Pan / Balance control on all models
Clip LED display
Ideal for home studio recording and live use
Slimline profile for portability and to fit in gig bags

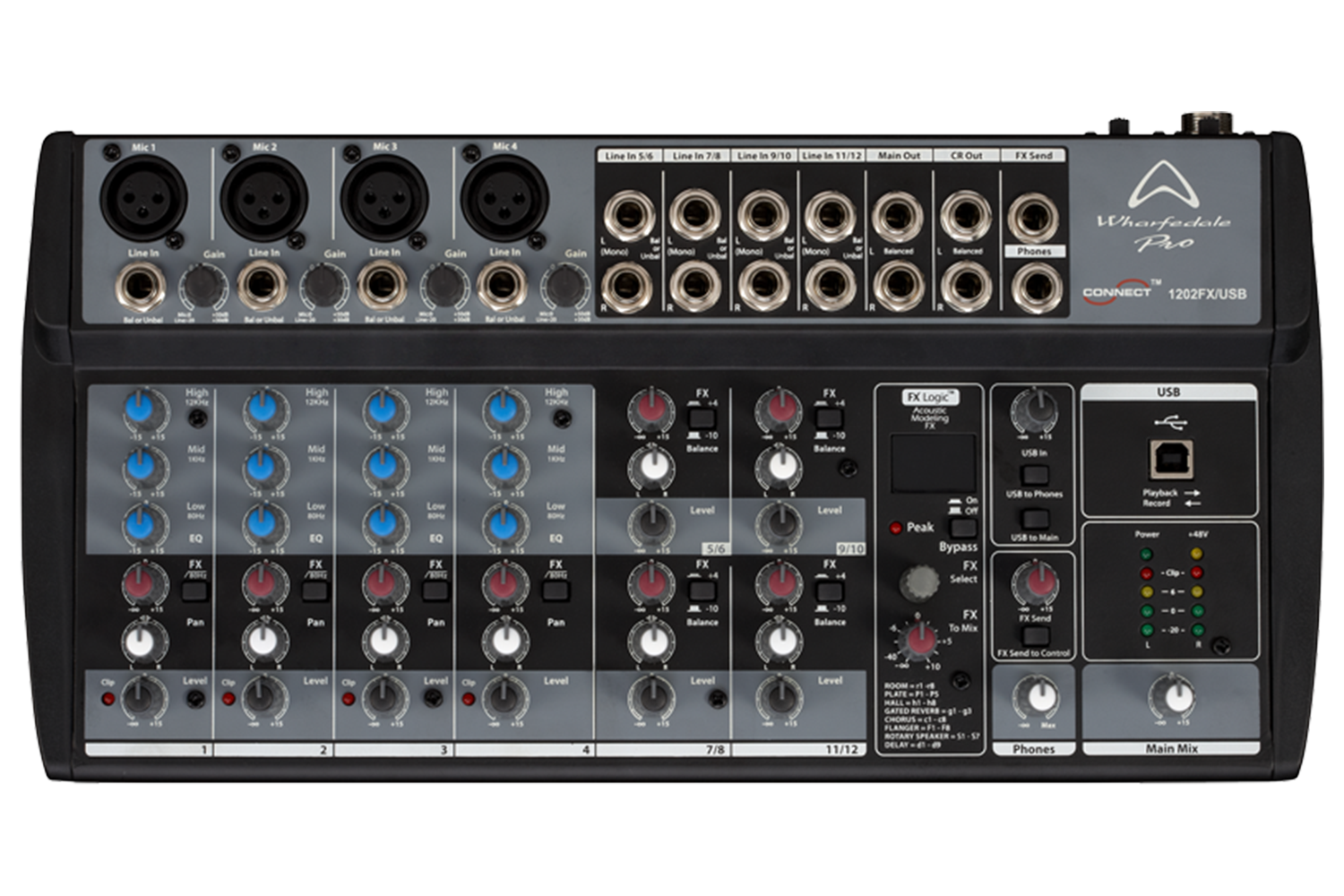

CONNECT1202FX USB

4 x XLR inputs
12 x 6.3mm line inputs
3-band EQ
4 x 6.3mm outputs
USB interface
56 internal FX

PLUG AND PLAY

You don’t need any special ‘Wharfedale Pro’ driver software to make a Connect mixer work perfectly with a Windows, Mac or Linux computer.

Simply connect the Connect mixer to the computer with the USB cable and, because the mixer is a ‘Class Compliant’ USB audio device, it will simply use the internal driver software of your host computer. With the mixer connected and turned on, just select the USB audio driver in your system settings/device manager and suddenly you’ve got a digital audio connection to and from your computer.

2-channels into the computer and 2-channels out. All over the supplied USB cable.

LEAVE THE LARGE MIXER BEHIND

The connect series are the ideal companion for small scale live performances and discreet sound installations where there simply isn’t space for a full scale mixing desk. While packing a wealth of features for mixing and recording it does so with a small footprint. The use of rotary controls as opposed to larger linear faders means space is saved to fit the mixer into small spaces even including guitar gig bags, yet the textured rotary pots operate with a suitable resistance so EQ, level and auxiliary send controls can be pin-pointed with accuracy.

CRAMMED WITH CONNECTIONS

There are plenty of connections as you would find in larger desks. Studio grade XLR inputs offer phantom power for condenser microphones. There are also stereo, 2 x 6.3mm jack channels for stereo sources including keyboards and DJ equipment.

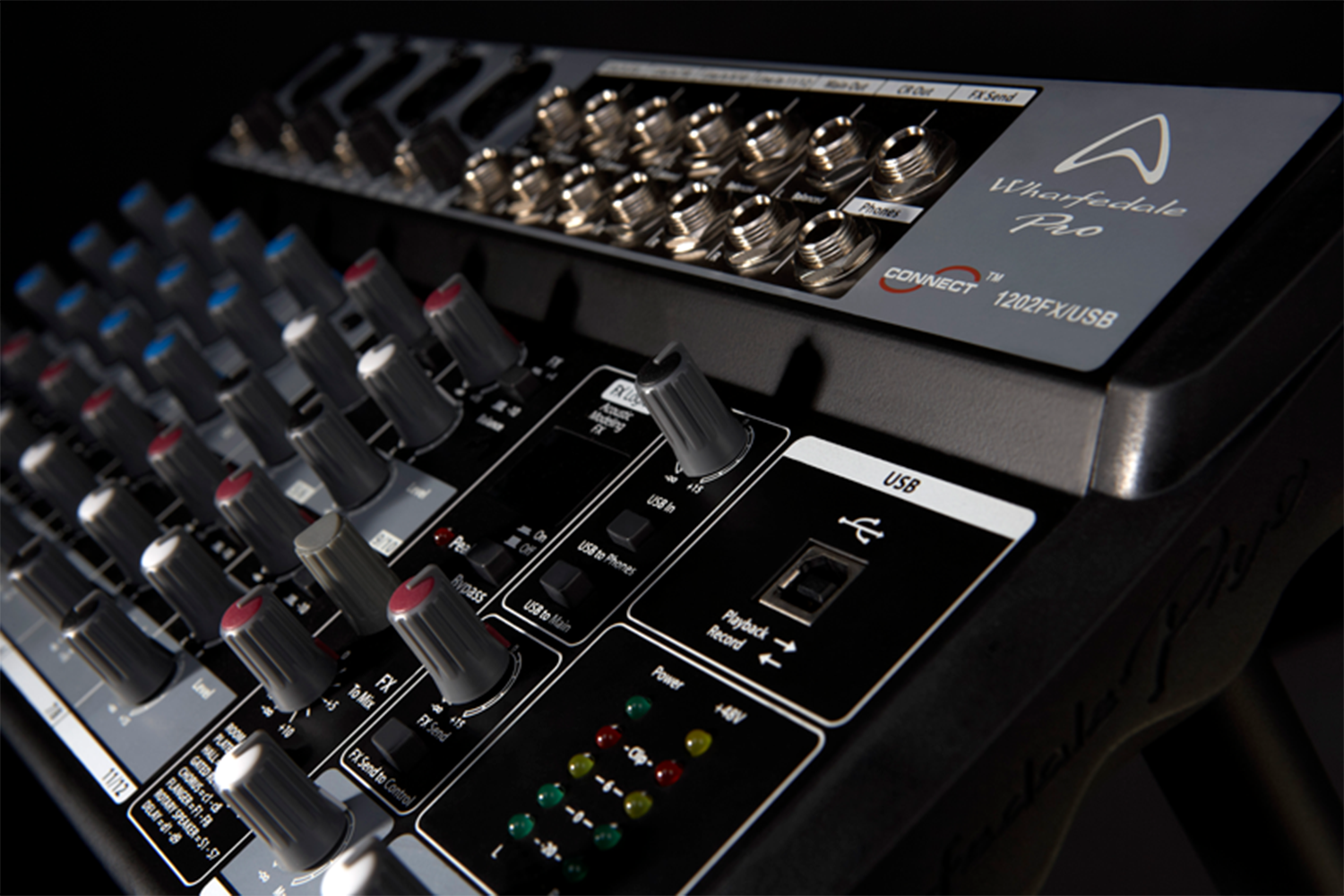

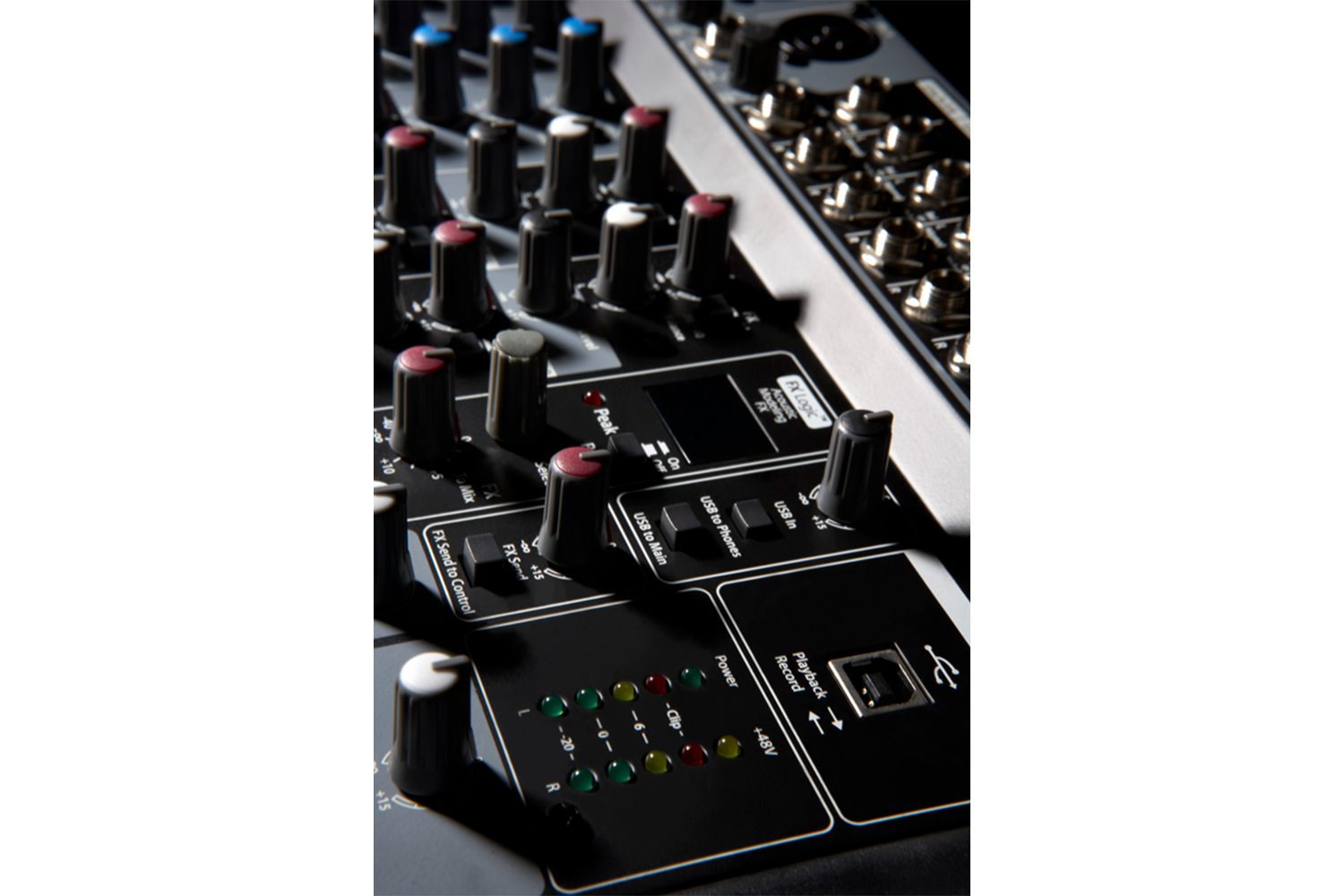

USB AUDIO INTERFACE

With a built-in USB audio interface, this latest series enables a stereo in/out which can be used for playback of audio files from your PC or Mac, and can also record the master output of your mixing desk. 16-bit / 48 KHz recording ensures CD quality for your audio, whether working in a live or studio environment.

56 DIGITAL FX

The FX logic bit DSP offers a total of 56 effects (1002FX/USB and 1202FX/USB only). These include a variety of delays, reverbs, chorus, and rotary speaker algorithms, achieving a professional touch on your mix and lending itself to more creative sound engineering styles.

Model Name	Connect 1202FX/USB
Channels	12
Inputs	4 x XLR, 12 x 6.3 mm jack
Outputs	4 x 6.3 mm jack
Headphone Output	6.3 mm jack
FX	56 FX Logic Acoustic Modelling FX:Room, Plate, Hall and Gated Reverb. Chorus, Flanger, Rotary Speaker, Delay
EQ	3-Band
Phantom Power	Yes
USB	16 bit / 48 KHz
Signal To Noise Ratio	>78 dB ±5 dB @ Max Gain
Frequency Response	20 Hz-20 KHz ±1 dB
Display	Dual 4-Segment LED, FX Setting Display
Dimensions	360.2 x 183.8 x 52.8 mm
Weight	1.69 kg / 3.3 lbs
