Amplifiers often work in hot and dusty environments and, over time, the fans of an amplifier can easily suck this in. Dirty cooling fans reduce efficiency and can lead to overheating.

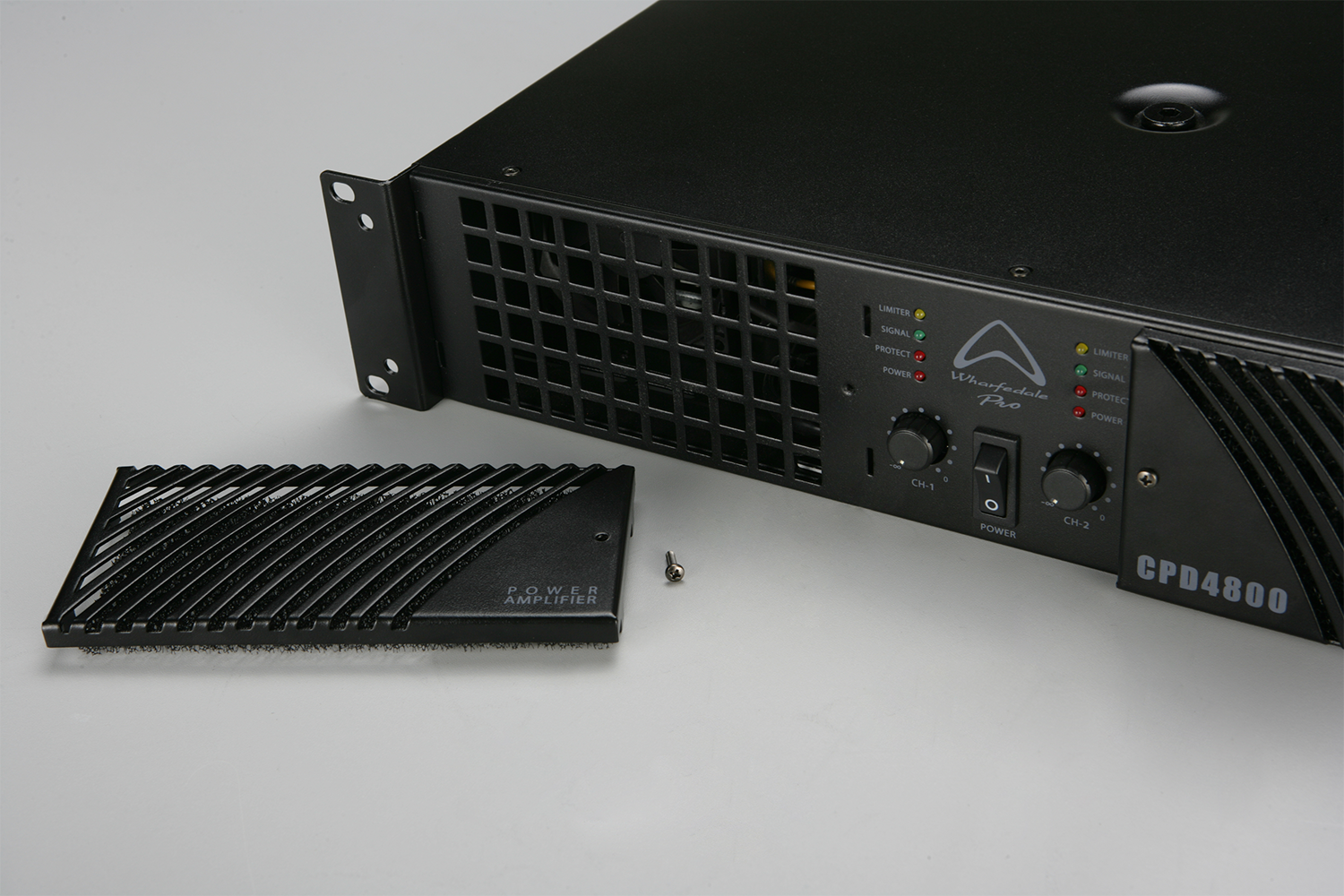

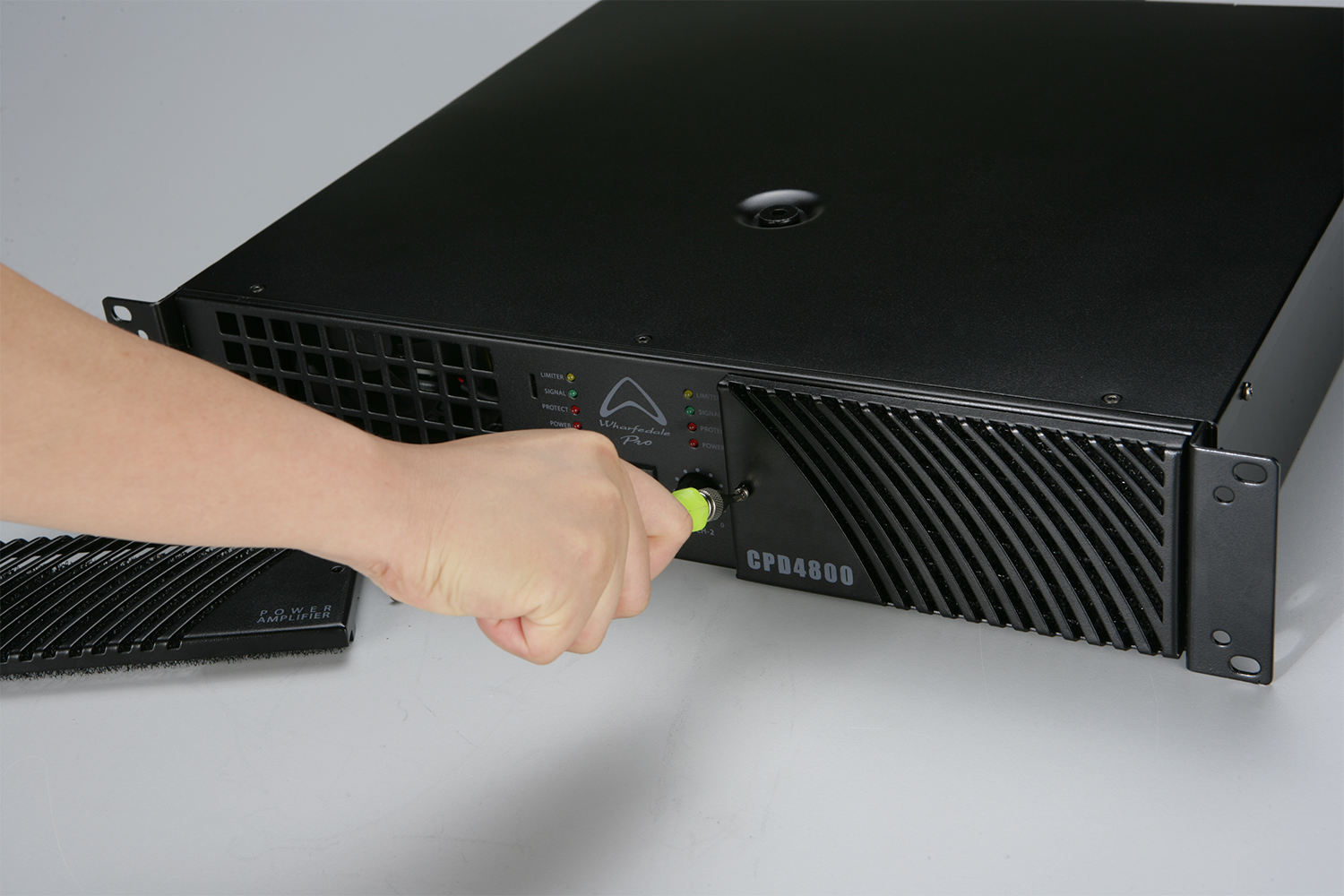

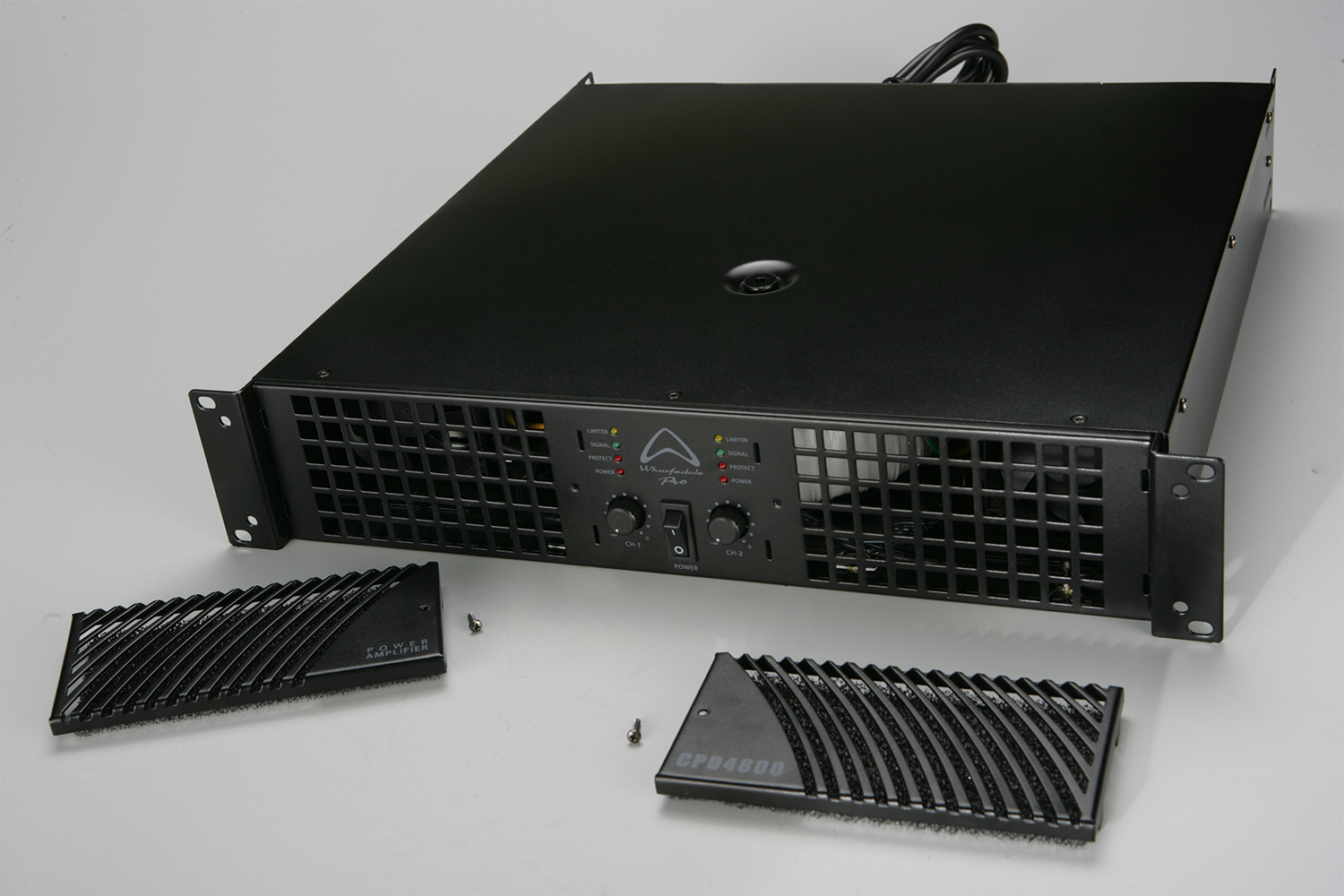

Its for this reason that we made the CPD series easy to clean. Simply unscrew the front grille, bush off the air filters, and put the grille back on.
This easy maintenance means that a CPD amplifier can survive in the most hostile of working environments. That’s cool !
|
Model Name
|
CPD4800
|
|
Stereo Power Output : RMS
|
|
|
8 Ω x 2
|
1000 w
|
|
4 Ω x 2
|
1500 w
|
|
Bridged Mono Power Output : RMS
|
|
|
8 Ω
|
3000 w
|
|
Frequency Response
|
20 Hz – 30 KHz
|
|
Topology
|
Class H
|
|
Inputs
|
2 x XLR
|
|
Outputs
|
2 x NL4,2 x binding posts, 2 x XLR
|
|
Input Sensitivity & impedance
|
|
|
Sensitivity
|
0 dBu (0.775 Vrms)
|
|
Balanced XLR input
|
20 KΩ
|
|
Maximum Input Level
|
22 dBu (9.7 Vrms)
|
|
Voltage Gain
|
42 dB
|
|
Slew Rate
|
>40 V / us
|
|
Crosstalk
|
<-75 dB
|
|
S/N
|
>100 dB
|
|
Distortion (1 W)
|
<0.02%
|
|
Damping Factor
|
>300
|
|
Controls
|
|
|

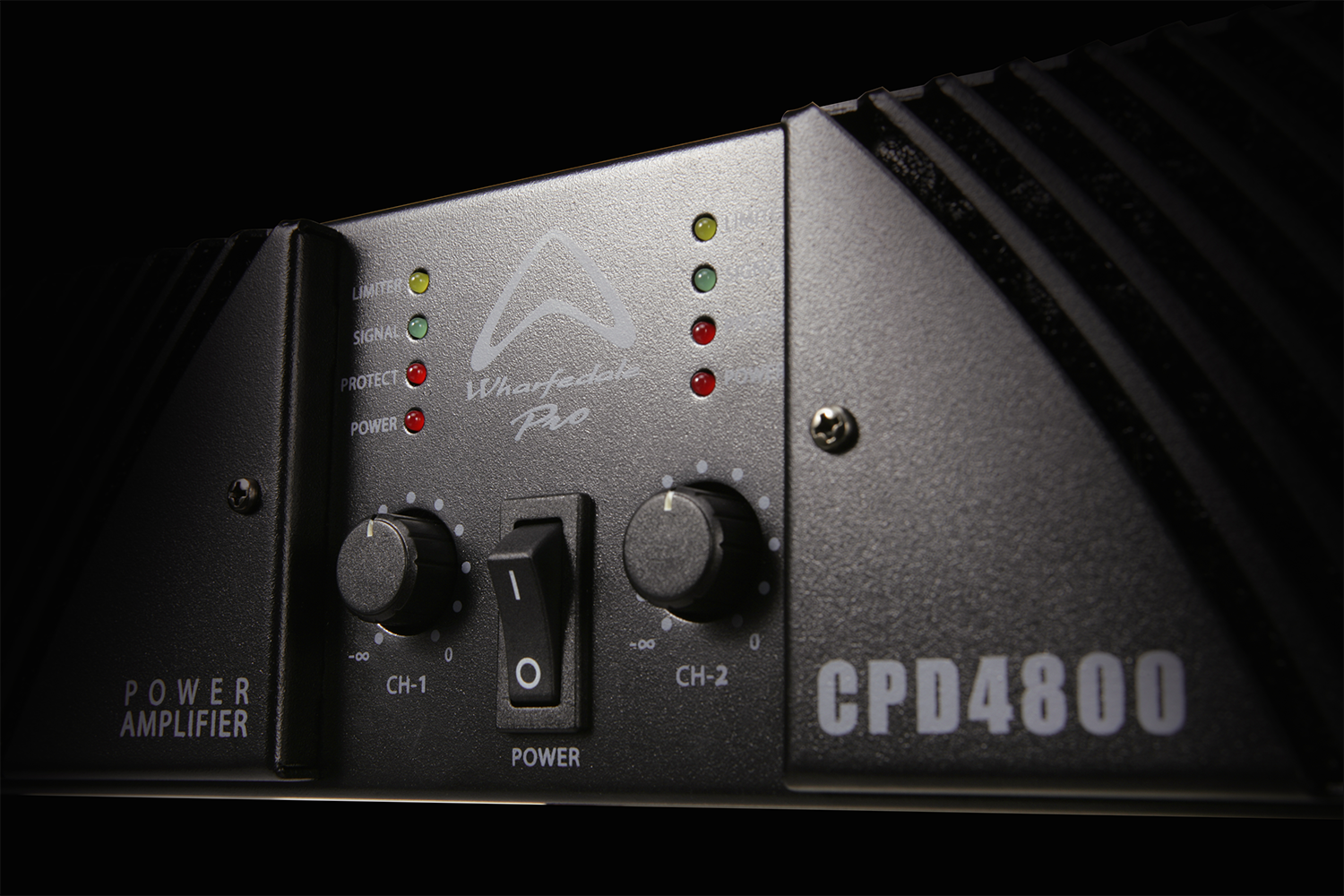

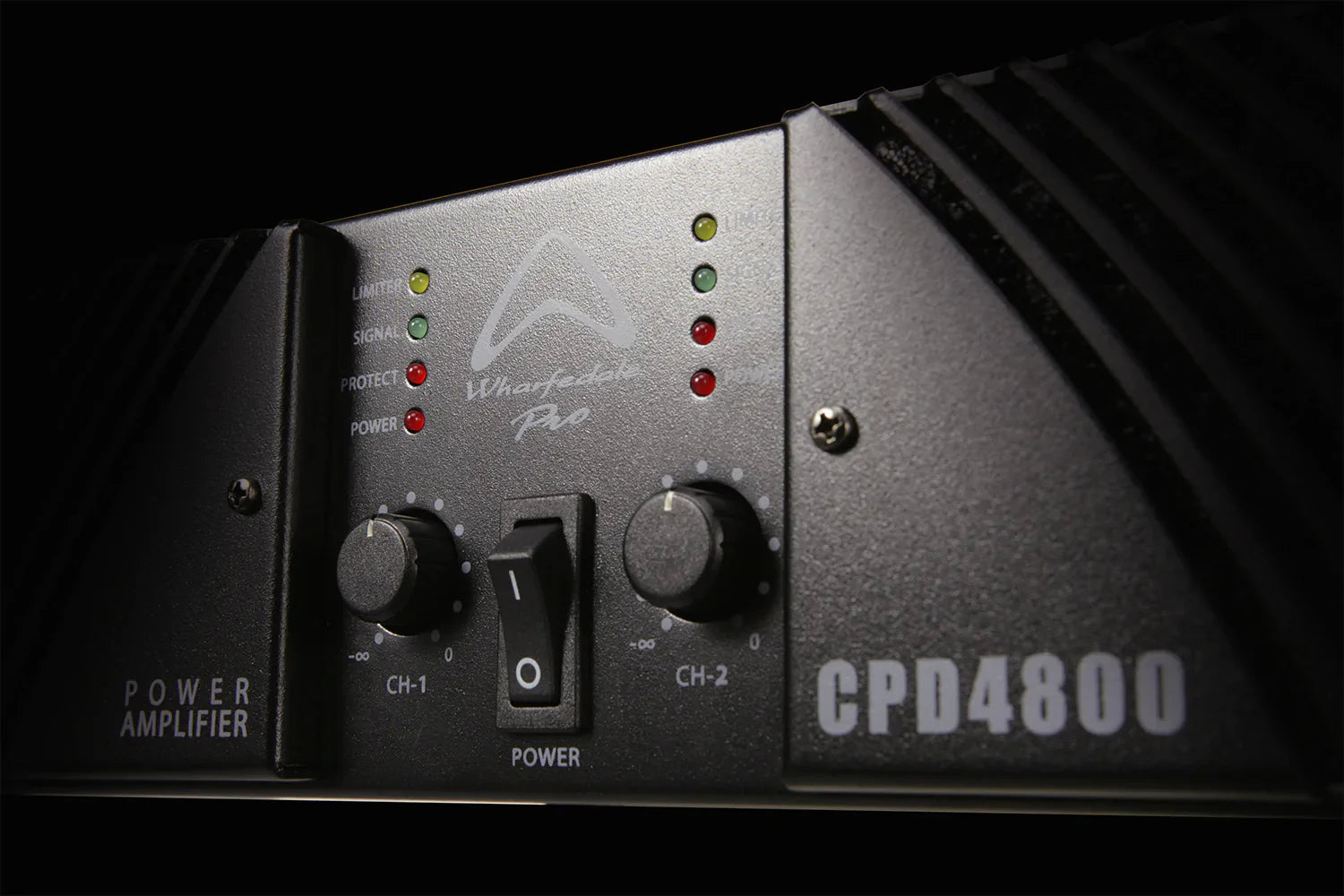

Front panel
|
AC Switch, CH 1 and CH 2 Gain Knobs
|
|

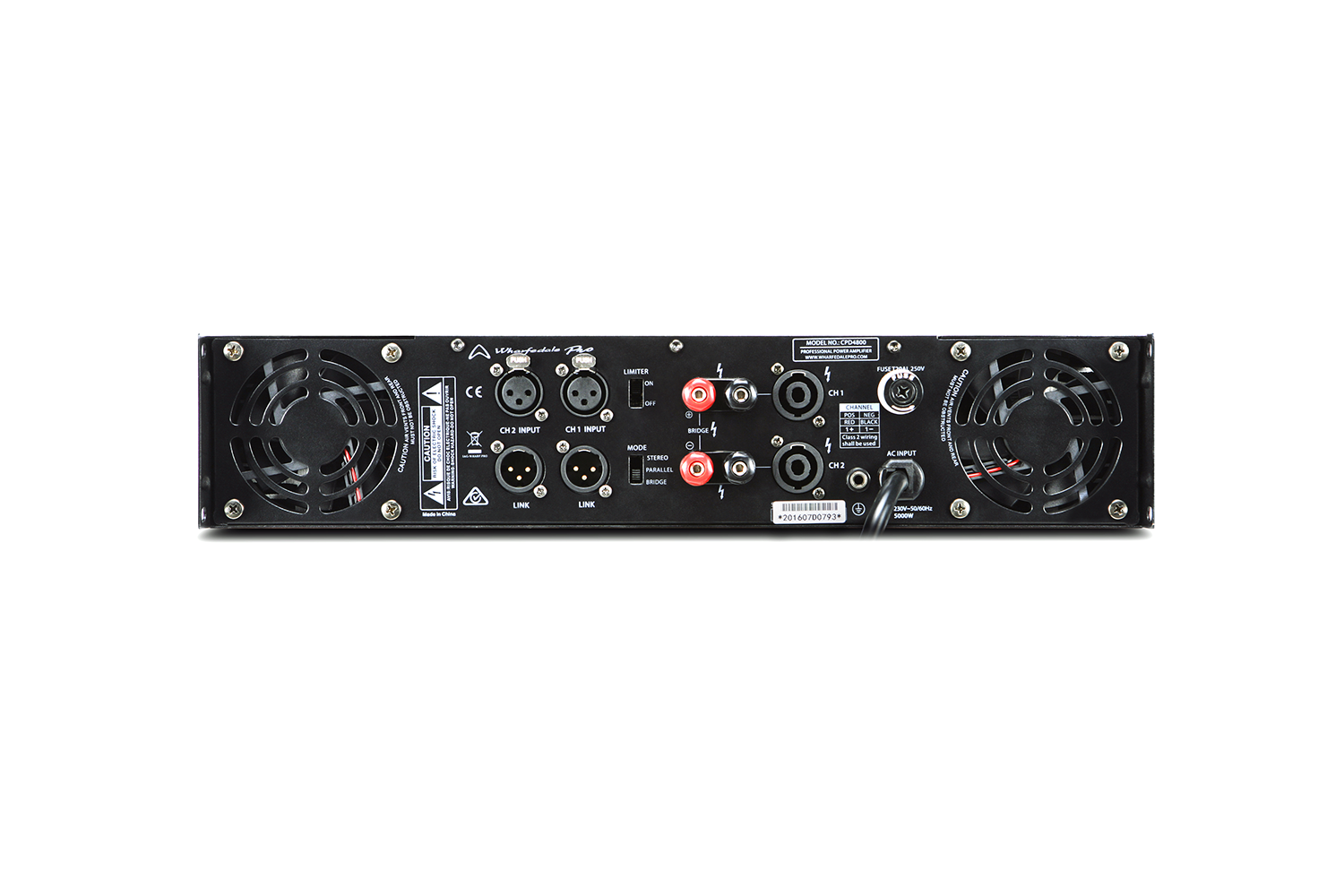

Rear panel
|
Parallel, Stereo & Bridge Mode Switch; Limiter Switch
|
|
Protections
|
Thermal protect, Over-current protect, Output DC protect, Output short protect, Power on/off mute
|
|
Indicators
|
Power, Protect, Signal, Peak
|
|
Cooling
|
Variable Speed Fan
|
|
Dimensions
|
88 x 483 x 450 mm
|
|
Net Weight
|
23.5 kg / 51.80 lbs
|
|
Gross Weight
|
27 kg / 59.52 lbs
|
