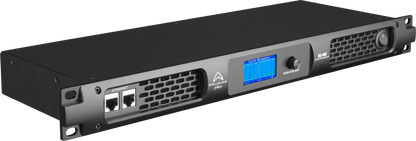

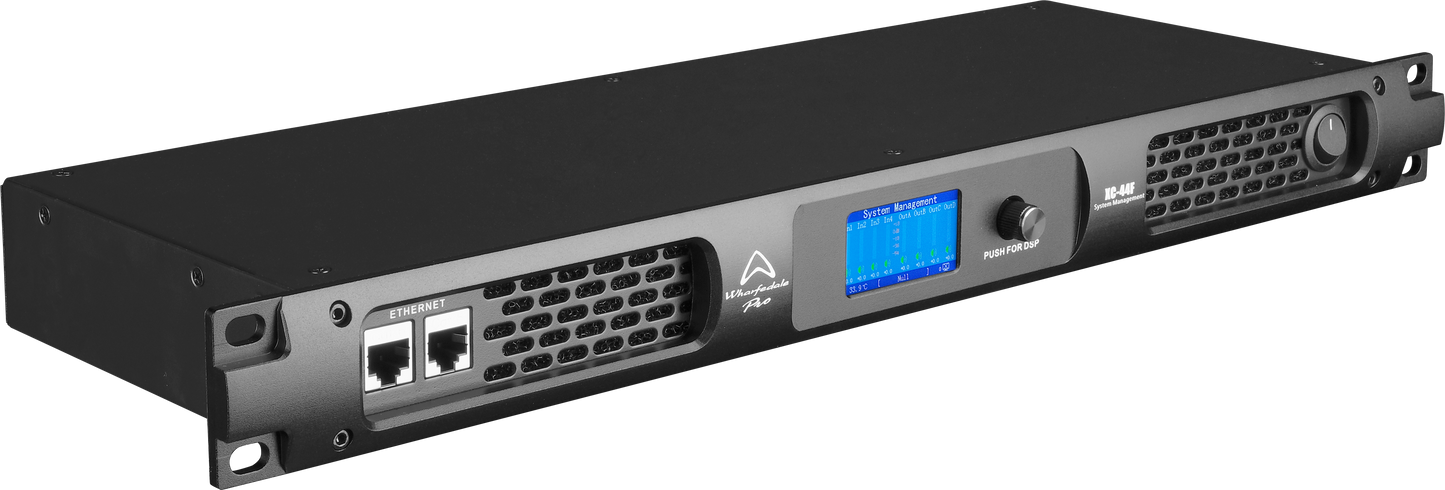

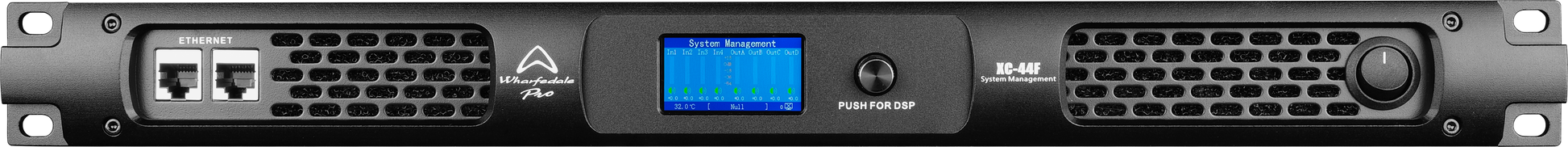

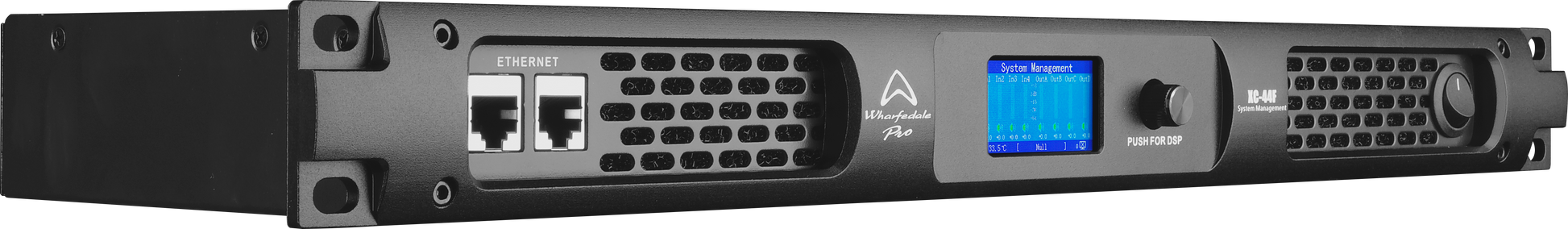

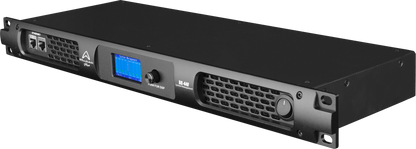

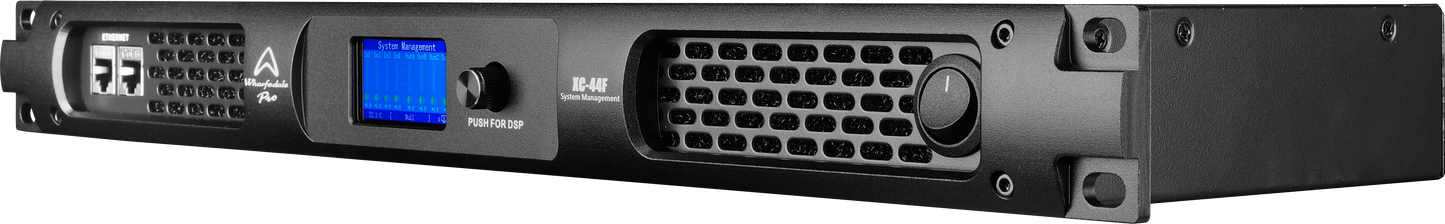

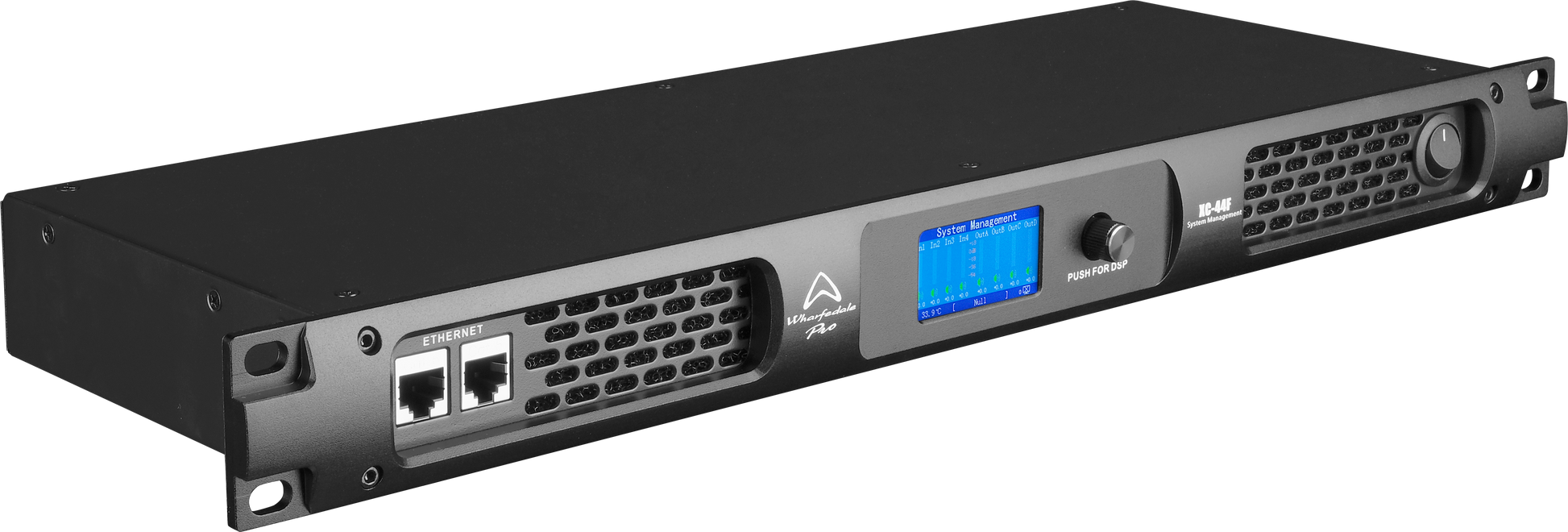

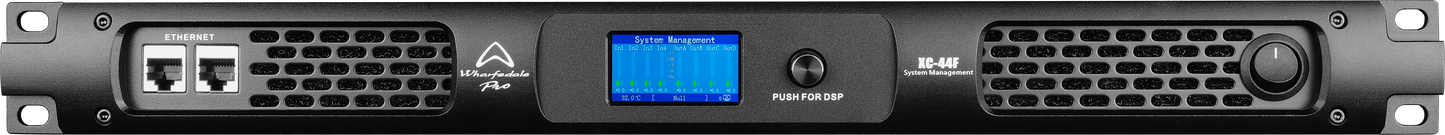

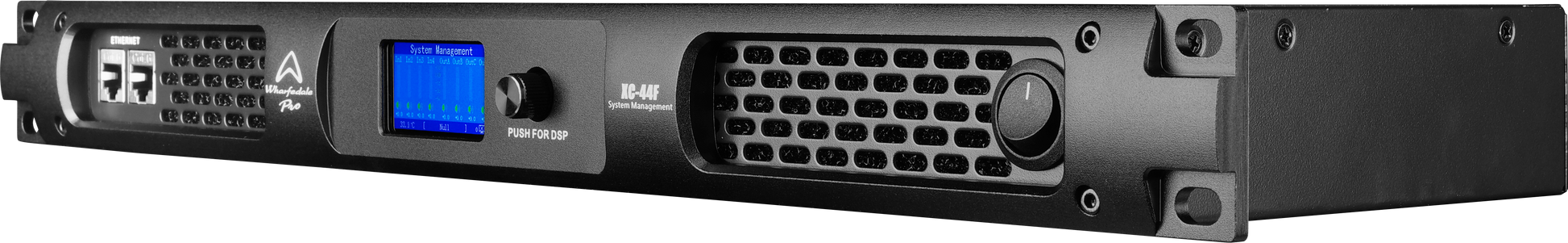

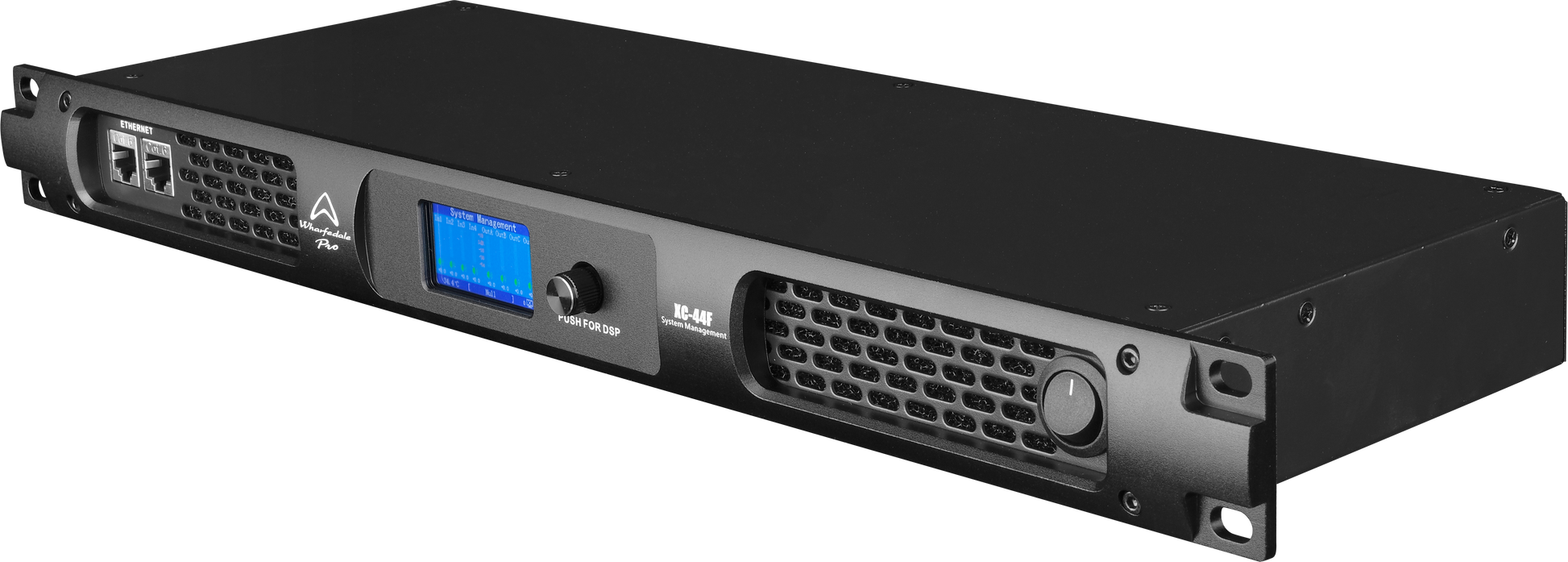

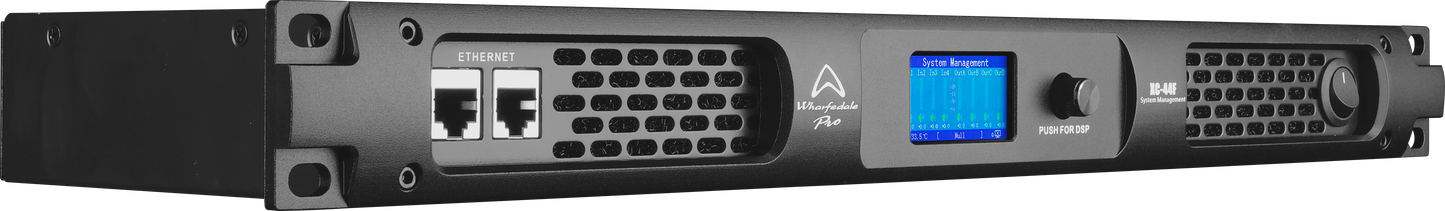

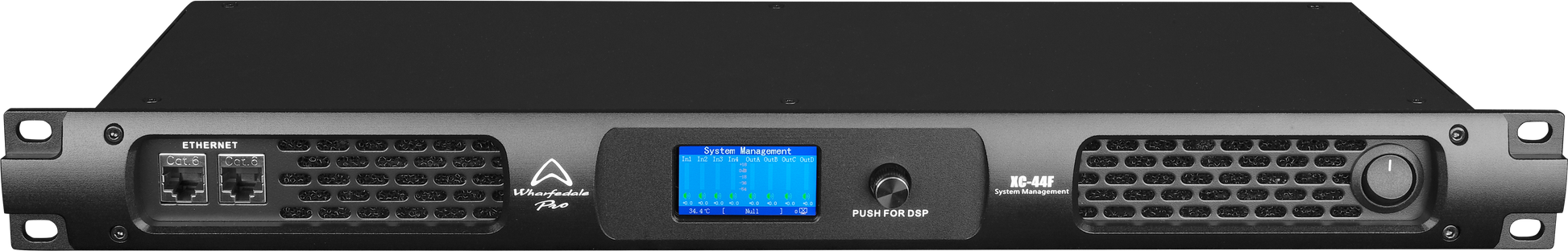

Wharfedale Pro XC-44F Amplifier
Wharfedale Pro XC-44F Amplifier
XC Series
Maximise..... and protect
The new XC Series System Management controllers harvest the DSP engine capabilities of Wharfedale Pro’s successful DP-F and DP-N amplifiers to deliver both protection and enhanced definition to any system.
Equipped with an extensive loudspeaker preset library, FIR filters and advanced dynamics protection, the XC Series simply improves performance across all applications.
These 4 in - 4 out controllers are available with two interface options. XC-44F with Ethernet and XC-44N with Dante TM connectivity. Both models are controlled with the Wharfedale Pro DSP Controller software where FIR presets for almost every Wharfedale Pro loudspeaker are available for free download.
The Wharfedale Pro ecosystem now allows for users to migrate between DP-F and DP-N amplification platforms to and from the XC platform. Familiar user interfaces and compatible file formats make life easy.

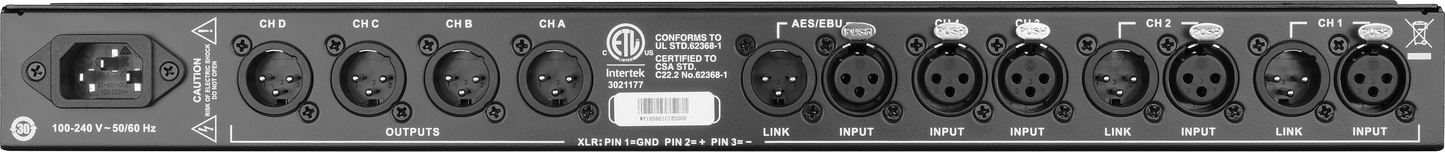

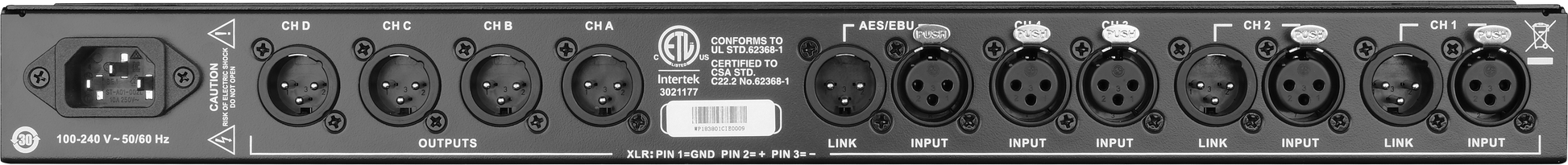

Both XC Series models feature AES / EBU input and analogue link outputs on Ch 1 and Ch 2.
FEATURES
- 4in-4outDSPcontrol
- Compatibility with DP-F and DP-N amplifier platforms
- Comprehensive FIR preset library
- AES / EBU digital inputs with Link outs
- Locking XLR input connectors
SYSTEM EXAMPLE
SPECIFICATIONS
Model Name |
XC-44F |
|
Input / Output |
4 x 4 |
|
Input Type |
Analog, AES/EBU, Ethernet |
|
Input Impendance |
20 kΩ (Balanced), 10 kΩ (Unbalanced) |
|
Output Impendance |
600 Ω |
|
Max Input Level |
+20 dBu |
|
Max Output Level |
+20dBu |
|
THD+N |
<0.02% (1 kHz, 0 dB) |
|
Frequency Response |
Typical: +0, -1 dB (0dB, 20 Hz-20 kHz) |
|
Crosstalk |
<-95 dB (1 kHz) |
|
SNR |
>105 dB (A weighted) |
|
Delay |
<1.8 ms (Analog input/output, 48 kHz) |
|
Mains Power |
100-240 VAC ± 10%, 50/60 Hz |
|
Size (W x H x D) |
483mm x 45mm x 160mm |
|
Net Weight |
2.2 kg |
