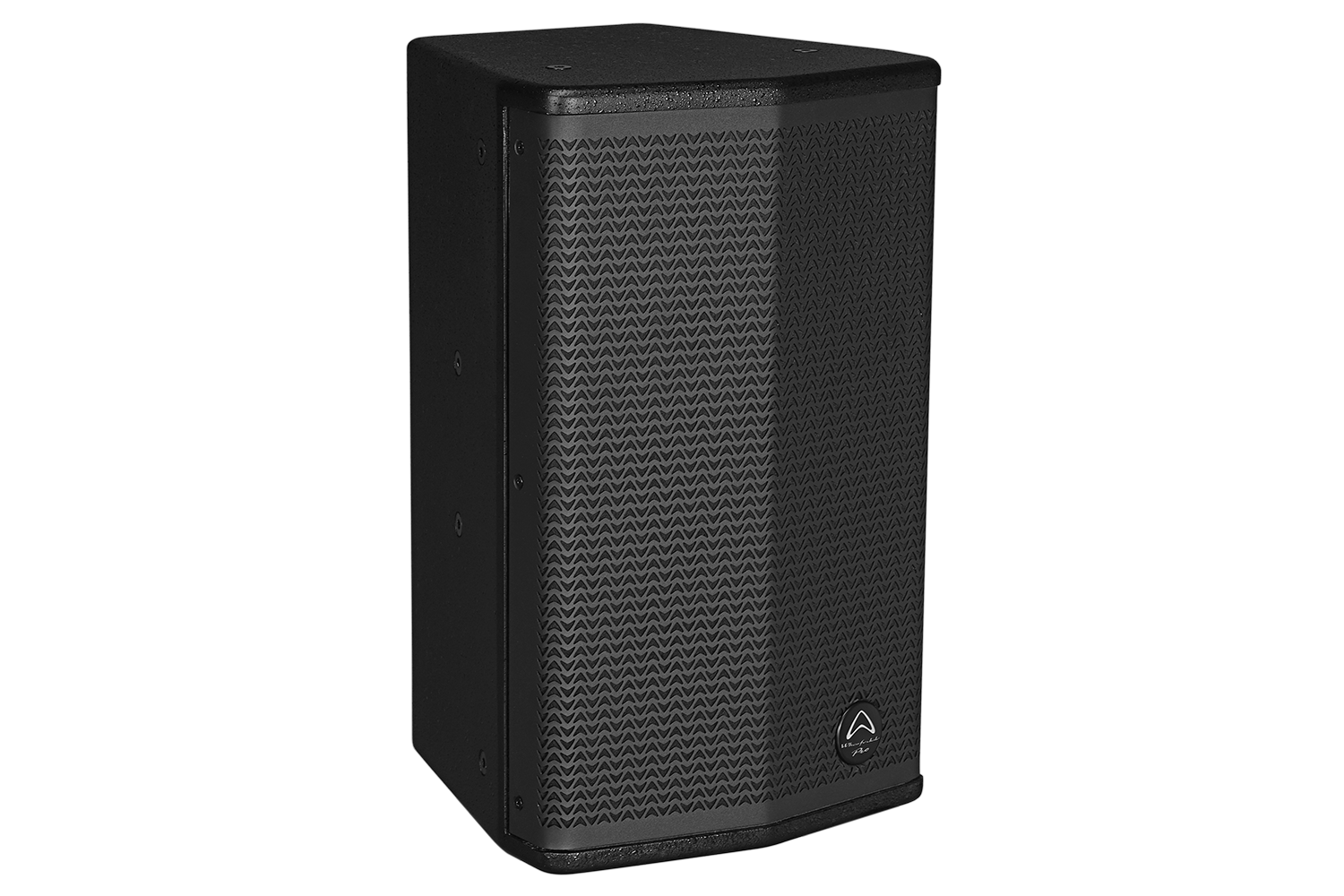

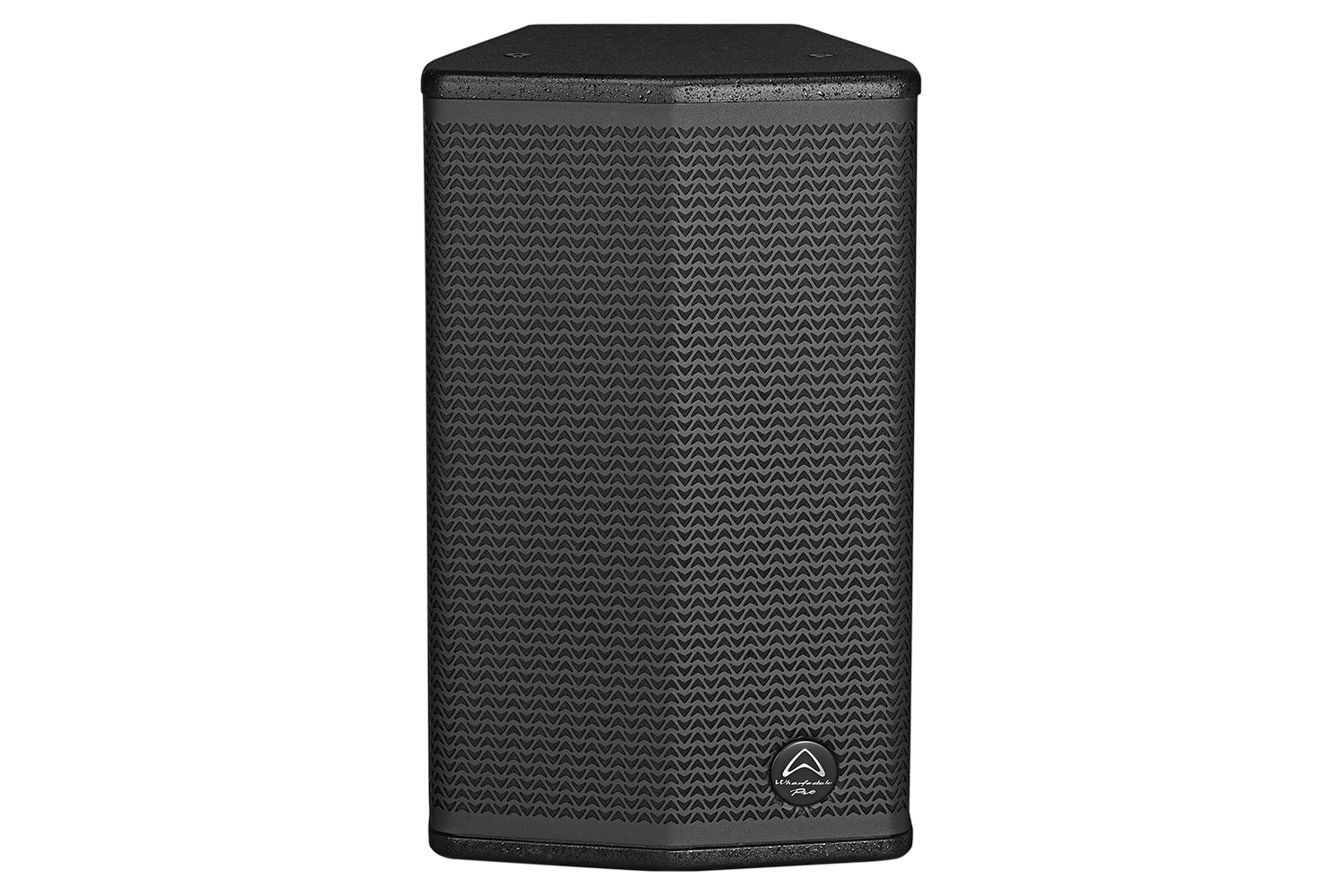

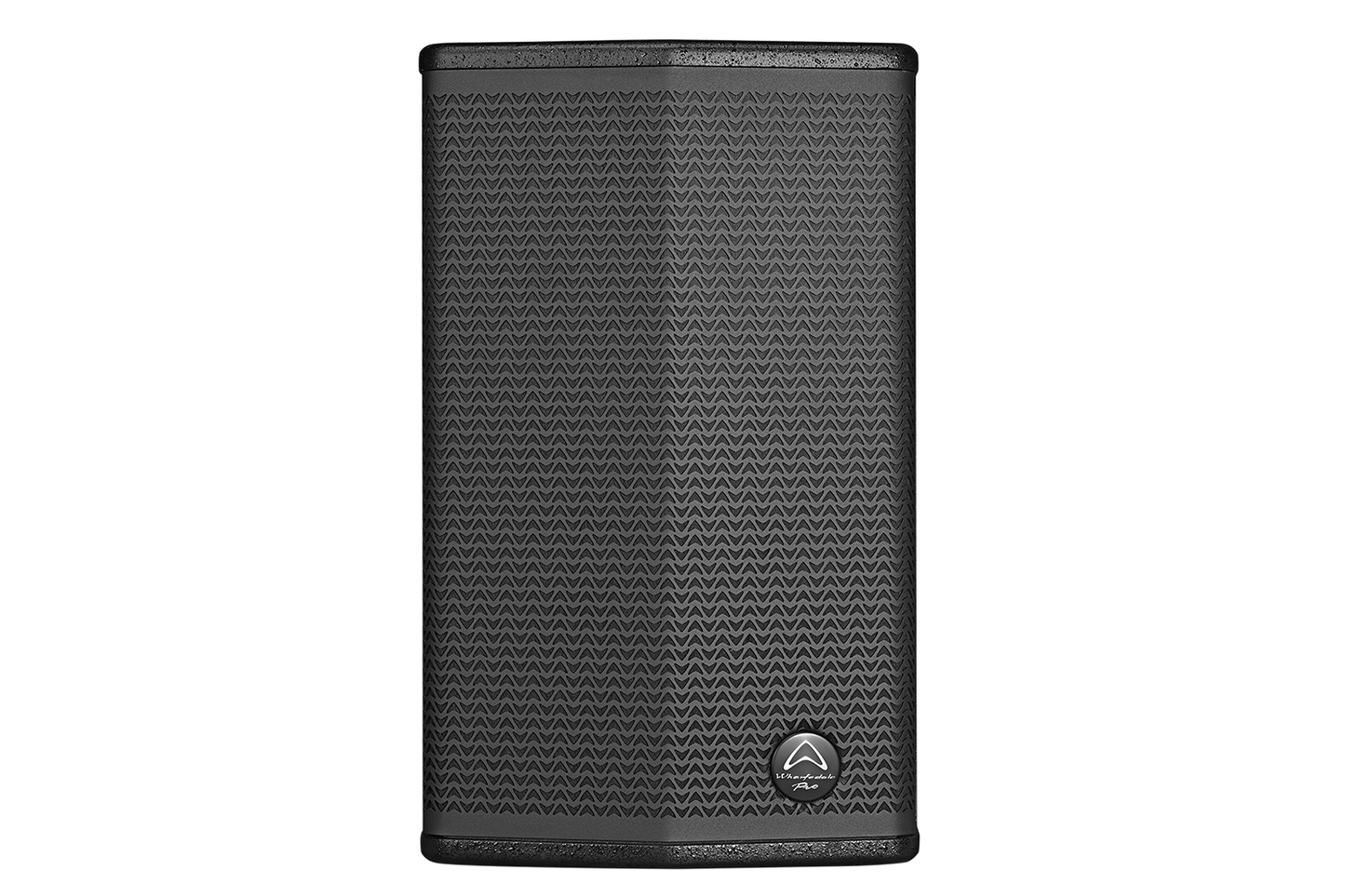

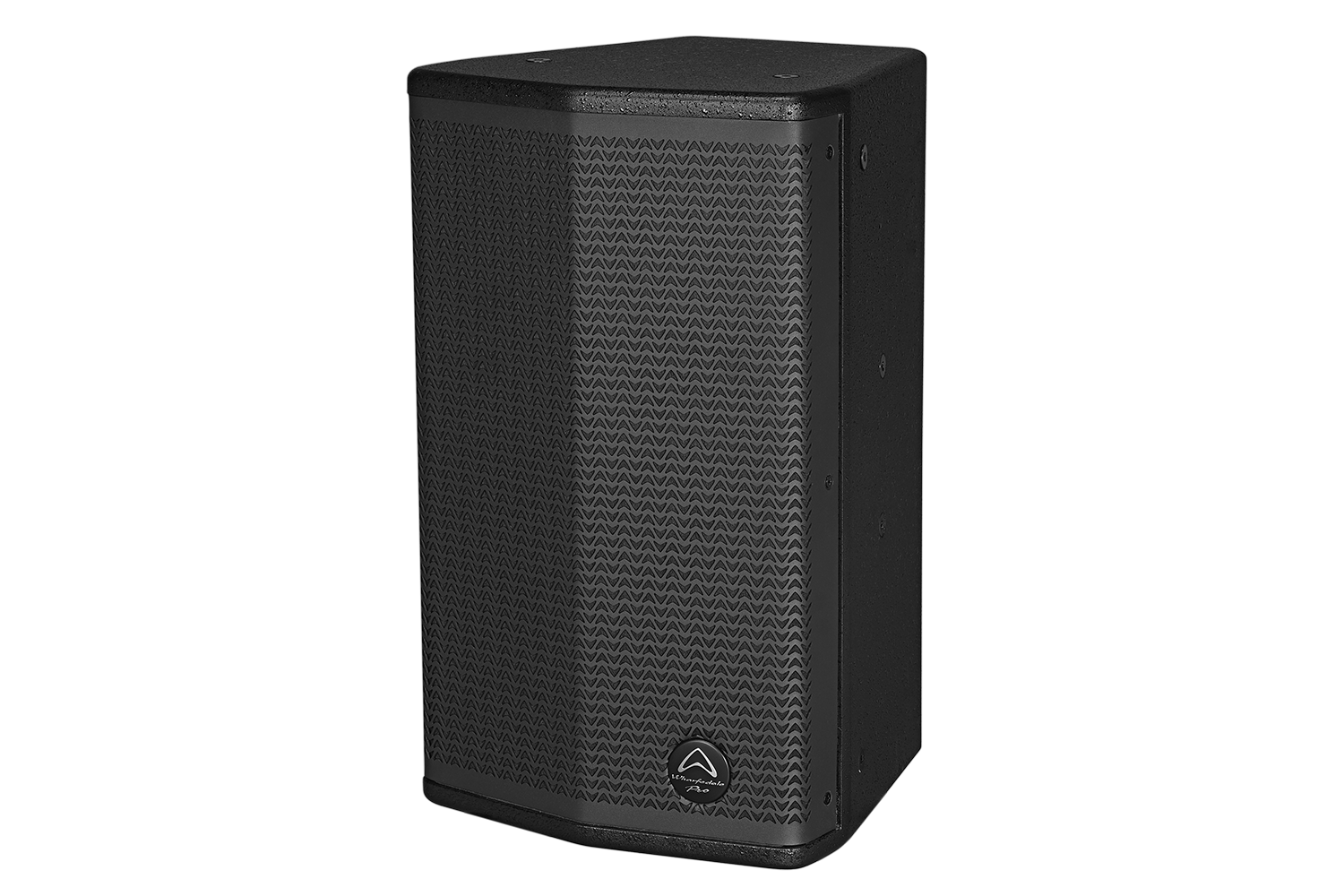

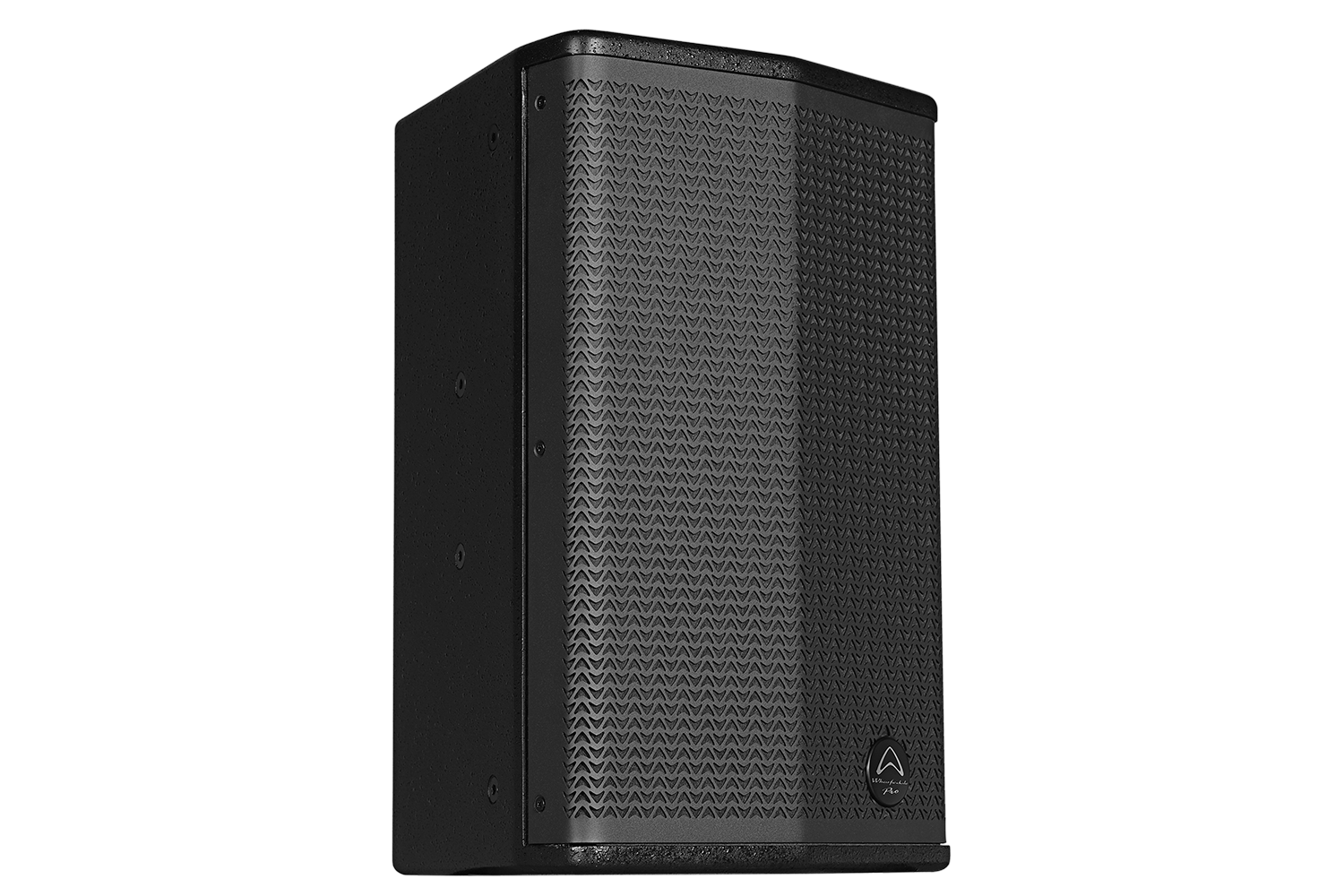

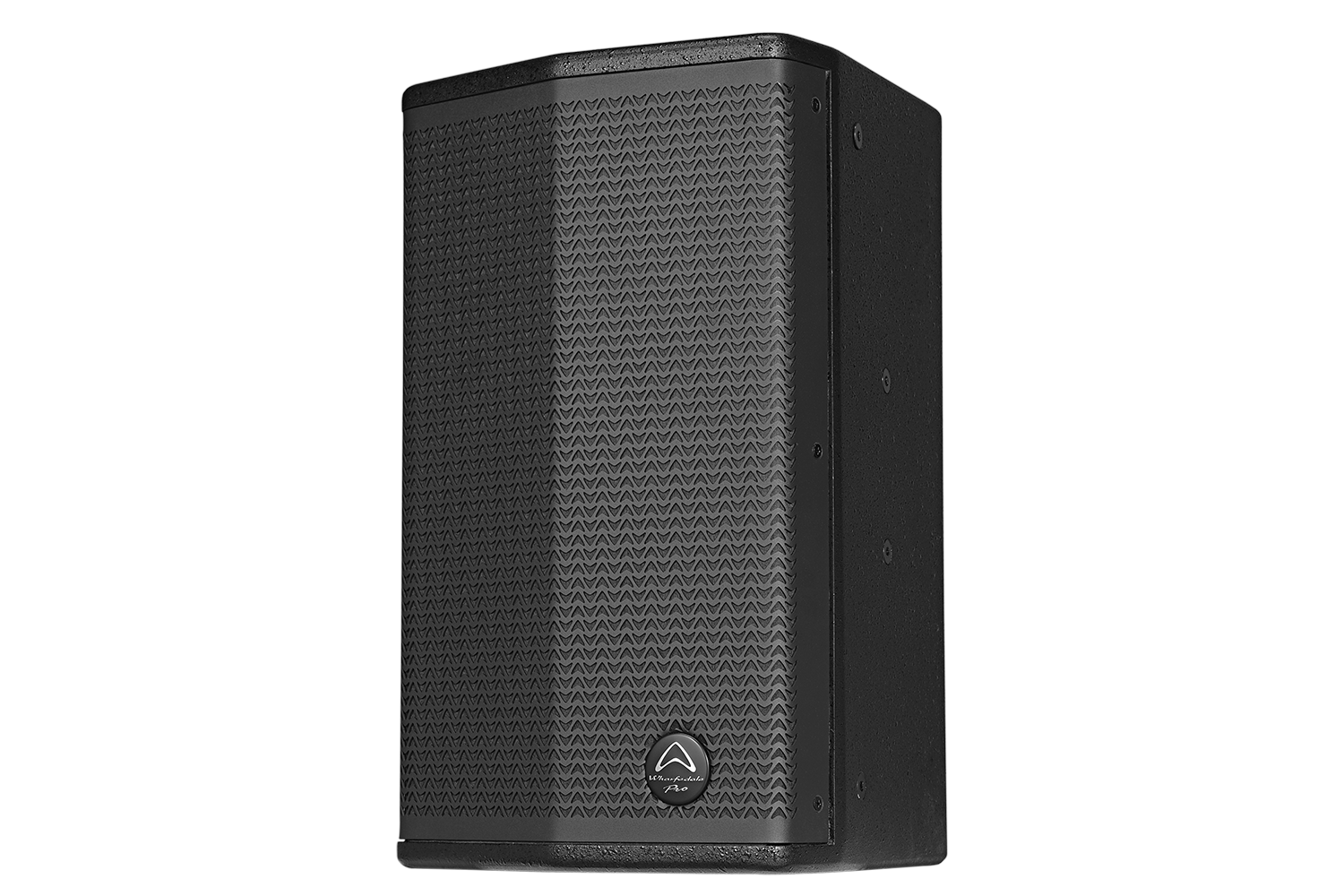

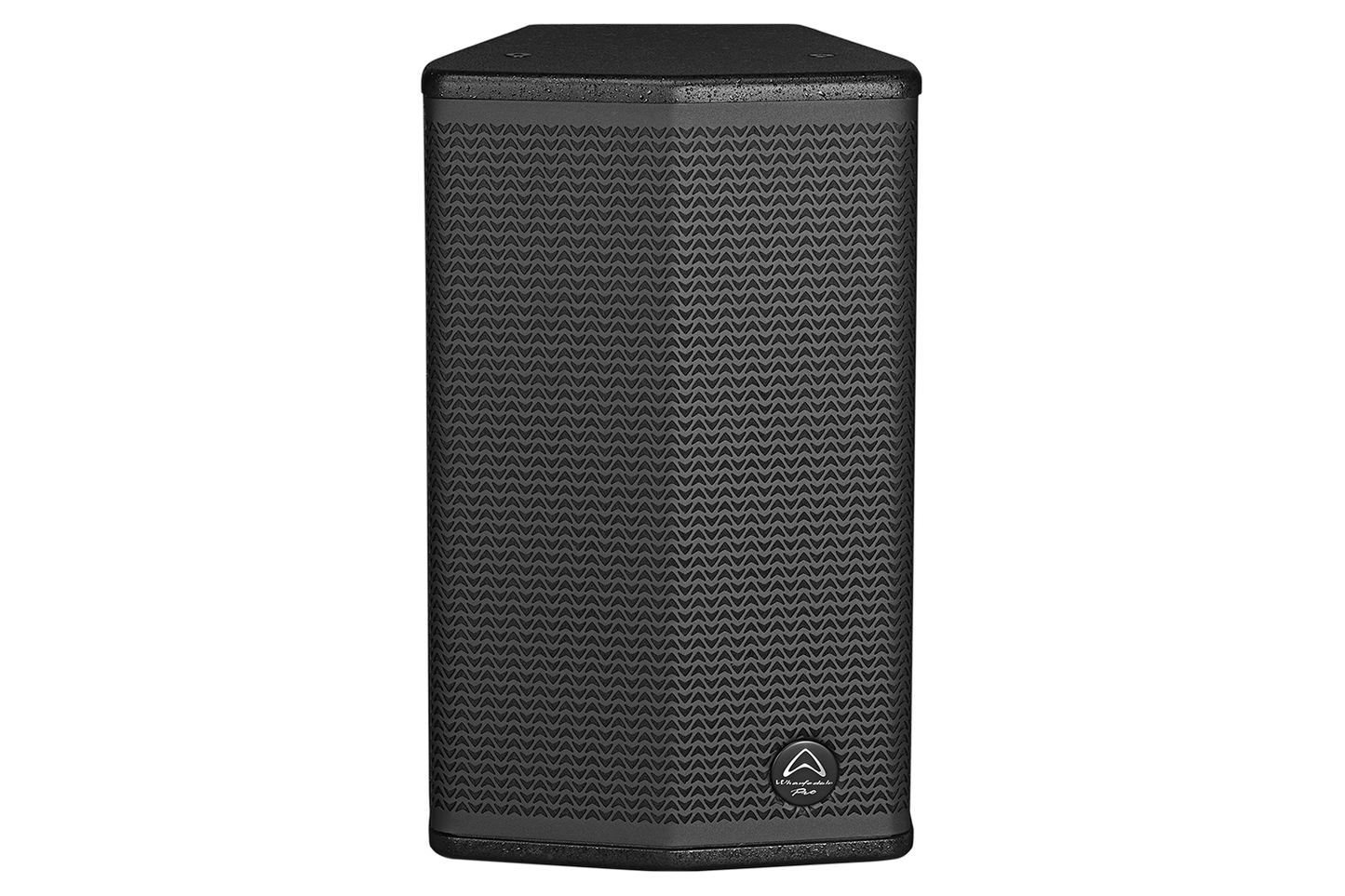

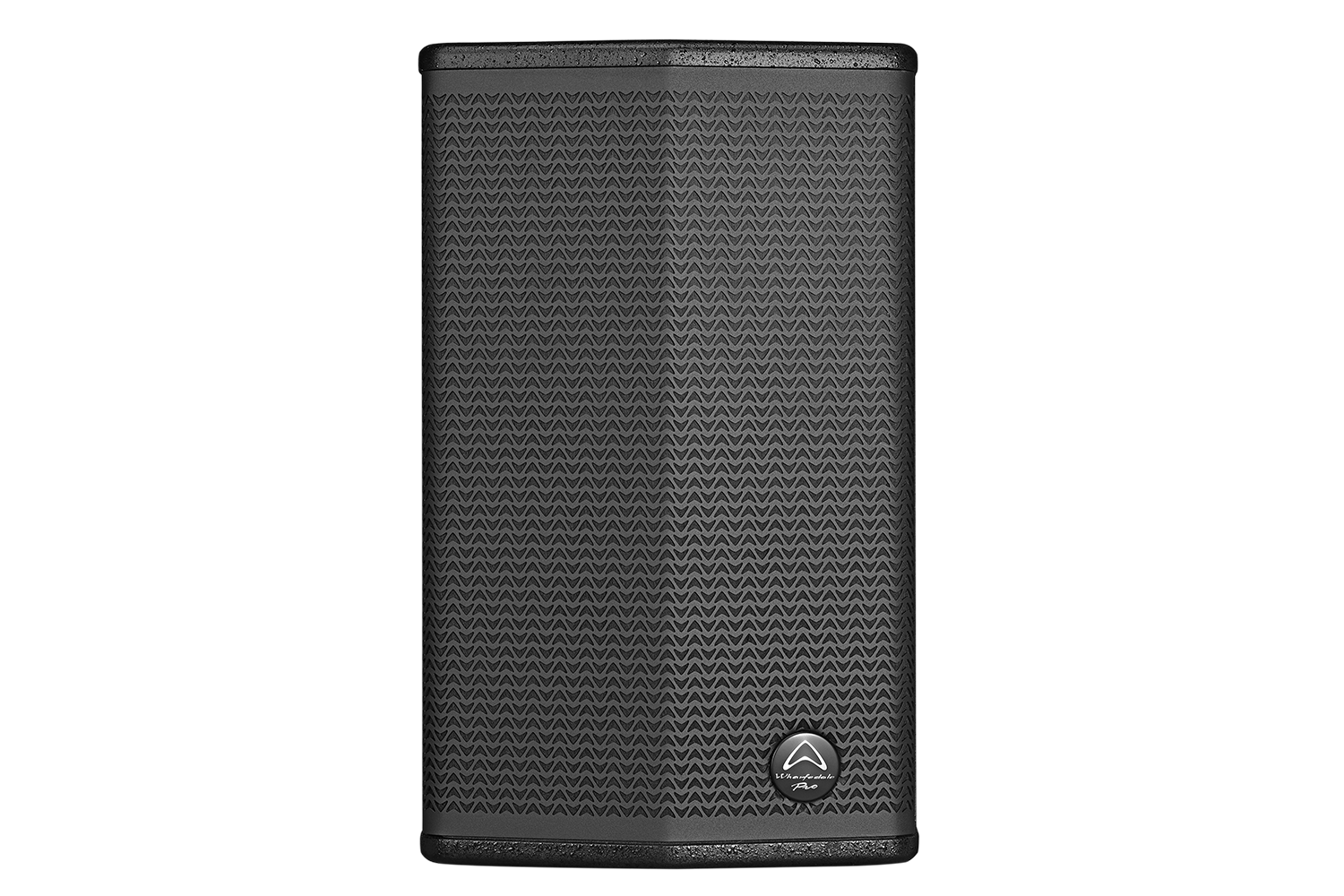

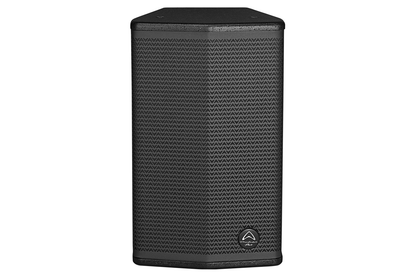

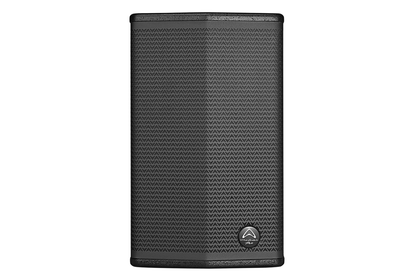

Wharfedale Pro Sigma-X8 Installation Speaker
Wharfedale Pro Sigma-X8 Installation Speaker
SIGMA-X
EASY INSTALL
Newly designed cosmetics
- Rotatable HF waveguides
- Re-evaluated performance
- Updated column models with HF drivers
- Column models with mini EVO-Fold waveguides
- 70 V / 100 V Hi-Z Column models
- EASE gll files available for download
- Supported with system diagrams
- Supported with downloadable FIR presets
- Easy fixings and brackets
- Available in black or white durable paint finishes
SIGMA-X8
- 150 W AES (Continuous)
- 300 W Programme
- 600 W Peak
- 124 dB Max SPL @ 1 m
COLUMNS WITH MINI EVO-FOLD
SIGMA-XV models feature the highly refined mini EVO-Fold waveguide along with HF compression drivers. For the SIGMA-XV5 there is one, while the SIGMA-XV9 features two compression drivers, each with a mini EVO-Fold waveguide.
This mini EVO-Fold design provides consistent dispersion coverage on both the horizontal and vertical planes with the sound radiating from one, singular and coherent, source.
EASY INSTALL
Installations can be complicated enough, so we have made SIGMA-X series as easy as possible.
For the SIGMA-XV Column array, either use the included U bracket, or for even more adjustment, use the optional WPB-SV which gives up to 15° tilt and 180° of rotation.

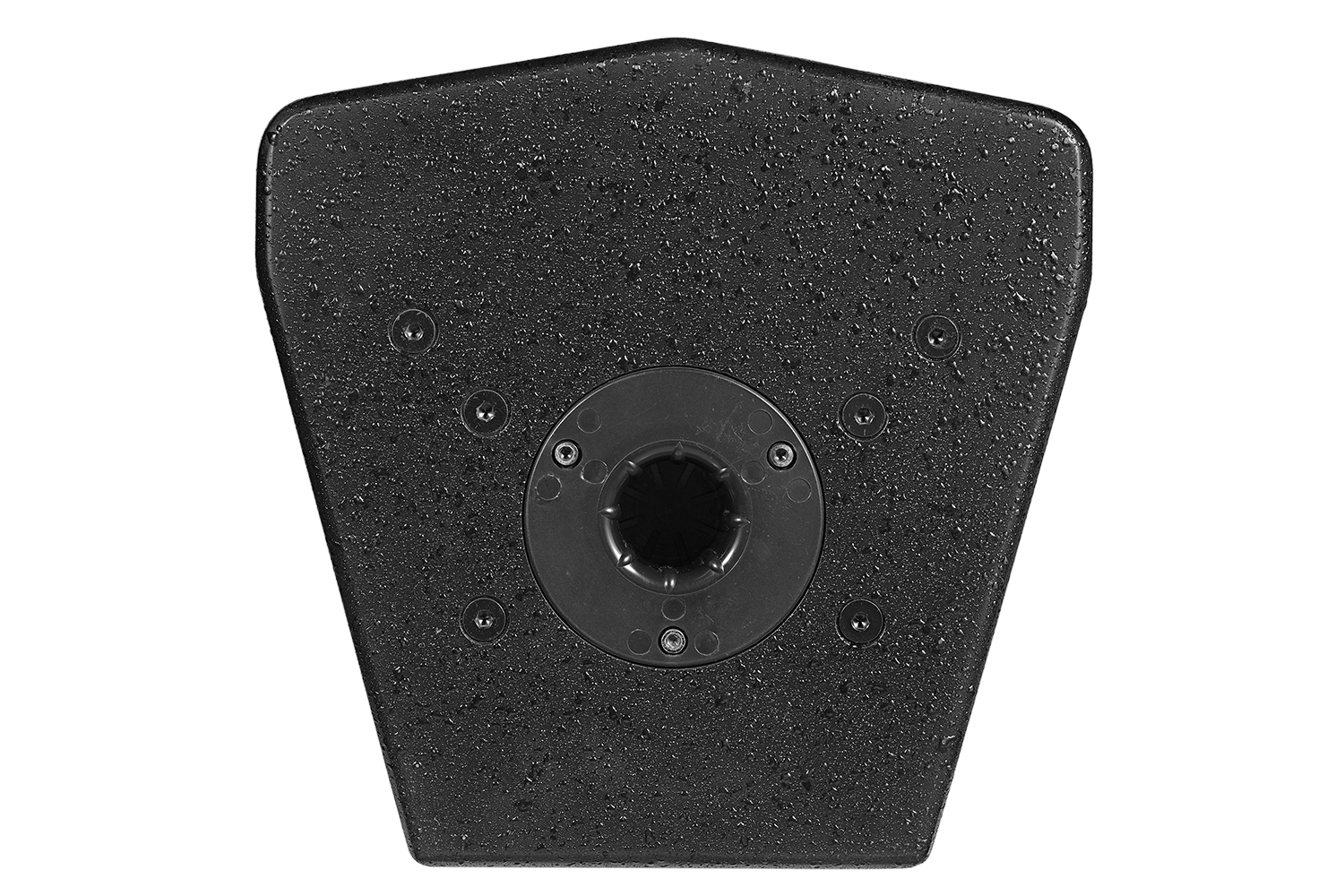

SIGMA-X full range cabinet models all have 17 x M8 rigging points, PLUS 35 mm pole sockets. Fly or wall bracket! SIGMA-X8, X10, X12 and X15 can use the optional WPB-1 or WPB-2 wall brackets.
EASY CONNECTION

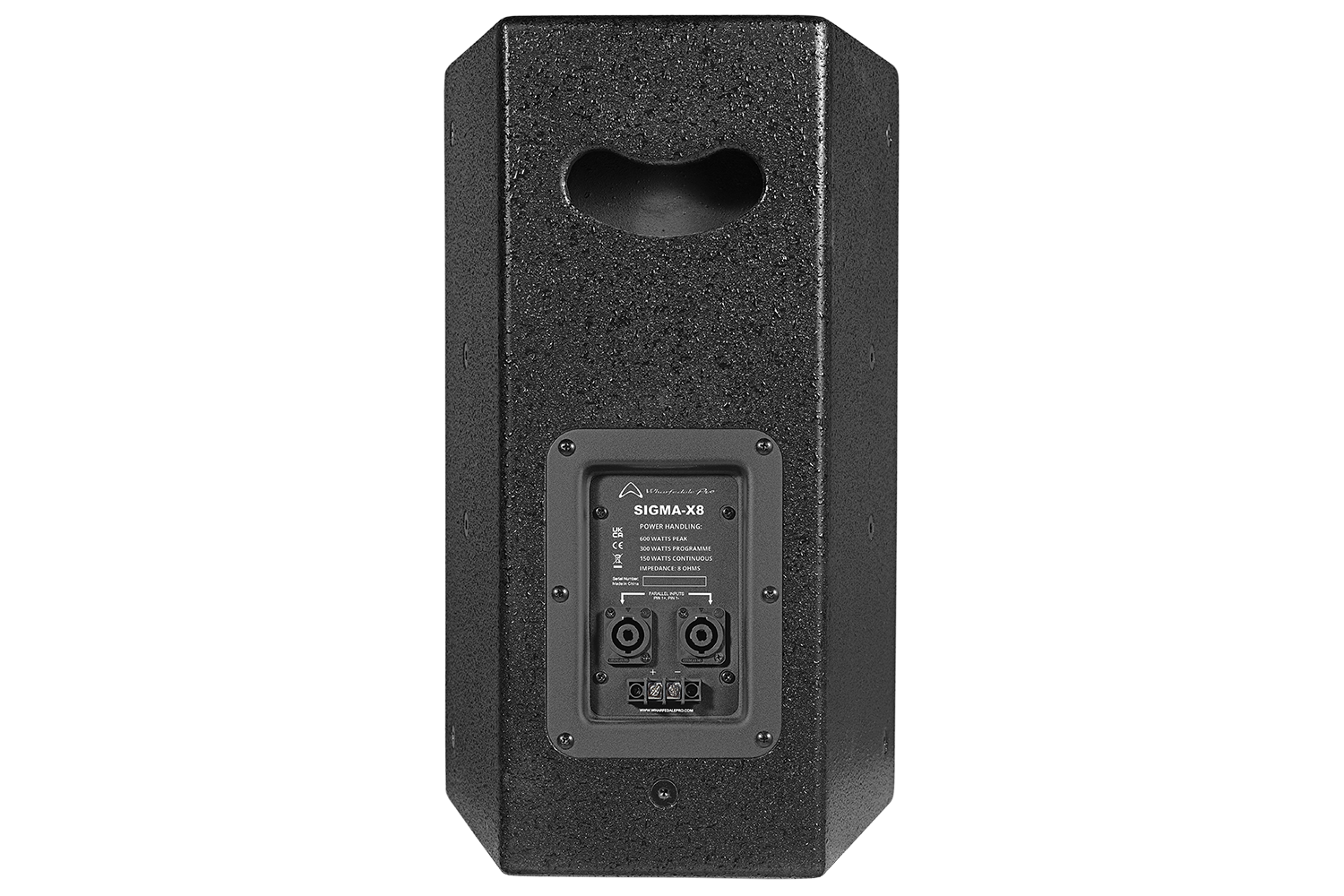

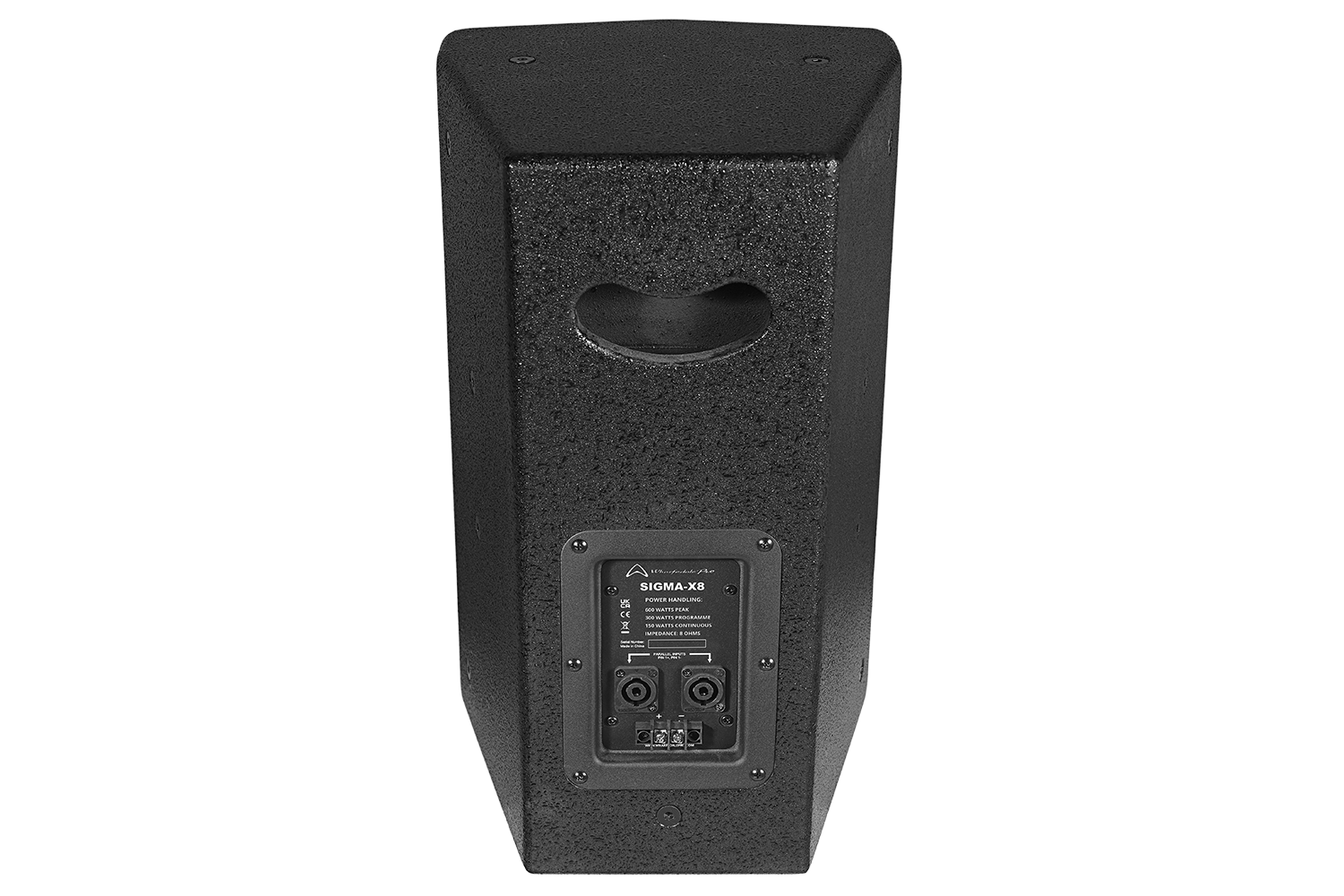

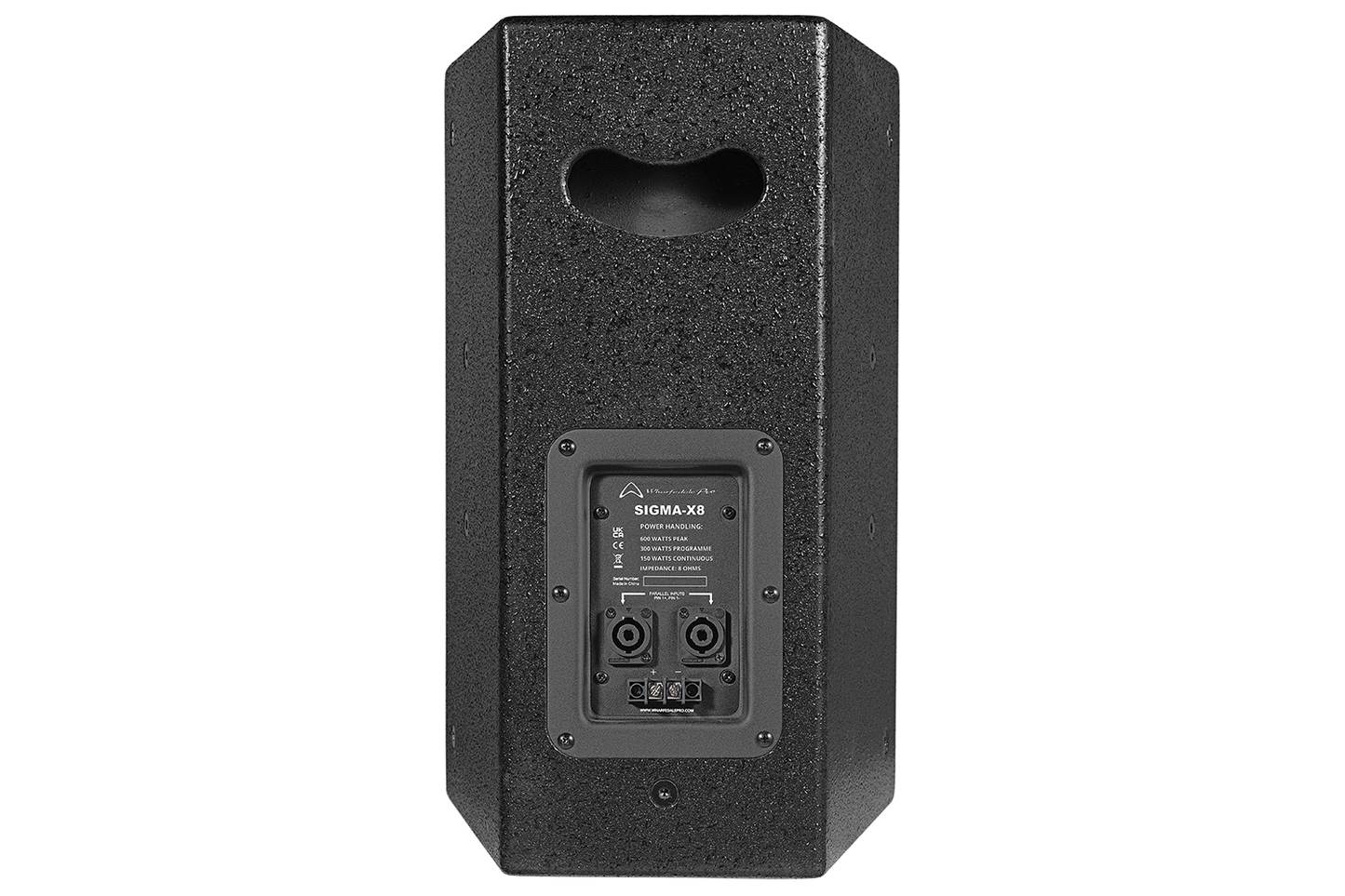

All SIGMA-X models (with the exception of the 70 V / 100 V T models) are equipped with both speakON compatible and barrier strip inputs. It is another small step that makes the installation easy.
ROTATABLE WAVEGUIDES
SIGMA-X8, SIGMA-X10, SIGMA-X12 AND SIGMA-X15 feature a rotatable waveguide.
90° x 60° or 60° x 90°….you decide.
SUPPORT WITH EASE
All full range models in the SIGMA-X series are supported with EASE 3 .gll files.
SPECIFICATIONS
|
Model Name |
SIGMA-X8 |
|
System Type |
Passive |
|
Configuration |
Two-Way |
|
Frequency Response (+/-3 dB) |
70 Hz – 18 KHz |
|
Frequency Range (-10 dB) |
65 Hz – 20 KHz |
|
Sensitivity 2.83 V / 1 m |
96 dB |
|
Calculated Maximum SPL @1 m |
124 dB |
|
System Rated Impedance |
8 Ω |
|
Low Frequency Transducer |
|
|
Size (mm / inches) |
203 mm / 8” |
|
Voice Coil Size (mm / inches) |
38 mm / 1.5” |
|
Rated Impedance |
8 Ω |
|
LF Power re:AES2-2012 |
150 W |
|
High Frequency Transducer |
|
|
HF Driver Type |
Compression Driver |
|
Coil Size (mm / inches) |
44 mm / 1.75” |
|
Exit Size (mm / inches) |
1″ |
|
Diaphragm Material |
Titanium |
|
Rated Impedance |
8 Ω |
|
HF Power re:AES2-2012 |
40 W |
|
Waveguide Type |
Constant Directivity / Rotatable |
|
Nominal Coverage (H x V) |
90˚ x 60˚ |
|
LF Driver |
1 x 8″ |
|
HF Driver |
1 x 1.75″ Titanium Compression Driver |
|
Power |
|
|
System Continuous Power |
150 W |
|
System Programme Power |
300 W |
|
System Peak Power |
600 W |
|
Crossover frequency |
2.8 KHz |
|
Input Connector |
2 x speakON / 1x Barrier Strip |
|
Hardware |
35 mm pole socket |
|
|
M8 x 17 |
|
|
1 handle on back |
|
Enclosure |
|
|
Enclosure Material |
15 mm MDF |
|
Finish |
Black Paint / White Paint |
|
Grille Material & Finish |
1.2 mm steel, painted |
|
Dimensions – Unpacked |
|
|
Height |
465 mm / 18.3″ |
|
Width Front |
284 mm / 11.2″ |
|
Width Rear |
176 mm / 6.9″ |
|
Depth |
282.7 mm / 11.1″ |
|
Dimensions – Packed |
|
|
Height |
505 mm / 19.9″ |
|
Width Front |
364 mm / 14.3″ |
|
Width Rear |
214.4 mm / 8.43″ |
|
Depth |
333 mm / 13.1″ |
|
Weight |
|
|
Net Weight |
12.2 kg / 26.8 lbs |
|
Gross Weight |
13.5 kg / 29.7 lbs |
|
Optional Wall-mount bracket |
WPB-1 / WPB-2 |
