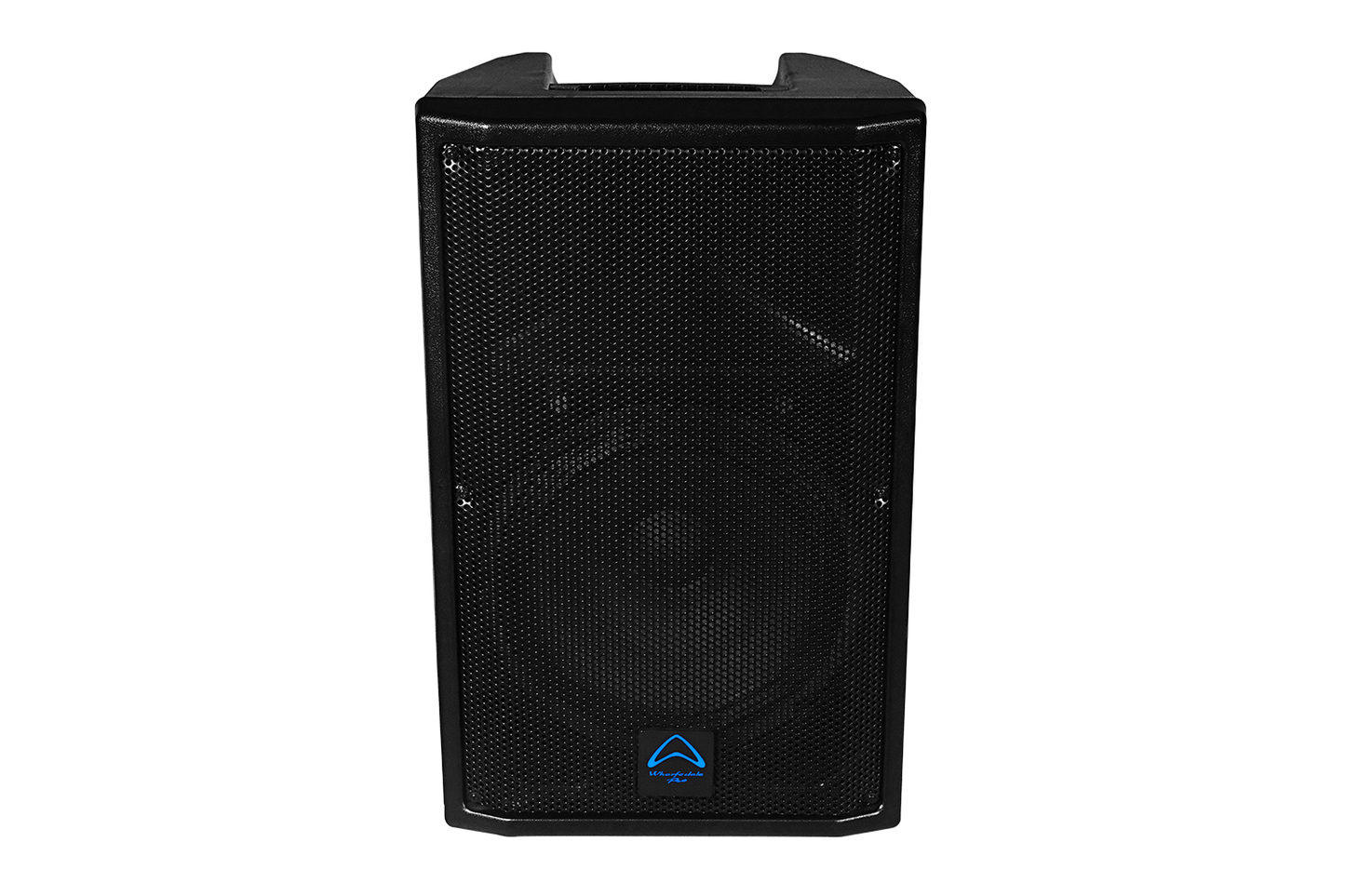

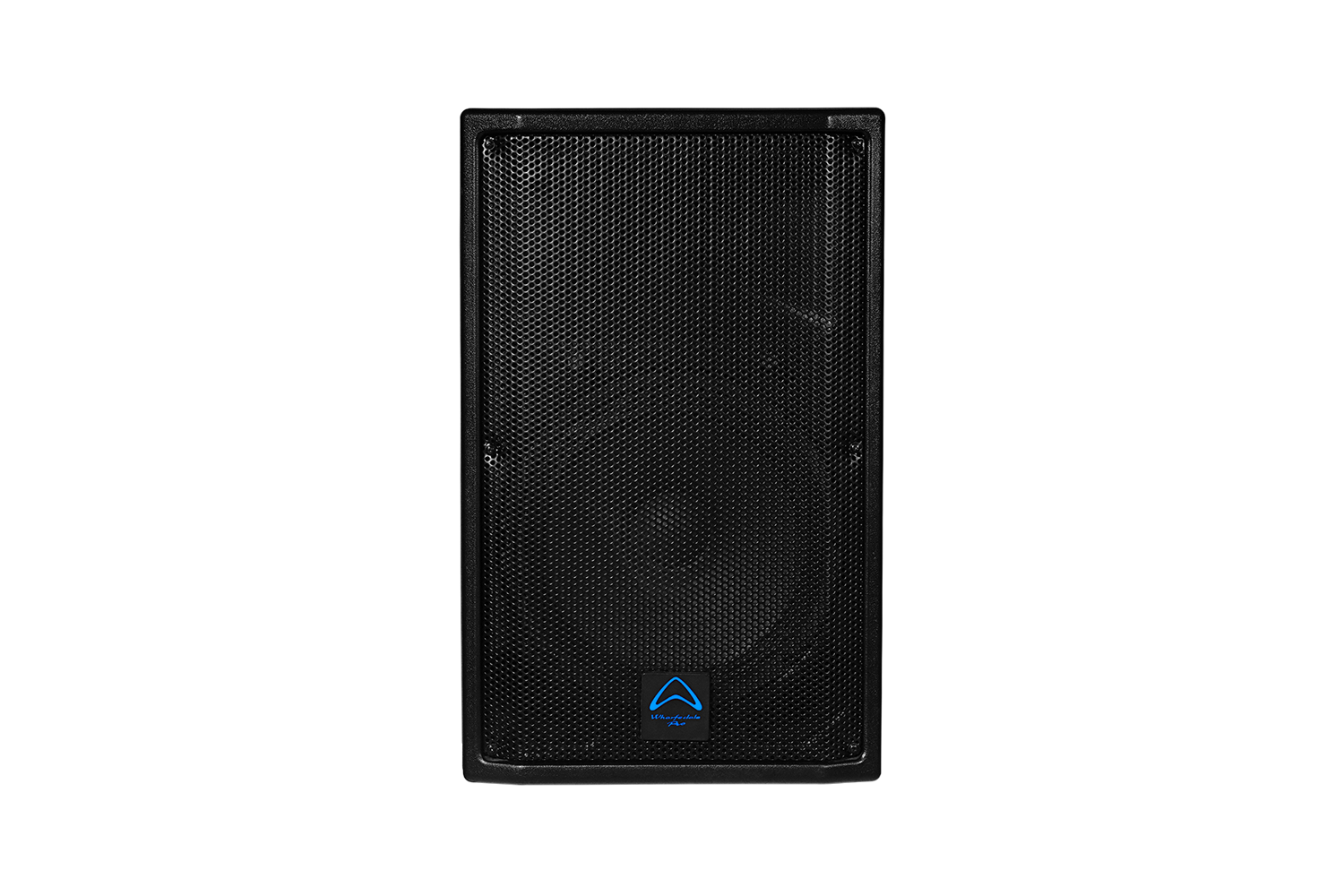

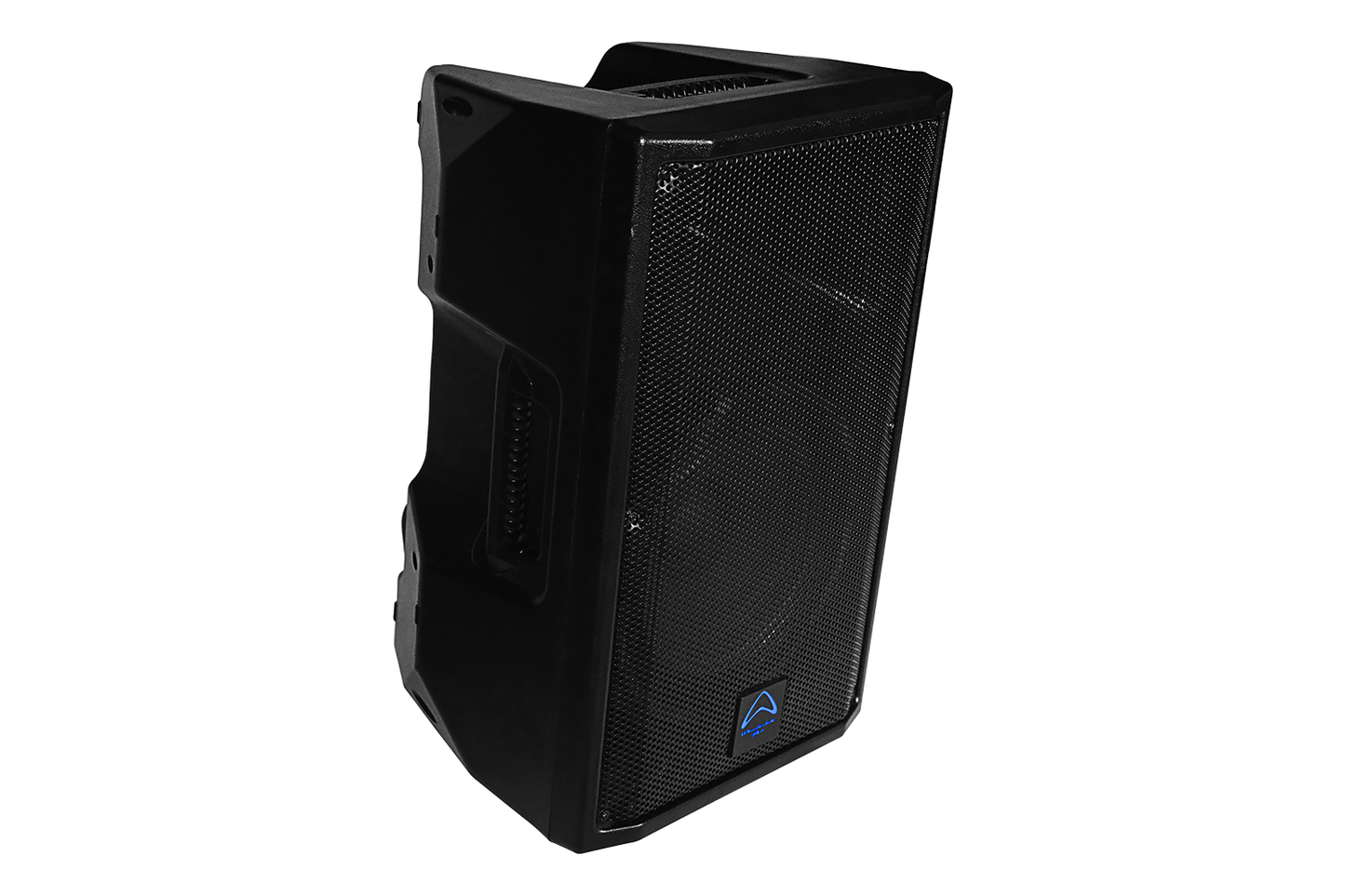

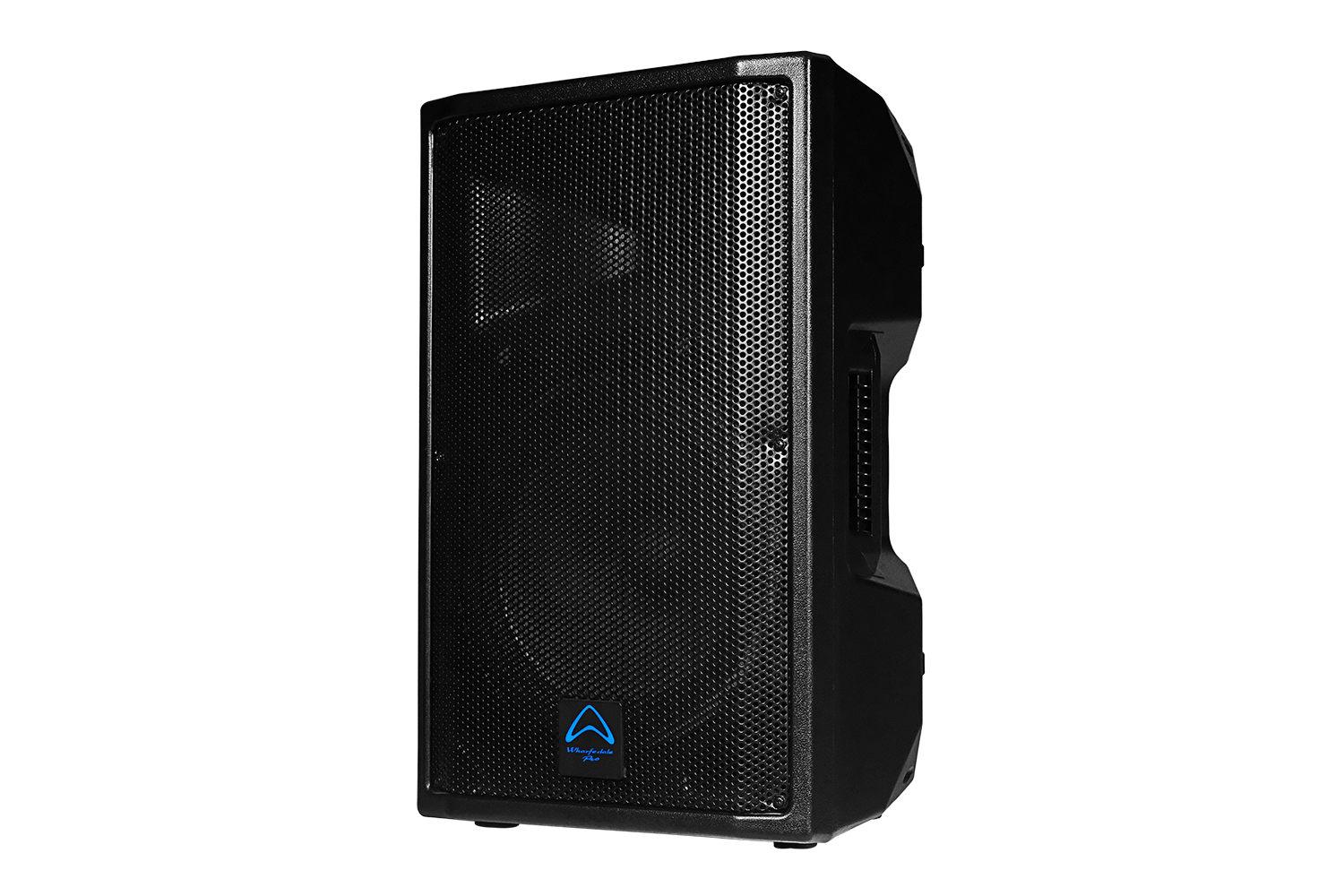

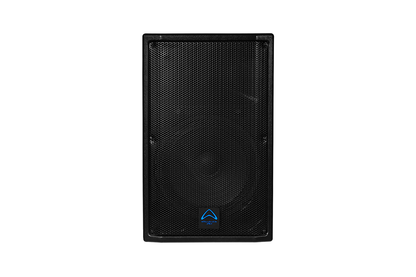

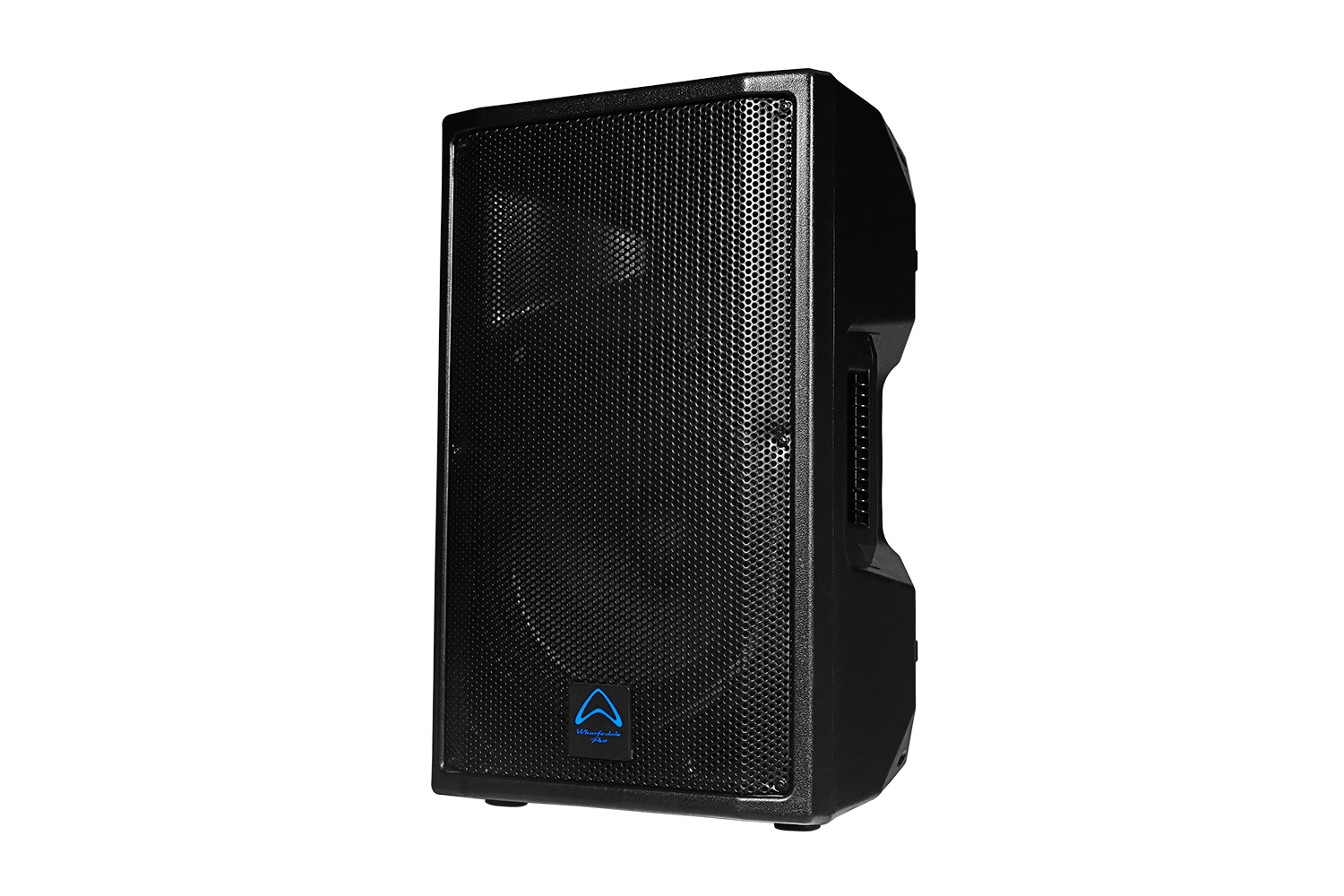

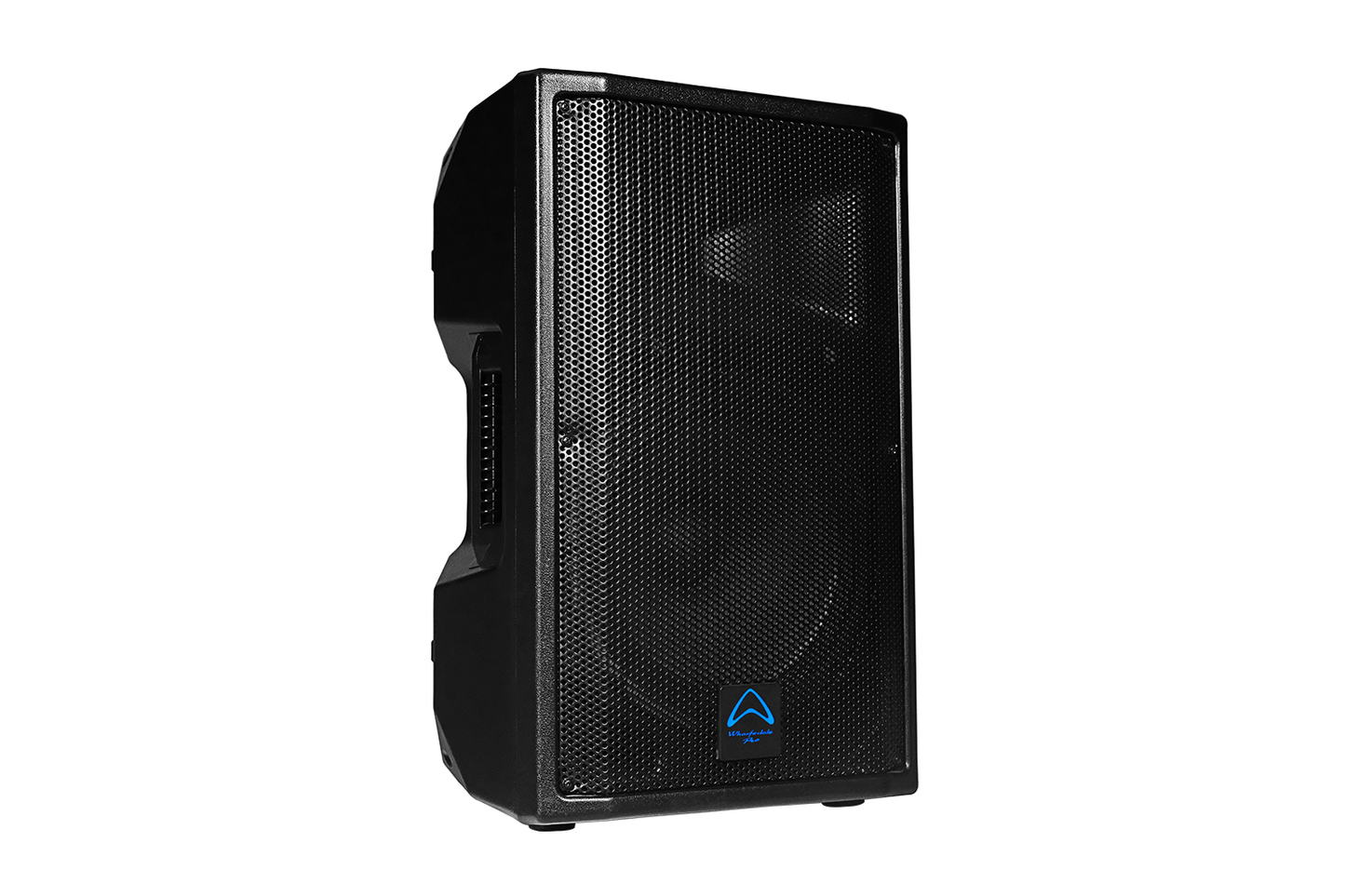

Wharfedale Pro TOURUS AX12 MBT Active Speaker
Wharfedale Pro TOURUS AX12 MBT Active Speaker
TOURUS SERIES
MULTIPLE INPUTS...
MAXIMUM POWER OUTPUT
- On stage, DJ, bands and performance
- Bluetooth, TWS models with MP3 player
- Bi-amplified
- Wharfedale Pro drivers
- Portable and powerful
- Huge power output
- RCA, XLR and Jack inputs
- M8 rigging points
- Optional soft covers
TOURUS AX15 MBT
- 12″ Bi-amplified active loudspeaker
- 1.75″ HF compression driver
- 350 w Continuous
- 700 w Peak
LETS LOOK INSIDE
Tourus loudspeakers use the largest HF voice coils in their class. All models use a 1.75″ coil which is unique at this price point.
This custom made Wharfedale Pro compression driver delivers crisp and precise high frequencies, even at extreme volumes.
The internal amplifiers have been tuned specifically for the HF and LF drivers that we have chosen. This makes for perfect power and frequency transfer, resulting in the sonic experience that you’d expect from a Wharfedale Pro active loudspeaker.
WE ARE NOT FANS...OF FANS
ssssssh ! The two amplifiers inside a Tourus are extremely efficient.
So efficient that they can use convection cooling. This means that there are no fans!
Fans inside loudspeakers can add to operational noise, weight, price and can lead to reliability issues. Tourus has no fan! Ssssssh! – Silent and reliable operation.
BLUETOOTH MODELS WITH INTERNAL MP3 PLAYER
The Tourus- MBT models include both BLUETOOTH and USB thumb drive inputs.Its quick and easy to pair your mobile device over BLUETOOTH allowing for high quality wireless audio to stream into the Tourus.
The MBT models also feature TWS pairing. Easily link two Tourus (or should that be…”Tourae”??) together – wirelessly.

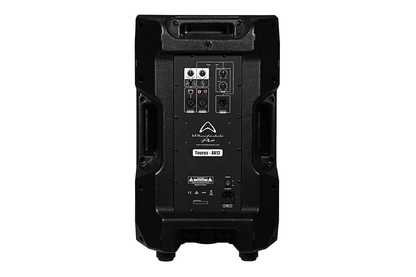

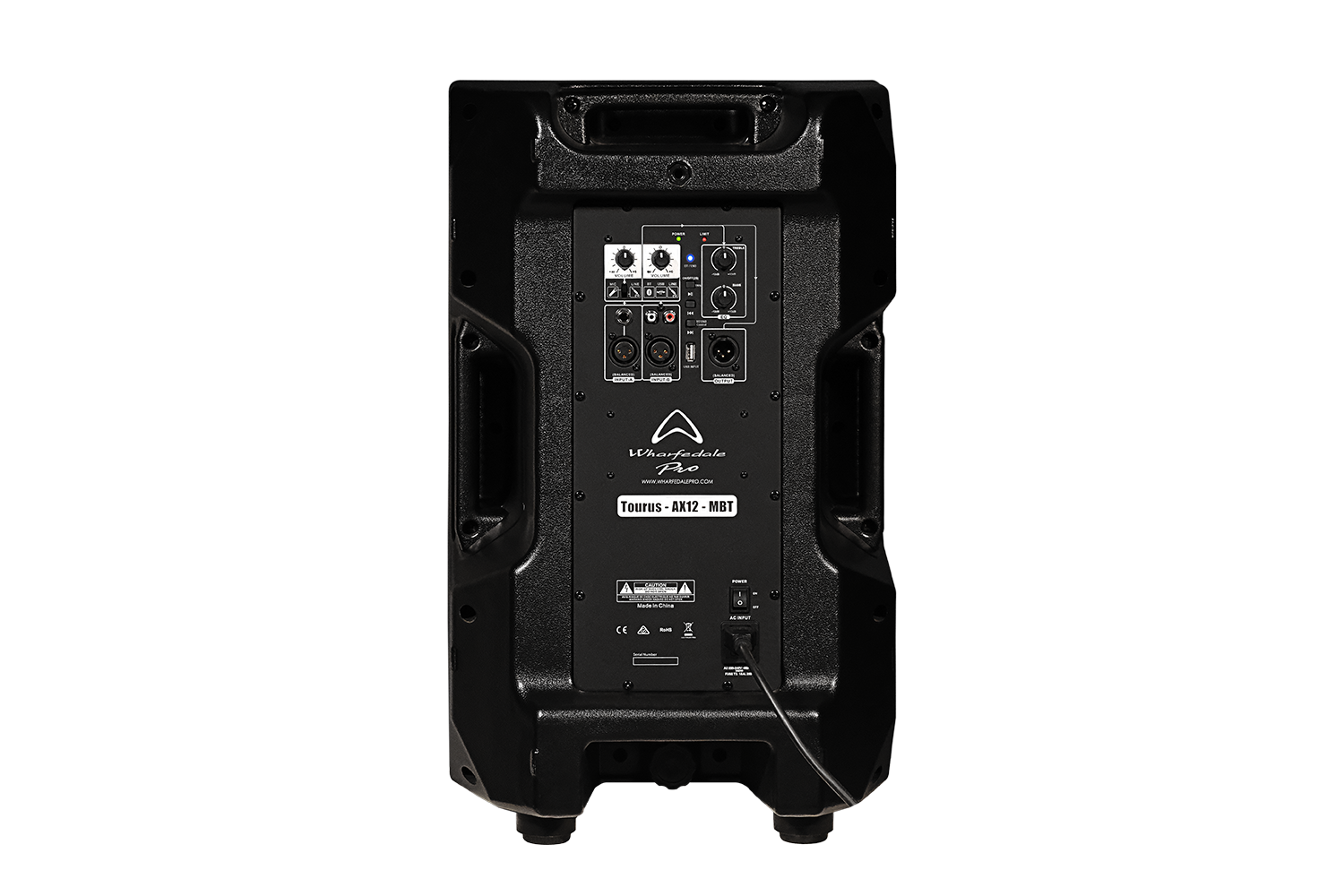

Alternatively, insert a USB thumb drive containing audio files (.wav, .flac, .mp3) and control backing tracks or background music with the transport controls on the rear.
Multiple inputs….with maximum power output!
COVER IT UP
Optional soft covers
With soft internal padding these optional ‘soft cover’ accessories are ideal for simple transportation or as a dust cover when the Tourus is not being used.
The Tourus carry handles are easily accessible even when it is inside its Tourus Soft cover.
|
Model Name |
TOURUS-AX12-MBT |
|
System Type |
Active 12” 2-way Bi-Amplified |
|
Frequency Response (+/-3 dB) |
55-20 KHz |
|
Sensitivity @ 1 w / 1 meter |
96 dB |
|
Maximum SPL (peak @ 1 meter) |
128 dB |
|
Low Frequency Transducer |
|
|
Size (mm / inches) |
305 mm / 12” |
|
Coil Size (mm / inches) |
50.8 mm / 2.0” |
|
Impedance |
4 Ω |
|
High Frequency Transducer |
|
|
Type |
Compression Driver |
|
Coil Size (mm / inches) |
44.5 mm / 1.75” |
|
Exit Size (mm / inches) |
25 mm / 1” |
|
Diaphragm Material |
Titanium |
|
Impedance |
8 Ω |
|
High Frequency Coverage (H x V) |
90° x 60° |
|
Amplifiers |
HF Amp Class AB : LF Amp Class D |
|
Low-Frequency Power Amplifier |
250 w Continuous / 500 w Peak |
|
High- Frequency Power Amplifier |
100 w Continuous / 200 w Peak |
|
Electronic Crossover |
|
|
Crossover Frequency |
HI PASS 2.5 KHz LOW PASS 2.5 KHz |
|
Controls |
|
|
Equalization |
+/-12 dB Gain for bass and treble |
|
Amplifier Protection |
|
|
Power On Protection |
Power switch on / off mute |
|
Thermal Protection |
Amplifier shutdown, auto reset |
|
Driver, DC and Short Protection |
Yes |
|
Limiter Indicator |
Red LED |
|
Power Indicator |
Green LED |
|
Input type |
Balanced / BT / USB |
|
Input Connectors |
2 x TRS JACK, 2 x RCA AND 2 x FEMALE XLR |
|
Input Impedance |
47 KΩ Balanced |
|
Maximum Input Level |
5 V |
|
Line Input Sensitivity |
-10 dB |
|
Mic Input Sensitivity |
-40 dB |
|
Line Output Connector |
MALE XLR |
|
AC Power details |
|
|
Power Supply |
SMPS |
|
AC Power Options |
100 V – 120 V and 220 V – 240 V |
|
Power On Indicator |
LED |
|
Rigging / Bracket / Mounting Options |
4 x M8 |
|

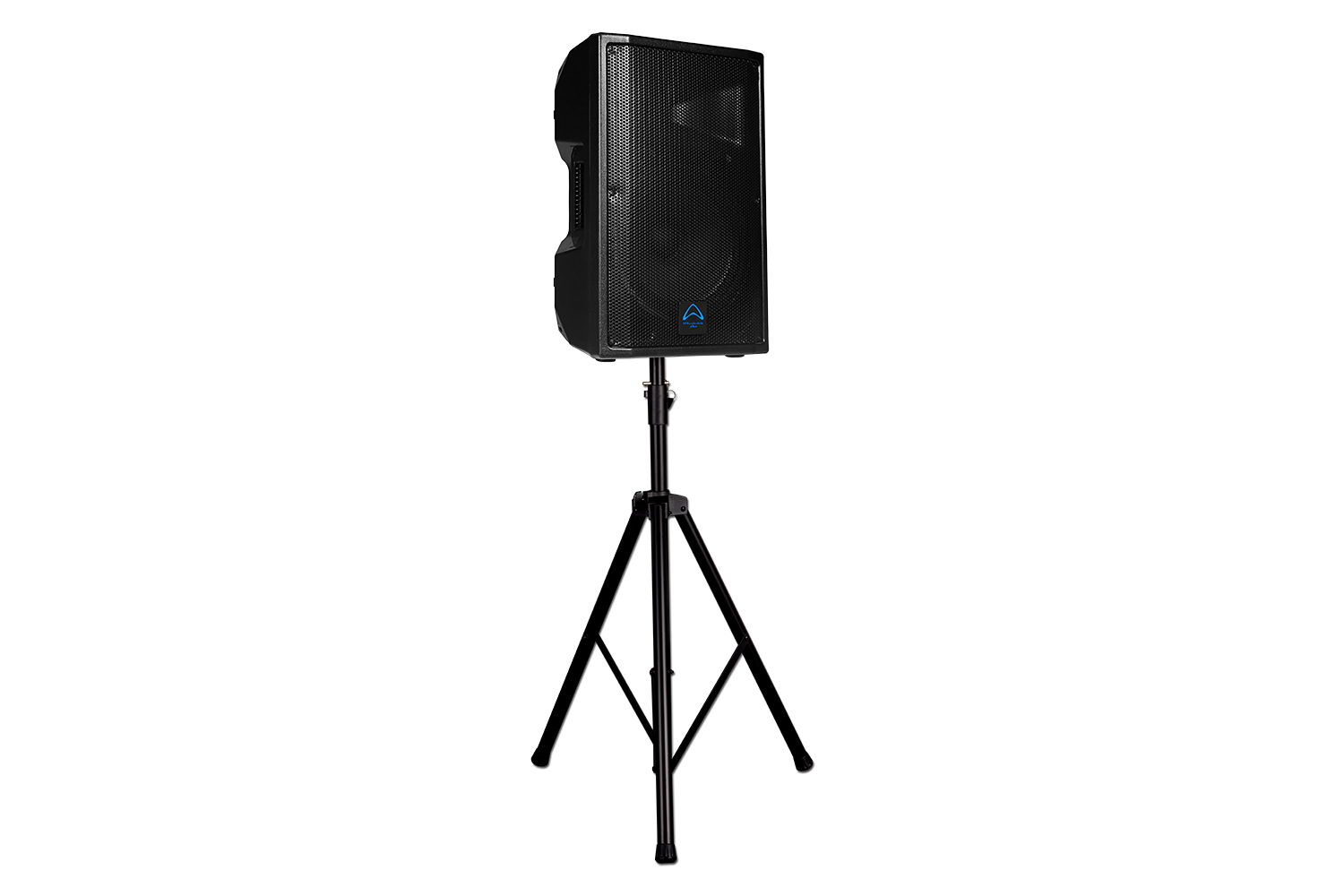

35 mm Pole-mount with lock screw |
35 mm Pole-mount with lock screw |
|
3 carry handles (one on each side, one on top) |
3 carry handles (one on each side,one on top) |
|
Optional wall-mount bracket (WPB-2) |
Optional wall-mount bracket (WPB-2) |
|
Enclosure |
|
|
Enclosure Material |
Injection Moulded Polypropylene |
|
Colour |
black |
|
Grille |
1.2 mm steel |
|
Dimensions (Unpacked)(mm / inches): |
|
|
Height |
603 mm / 23.7” |
|
Width – Front |
377 mm / 14.8” |
|
Width – Rear |
217 mm / 8.54″ |
|
Depth |
347 mm / 13.7” |
|
Dimensions (packed)(mm / inches): |
|
|
Height |
666 mm / 26.2” |
|
Width |
430 mm / 16.9” |
|
Depth |
408 mm / 16.1” |
|
Weight |
|
|
Net Weight (kg / lbs) |
15.0 kg / 33.0 lbs |
|
Gross Weight (kg / lbs) |
17.0 kg / 37.4 lbs |
