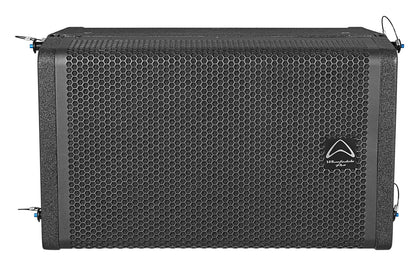

Wharfedale Pro WLA-112 - 12" passive hybrid curvature element
Wharfedale Pro WLA-112 - 12" passive hybrid curvature element
WLA-112
WLA-112 - 12" Passive Hybrid Curvature Array - 900W Programme with 4.0" LF Voice coil, 2.87" HF voice coil, 100° x 20° coverage, 139 dB system peak SPL
-
12″ Coaxial Beyma driver
- 450 W Continuous
- 900 W Programme
- 1800 W Peak
- 4.0″ LF voice coil
- 2.87″ HF voice coil
- 139 dB System Peak SPL
COAXIAL FULL RANGE
The 12” and 15” elements use coaxial drivers from Beyma – which are manufactured in Europe.
This coaxial design gives consistent coverage on both Horizontal and Vertical planes – while competitive traditional two-way line arrays do not have consistent coverage in one axis at least by design.
WLA-1 coaxial design gives consistent coverage and is unique.
WLA-1 System gives constant coverage on both Horizontal and Vertical planes
Competitive traditional constant curvature two way systems do not have consistent coverage in one axis at least by design.
HYBRID CURVATURE ARRAY
With a traditional 2-way array….arrays of 6 elements or more are simply not practical.
With the WLA-1 Hybrid Curvature design, arrays of up to 6 elements can be configured.

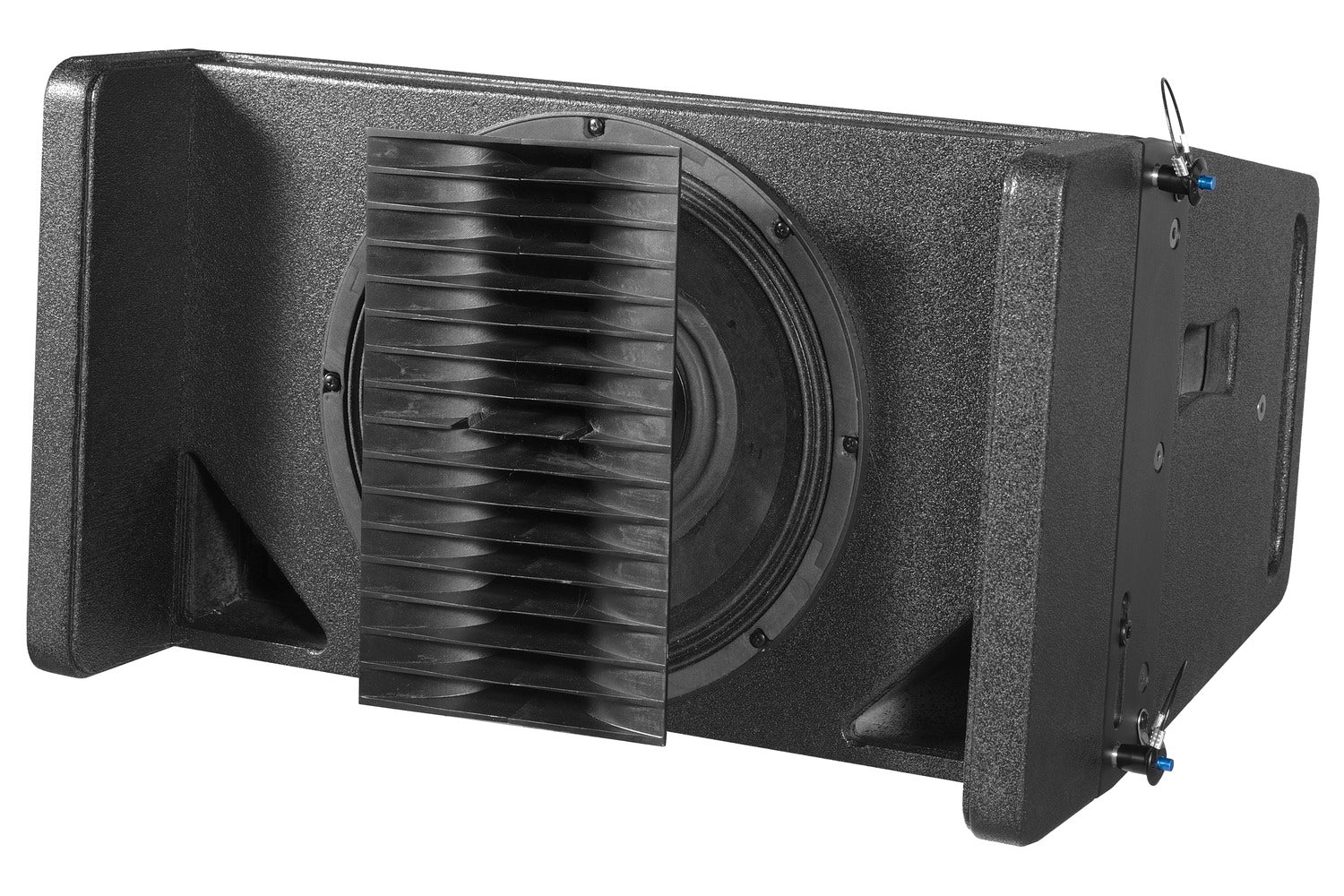

EVO-FOLD
EVO-Fold reduces the usual phase issues that traditional 2-way line arrays have due to them having the drive units physically some distance apart in the array. One specially-designed coaxial mid-high frequency driver is loaded to a unique EVO-Fold horn. The EVO-Fold horn combines a unique folded and manifold design. The most advanced FEM technology has been used to create this.
The high-mid energy exits produce a uniphasic sound in the widest range of frequencies. And visually, the detail of the EVO-Fold waveguide is a work of art.
SPECIFICATIONS
| Model Name | WLA-112 |
|---|---|
| Design | Hybrid Curvature Array |
| System Type | 12″ coaxial passive |
| Configuration | two-way |
| Frequency Response (+/-3 dB) | 55 Hz – 20 KHz |
| Frequency Range (- 10 dB) | 35 Hz – 25 KHz |
| Sensitivity 2.83 V/1 m | 101 |
| Calculated Maximum SPL @ 1 m | 133 dB |
| System Peak SPL | 139 dB** |
| System Rated Impedance | 8 Ω |
| * | |
| ** | level at 1 m under free field conditions using pink noise with crest factor 4, with dedicated preset. |
| Low Frequency Transducer | |
| Size | 312 mm / 12” |
| Voice Coil Size | 101.6 mm / 4.0” |
| LF Frame Material | Aluminium |
| High Frequency Transducer | |
| HF Driver Type | Compression Driver |
| Coil Size (mm / inches) | 72.2 mm / 2.87″ |
| Exit Size (mm / inches) | 38.1mm / 1.5″ |
| Diaphragm Material | Composite titanium / polyester |
| Waveguide Type | EVO-Fold® |
| Nominal Coverage (HxV) | 100° x 20° |
| Special Features | |
| Copper Demodulating rings in both LF and HF units | |
| Waterproof LF cone | |
| Shared High performing Ferrite magnet system design | |
| Power (AES2) | |
| System Continuous Power (W) | 450 |
| System Programme Power (W) | 900 |
| System Peak Power (W) | 1800 |
| Crossover Frequency | 1.2 KHz |
| Recommended HPF = BW 18 dB/oct. | 30 Hz |

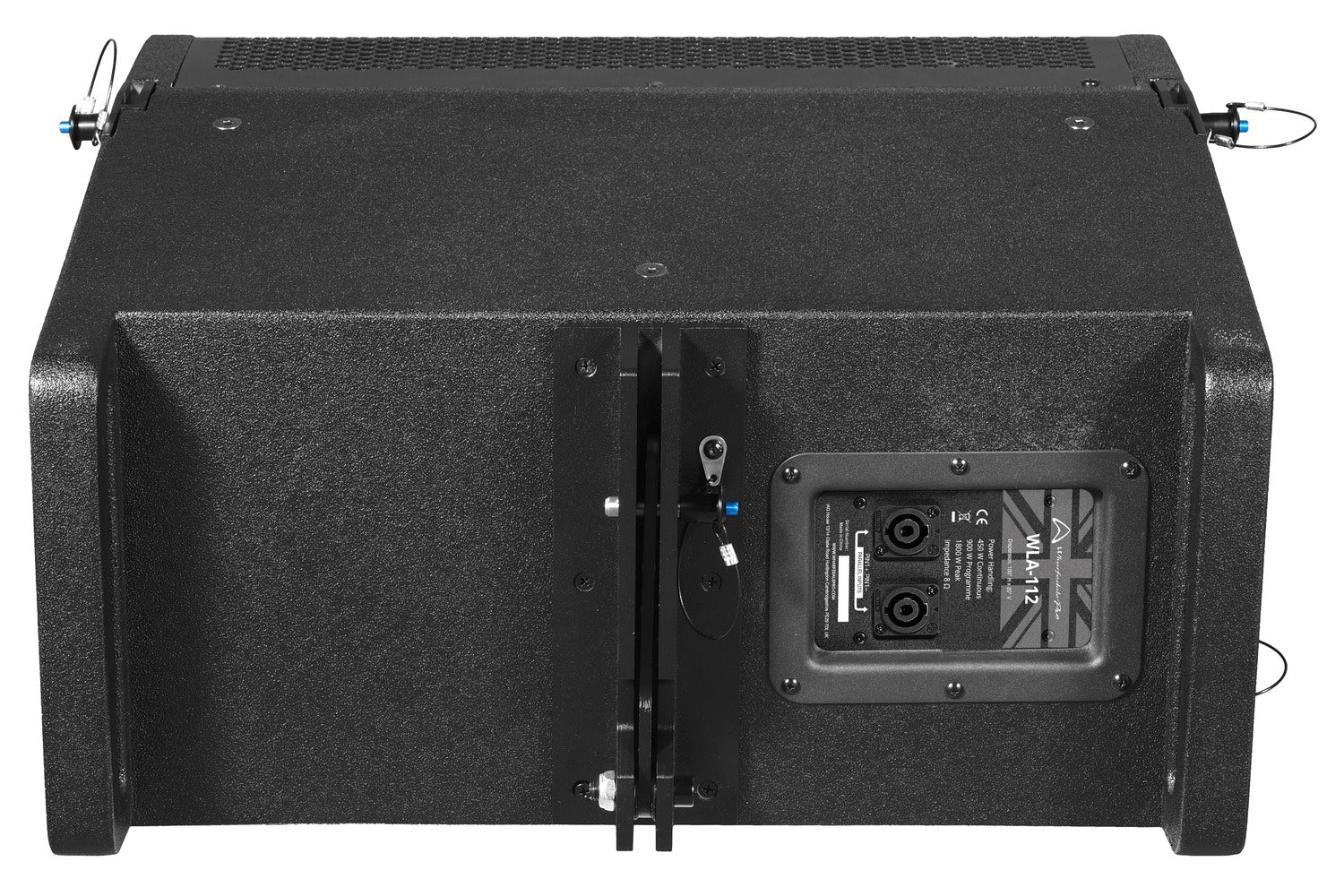

| Input Connector | 2 x speakON compatible |
| Rigging & Hardware: | 3 points for rigging |
| Vertical Splay angle range: | 0°- 5° – 10° – 15° |
| Horizontal Splay angle | 15° |
| Optional Accessories | WLA-1 Common Fly Frame |
| Optional Accessories | WLA-1 Link |
| Stand pole: | Dual Angle -2.5° / + 7.5° |
| Handles: | 2 side / 2 back |
| Enclosure | |
| Cabinet Type | Trapezoid |
| Enclosure Material and finish | 15 mm plywood / Rhino Rock |
| Colour | Black paint |
| Grille Material & Finish | Powder coated perforated steel |
| Dimensions – Unpacked: | |
| Height Front | 332 mm / 13.1″ |
| Height Rear | 246.4 mm / 9.7″ |
| Width | 566 mm / 22.3″ |
| Depth | 465 mm / 18.3″ |
| Dimensions – Packed: | |
| Height | 661 mm / 26.0″ |
| Width Front | 550 mm / 21.7″ |
| Width Rear | 550 mm / 21.7″ |
| Depth | 410 mm / 16.7″ |
| Weight | |
| Net Weight | 29.4 Kg |
| Gross Weight | 31.8 Kg |
