Wharfedale Pro WLA-210XF - IPX6 waterproof line array element
Wharfedale Pro WLA-210XF - IPX6 waterproof line array element
WLA-210XF SERIES
IPX6 DUAL 10" ARRAY
- IPX6 Waterproof Line array
- Wax wrapped components
- Anti-corrosion stainless steel hardware
- Waterproof input connectors
- Plywood construction in aluminium cabinets
- 2 x 10″ element – WLA-210XF
- 2 x 15″ flying subwoofer element – WLA-210XSUBF
- 2 x 18″ subwoofer – WLA-218BXF

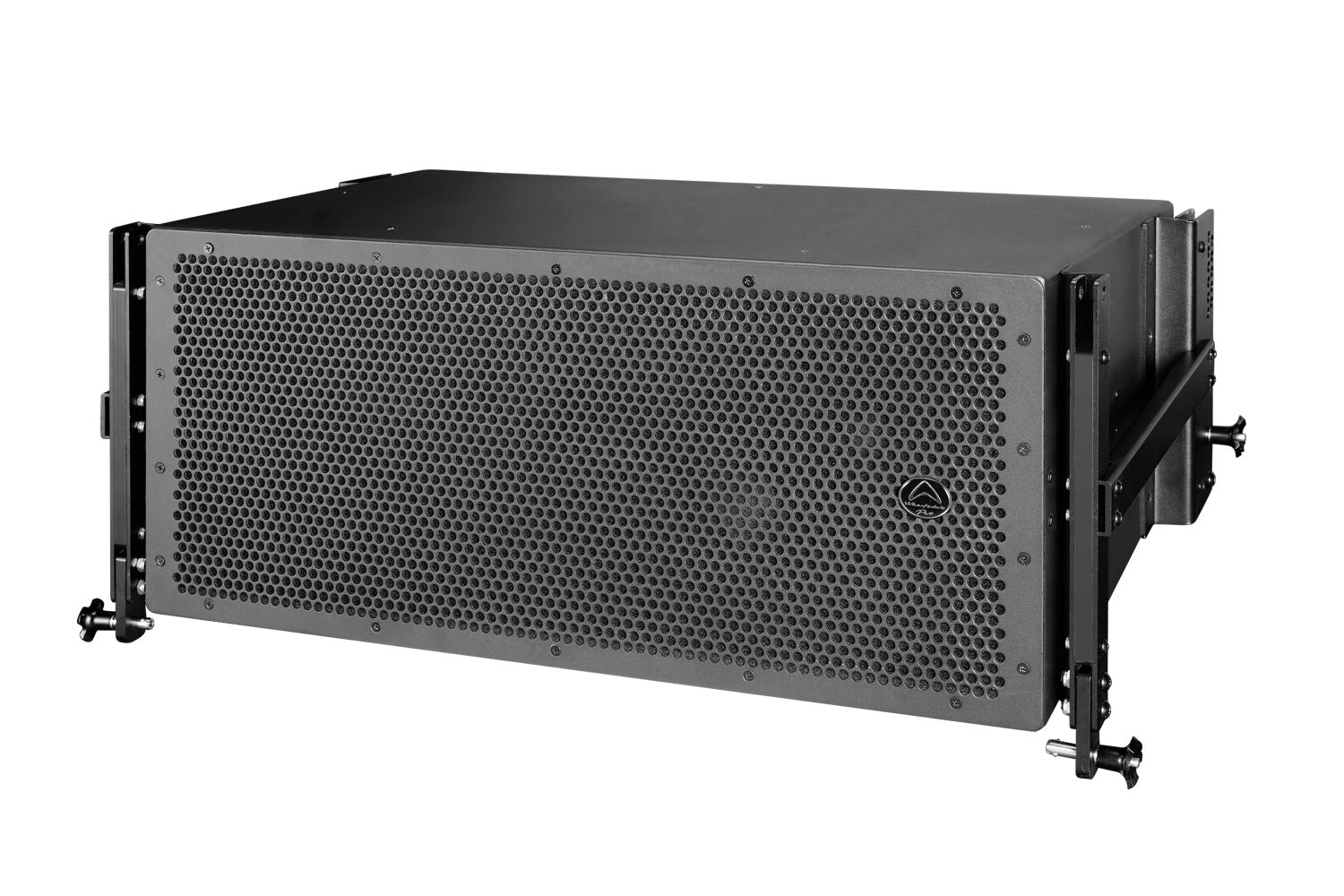

WLA-210XF
- 2 x 10″ LF drivers
- 3″ Neodymium HF compression driver
- 138 dB Max SPL
- 15mm / 18mm Birch plywood construction
- Integral, side plate adjustable rigging system
- 100° x 10° dispersion
- 180 watts programme HF
- 1600 watts programme LF
- 16 Ω impedance
DUAL 10"
At the heart of the WLA-210XF are 2 x 10″ custom Wharfedale Pro LF drivers.
These feature 4.0″ voice coils to ensure high efficiency and high power handling.
The HF Compression driver is also custom made by Wharfedale Pro. Using a neodymium magnet and a 3.0″ voice coil, this compression driver is coupled to a 100° x 10° waveguide.
These custom designed transducers are what give a WLA-210XF system its incredible sound and power handling capacity.
FLY OR GROUND STACK
WLA-210XF rigging doubles up as an optimised ground stacking system, using the WLA-210FXSUB subwoofer as a base.

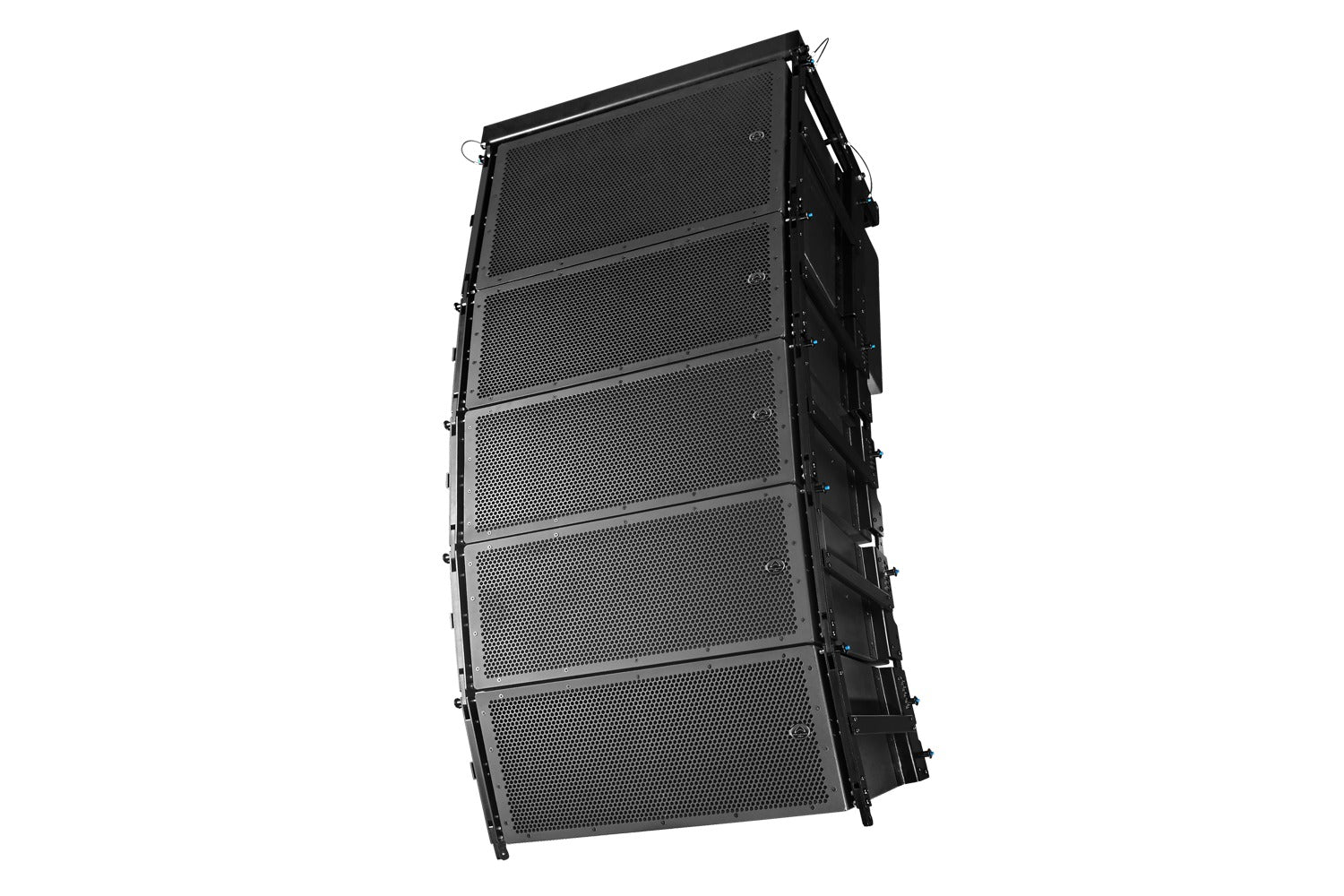

Arrays of WLA-210XF line array elements can be aimed downwards by as much as 10° to cover audience areas close to a stage, as well as upward by as much as 10° in order to better cover distant balcony seating areas.
The optional WLA-XF Common Fly Frame supports up to 8 WLA-210XF elements plus a WLA-210XSUBF.
Stainless steel construction / Anti-rust materials / For flying……or ground stacking

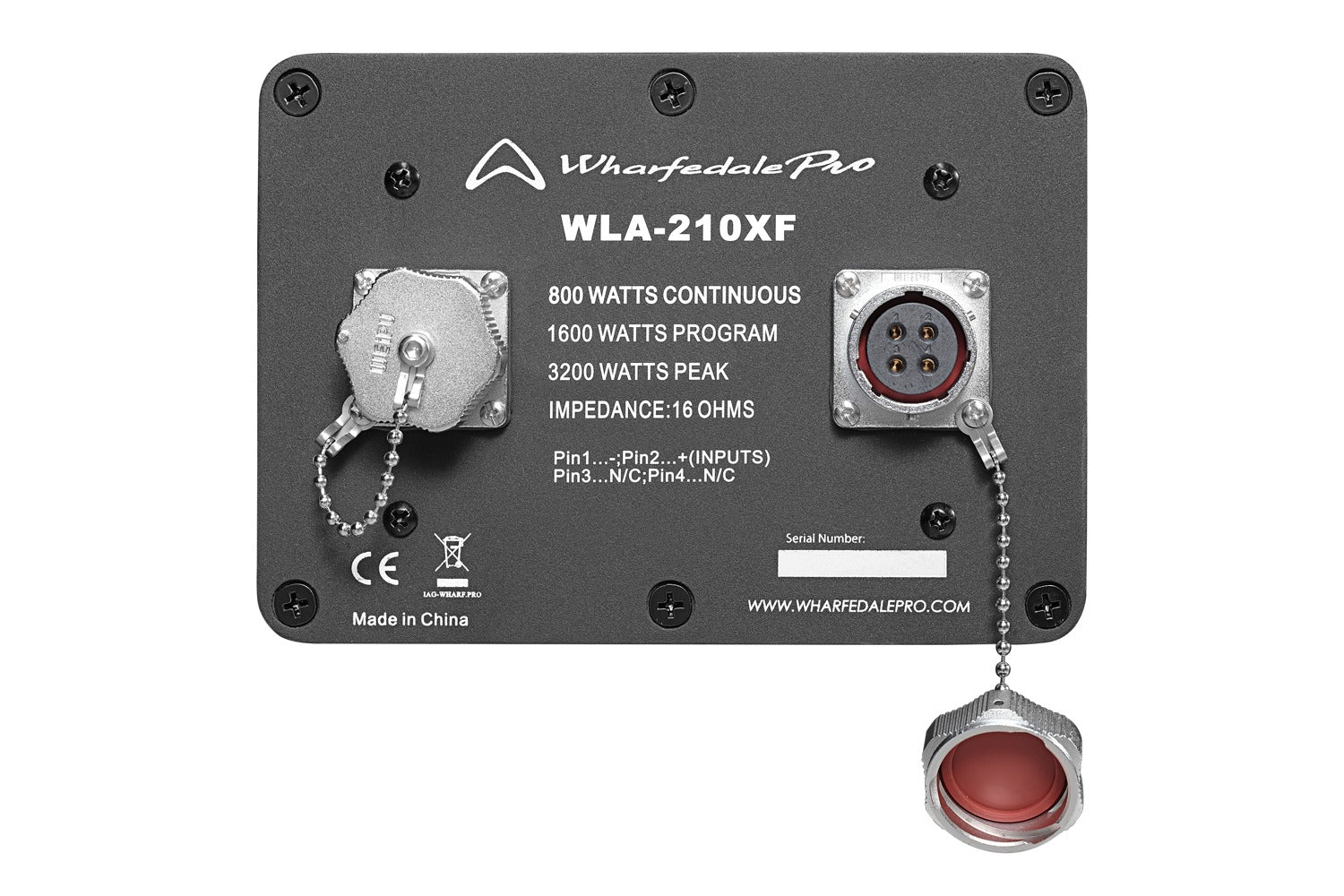

CONNECTORS
All models of the WLA-210XF system use certified input connectors.
Inside the carton box there are also the cable connectors needed for easy system setup.
IPX6 CERTIFIED
With the same reliability and high performance characteristics as the original ‘non-F’ models, these WLA-210X ‘F’ models are IPX6 Certified.
This certification states that there should be no harmful effects when “Water is projected in powerful jets (12.5mm nozzle) against the enclosure from any direction”
With rust-proof aluminium grilles, components wrapped in wax and anti-corrosion stainless and aluminium screws and hardware, the F models are made for the rain and long-term environmental exposure.

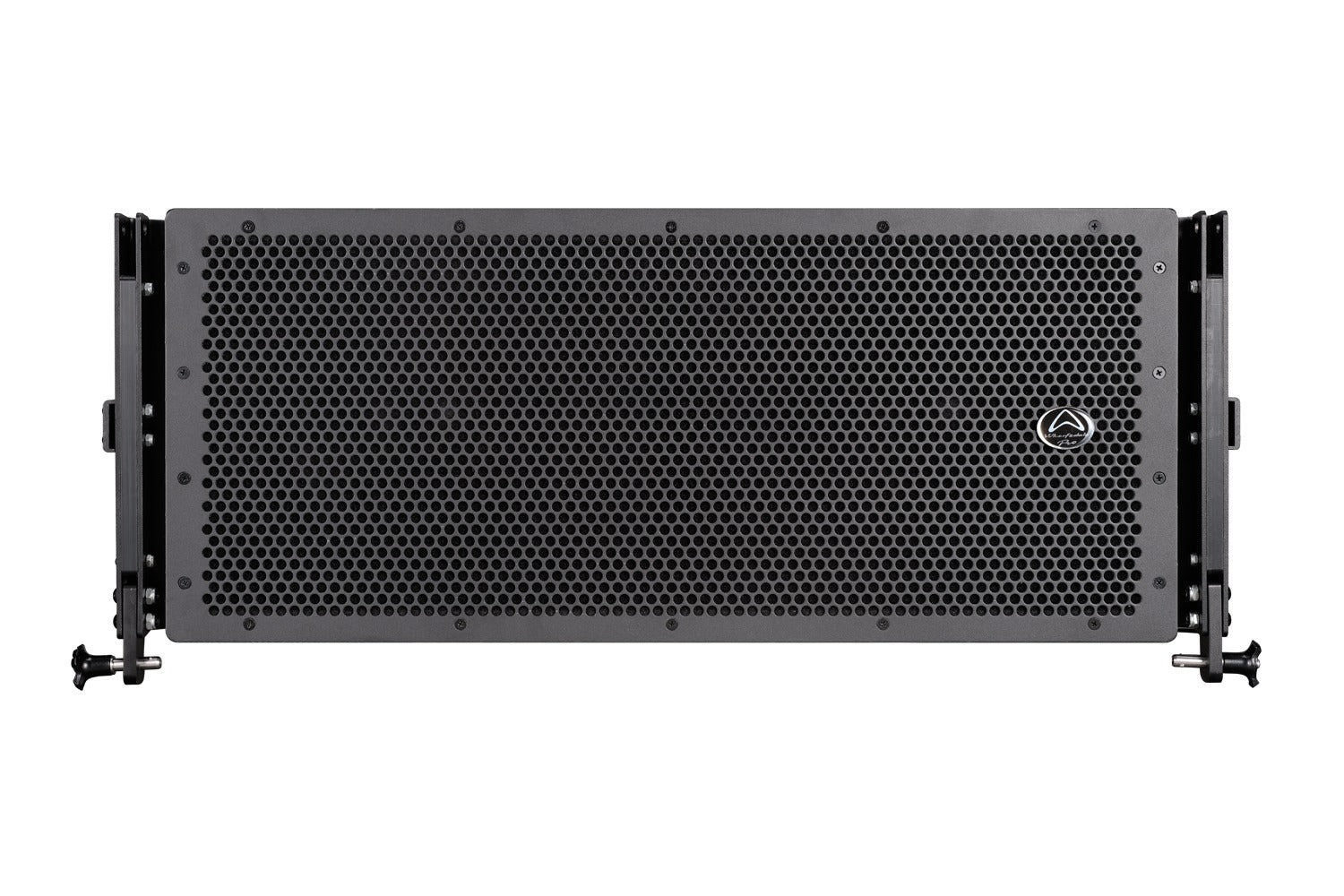

In addition, to reduce any risk of standing water, and to help rental companies with storage, the front grille has been flattened.
AMPS & DSP
A Versadrive DSP (such as SC-48 FIR) or a DP-N series amplifier with internal FIR filtering is highly recommended to get the most from the system. Phase, EQ and filtering should be applied and this way, the physics of the system can be truly optimised – delivering that sub-bass, power and clarity that this system can deliver.
SPECIFICATIONS
| Model Name | WLA-210XF |
|---|---|
| System Type | IPX6 waterproof |
| Configuration | Two-way 2 x 10” |
| Freq Response (+/-3 dB) | 65 Hz – 20 KHz |
| Freq Range (-10 dB) | 60 Hz – 20 KHz |
| Sensitivity (2.83 v / 1 m) | 102 dB |
| Calc Max SPL @1 m | 138 dB |
| System Impedance | 16 Ω |
| LF Transducer | |
| Size | 2 x 260 mm / 2 x 10” |
| Voice Coil Size | 65 mm / 2.5” |
| Rated Impedance | 2 x 8 Ω |
| LF Power (re:AES2-2012) | 2 x 400 W |
| HF Transducer | |
| Compression driver | Neo |
| Voice Coil Size | 75 mm / 3.0” |
| Exit Size | 35.6 mm / 1.4” |
| Diaphragm Material | Titanium |
| Rated Impedance | 8 Ω |
| HF (re:AES2-2012) | 90 W |
| Coverage (H x V) | 100° x 10° |
| Power | |
| Continuous Power | LF:800 W HF:90 W |
| Programme Power | LF:1600 W HF:180 W |
| Peak Power | LF:3200 W HF:360 W |
| Crossover frequency | 1.5 KHz |
| Operational Modes: | No |
| Input Connector | 2 x WY-24K4Z (waterproof) |
| Hardware | Integral – adjustable |
| rigging 0°-10° | |
| Enclosure Material | 15 mm, 18 mm Ply |
| Finish | Waterproof Paint |
| Grille Material | 3.0 mm Aluminium |
| Dims- (Unpacked) | |
| Height Front | 333.3 mm / 13.1″ |
| Height Rear | 256.3 mm / 10.0″ |
| Width | 845 mm / 33.3″ |
| Depth | 443 mm / 17.4″ |
| Dims – (Packed) | |
| Height | 953 mm / 37.5″ |
| Width Front | 424 mm / 16.7″ |
| Width Rear | 424 mm / 16.7″ |
| Depth | 513 mm / 20.2″ |
| Weight | |
| Net Weight | 46.0 kg / 101.2 lbs |
| Gross Weight | 50.0 kg / 110.0 lbs |
